Semi-Automatic Biochemistry Analyzer

Mode of testing for flow cells and cuvettes

Extensive storage capacity of over 300 programs and 200,000 sample results7-inch touch screen with true color (800*480 pixels)input:
output:Five USB interfaces and an Ethernet port.The transmission of LIS data is facilitated by the freedom to connect a mouse, keyboard, and printer.Windows embedded compact 7 smart operation systemSPECIFICATIONSinput:
output:Test method – Kinetics, Fixed-time, 1 point end, 2 point end (Sample blank)

Optics – Seven standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, and 630nm. An additional two are available as an option.

Lamp house – Auto-sleep function, long-life tungsten halogen lamp (6V/10W).

Display: 800*480 pixels, 7.0 TFT LCD with touch screen.

Printer – Thermal printer with a built-in paper capacity of 57mm.

Temperature: 25, 30, 37℃, and room temperature. Through the utilization of Peltier elements.

Optical path and flow cell capacity: 10mm, 32ul.

Resolution: 0.0001 Abs.The photometric range is 0.0000-4.0000 Abs.CPU: ARM Cortex-A8, 720MHzMemory – DDR2 SDRAM: 1G bit; Flash – 256 MB; Over 300 programs; 200000 results can be stored.

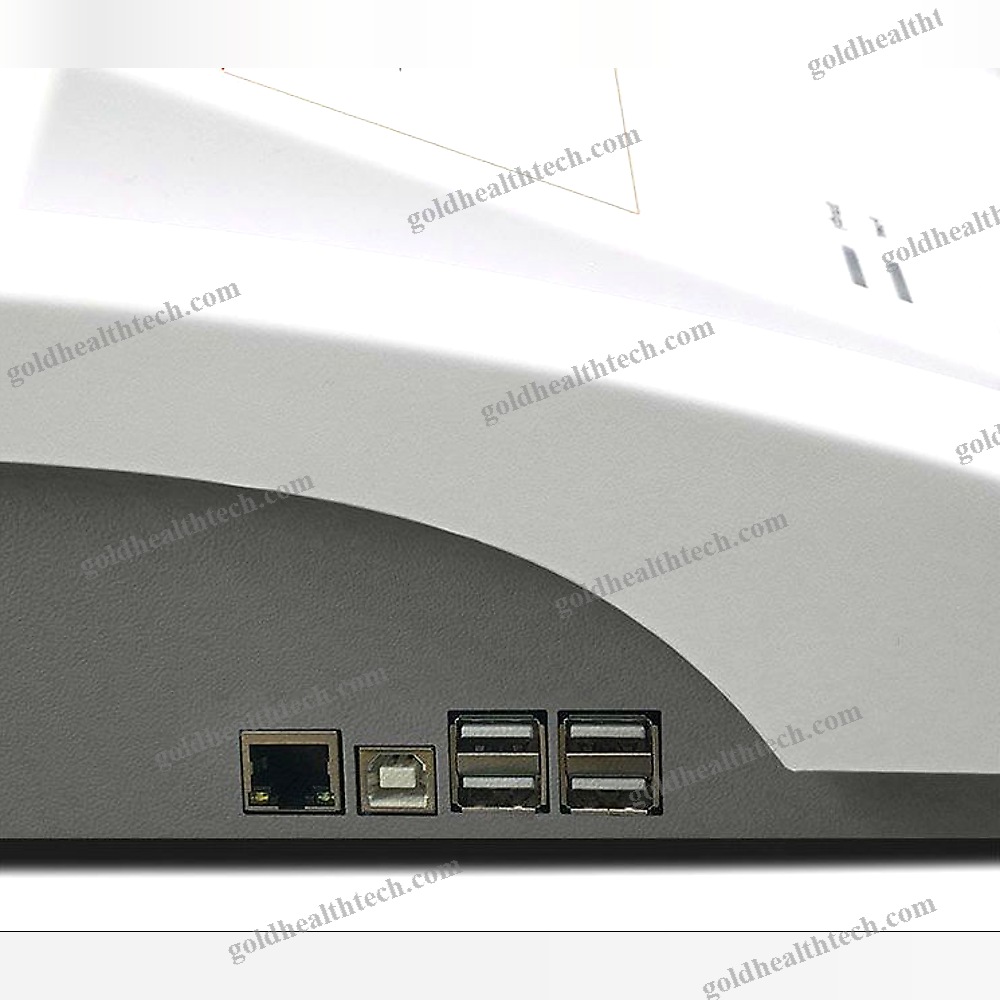

Interface: 1 Ethernet port, 1 USB Slave, and 4 USB Hosts.USB port (host) for keyboard, mouse, printer, U disk, bar code reader, and other devices.USB port (slave) for PC connection (supports PC software control function).

Operational environment: Temperature: 10°C to 30°C, humidity: 30% to 80%.

Power requirement: AC 100-240V, 50/60 Hz.Language: English, Portuguese, Spanish, Chinese
