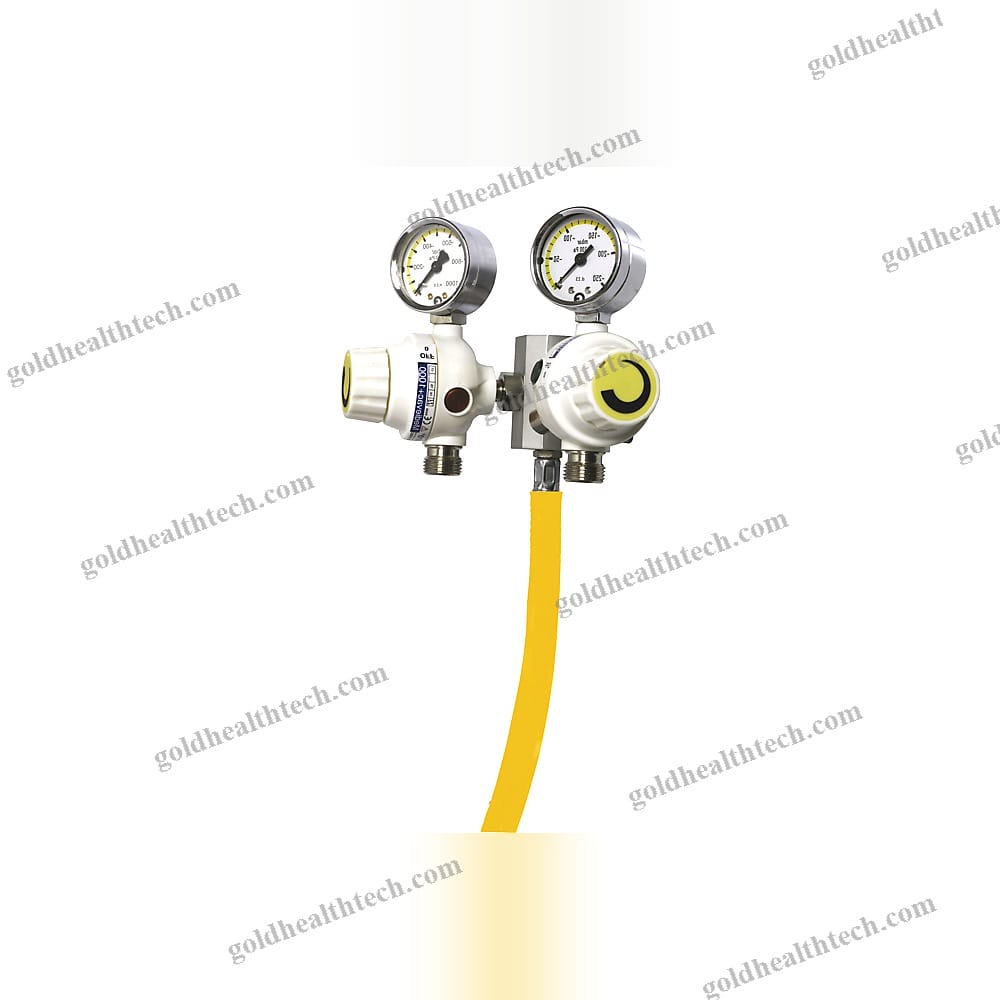

Plug-In Type Vacuum Regulator

MediEvac+ is a vacuum regulator system that enables the user to safely and efficiently manage suction therapy.input:
output:Medical vacuum regulator system that is both compact and lightweight

The Medievac+’s suction level is controlled by a front-mounted control knob that is easily accessible.

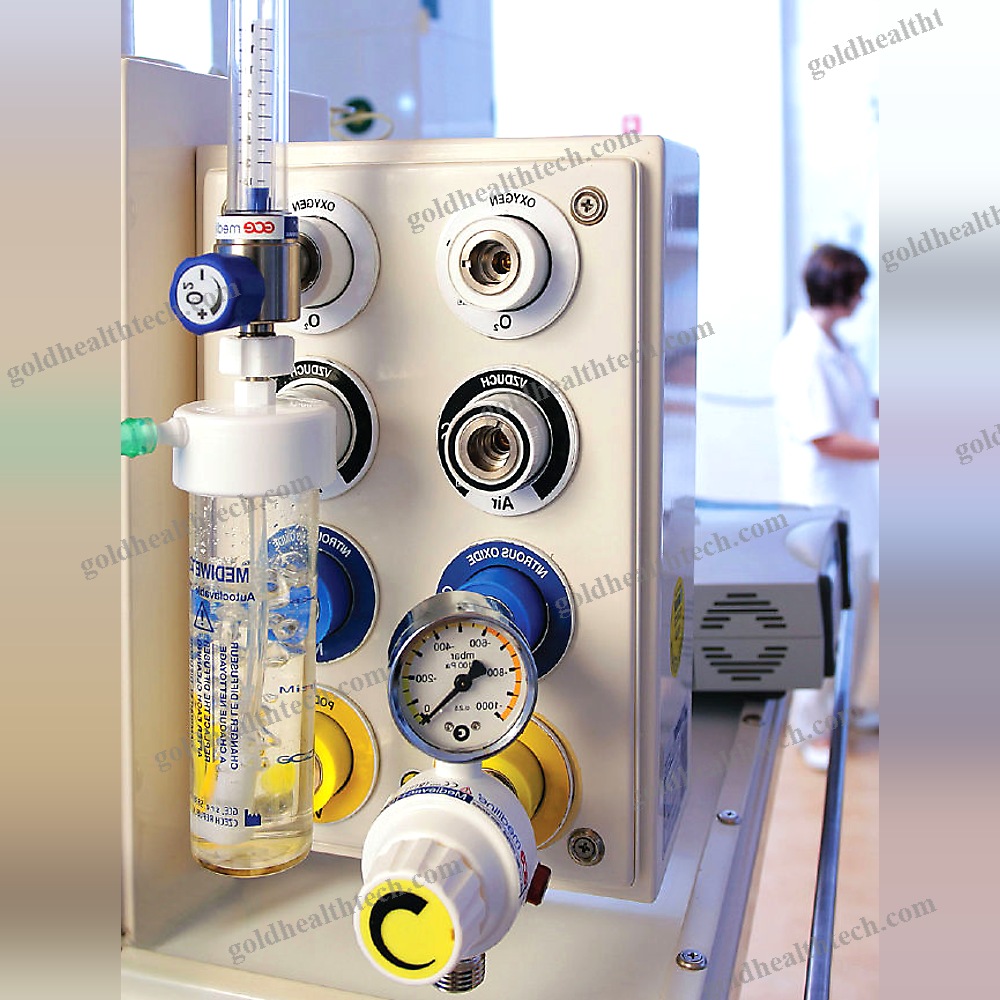

The Medievac+ on-off valve is distinguished by its effortless restoration of the selected de-pressure value in the event of treatment interruption.The operator can easily observe the vacuum pressure by rotating the Medievac+ gauge.The gauge scale is color-coded in sections to provide a clear indication of the suction level.Three versions of adjustable pressures are available to accommodate all therapy requirements: -250, -600, and -1000 mbar.

In the unlikely event of a de-pressure increase, the –250 mbar version is equipped with a safety valve that will automatically shut off to ensure the patient’s maximum protection.The device’s compactness provides:

Rapid access to the vacuum sourceAccessories, such as safety jars, can be mounted quickly and easily.Good accessibility to other devices that are connected to terminal units that are conveniently located.TECHNICAL INFORMATIONON-OFF functionality:ON: the green button is visible.

To activate the device, press the red button.The maximum inlet pressure is 950 mbar, as determined by the atmospheric pressure.Maximum suction flow: 70 liters per minute with a margin of error of ±5 liters per minute.Gauge accuracy: ±2.5 percent of full scale.Medievac+ 250 is the sole safety valve.maximum opening pressure of 290 mbar

Inlet connection: In accordance with national standards

Outlet connection: G1/2 maleHeight: 133 mm; 260 mm (with safety jar)Width: 63 mmDepth: 77 mm (excluding connector)ABS is the material used for the body
