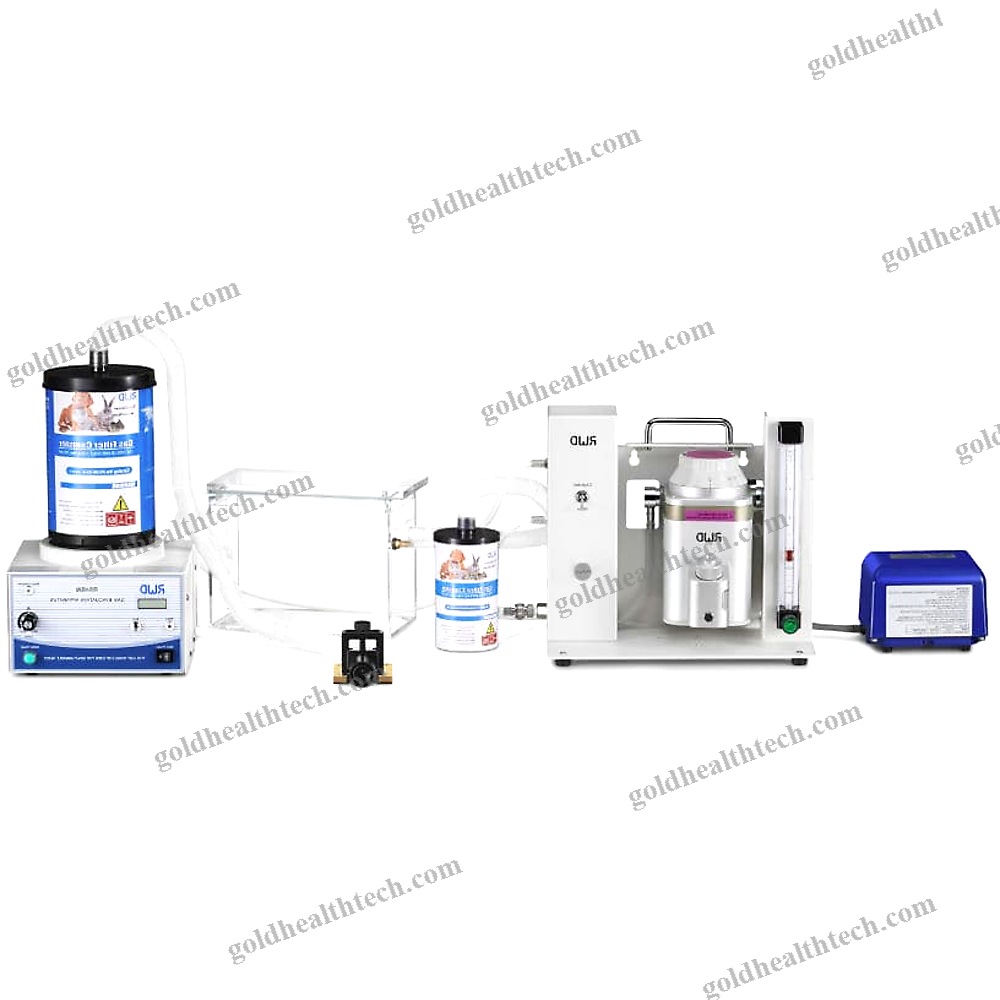

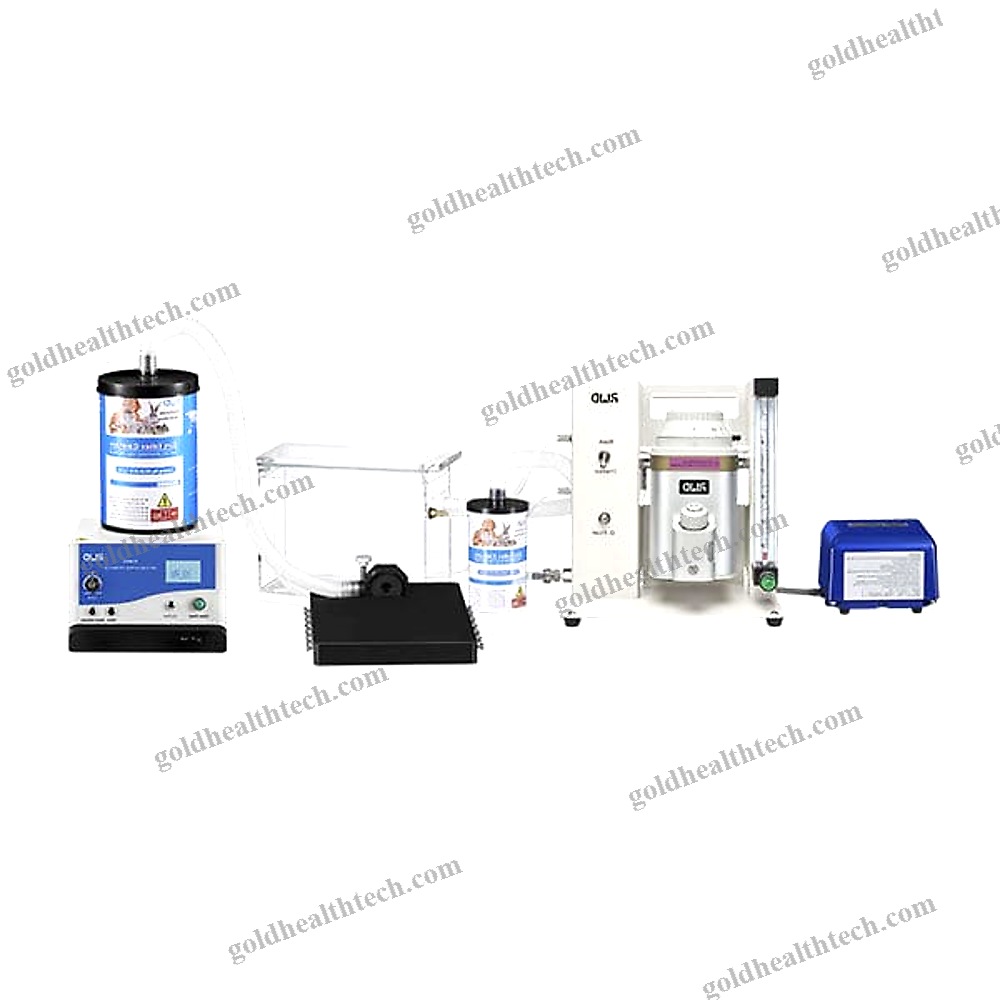

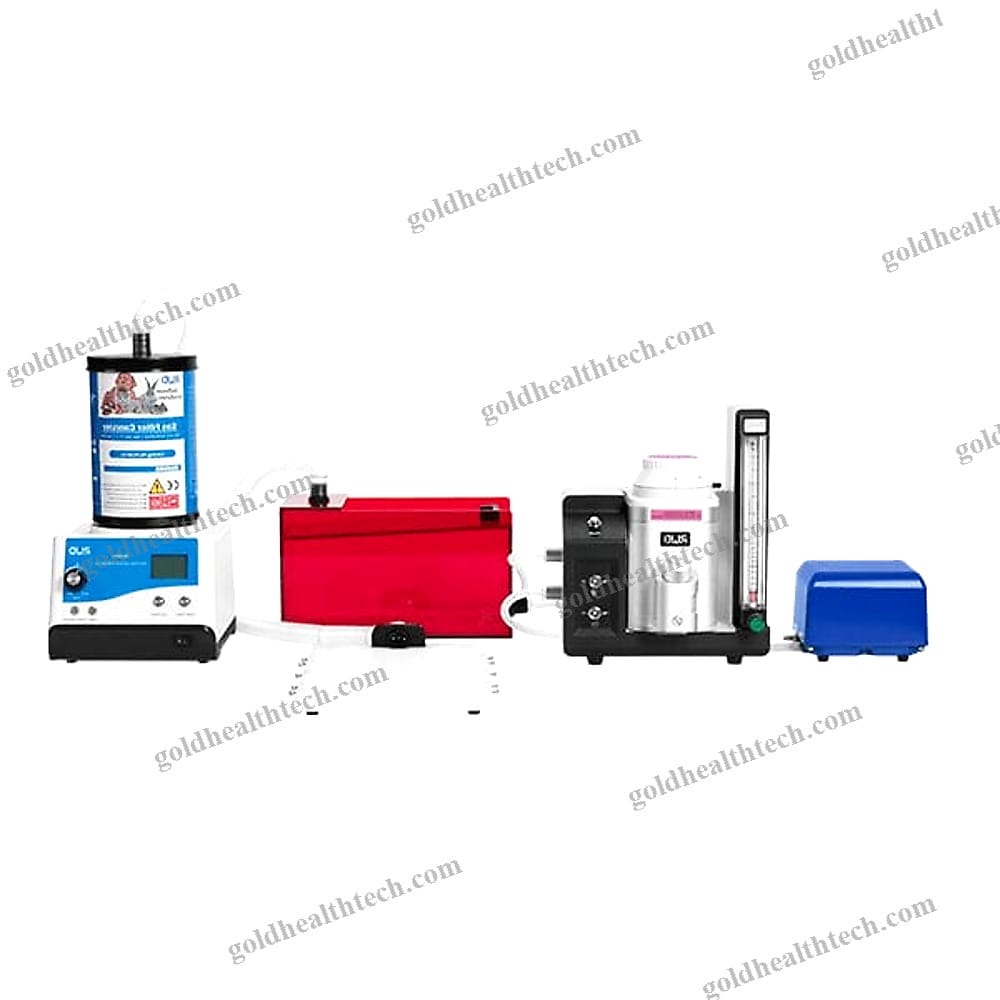

Animal Research Veterinary Anesthesia Workstation

The experimental system is equipped with a gas recovery system to ensure a safe experimental environment and maximize the operator’s protection. This is achieved by replacing various types of anesthesia machines and masks to accommodate the requirements of animal experiments, including cerebral ischemia and myocardial ischemia models, osteoporosis models, tail vein injections, abdominal aorta blood sampling, heart blood sampling, ventricular injections, tissue/organ removal, and other animal surgery experiments.input:
output:Characteristic

1. Vaporizer with exceptional precision (Each unit is accompanied by an independent test report).

2. Dual channels: Independent switches for the chamber and mask channels.

3. Vaporizer installation is unnecessary due to the integrated design.

4. Active recycling is facilitated by a low stress induction chamber.

5. A gas evacuation system that is highly efficient in preventing the researchers from being exposed to anesthesia gas.

6. Space can be conserved by incorporating a mobile trolley.input:
output:Air Pump:Voltage: 110-120 volts60Hz is the frequency.

Air Flow: 18 liters per minuteAMP(A): 0.3620 watts (W)

Maximum Dimensions (mm): 163*128*111input:
output:Vaporizer:Flowmeter specifications: 0-4 liters per minute.Concentration range:Sevoflurane: 0-8% Isoflurane: 0-5%

Concentration output accuracy: ±0.1 (0-1), ±0.15 (1-1).

Capacity: ≥120 millilitersOperating temperature: 10–35°Cinput:
output:Chamber (V105):Dimensions: 310mm x 150mm x 190mminput:
output:Anesthesia Operation Platform:Dimensions: 300mm x 210mm x 10mmCanister:Absorb 200g of gas, with a net weight of 800g.
