Xrf Spectrometer

The AZtec series provides a variety of EDS systems to select from, depending on the application and budget. All classes offer high-performance detectors with an energy resolution of 129 eV (Mn-Ka).*

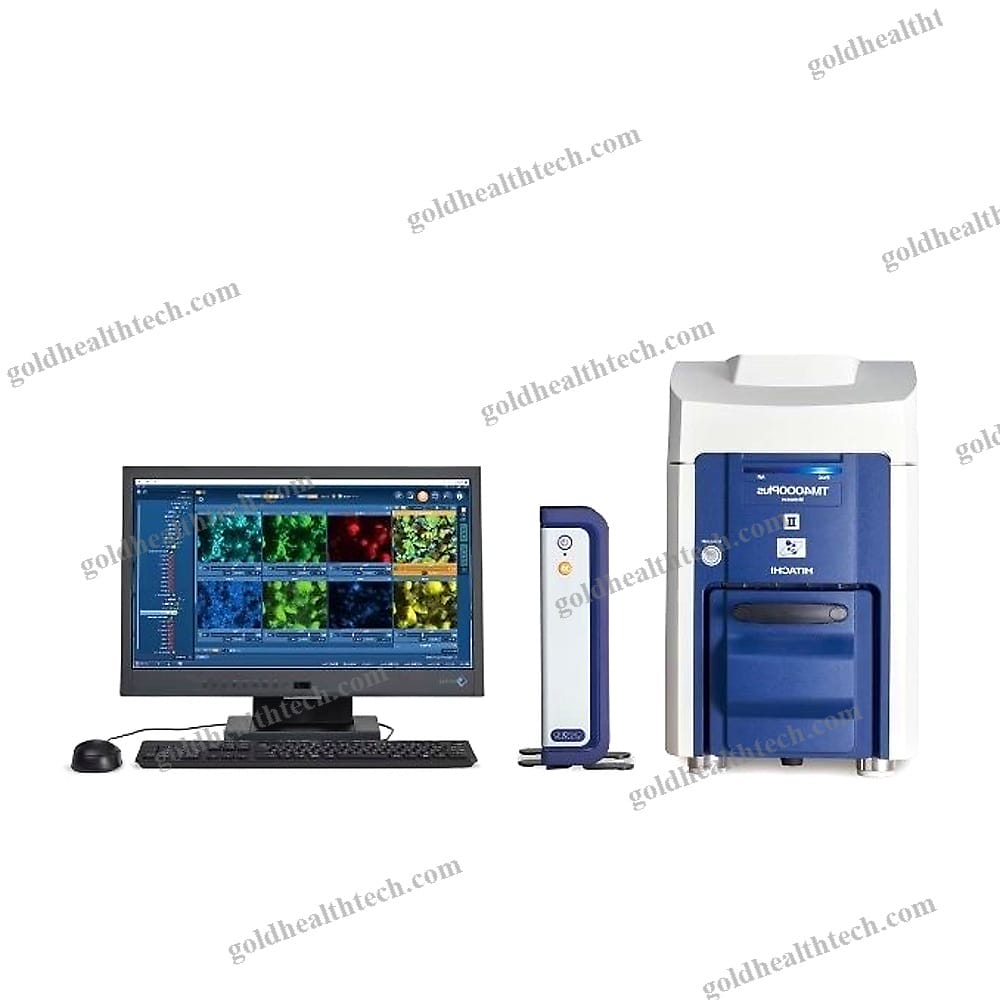

:An example of a TM4000 Series SEM in conjunction with AZtec EDS*: Detector: Built-in type(Manufactured by Oxford Instruments (UK))


Characteristics

Automatically labeled peaks can be displayed in the Live Spectrum Viewer.(AZtecLiveOneXplore)

TruQTM Technologies and high-precision pile-up correction function for high-throughput analysis.TruMap produces element maps that eliminate peak overlaps in real time.Line-upinput:
output:Standard: AZtecOneXploreinput:
output:AZtecLiveOneXplore: LiveEDS functioninput:
output:Multifunctional analysis instrument: AZtecLiveLite



AZtecLiveOneXploreLive EDS functioninput:
output:The TM4000 User Interface offers Live Spectrum View, which displays the X-ray spectrum with automatically labeled peaks. It enables you to verify elemental information by looking at secondary electron images and/or backscattered electron images, even as you move around your sample.

TruMAP featureinput:
output:TruMap function with high precision and a variety of featuresinput:
output:The TruMap feature enables the accurate separation and background-subtraction of multi-element spectra in real time, resulting in a precise elemental map that is free of image contamination caused by overlapping peaks.input:
output:The TruMap function clearly resolves data from Mg-K and As-L, which peaks overlap in typical maps, in the example displayed on the right. The data is free of signal overlap.AZtecLiveLite



Functions for Advanced Analysisinput:
output:The AZtecEnergy system provides advanced analytical functionality and flexible configurations, including the capability to automate analyses through a motorized stage.
