Video Laryngoscope With Integrated Video Monitor

Camera Specifications

Digital advanced imaging-display system: ≥1MPField of View (FOV): 75°±10°

Frame rate: 30 frames per second

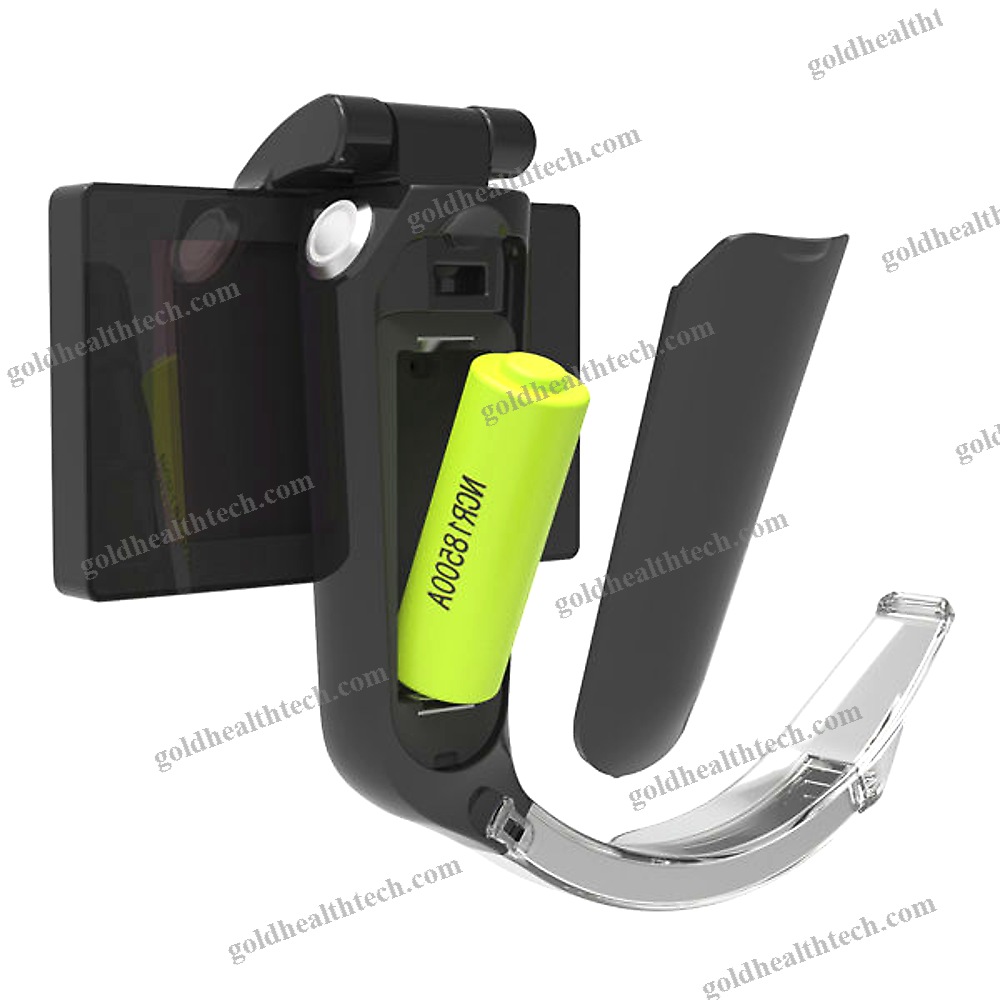

Depth of Field: 5-100mmBattery18500 standard rechargeable lithium-ion battery

2,040mA / 3.7 VDC

Batteries that are fully charged have an operating time of over 240 minutes.Rechargeable until at least 300 times
Display

Exceptional clarity 960 x 480 pixels

3 inches with tempered glass that is resistant to scratches

Two-way rotatable: vertical ≥180°, horizontal ≥320°The typical view angle is 85° in all directions.Memory is a cognitive process that involves the retention of information.32 GB of internal memoryBladesBlades of a smaller sizePatients

Disposable bladesAppropriate for all patientsDescriptionA high-end device that is manufactured in the Netherlands and is intended for Western markets. It is designed to provide the highest level of functionality at a higher cost.The screen is collapsible, enabling it to be transported in a jacket pocket.

Ergonomic design in an aluminum housing with a scratch-resistant coating for the highest level of durability.

The monitor is IPX4 and the handle is IPX7 water-resistant.

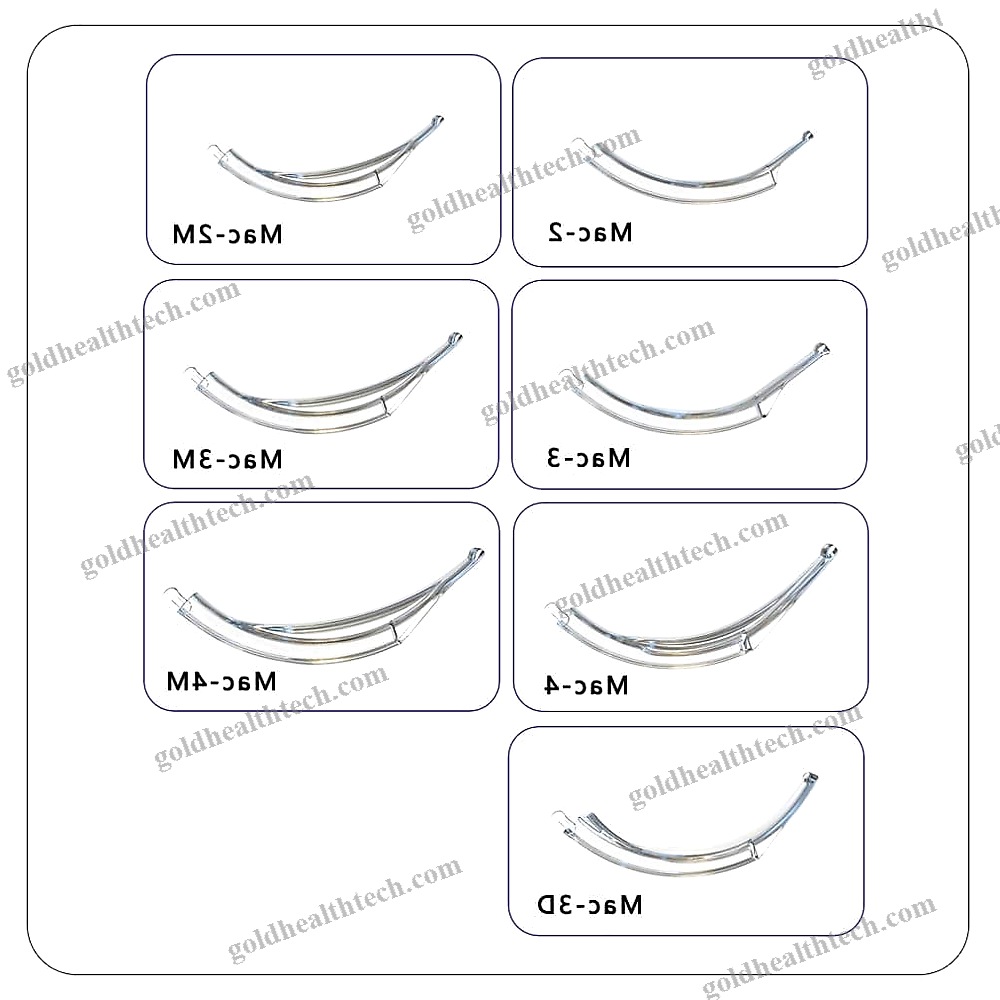

The Plus variant employs MAC blades, which are more curved, slimmer than the standard MD blades, and are available for both children and adults.

The Mac-00 is intended for preterm and newborn infants weighing 1.5-5 kilograms, the Mac-0 is intended for pediatric patients weighing 5-15 kilograms, and the Mac-1 is intended for children weighing 15-25 kilograms. Mac-2 is intended for patients weighing 25-60 kilograms, Mac-3 is intended for patients weighing 60-90 kilograms, and Mac-4 is intended for adults who weigh 90 kilograms or more. The Mac-3D is specifically engineered to address challenging airway conditions. Intubations can be performed without the use of a stylet with the Mac-2M (for 25-60Kg), Mac-3M (for 60-90Kg), and Mac-4M (for 60-90Kg).
