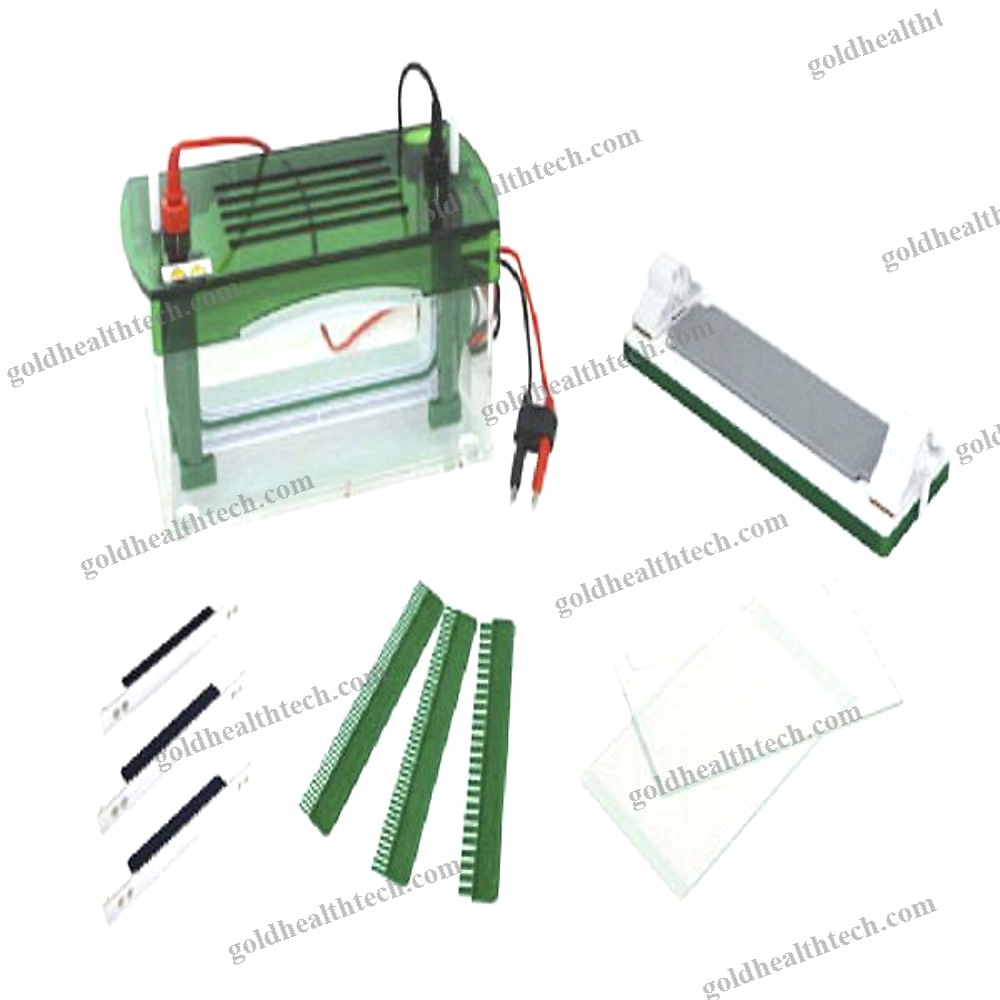

Vertical Electrophoresis Tank

In the field of life science research, vertical electrophoresis is employed to separate, purify, and prepare nucleic acid and protein samples.input:
output:Characteristics:



* Polycarbonate injection molding with high transparency, which is both durable and visually appealing.



* The glass cushion strip's integrated design guarantees that no glue is lost.input:
output:* The glue-making process is simplified and dependable due to the unique glue-making rack.input:
output:
The experiment's safety is guaranteed by opening the cover and disconnecting the power.



* The upper cover limit function guarantees that the electrode's polarity is not connected incorrectly.input:
output:* The experiment's safety is guaranteed by the power-off function of the lid.input:
output:* It is capable of producing double-board glue simultaneously, utilizing clear strips.input:
output:* The highest conductivity and corrosion resistance are exhibited by a 99.99% high-purity platinum electrode.input:
output:* The following power supplies are recommended: BEP-3001, BEP-6001, and BEP-600D.Technical Parameters:Glass Tray Dimensions (W*L) Thick type: 101*83mm, thin type: 101*73mm

Gel trays (width x length) Hand glue measures 83*73mm, while precast glue measures 86*68mm. The standard comb thickness is 1.0mm, with an optional 1.5mm thickness.Comb Throughput: 10 to 15 samples

Gel quantity: 1 to 2 piecesNo. of Samples: 10 to 30 piecesBuffer Volume: 700 mlStandard Accessories

Body tank (1), cap (1), electrode core (1), gel casting base (2), gel frame (2)Gel shovel: 1 Glass plates: 5 pairs O-wells comb: 2 Single glue baffle: 1

15-well comb with a thickness of 1.0 mm*2External Dimensions (L*W*H): 150*120*130mm Packaging Dimensions (L*W*H): 400*350*300mmGross Weight: 2.7 kilograms
