Vacuum Leak Tester

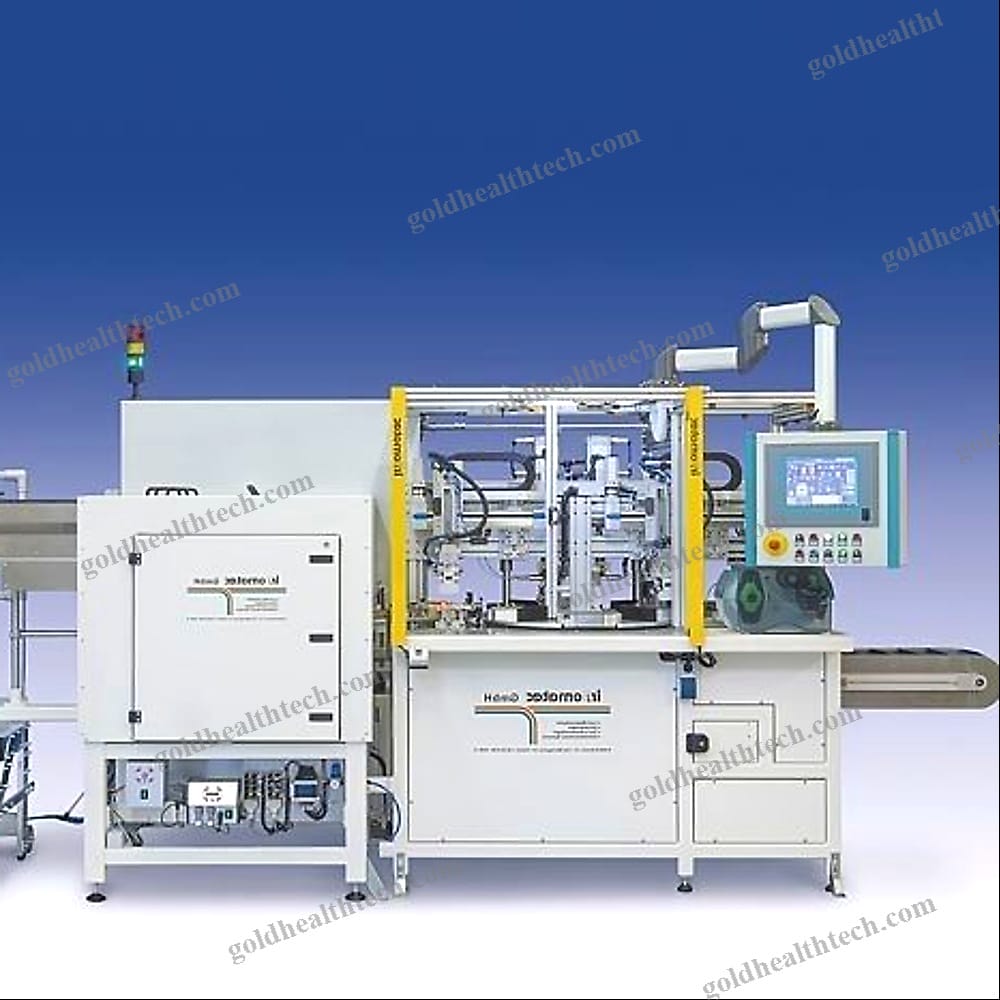

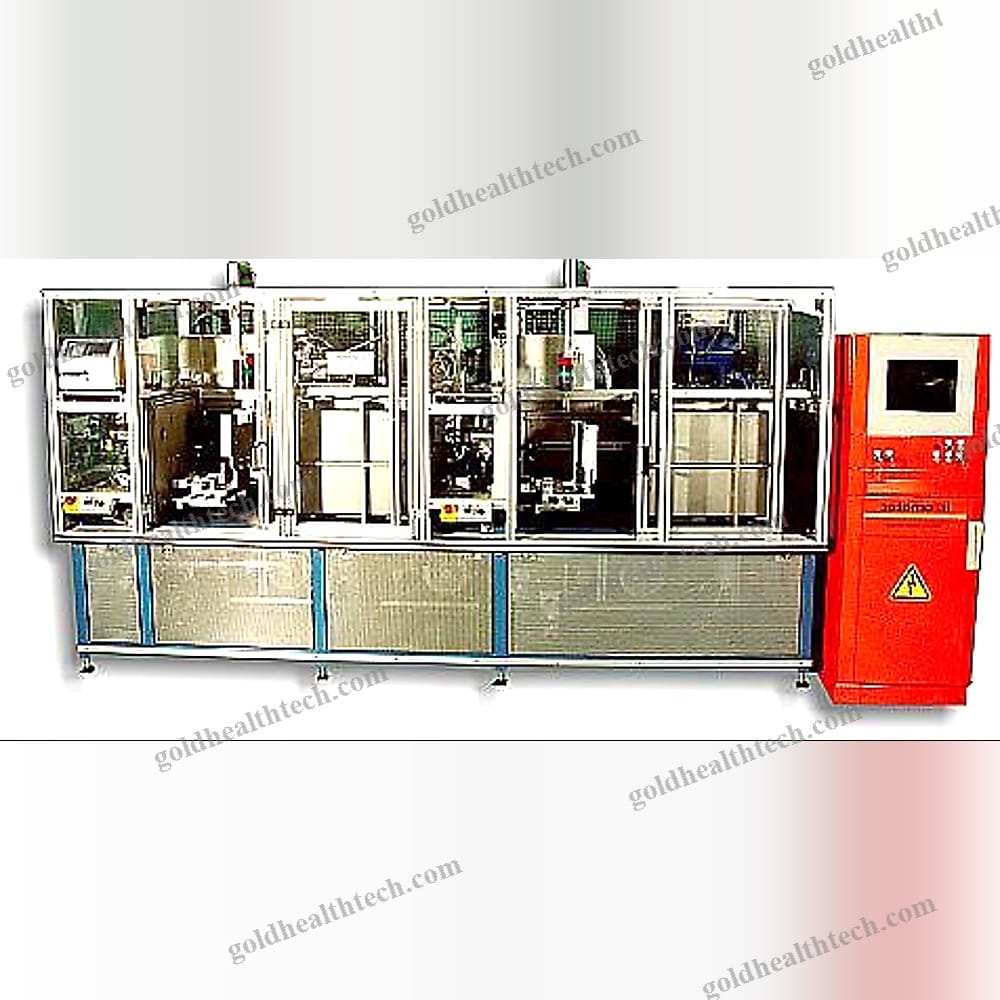

Eightfold helium leak testing of various pressure switch housings with circular control panels for eight distinct versions of the test piece, fully automated.input:
output:Vibration conveyors are employed to separate the most popular types and supply components via silos. Optional loading and channeling of small batches are feasible. Ability to rapidly modify all stations in order to perform a type change within 15 minutes.The test bench is entirely automated.Adaptation of the test piece automatically
Cycle time: 2.1 parts
Test the vacuum against a pressure of 25.

The detection limit is 1 x 10-6 mbarl/s.

Acceptance of up to eight pieces is permitted.Helium chambers that are associated with a particular product and are equipped with sealing toolsInnomatec Helimix 100-20 helium/air mixing station Procedure for setting up for new type possible within 15 minutesThe correct parts are automatically marked using an infomarker and a pointer.Camera system for verifying the presence of markings on componentsThe parts that are rejected are automatically ejected through a synchronized conveyor belt.

Vacuum pumps and measuring sensors are arranged in a space-saving manner beneath the test bench on the base frame, facilitating effortless maintenance.

A high-pressure sealing unit that is electrically operated to generate the testing pressure.Barcode labels for the packaging of the parts are generated using a label printer.input:

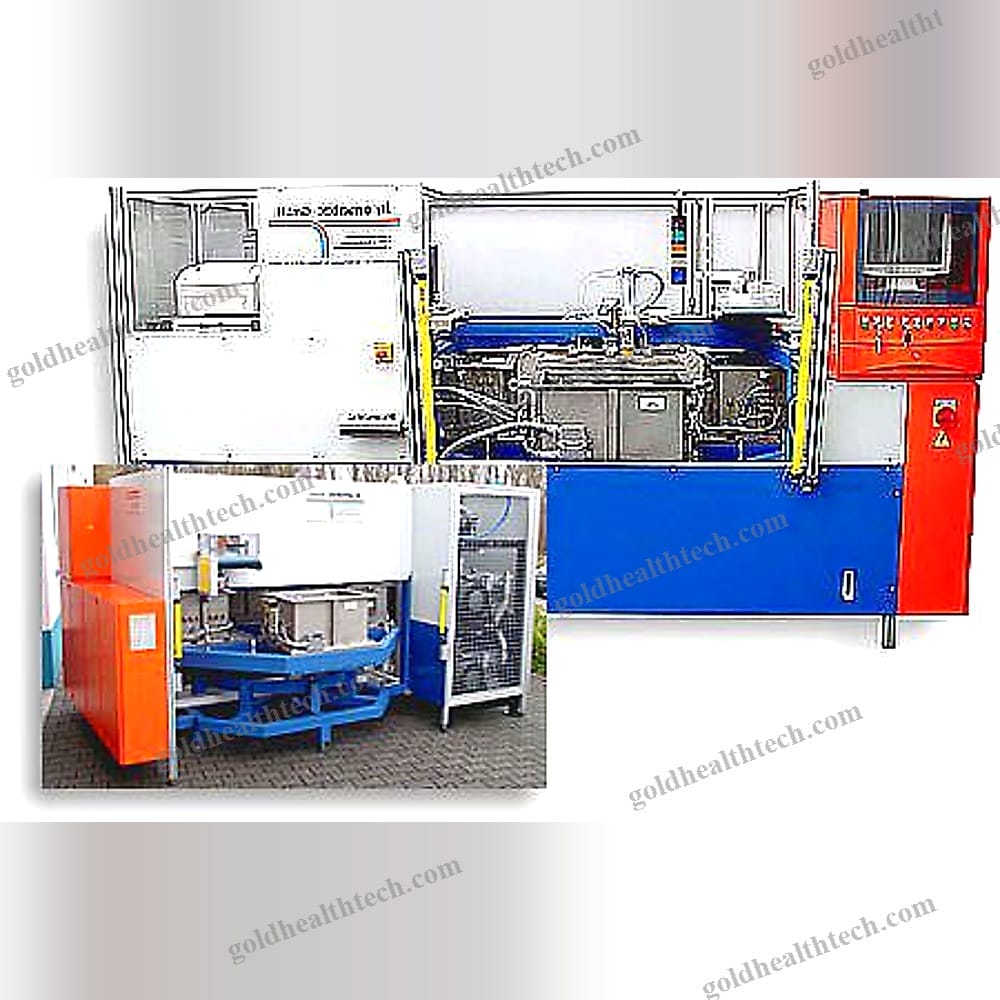

output:Single-helium leak testing of various car exhaust gas heat exchangers with chamber carousel for rapid setup and minimal system downtime.input:
output:Automatic adaptation of test piecesIn product-related helium chambers with sealing tools, up to four pieces are accepted.

The process of configuring a new type can be completed in a matter of seconds.

Automated identification of the appropriate components

Conveyor belt-based rejection of components

Space-saving arrangement of vacuum pumps and measurement sensorsStation for mixing helium
