Uv Storage Chamber

Sterilized medical instruments are stored in an ultraviolet chamber. Pre-sterilized medical instruments are stored in “Time” to prevent re-contamination by microorganisms. The camera is employed in a variety of medical and treatment rooms, including operating rooms, manipulation rooms, dental offices, and dressing rooms, where manipulations involving sterile medical instruments are performed. It is also applicable in hair salons and beauty salons.input:

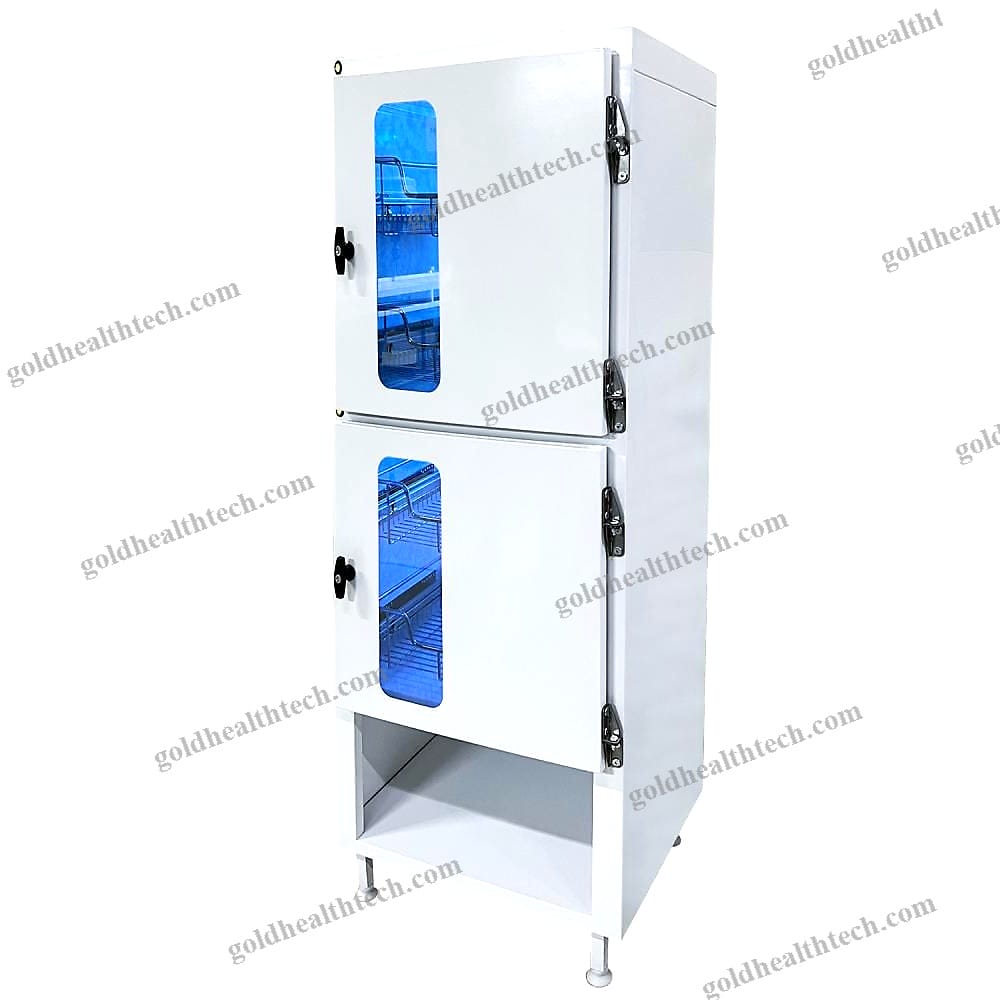

output:Two independent UV boxes are incorporated into the camera’s all-welded metal structure. A TUV15W bactericidal lamp is included in each UV box. The lamp’s ultraviolet light, which has a wavelength of 253.7 nm, is a potent prophylactic sanitary and anti-epidemic agent that is designed to inhibit the vital activity of microorganisms on surfaces and in the air.input:
output:

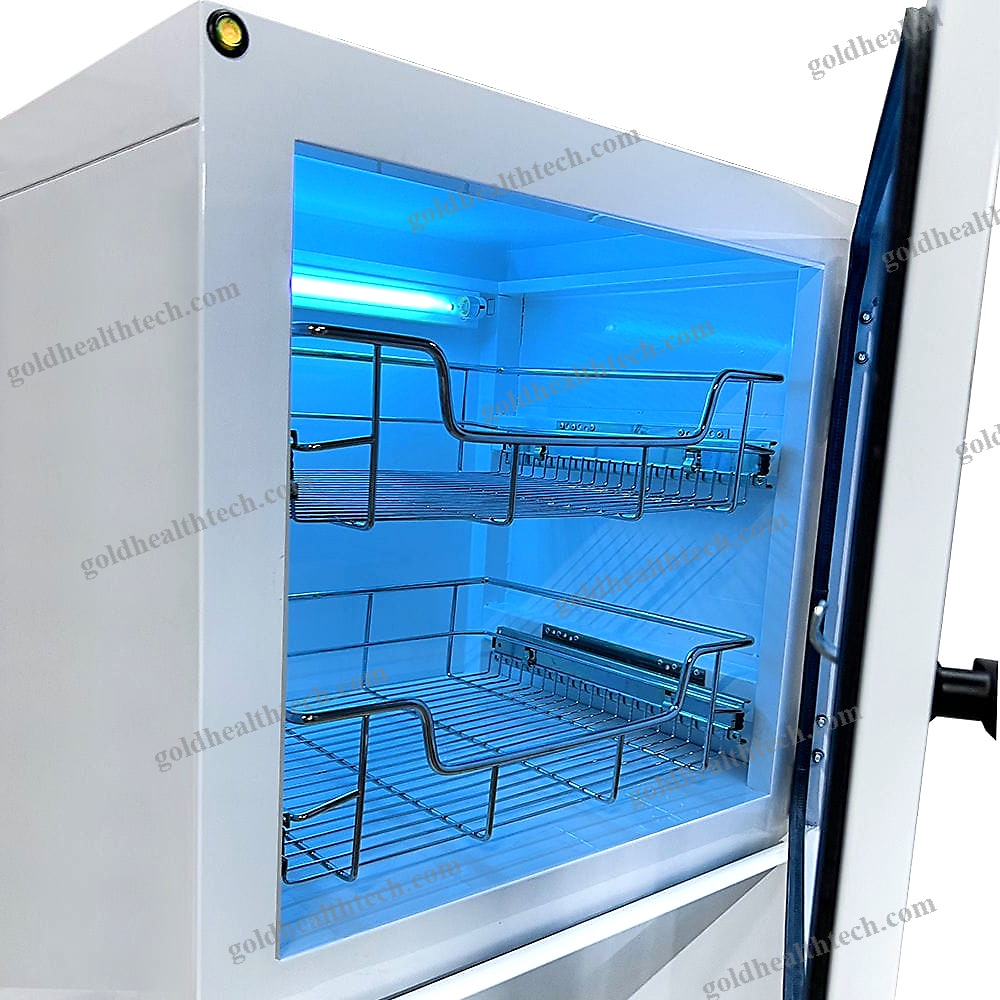

Two pull-out baskets are located within each UV-box for the purpose of storing sterile instruments. The UV boxes’ doors are secured with locks and feature special glass windows that prevent UV rays from escaping. The camera’s contents can be viewed without the need to open it due to the presence of this window. The personnel who operate the camera are not exposed to UV radiation due to its design. An open compartment is located in the lower portion of the camera and is intended for the storage of auxiliary materials. The cabinet is supported by legs that can be adjusted in height.input:
output:
The camera’s dimensions are 635*580*1620 mm (L*W*H).Leg height, in millimeters: 110The internal dimensions of the UV box are 630*470*560 mm (L*W*H).input:
output:The open compartment’s internal dimensions are 630*500*350 mm (L*W*H).input:
output:Basket dimensions in millimeters, (L*W*H): 410*490*130
