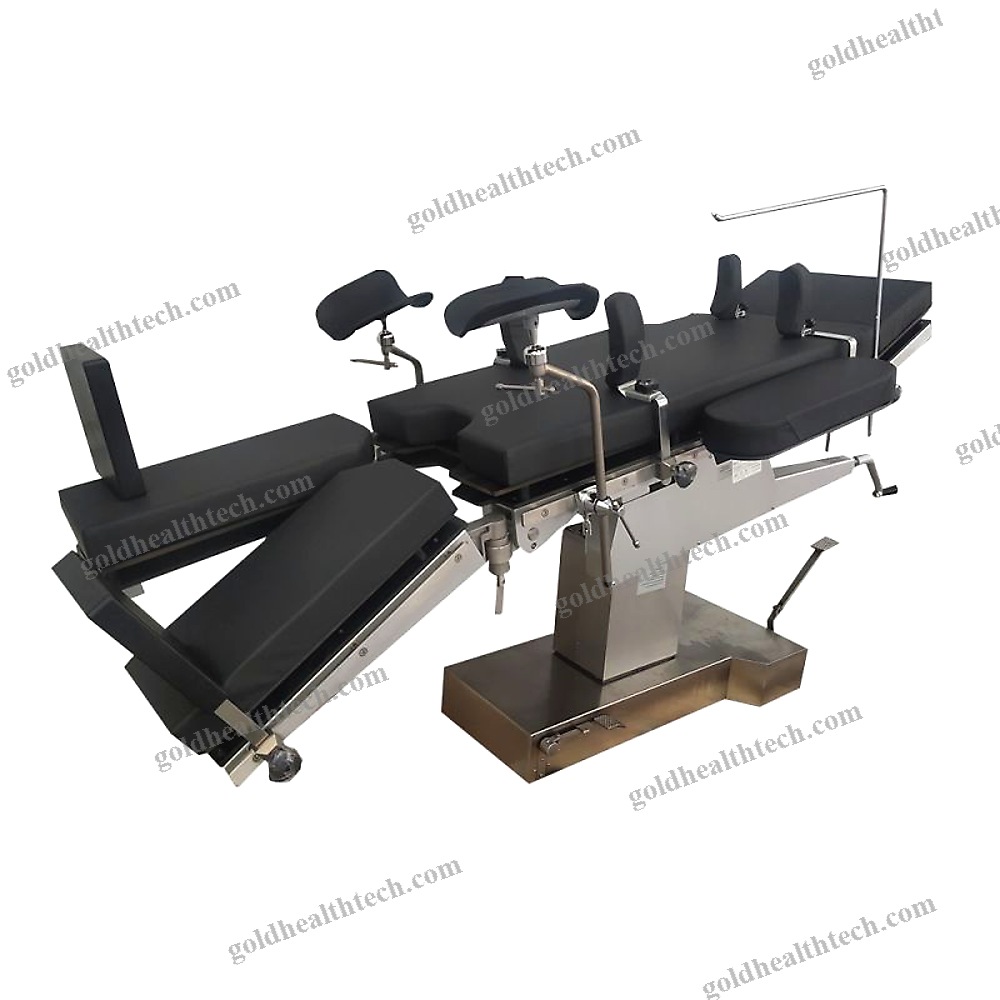

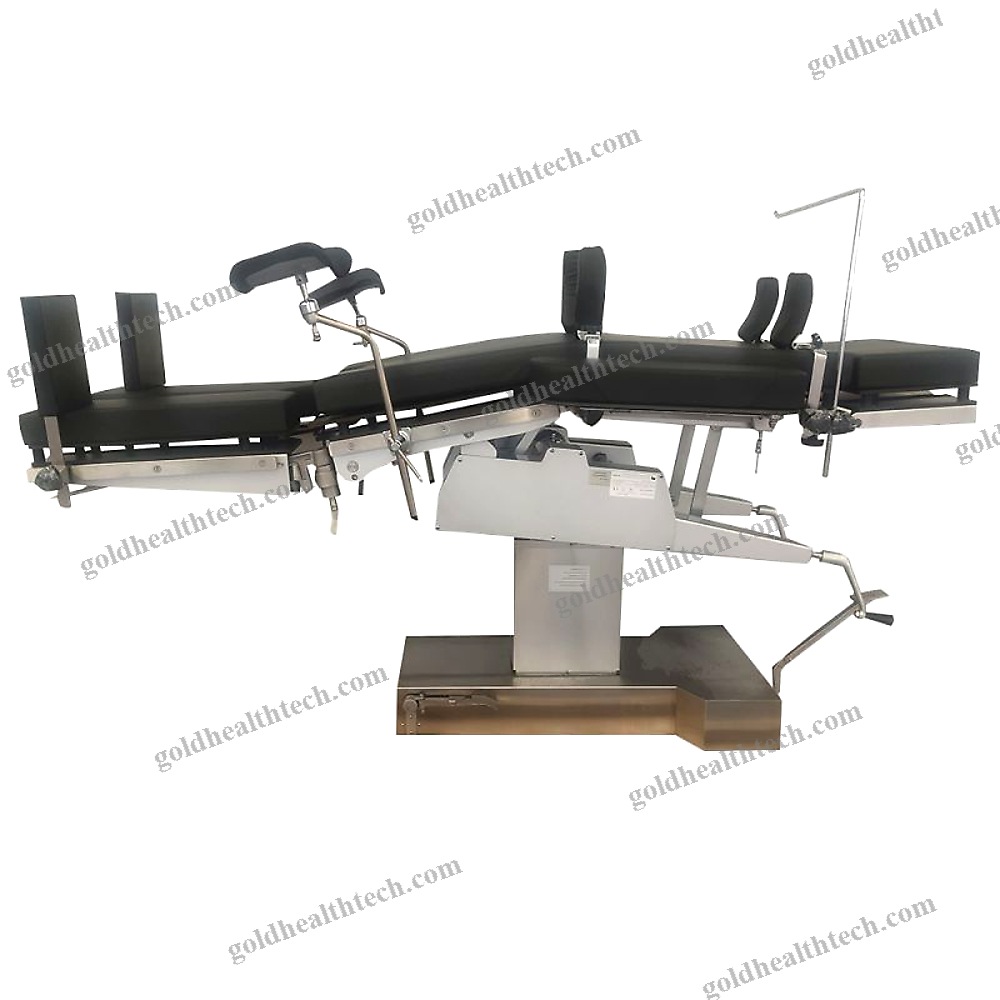

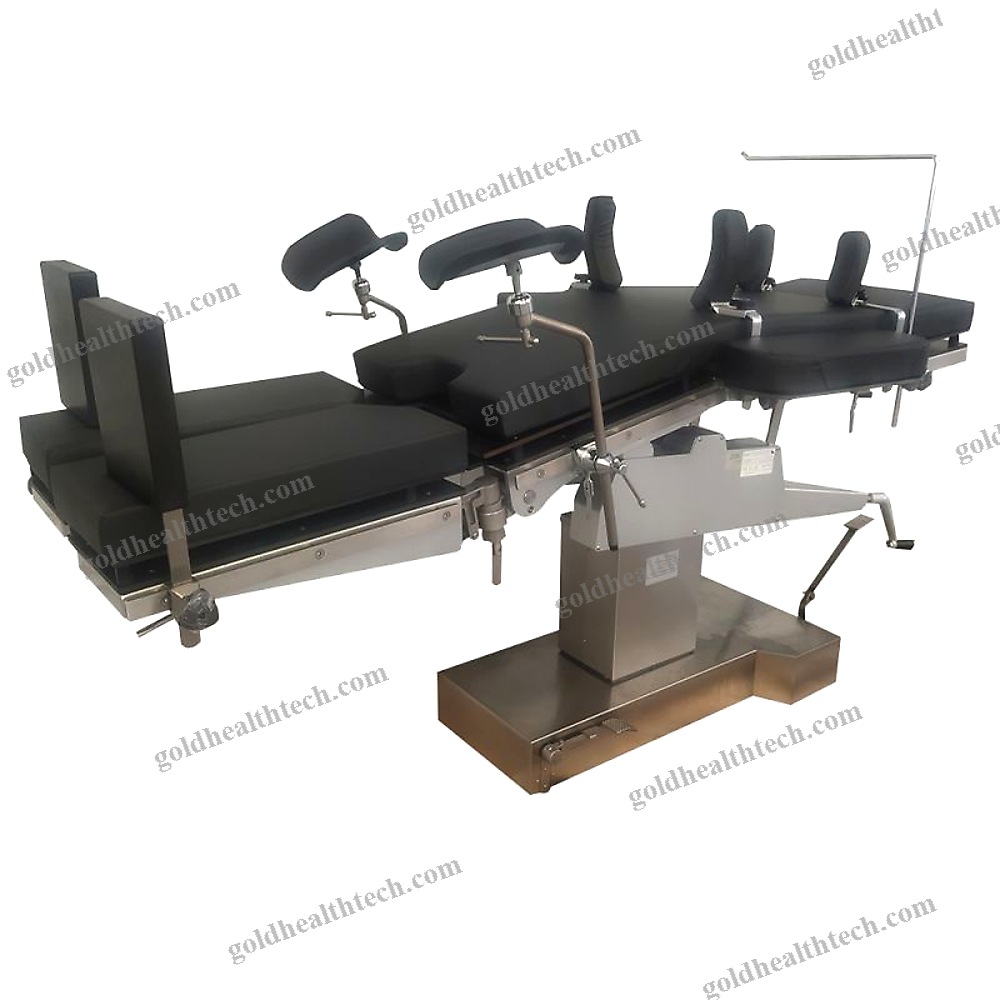

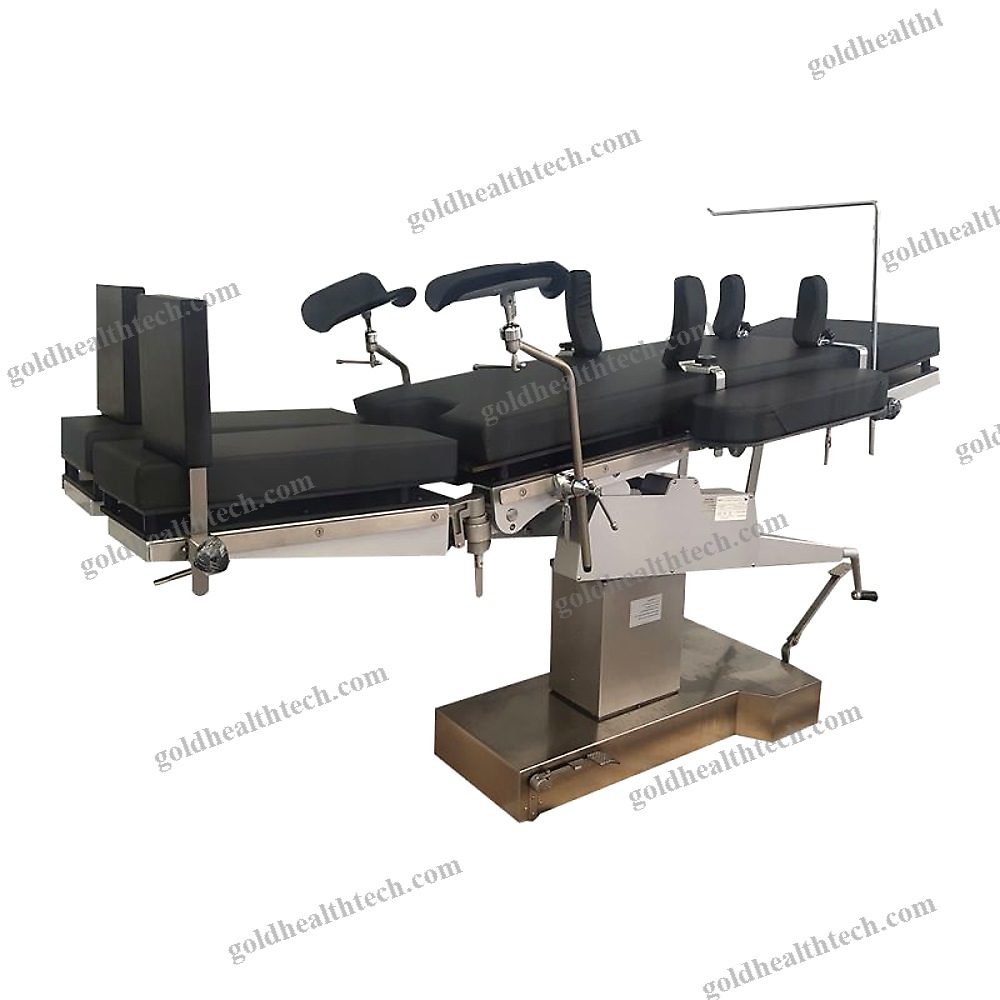

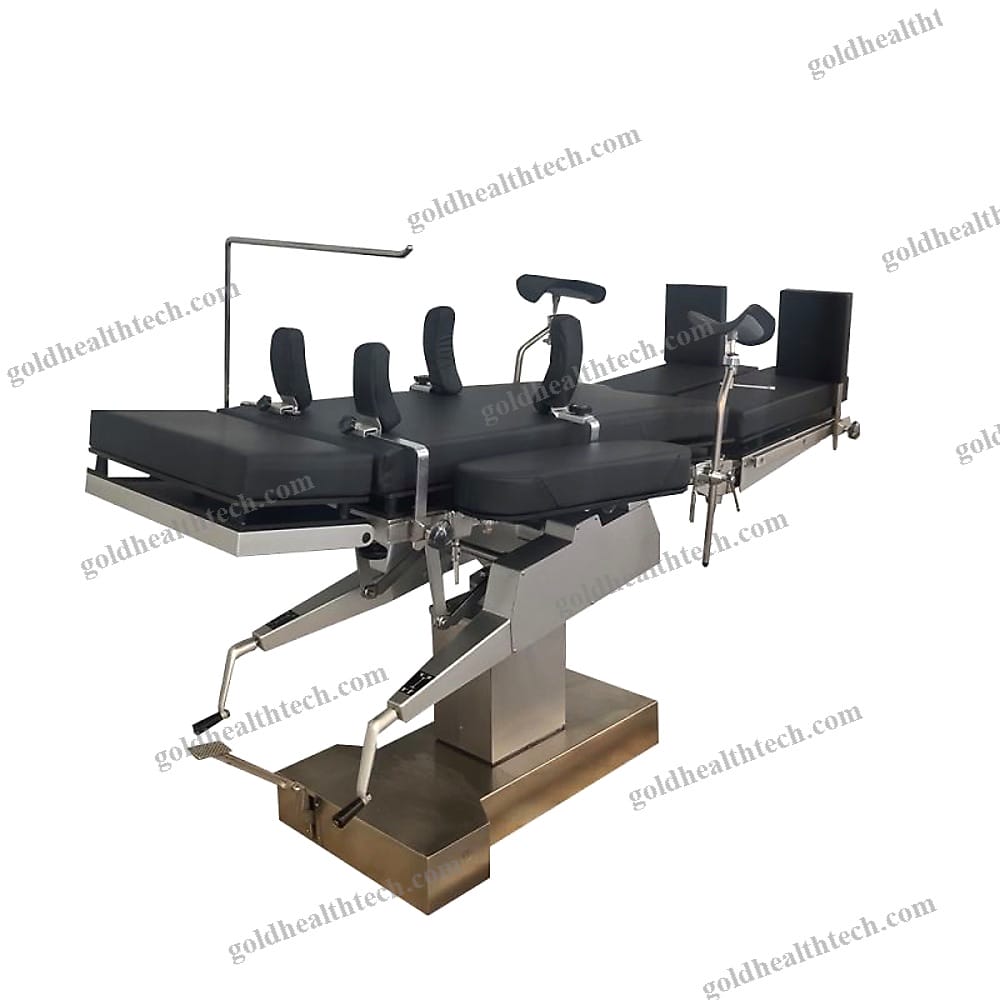

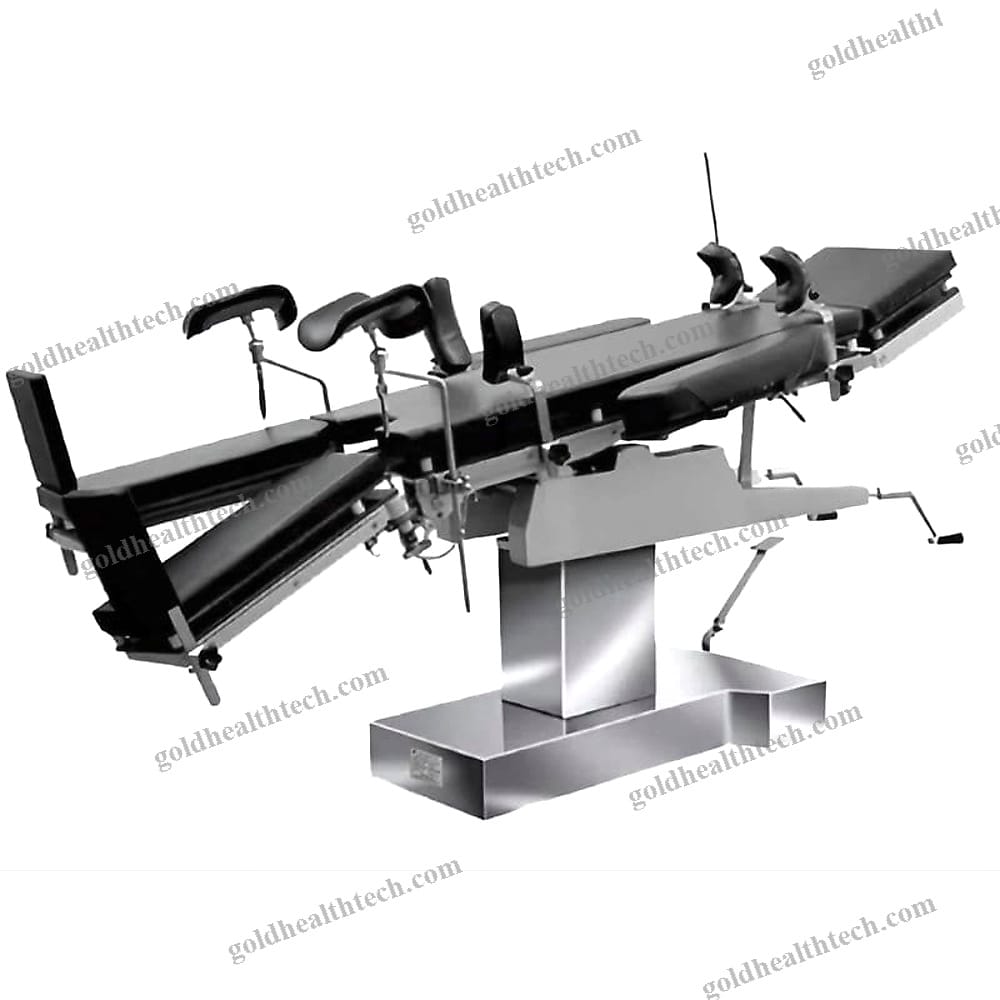

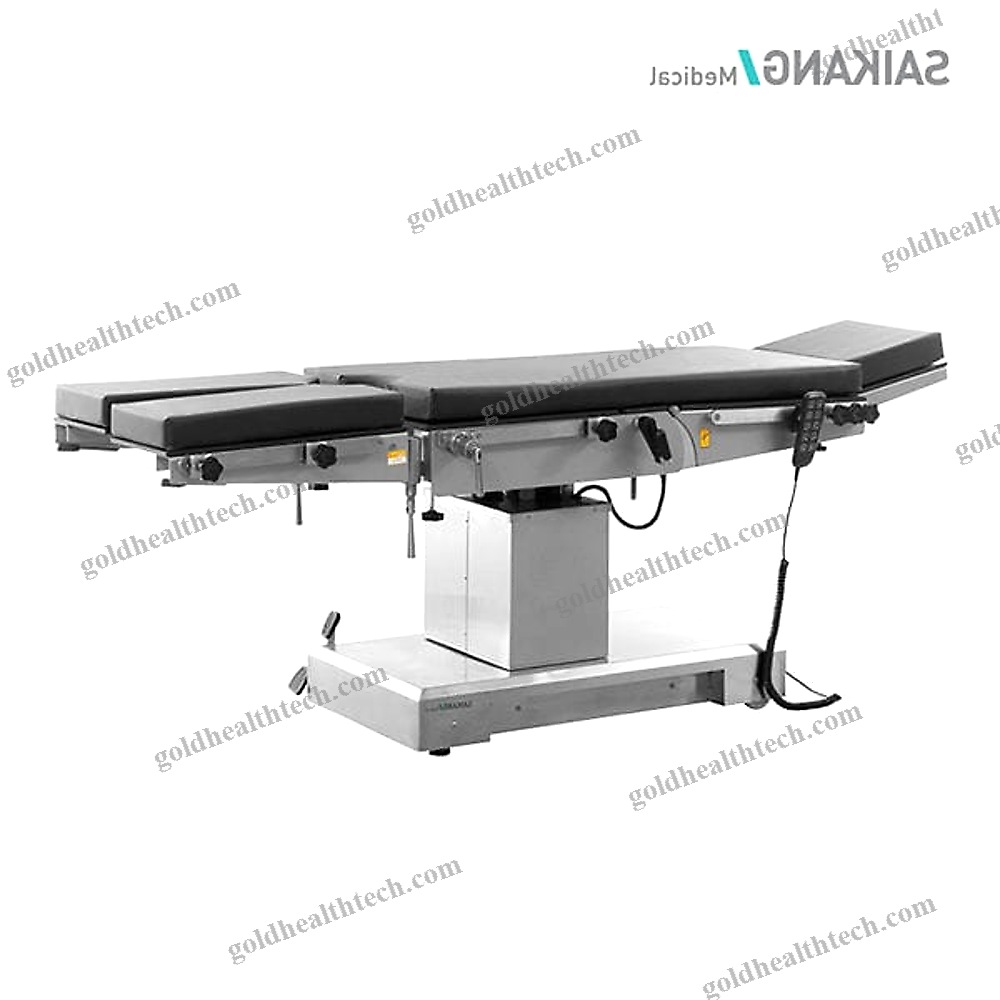

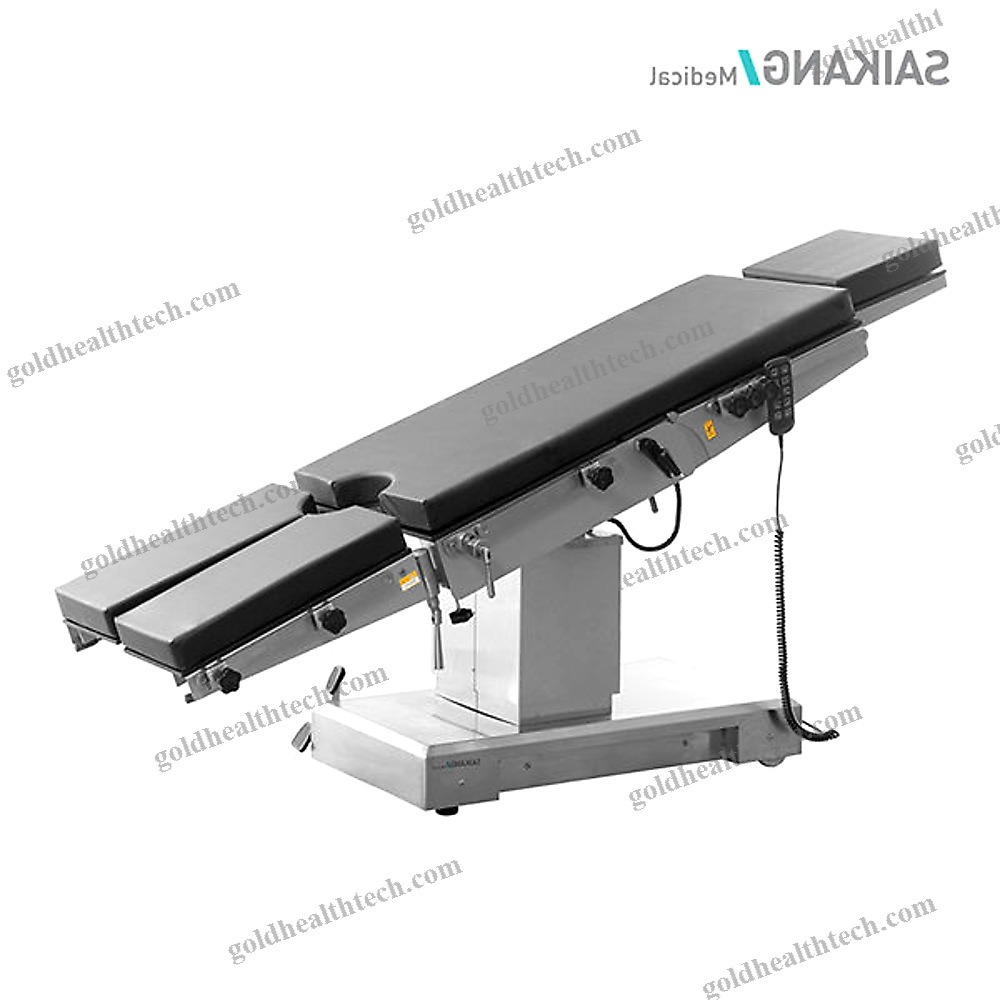

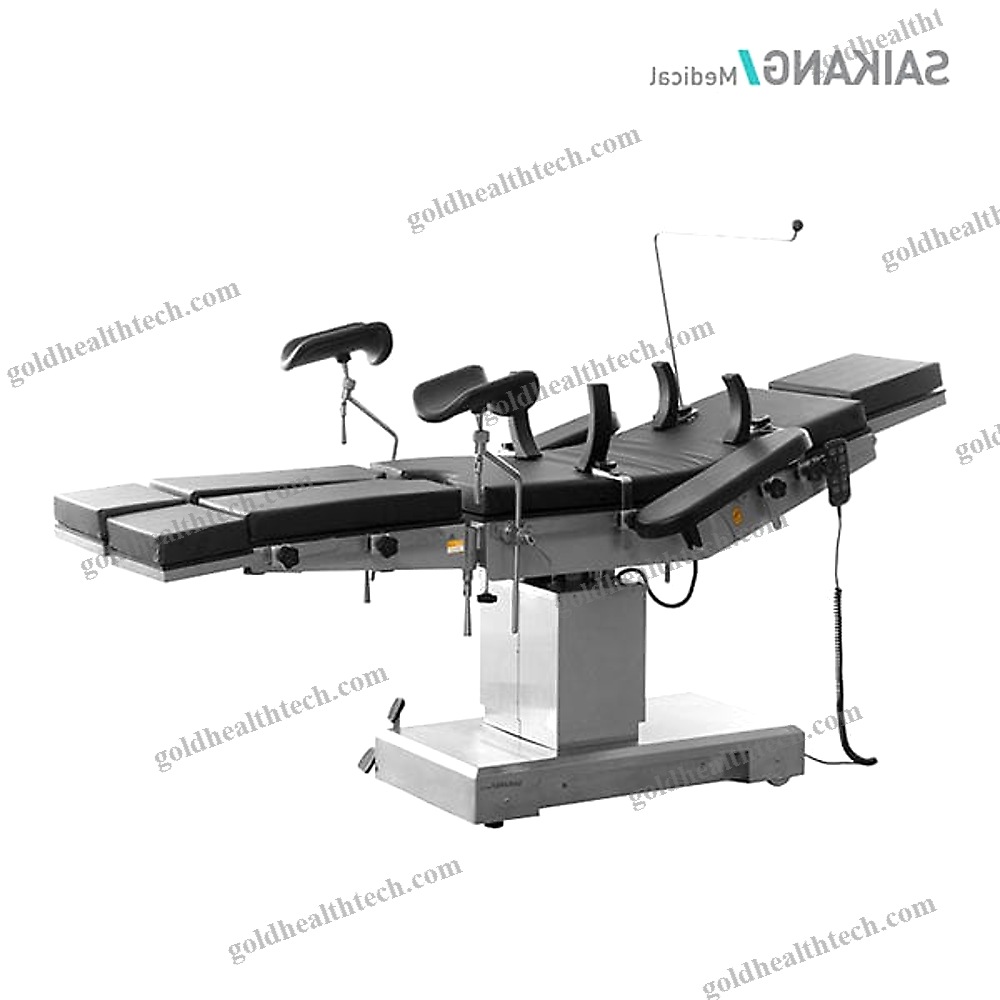

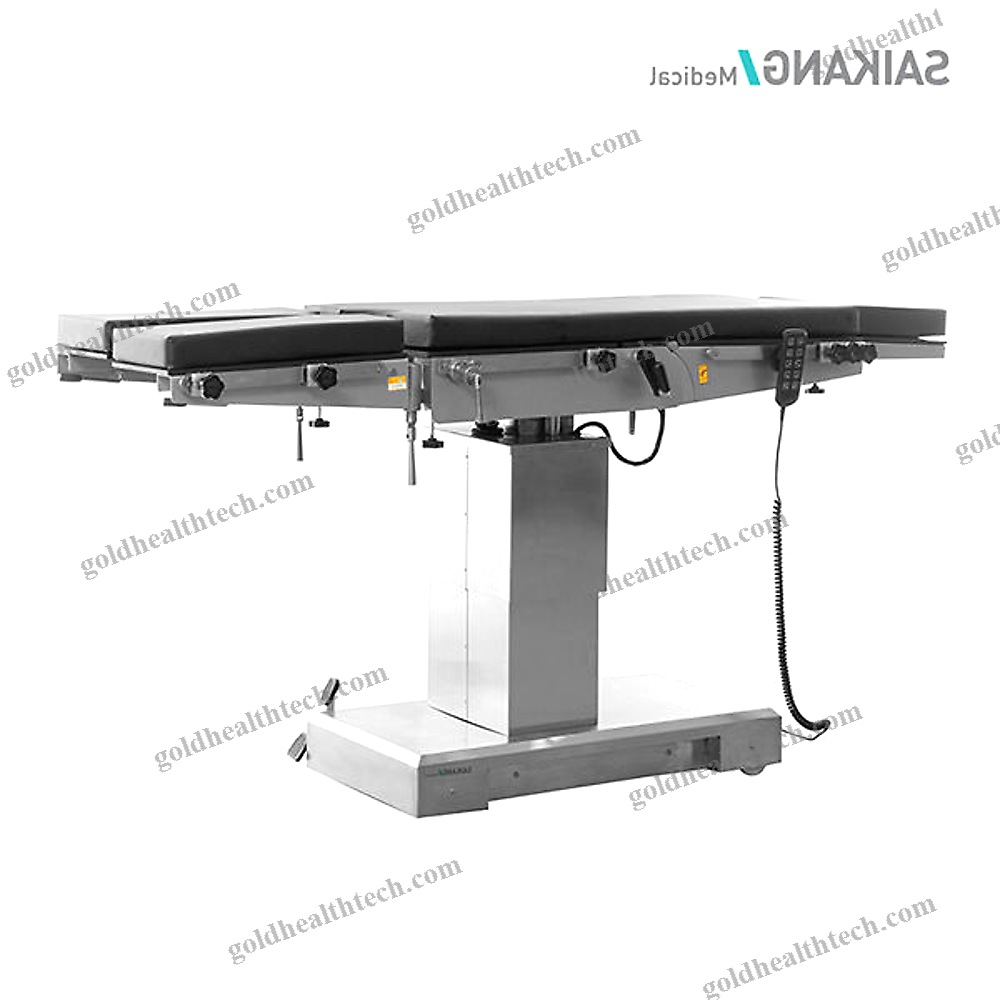

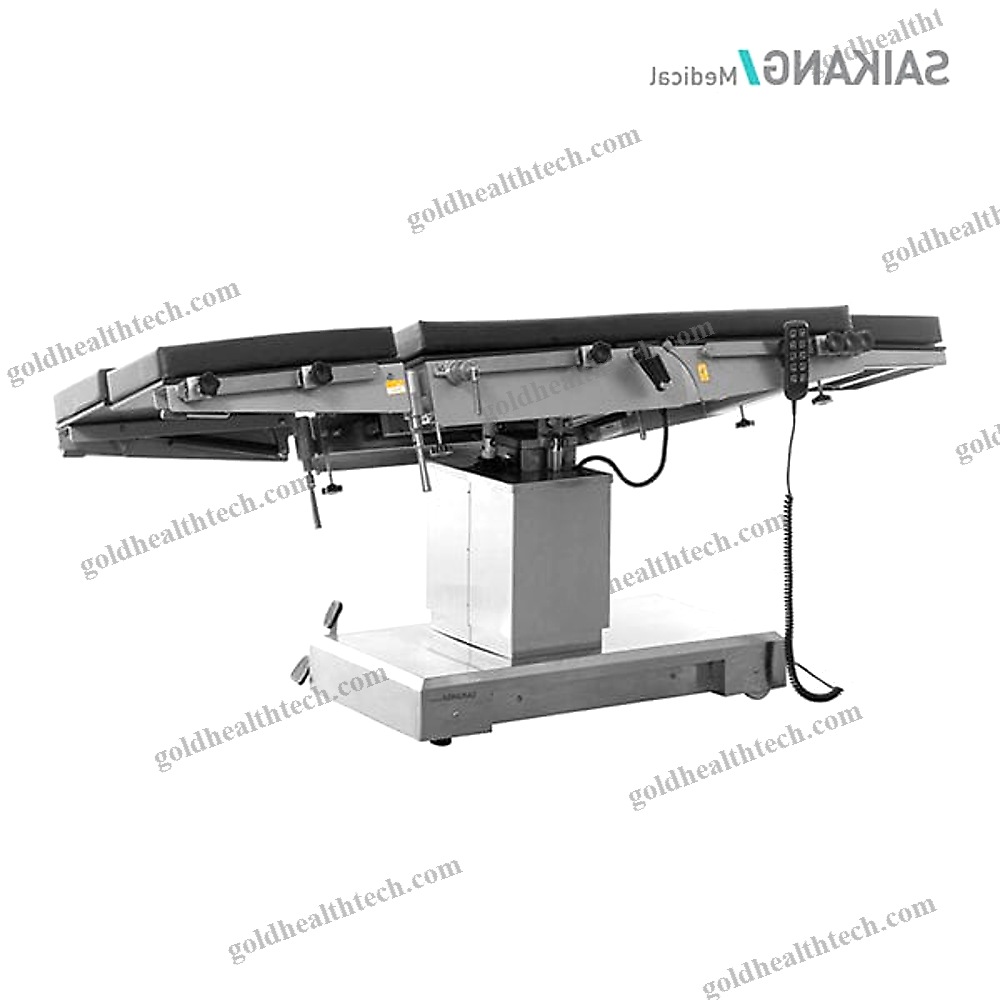

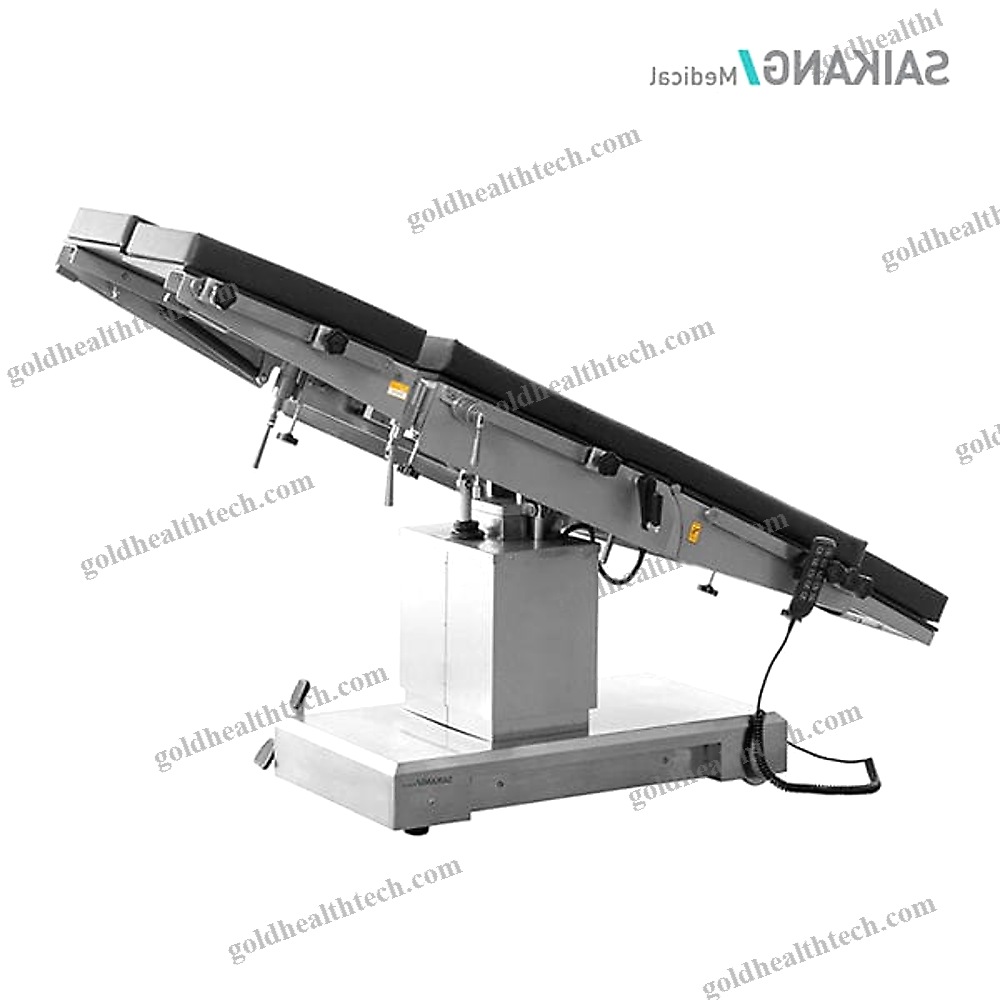

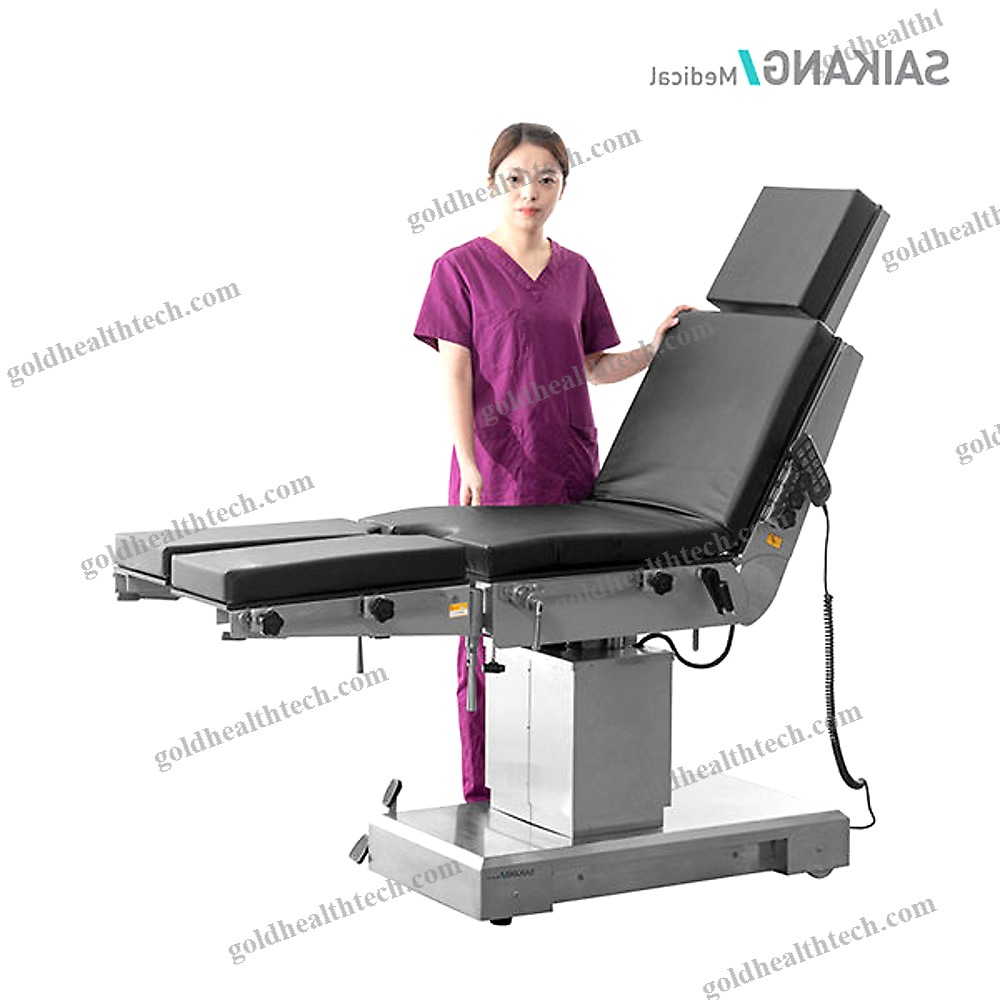

Universal Operating Table

The A200 Electric Operation Table is equipped with a high-performance rechargeable battery, which enables it to continue operating in the event of a power outage. The battery can be operated for an extended period of time without requiring maintenance, and the AC power supply guarantees the highest level of safety.input:
output:* Parameter

2000mm in length and 500mm in width.Lifting range: 660mm to 960mmReverse trendline: ≥22°Trendelenburg: ≥30°Left tilt: ≥20°Right tilt: ≥20°
Headboard upwards: ≥50°Headboard downwards: ≥90°Backwards: ≥70°Descending: ≥15°Leg downwards: ≥90°Leg extended: ≥90°Translation: ≥300mm in totalWaist bridge lifting: ≥120mmLoad bearing capacity: ≥250kg * Attachment2 pieces of arm support2 pieces of leg supportTwo pieces of shoulder support are included.2 pieces of body support 1 piece of anaesthetic screen1 PC * Hand controllerinput:
output:* The robot seamlessly welds the 1.6mm high-quality 304 stainless steel chassis cover. The form is beautiful, stable, and firm.

* Memory mattress that is removable and constructed from high-density sponge, exhibiting excellent resilience, anti-static, anti-bedsore, anti-bacterial, and anti-impact properties.

* It is operated by a hand controller and is powered by a low-voltage DC motor.

* A reliable and flexible mechanical brake device located on the side of the base, capable of performing either a fixed or moving function.

* The operating table's base is constructed with a concave portion that facilitates the doctor's standing during the procedure.

* The lifting range is 120mm when utilizing a kidney bridge.

* A standard foot plate may be employed to extend the operating table and serve as a kneeling plate.

* The height lifting, trendelenburg and reverse trendelenburg, tilt, and back plate folding up and down are all controlled by electricity, ensuring a simple and convenient operation.
