Tube Filler

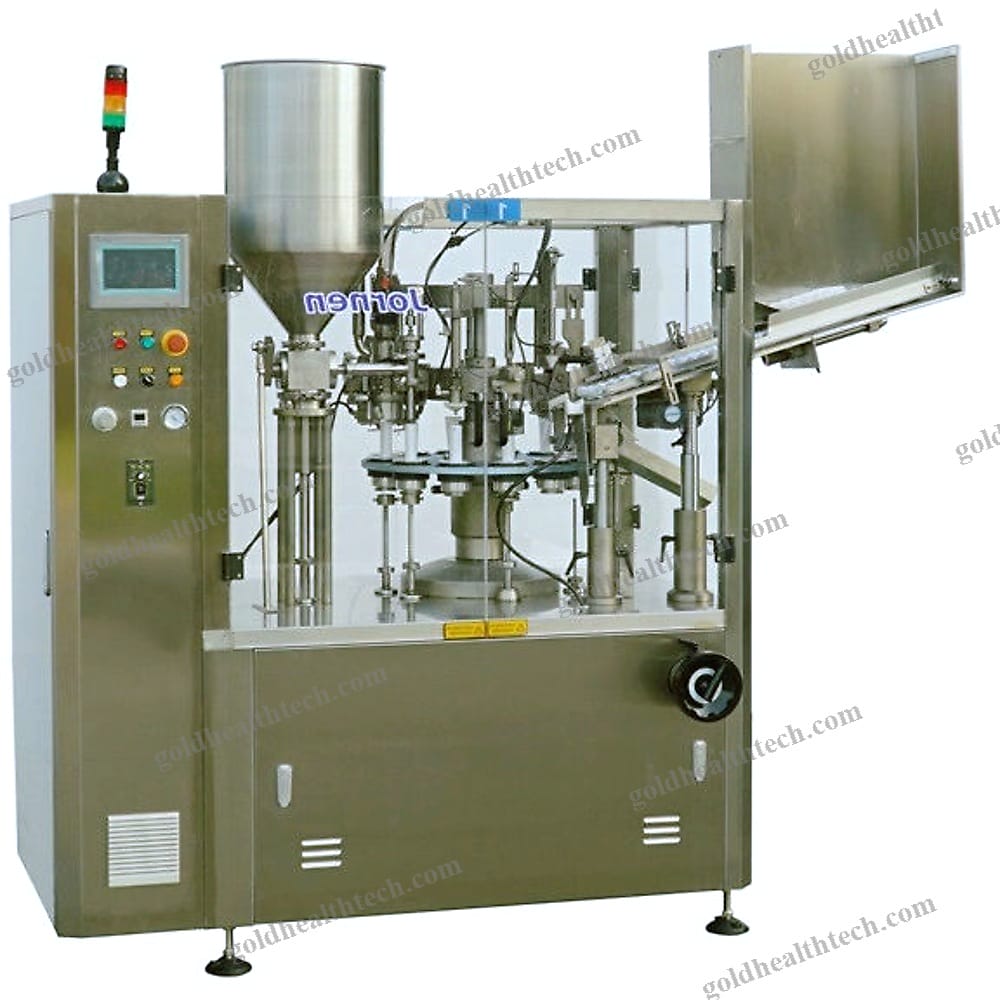

NF80 Automatic Tube Fillers are engineered and designed to produce precision tube filling and sealing of plastic, metal-plastic laminate, and aluminum laminate tubes with an output of up to 75 tubes per minute. They are of exceptional quality. Pharmaceutical, food, household chemical, and cosmetic industries are among the industries in which this machine is extensively employed.

·Completes the actions of tube loading, washing, positioning, filling, sealing, coding, trimming, and discharging tubes automatically.

·Closing (sealing/folding) heads are easily interchangeable and can be adapted to a variety of materials, including aluminum, laminate, and plastic.

·The BANNER Photoelectric Sensor is responsible for tube positioning. ·The metal tube filler can be folded in a twice-edge, triple-edge, or U-shaped pattern.

·It is equipped with a separate cooling system and temperature control.Alarm will sound if there is no tube or fill.br/>
·Stainless Steel The GMP standard is met by the construction and all parts that come into contact with the material, which are made of high-quality 316L stainless steel.

·Agitator and Double Jacketed Temperature Control Hopper are available as options.·Ensures high filling accuracy (±0.5%) for a wide variety of products, irrespective of their viscosity.

·The mechanical drive system is straightforward to comprehend and maintain.

SIEMENS Touch Screen Control Technology.

·SIEMENS PLC Control System.

·SIEMENS Variable Speed Converter—control production speed.SIEMENS Electrical Components,The primary technical parameters are as follows:Dosage range: 5–350 mlTube length: 50–240 mmTube diameter: 10 to 60 mmMotor Power: 1.5 kWHot air power: 3.3 kwPlate: twelve stations
