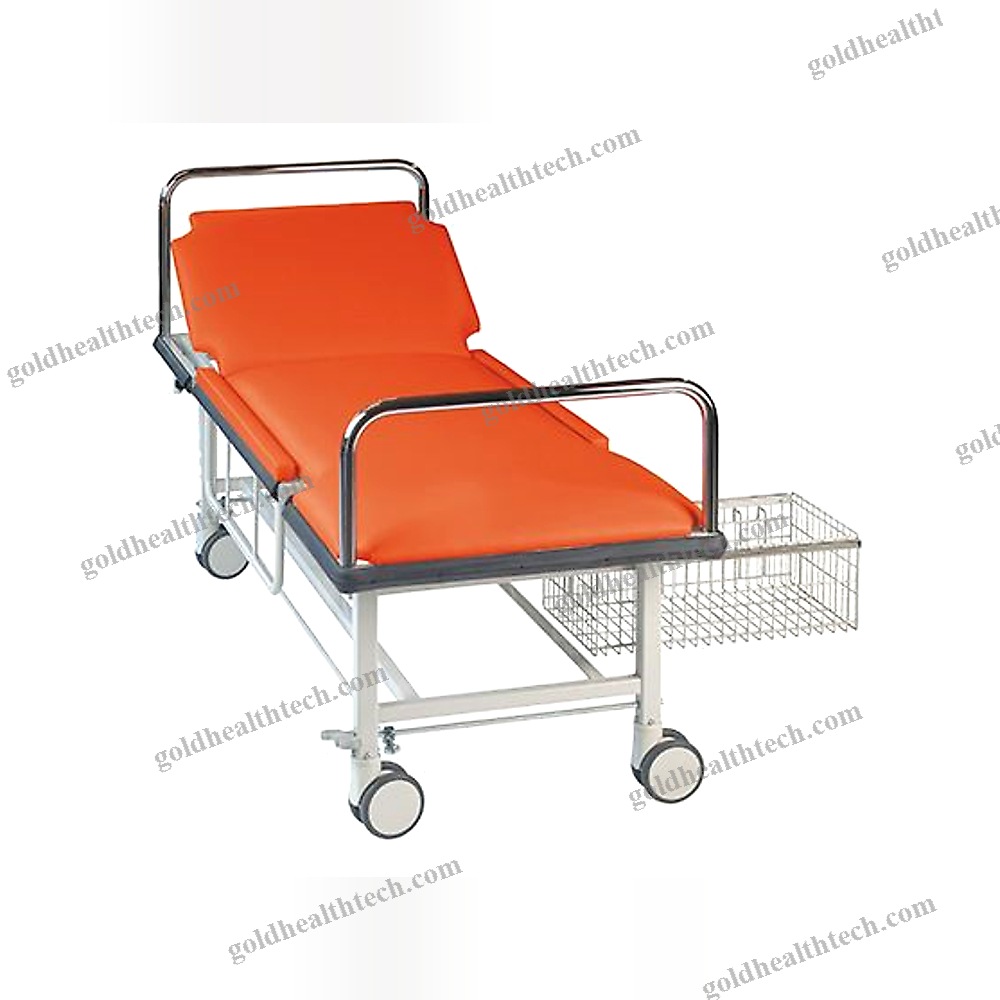

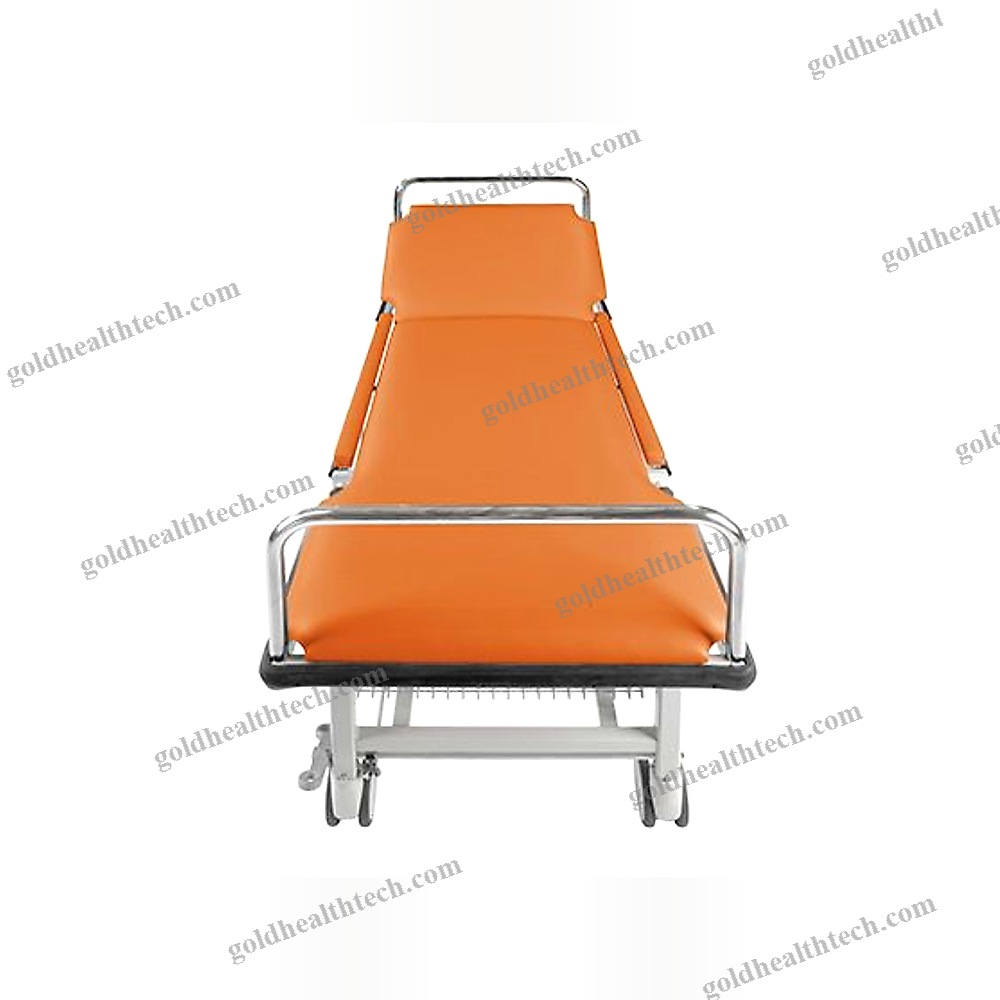

Transport Stretcher Trolley

During the development of this patient transport table/recovery table from AGA Sanitätsartikel, the primary focus was on its functionality and ease of use. The all-around edge protection/impact protection encompasses all functionalities. This implies that all walls and doors, in addition to the patient stretcher, are safeguarded.input:
output:The large double castors facilitate the passage over indoor obstacles, such as power cables or door thresholds. A central locking system is used to operate all four double castors, which are connected by rods. A foot pedal is situated at the head and foot ends of the table to secure or release it.input:
output:
Two chrome-plated push handles are included in the patient transport table to facilitate steering and movement. In order to provide the patient with a comfortable experience during the process of putting on or taking off the side guards, the undersides are padded and covered with synthetic leather.Featuresinput:
output:The patient transport table is equipped with four double castors, each with a diameter of 125 mm, that are connected by rods and feature a central locking system. Located at the head and foot ends, the corresponding foot pedals are arranged diagonally.

Two side guards, with dimensions of approximately 760 x 230 mm (L x H), are included with the table to ensure the safety of patient transport. These guards can be lowered to upholstery height using a pivot mechanism and secured with sliding bolts.

The table legs are connected by transverse and longitudinal struts, which provide stability and robustness.

The patient transport table's tubular steel frame is constructed from lacquered blank steel.

A gas pressure spring enables the headrest to be continuously adjusted to a maximum of +30°. It is capable of being operated and secured with a single hand.
