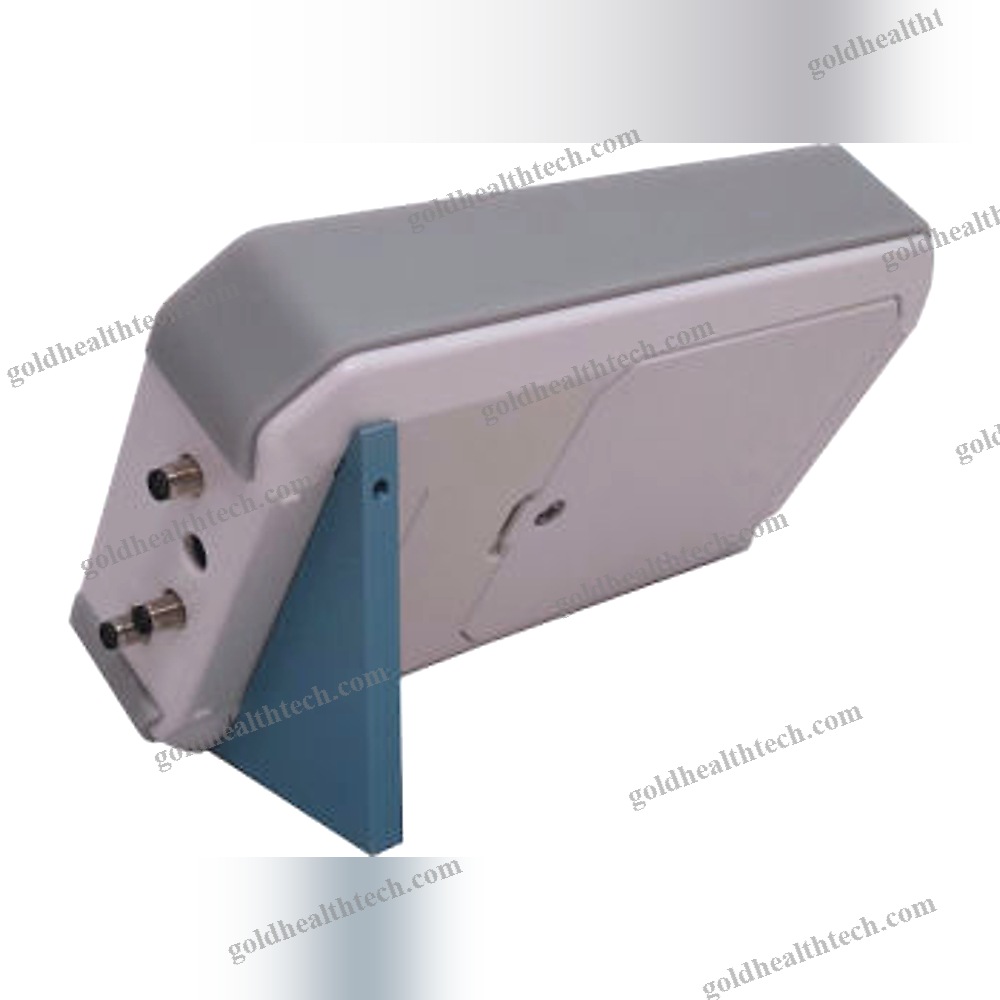

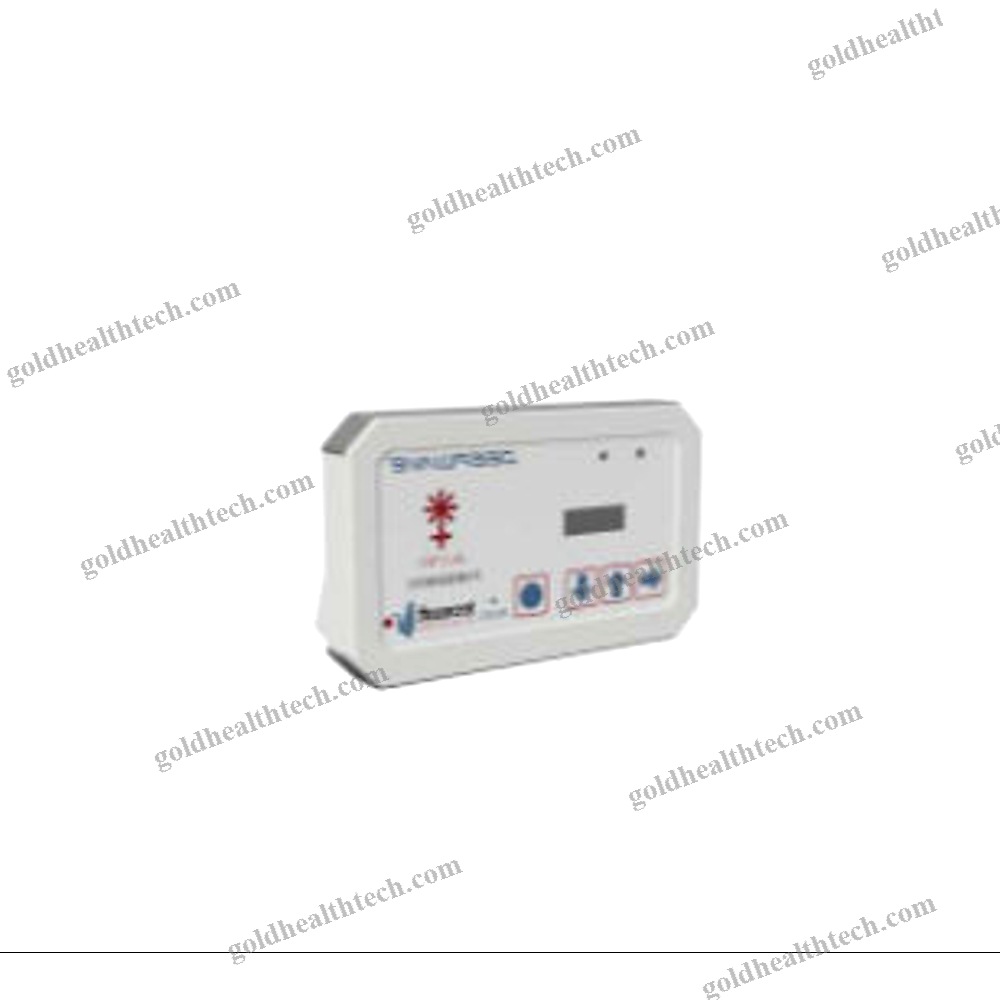

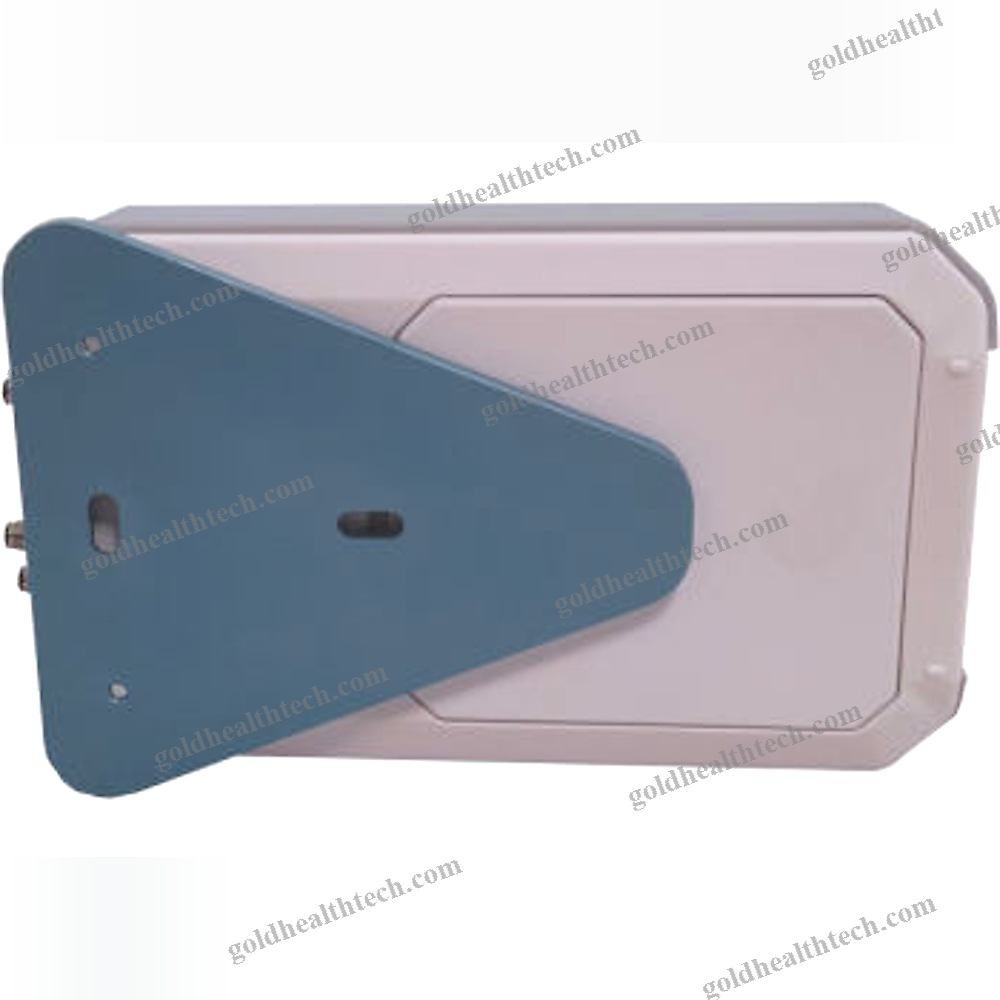

Temperature Monitoring System

A radio temperature sensor with a 4-button control keypad and a high-resolution OLED display, the DeepWave system is capable of transmitting data over a long distance. The temperature sensor is internal, and the batteries are user-replaceable. input:
output:Primary characteristicsinput:
output:Temperature data logger with long-distance radio transmission (up to 3 km in an open field)input:
output:
0.91″ OLED displayinput:
output:Four-button keypad for diagnostics and configurationinput:
output:
User-replaceable batteriesinput:
output:Can be calibrated (ISO certificate available upon request)Additionally,input:
output:
Simple to install and configureinput:
output:It encompasses extensive transmission distances.input:
output:DeepWave system that is validinput:
output:The frameworkinput:
output:The DeepWave system, which comprises the data logger, includes:input:
output:DeepWave radio modules (Lo.Ra. nodes)Helios receiver (Lo.Ra. gateway) and TSLog 21 softwareinput:
output:Size – 146.6 x 88 x 33 mminput:
output:Weight: 280 gramsinput:
output:ABS and rubber comprise the materials.input:
output:Sensors: One internal temperature sensorinput:
output:Temperature range: -20°C to +50°Cinput:
output:Standard calibration points (temperature): -10°C, 0°C, 20°C, and 40°Cinput:
output:Additional calibration points (temperature) – Within the temperature range of -20°C to +50°Cinput:
output:Temperature resolution: 0.02 °CTemperature precision: ± 1 °C in the absence of a certificate; ± 0.25 °C with an Accredia traceable certificate (valid within the calibration range).input:
output:Sensor type: NTCMemory (number of acquisitions)- 16.383Acquisition step – Increasing by 1 minute (in increments of 1 minute)Display dimensions: 0.91 inches, 22.4 x 5.7 millimeters (128 x 32 pixels).input:
output:Display and functions: Current values, Alarms, Diagnostics, and Radio Signal Strengthinput:
output:Functions – Alarm, data transmission, and recordinginput:
output:Radio – Communicationinput:
output:Radio Protocol – Lo.Ra.Frequency: 868 MHzinput:
output:Internal AntennaeBattery type: Three AA 1.5 V batteriesBattery life: 18 months with a 15-minute transmission step
