Tablet Press
Reference: 1093693Pharmaceutical Industry
| Applications | For Tablets, R&D, Filling |
| Configuration | Benchtop |
Documentation request
Ask which specifications, manuals, or commercial documents are available for review.
Supplier coordination
Discuss quantity, destination, packaging, and timing before confirming suitability.
Product information
Product summary

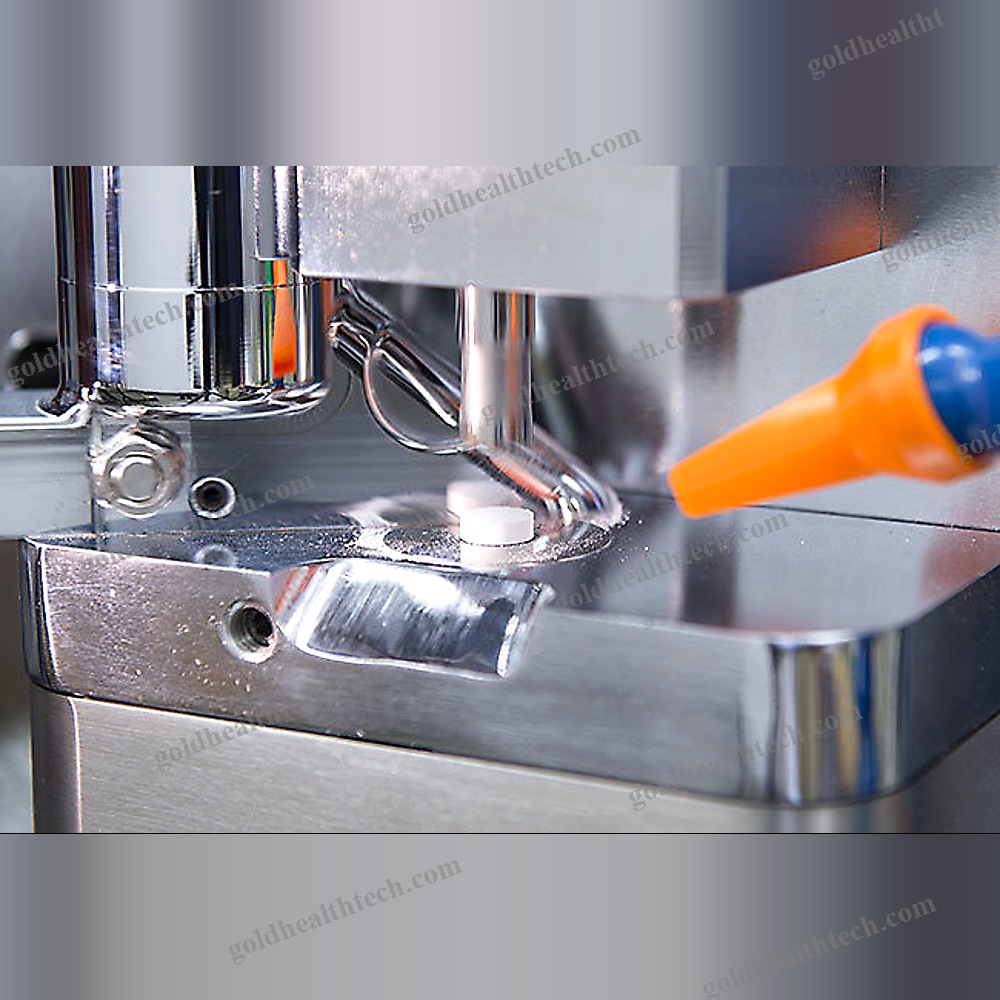

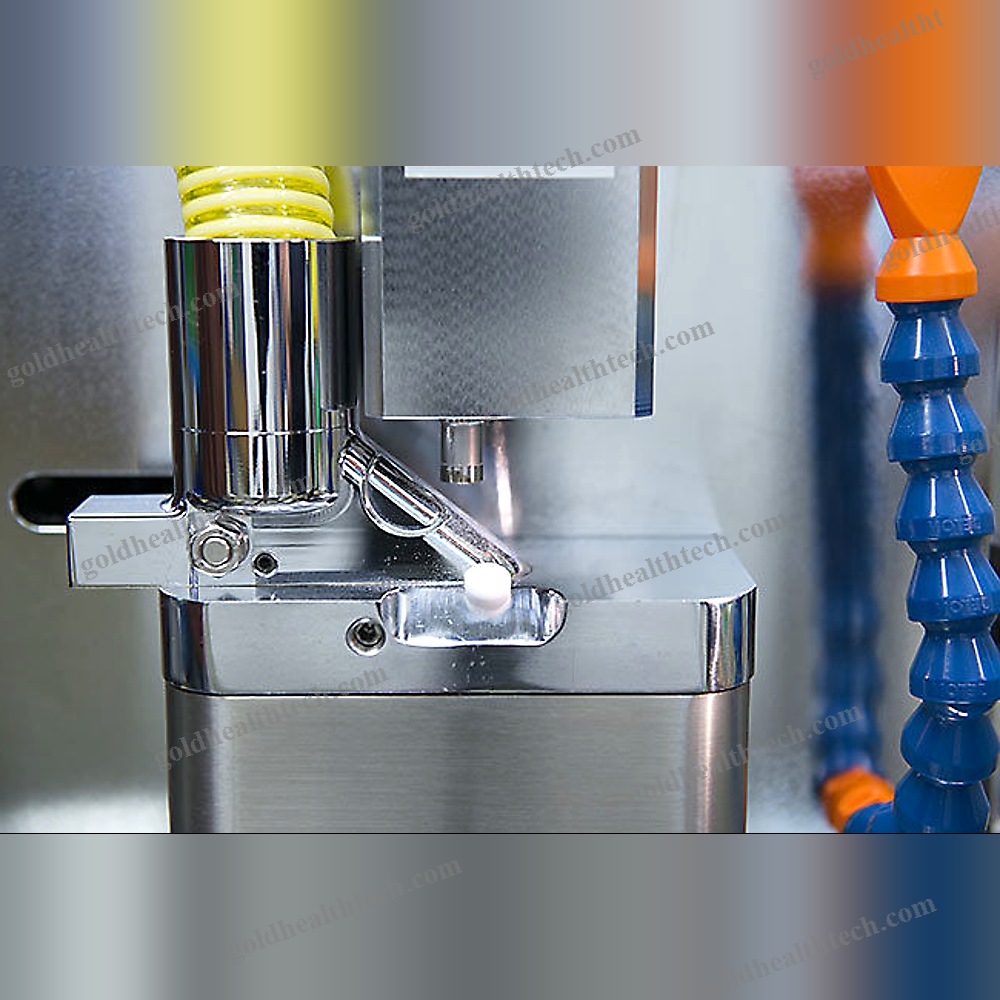

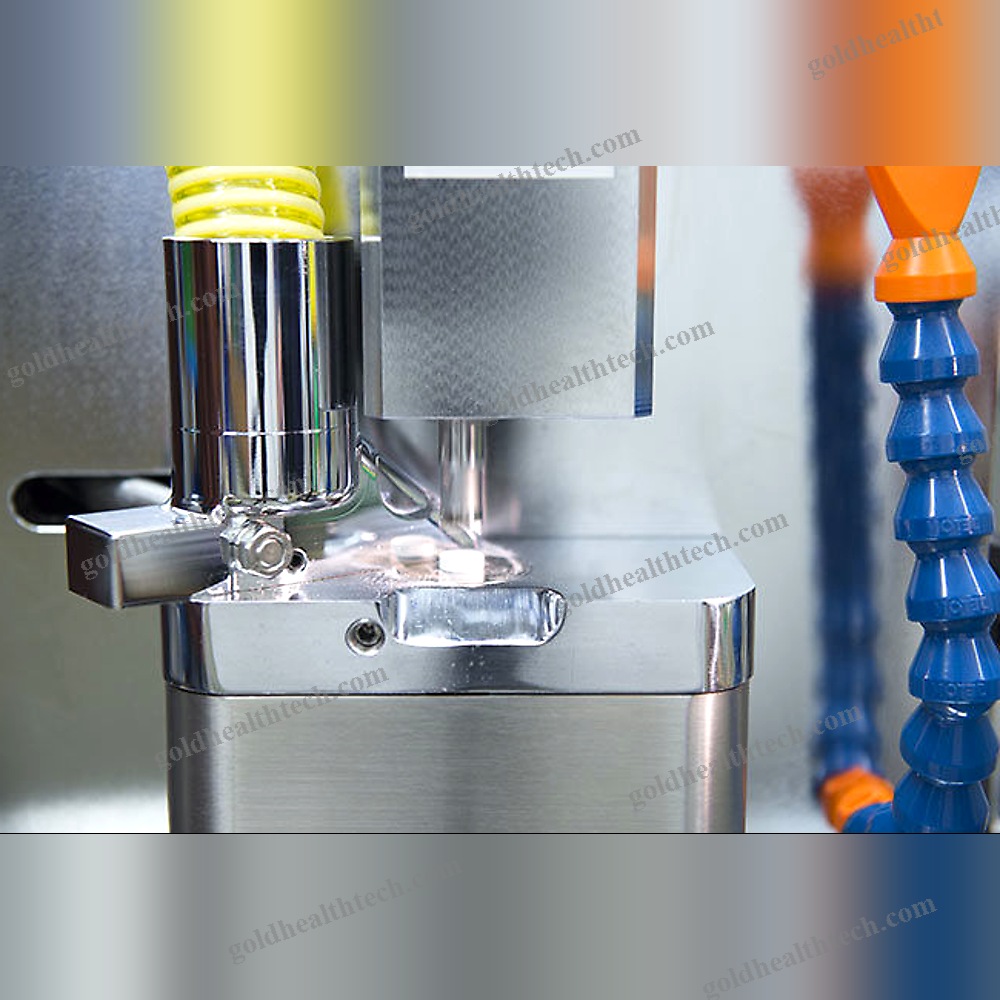

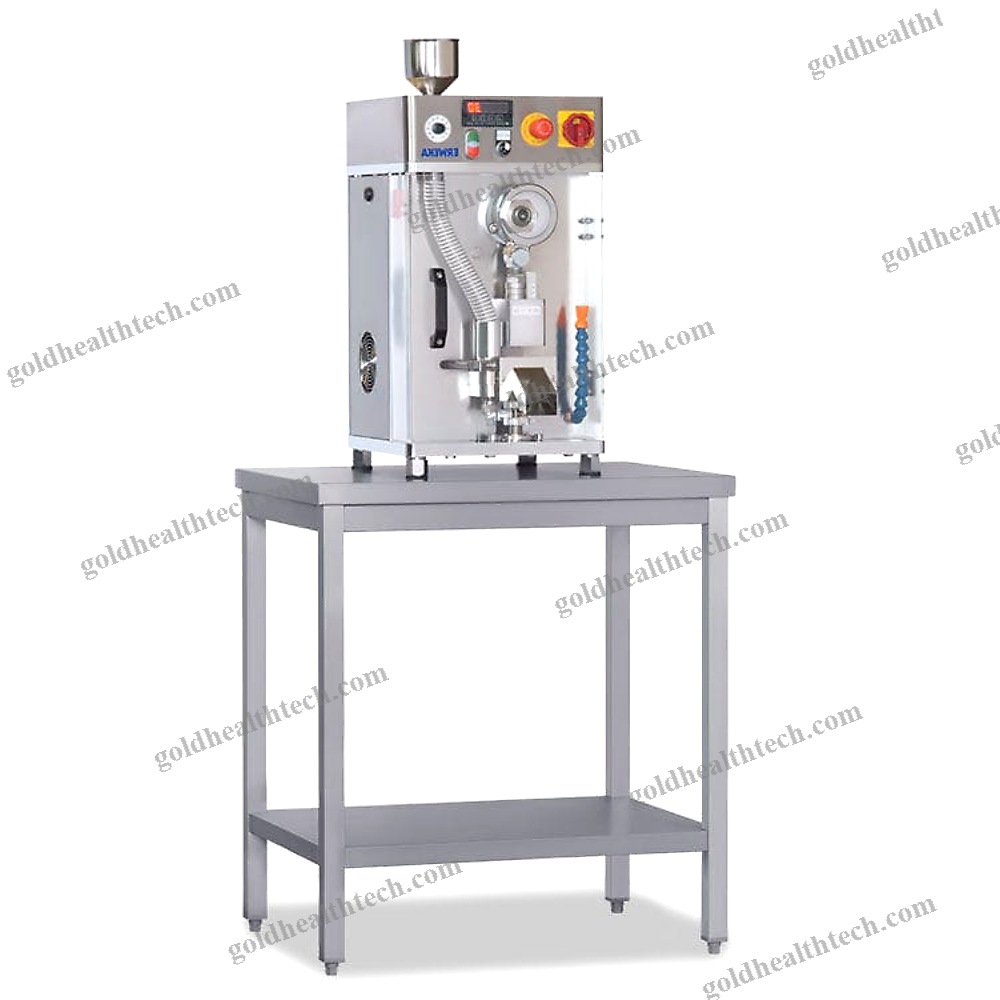

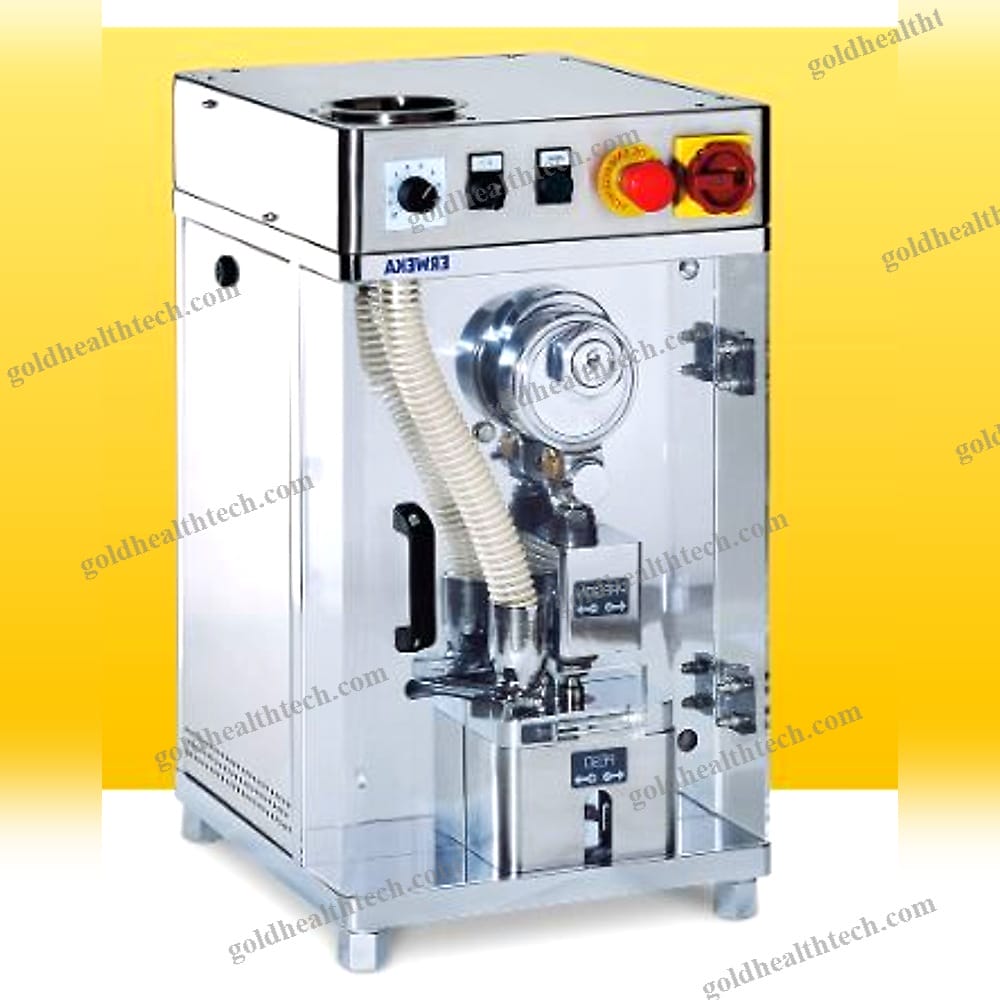

The EP-1 is the optimal desktop tablet press for research and development purposes. Tablets and odd-shaped products with a diameter of up to 20 mm can be produced by the single-punch eccentric Tablet Press EP-1. It operates automatically, meaning that the die is filled with powder or granules, the material is compressed, and the tablet is continuously ejected. The filling depth of up to 17 mm and the compression force of up to 3 tons are both easily adjustable.input:
output:
All components are either coated with hard chrome, constructed from stainless steel AISI 304, or encased in acrylic glass for the front door. The frame parts (plates) are bright chrome-plated and constructed from 1.0332 StW22. The maximum throughput is 4,000 tablets per hour.input:
output:
The speed of the press is infinitely variable.
The maximum tablet diameter is 20 mm.
The maximum filling depth is 17 mm.max. compression force: 3 tPress dimensions: 425/385/695 mm (L/W/H)4.000 tablets per hour is the maximum tablet output.Net weight: 135 kilogramsDimensions with attachments: 503/408/797 mm (L/W/H)240V -15%+10%/50-60Hz power supply2.2 kVA electrical load
output:
All components are either coated with hard chrome, constructed from stainless steel AISI 304, or encased in acrylic glass for the front door. The frame parts (plates) are bright chrome-plated and constructed from 1.0332 StW22. The maximum throughput is 4,000 tablets per hour.input:
output:
The speed of the press is infinitely variable.
The maximum tablet diameter is 20 mm.
The maximum filling depth is 17 mm.max. compression force: 3 tPress dimensions: 425/385/695 mm (L/W/H)4.000 tablets per hour is the maximum tablet output.Net weight: 135 kilogramsDimensions with attachments: 503/408/797 mm (L/W/H)240V -15%+10%/50-60Hz power supply2.2 kVA electrical load
