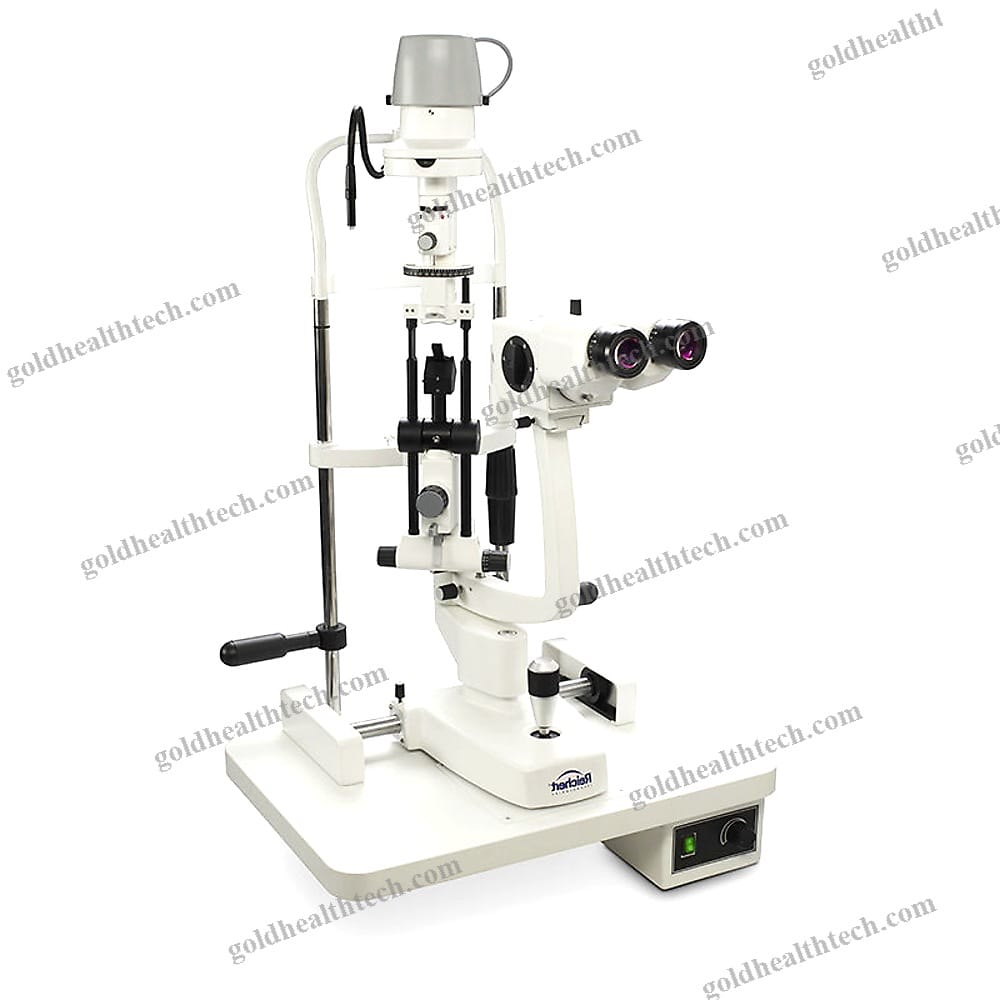

Table Slit Lamp

The most discerning operator’s requirements are met by the all-new Xcel 455 Slit Lamp, which provides exceptional value, versatility, and performance.input:
output:Bright, uniform illumination is achieved through lenses that have been treated with high-efficiency coatings. An exceptional stereo binocular view is provided by a large field of view, high resolution, and depth of focus.input:
output:Traditional illumination design for towersMultilayer optical coatings with high efficiency for improved light transmission

Optics with a broad field of view

Magnification in five stages 6.5X, 10X, 16X, 25X, and 40X magnification eyepieces 12.5X magnification eyepieces

Red-free, heat-absorbing, cobalt blue, neutral density filters with slit inclination of up to 20 degrees

Halogen illumination

Smooth base movement and slit elevation with X Y Z joystick

Microscope

Microscope Type: GalileanDrum Rotation: Five-Step Magnification ChangeEyepiece: 12.5xMagnification Ratio: 6.5x, 10x, 16x, 25x, and 40xPerspectives: 37, 24, 15, 9.5, and 6 mm PD Range: 49–78 mm Diopter Adjustment: +/- 6 D

Working Distance:Slit LampSlit Illumination: 6V 20W halogen

Slit Width: 0–12 mmSlit Length: 1.5–12.5 mmSlit Apertures: 0.3, 1, 3, 5, 9, and 12 mmSlit Rotation: 0 to 180 degrees

Slit Inclination: (-5, -10, -15, -20) degrees

Filters: Cobalt Blue, Neutral Density, Heat Absorbing, Red-FreeIlluminance Range: 0 to >500,000 luxBase Movement Ranges: – Longitudinal (In/Out): 110 mm (4.3 in.) – Lateral (Left/Right): 110 mm (4.3 in.) – Vertical (Up/Down): 30 mm (1.2 in.)ChinrestFixture Lamp: White LED

Vertical Movement: 70 mm (2.8 in.)Power is a powerful force.Voltage: 100–240 VACPower Input (Max): 56–73 VA

Frequency: 50/60 HzTime-Lag Fuses: 5×20 mm, 1.6A, 250VWeight/DimensionsHeight: 66.0 cm (26.0 in.)

Width: 18.0 in. (45.7 cm).
