Surgical Camera

The smallest 4K camera head with a 1/3 inch image sensor4K/2K simultaneous dual channel outputHDMI and HD-SDI outputs are available.input:
output:Exceptional color reproductioninput:
output:A maximum of six personal profiles may be stored on a USB drive.Medical Electrical Standards IEC60601*Options for color enhancementinput:
output:Simplicity of implementation in a diverse array of applicationsLayout that is user-friendlyinput:

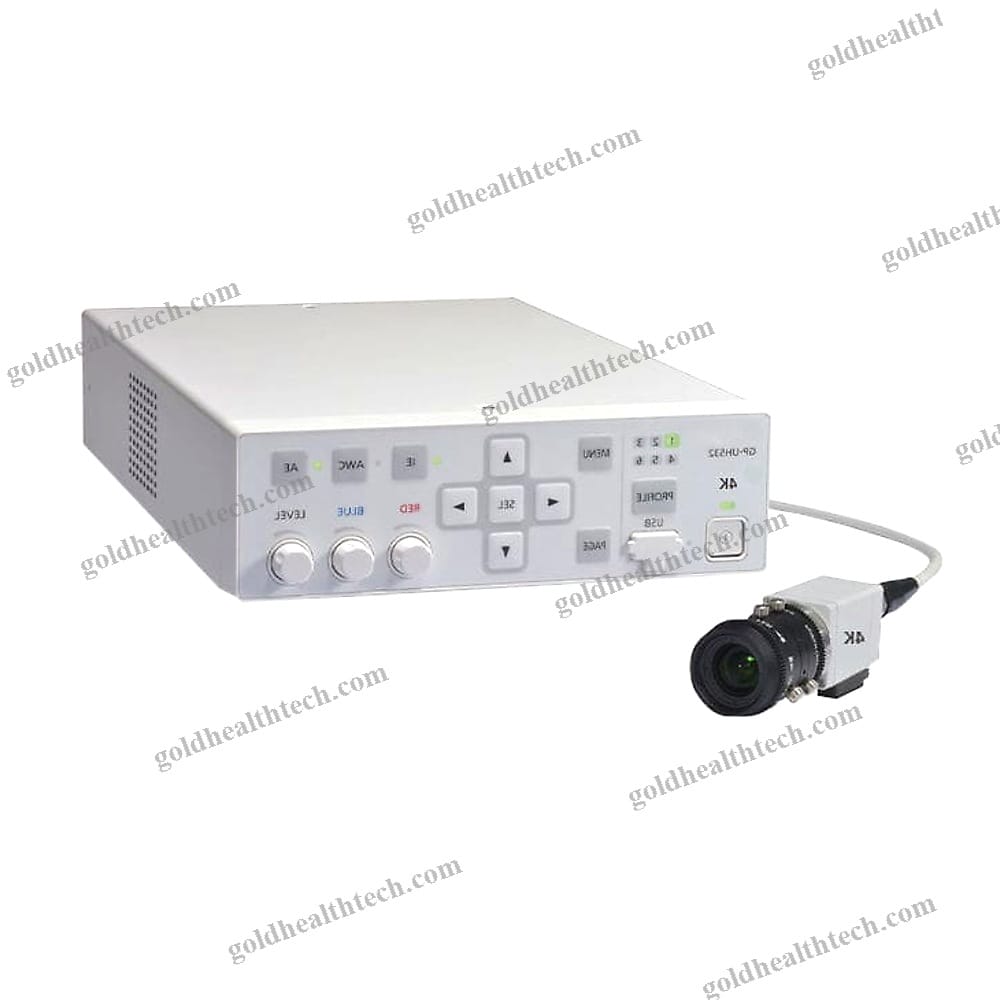

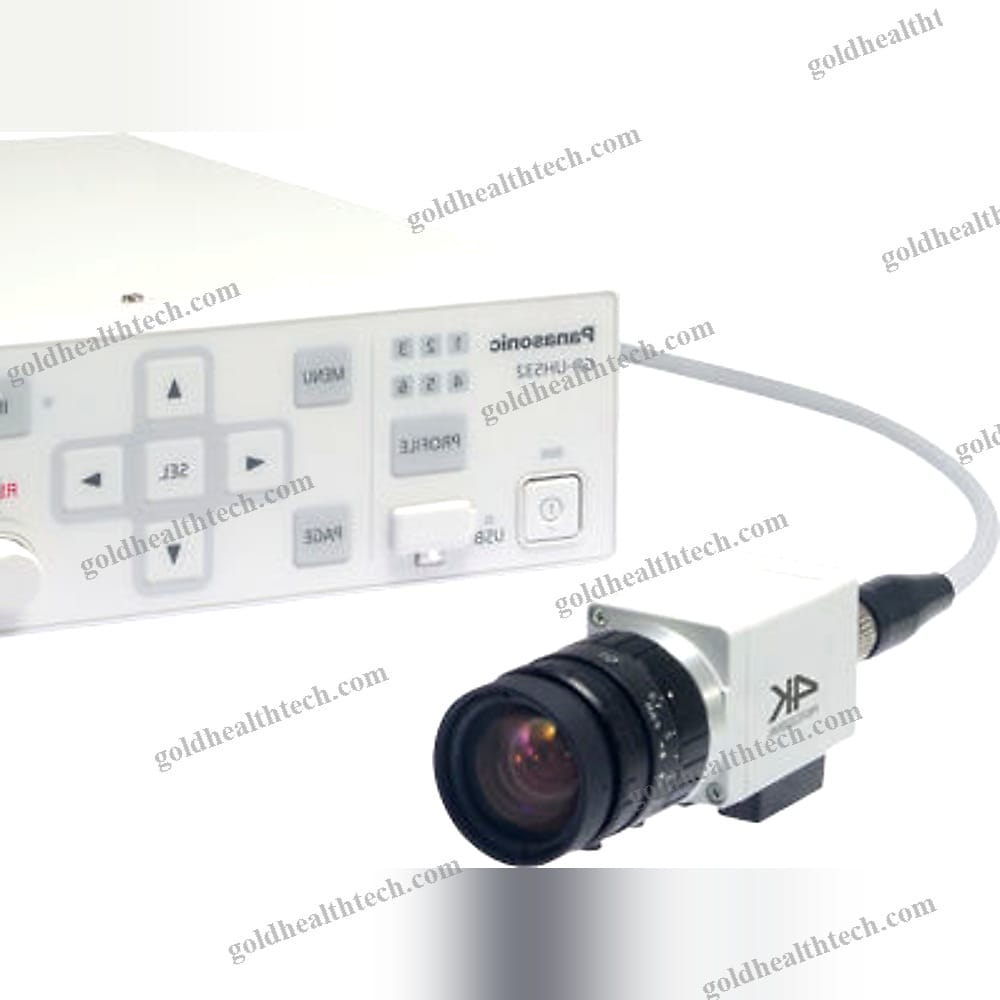

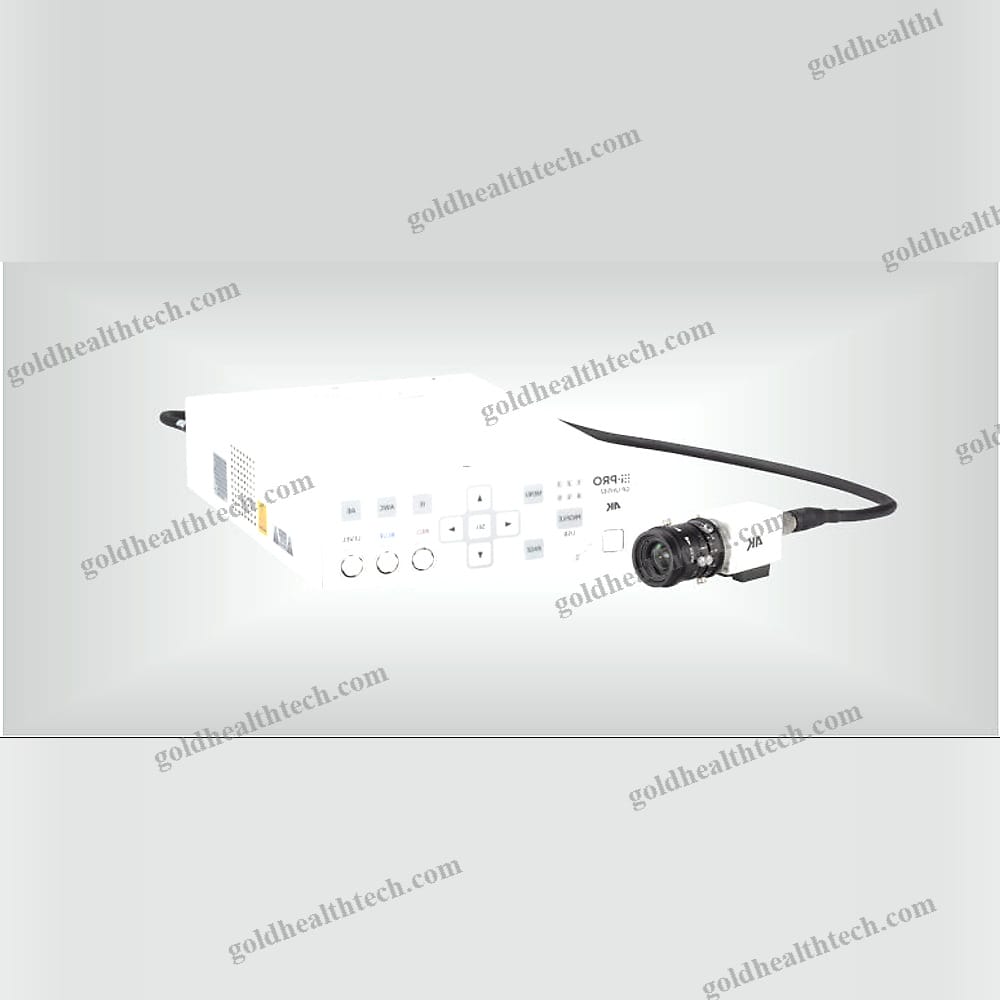

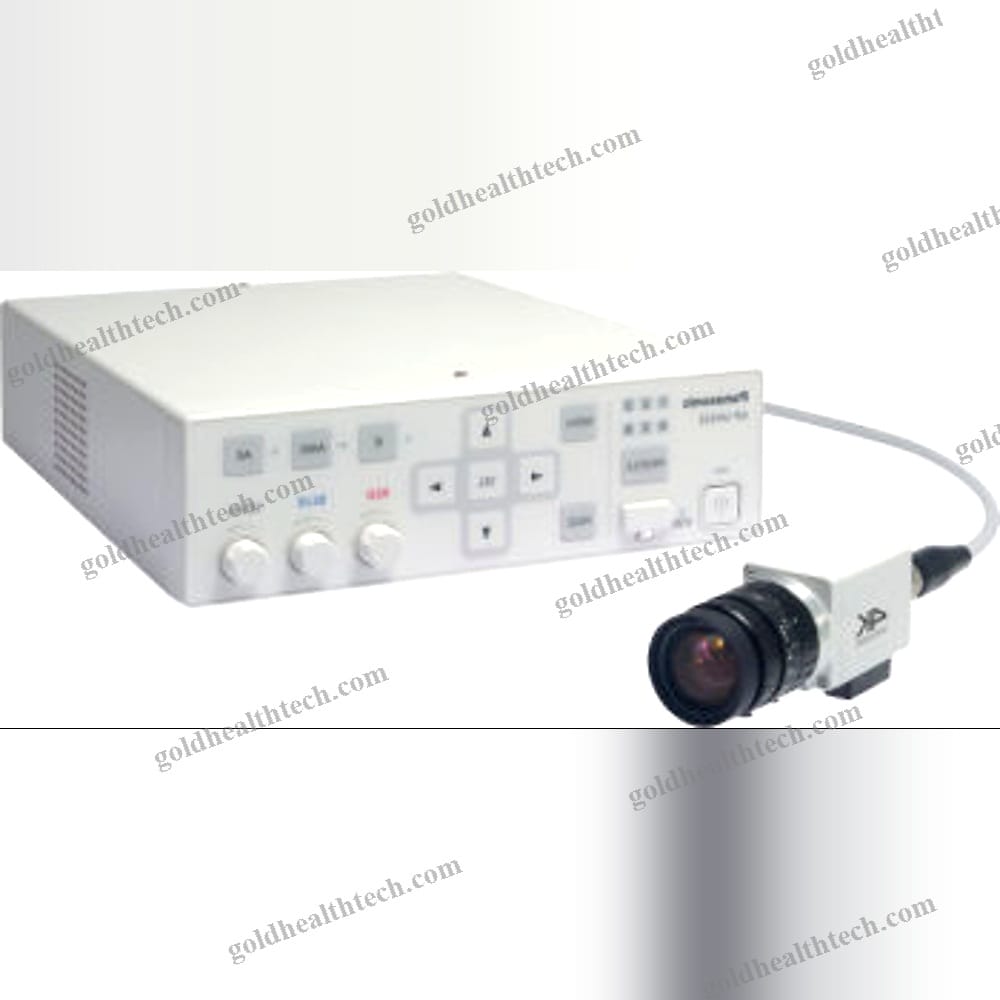

output:the GP-UH532 4K Ultra HD with a maximum of 1600 TV lines. The GP-UH532HA camera head and the GP-UH532CA CCU Unit are both included in the system.input:

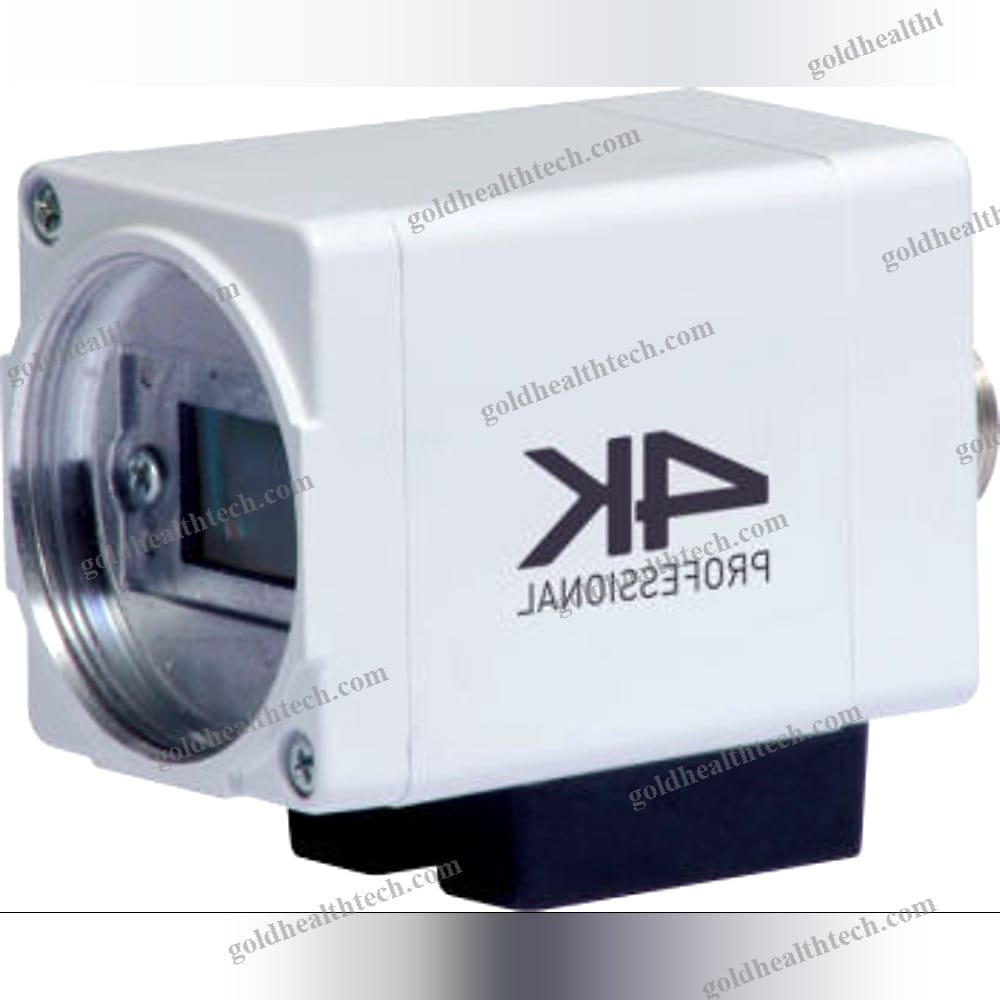

output:The compact camera head is among the smallest available. The GP-UH532HA micro camera head is equipped with a 1/3″ image sensor and a user interface that is specifically designed to facilitate system control through the operation menu or the rotating knob. A USB memory can store six or more personal profiles, and these configurations can be adjusted to accommodate a diverse range of applications.input:
output:The system is capable of indicating Medical Electrical Standards IEC60601* and can be applied to a diverse array of medical devices or procedures. The antibacterial coating is beneficial to medical and microscopic areas due to its coverage of the front, top, left, and right sides.input:
output:The 4K micro camera system facilitates a seamless connection with other devices by providing a variety of video outputs, including HDMI and HD-SDI.CameraCOMPONENT – SPECIFICATIONinput:
output:Image Sensor – 1/3 inch 3MOS image sensorinput:
output:Horizontal Resolution – 1600 TV lines at the center (typically when 2160p output is used)input:
output:Illumination Requirement: 2000 lx (3200 K, F8)S/N – 54dB at F8input:
output:Lens Mount – C-Mountinput:
output:DIMENSIONS: 27 mm (W) x 30 mm (H) x 42.5 mm (D) (1-1/16 inches (W) x 1-3/32 inches (H) x 1-43/64 inches (D))
