Spine Surgery Orthopedic Extension Device

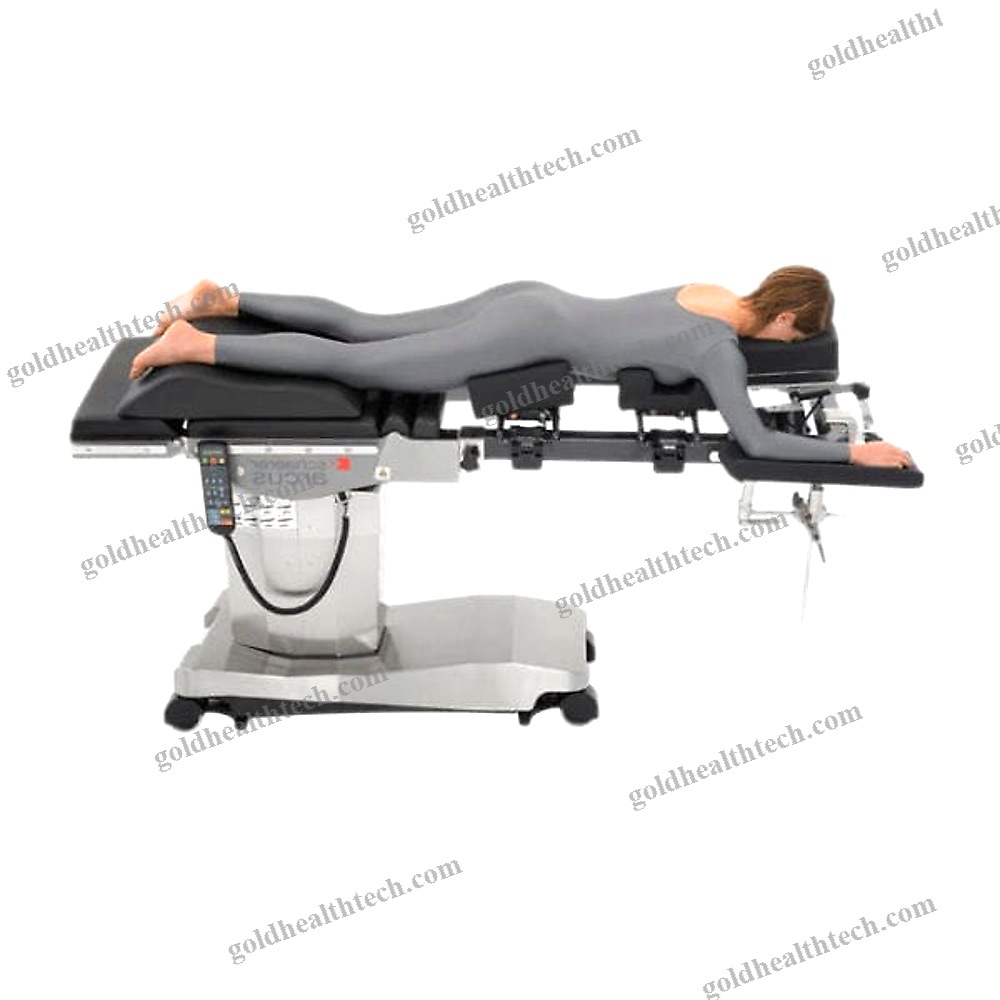

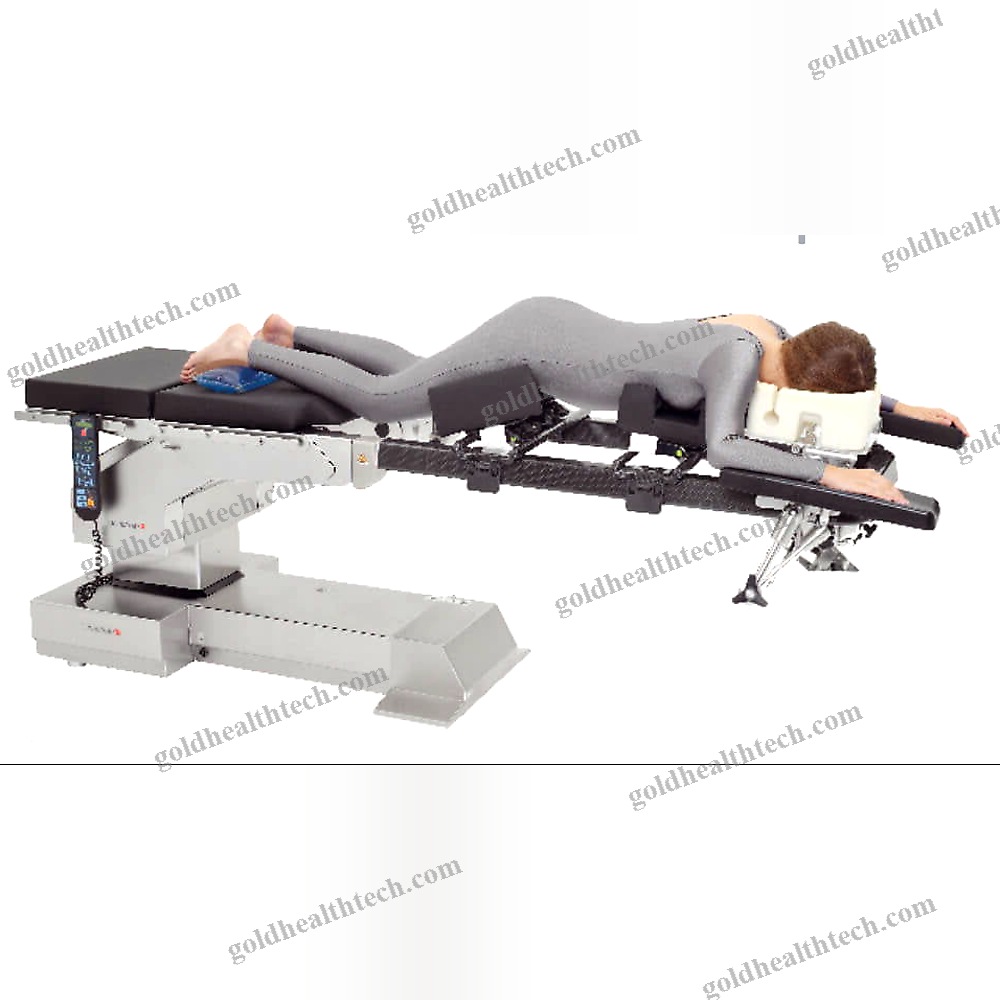

The CSF Carbon Spine Frame is a solution for patient positioning during spinal surgery. It provides significant benefits, including the ability to adjust the table top using a motor, as well as free access for the anesthesiologist and the C-arm.input:
output:Enhanced modularity

The CSF is highly modular, featuring a transparent head plate, flexible mirrors, head cushions, and a standard connection for base units, as well as an additional side rail adapter. It also includes individual adjustment for free abdomen, lateral displacement, and height adjustment.

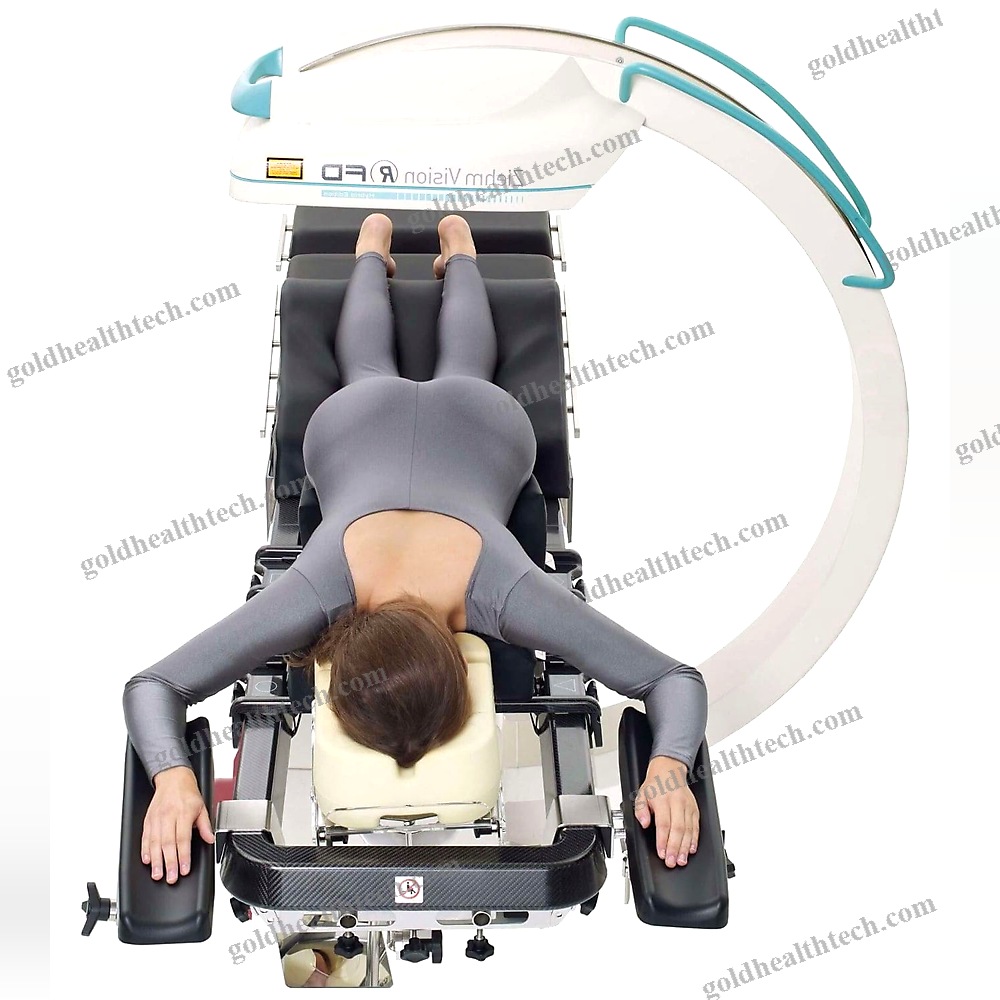

A substantial 3D X-ray window

The surgical field is clearly visible through the expansive 3D X-ray window, which facilitates precise imaging and navigation. This promotes ergonomic work and enhances the surgical outcomes. Product Information Benefits

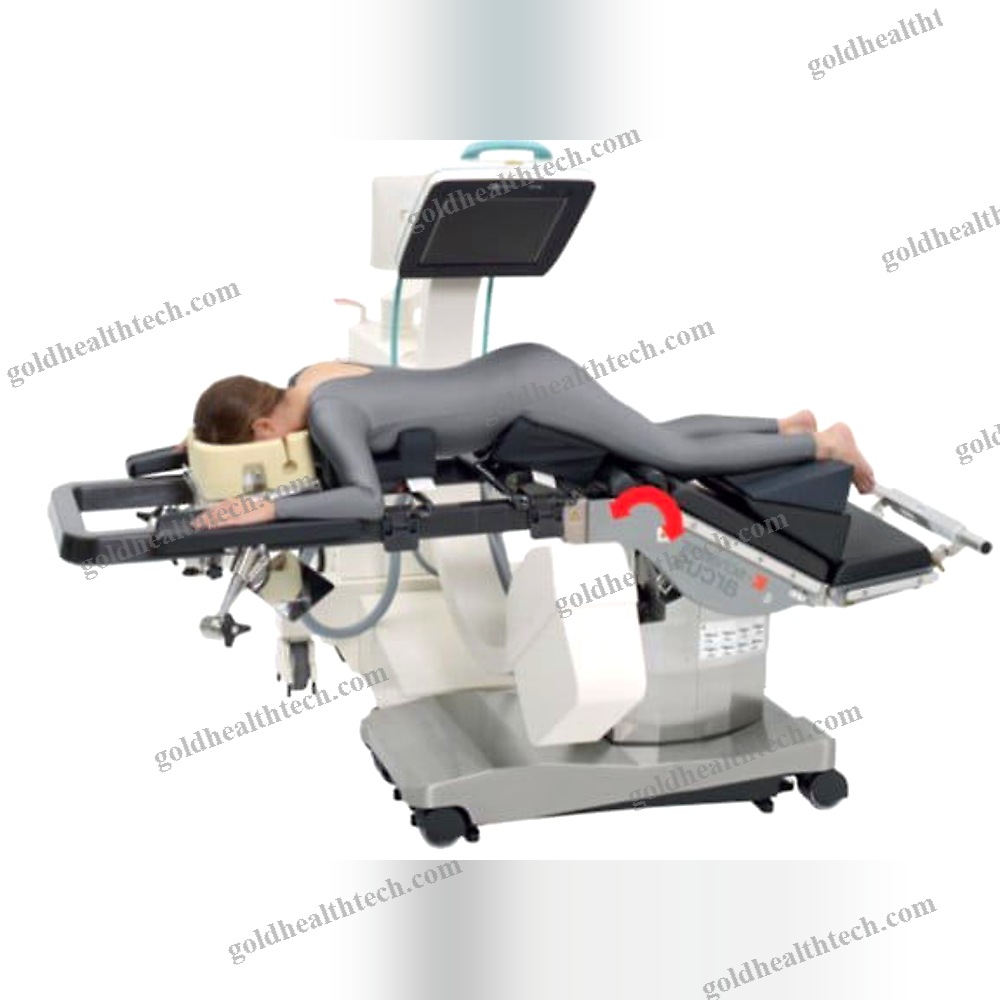

Perioperative motorized tabletop adjustment, without the need for additional adjustments

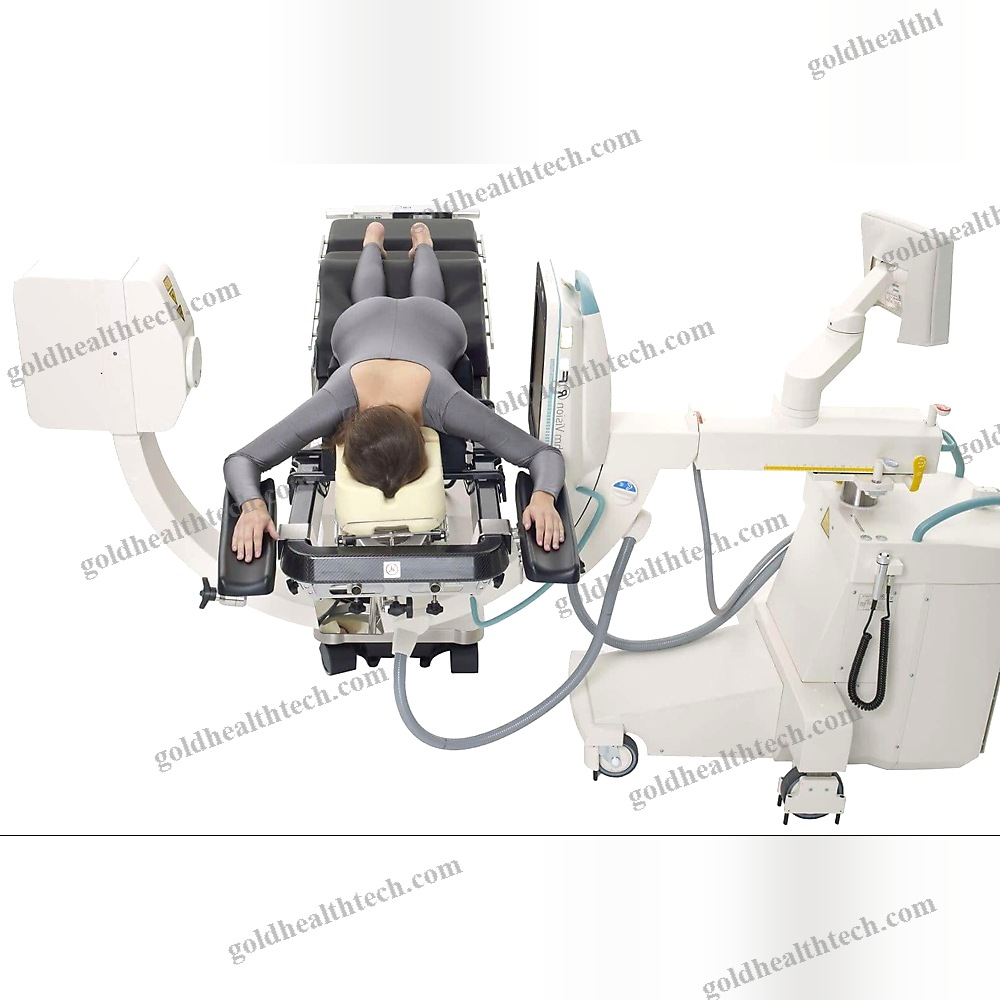

Equipment, anesthesia personnel, and C-arms are accessible.Large 3D X-ray window

Encourages ergonomic work.There is no need for additional personnel.There is no restriction on the freedom of movement.
Extremely lightweightinput:
output:ModularityHeight adjustmentLateral adjustment

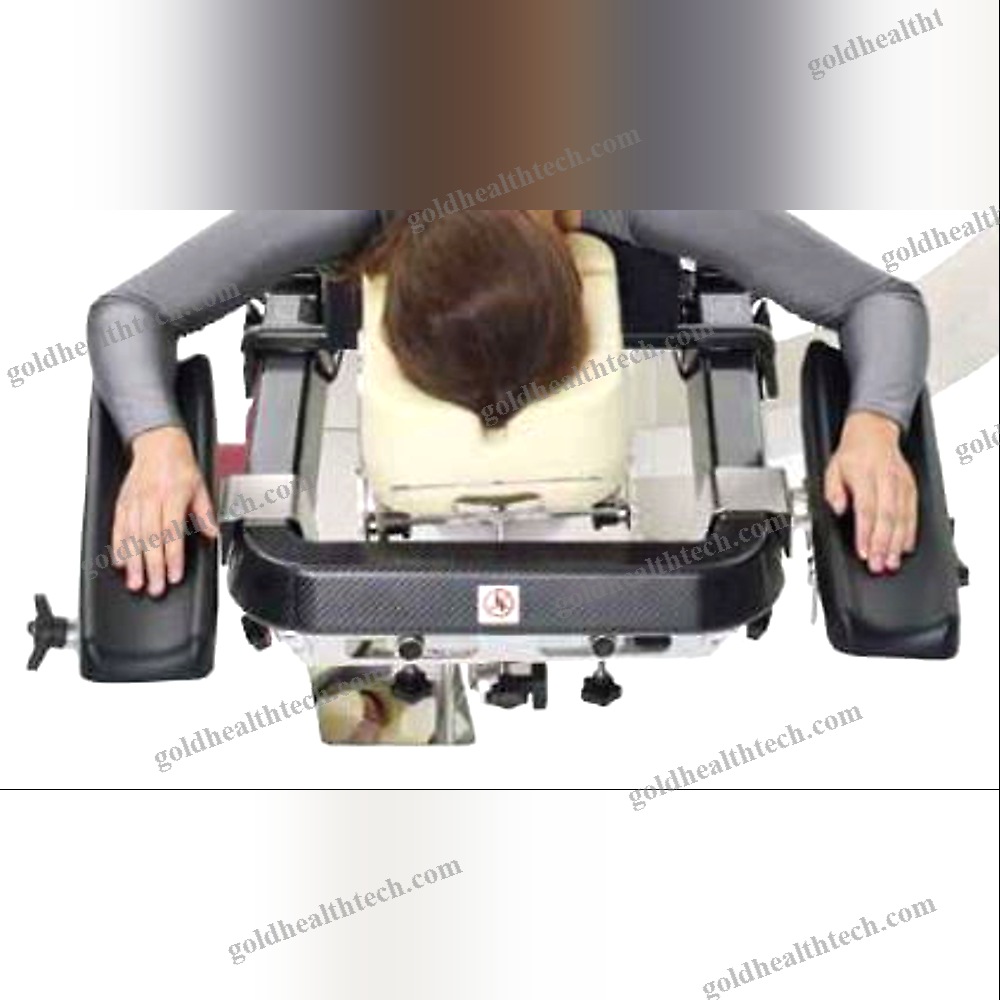

Free abdominal adjustment on an individual basisTransparent head plate to provide a view of the patient's foreheadMirror that is adaptable and can be affixed to either the left or right sideHead cushion to alleviate pressure on the eyes, ears, and noseAluminum and radiolucent base units are equipped with a standard connection.

Additional side rail adapterSpecificationHeadrest clamp weight: 6.3 kgWeight of the carbon frame: 6.2 kg.Patient weight capacity: 200 kg (Axis) and 240 kg (Arcus)Cushion adjustment: +/- 15°The total length is 1205 mm.360° radiolucent length: 805 mmFrame length: 1052 millimetersFrame width: 480 mm580 mm is the width of the frame, which includes the headrest clamp.
