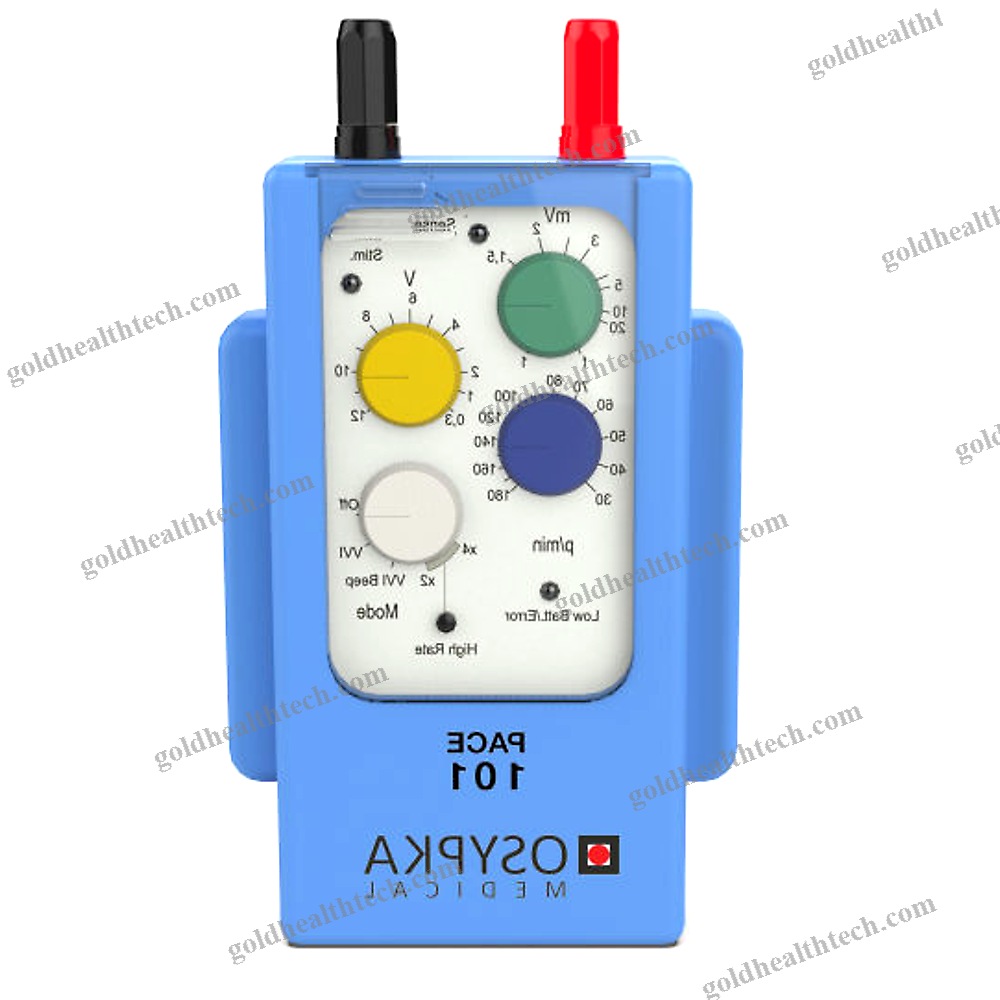

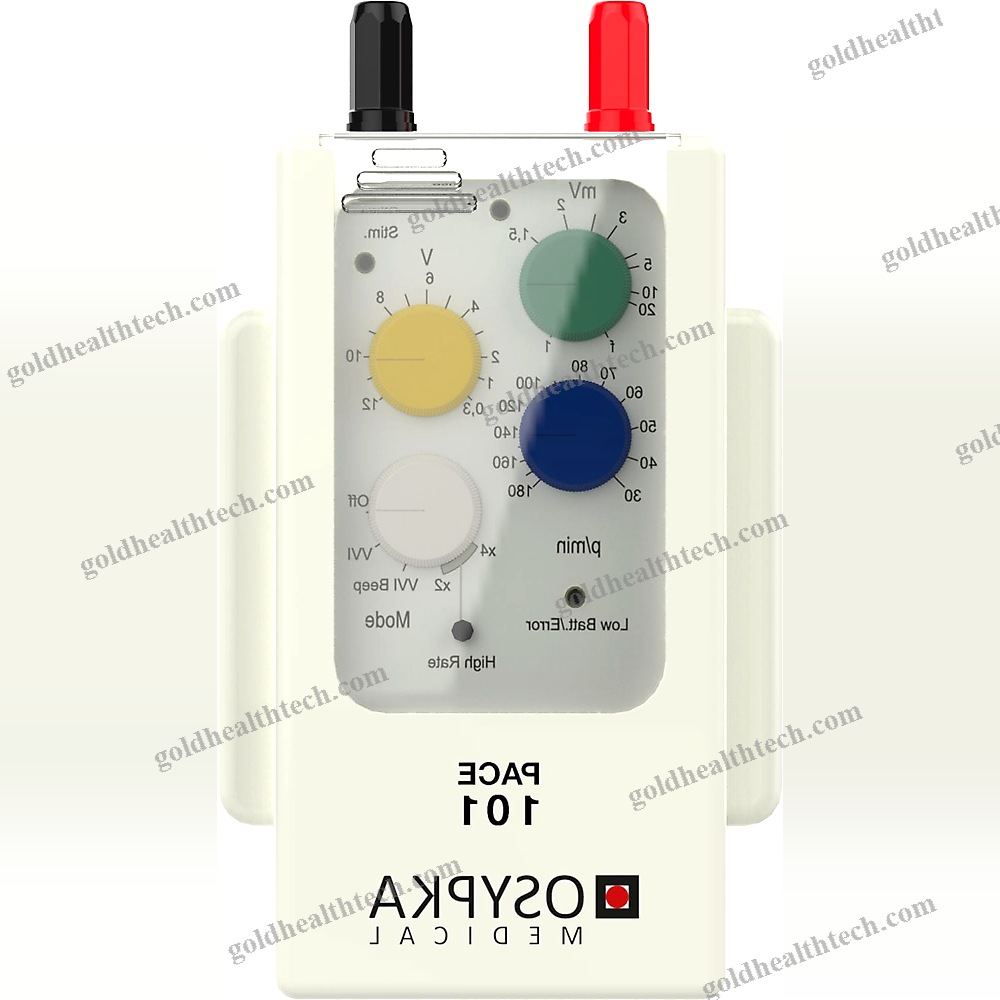

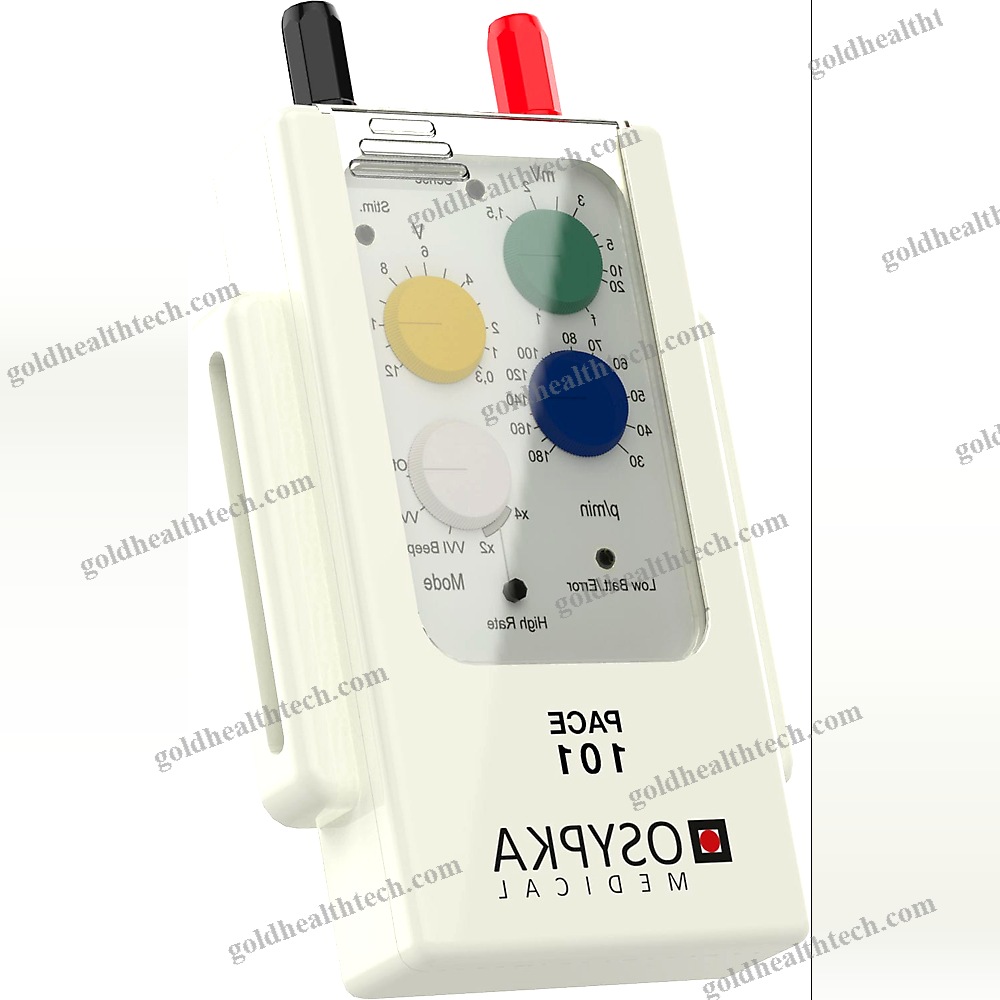

Single-Chamber Temporary Cardiac Stimulator

The PACE® Model 101 single chamber (SSI) cardiac pacemaker is intended to provide safe and effective temporary stimulation of the heart in the event of rhythm disturbances and conduction defects. In particular, PACE® Model 101 is designed for temporary atrial or ventricular pacing and is capable of supporting synchronous (VVI, AAI) and asynchronous (V00, A00) operating modes, as well as rapid atrial pacing.input:
output:A user interface that is straightforward is achieved through the use of four large controls: pacing mode, pacing rate, output amplitude (stimulation), and sensing threshold (sensitivity).input:
output:
LEDs that are linked to optional audible tones serve as indicators of intrinsic events, stimulation pulses, or critical device conditions, including low battery charge.input:
output:
PACE® Model 101 is available with unipolar collets or a combination of bipolar terminal and unipolar sockets for touch-protected ("shrouded") pins, which are used in the majority of transvenous pacing leads, for connection to extension cables and temporary pacing leads.input:
output:Specialties:

Robust and lightweight

Large control dials facilitate operation.Two modes of rapid atrial stimulation (x2 and x4) are available.Continuous pacing for up to 38 days on a single battery

VVI, AAI, V00, and A00 are the operational modes.input:
output:The PACE® Model 101 is the optimal choice for physicians and nurses who require a rapid setup of temporary pacing in the emergency room, operation room, or ICU due to its straightforward design and features. The PACE® Model 101 is intended for temporary atrial or ventricular pacing and is intended to be used in conjunction with cardiac pacing lead systems. The device is adaptable for both therapeutic and prophylactic applications.input:
output:Applications that are anticipated:input:
output:Intermittent or complete heart block (third degree)

Sinus bradycardia with symptoms
