Rotary Press
Reference: 1096695Pharmaceutical Industry
| Applications | For Tablets, For The Pharmaceutical Industry, R&D, For Small-Scale Production, Laboratory, Sampling, For Research And Development, Clinical, Filling |
| Other Characteristics | Rotary, High-Speed, Single Layer, With Touchscreen, Fully-Automatic |
Associated tags
Documentation request
Ask which specifications, manuals, or commercial documents are available for review.
Supplier coordination
Discuss quantity, destination, packaging, and timing before confirming suitability.
Product information
Product summary

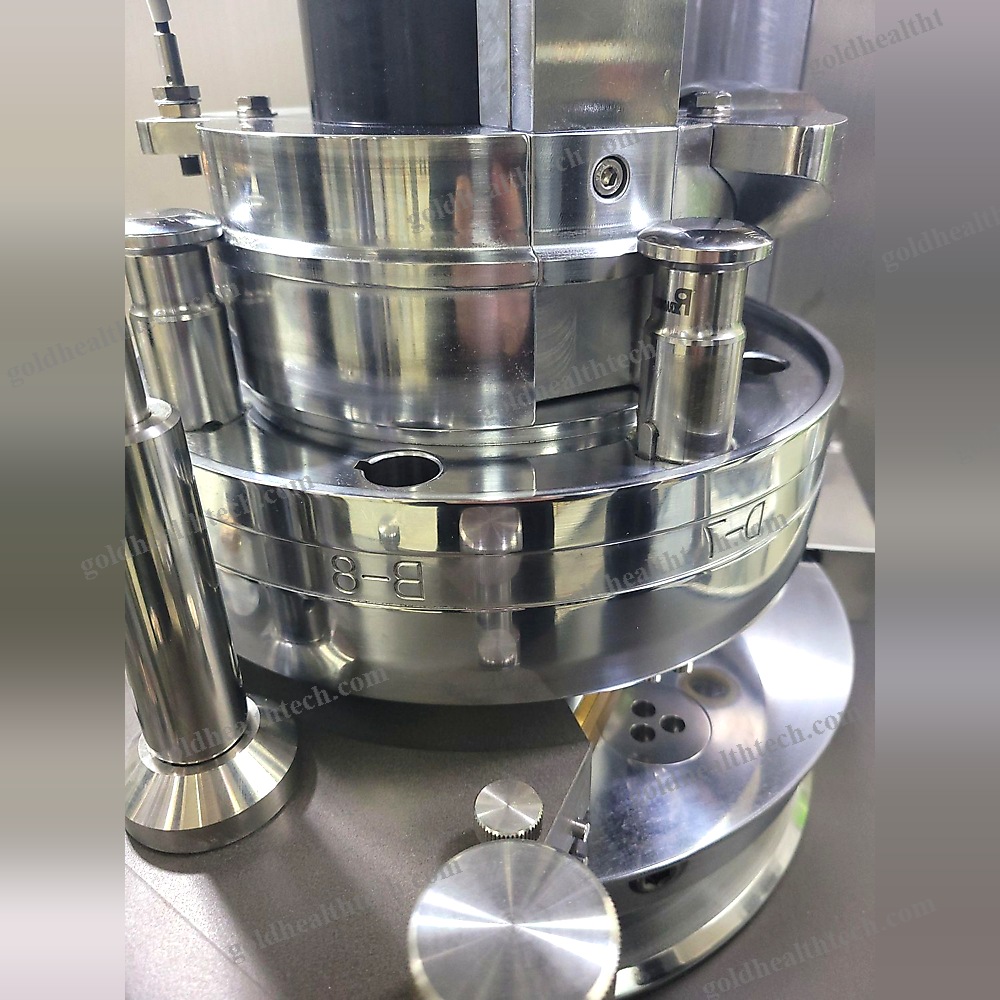

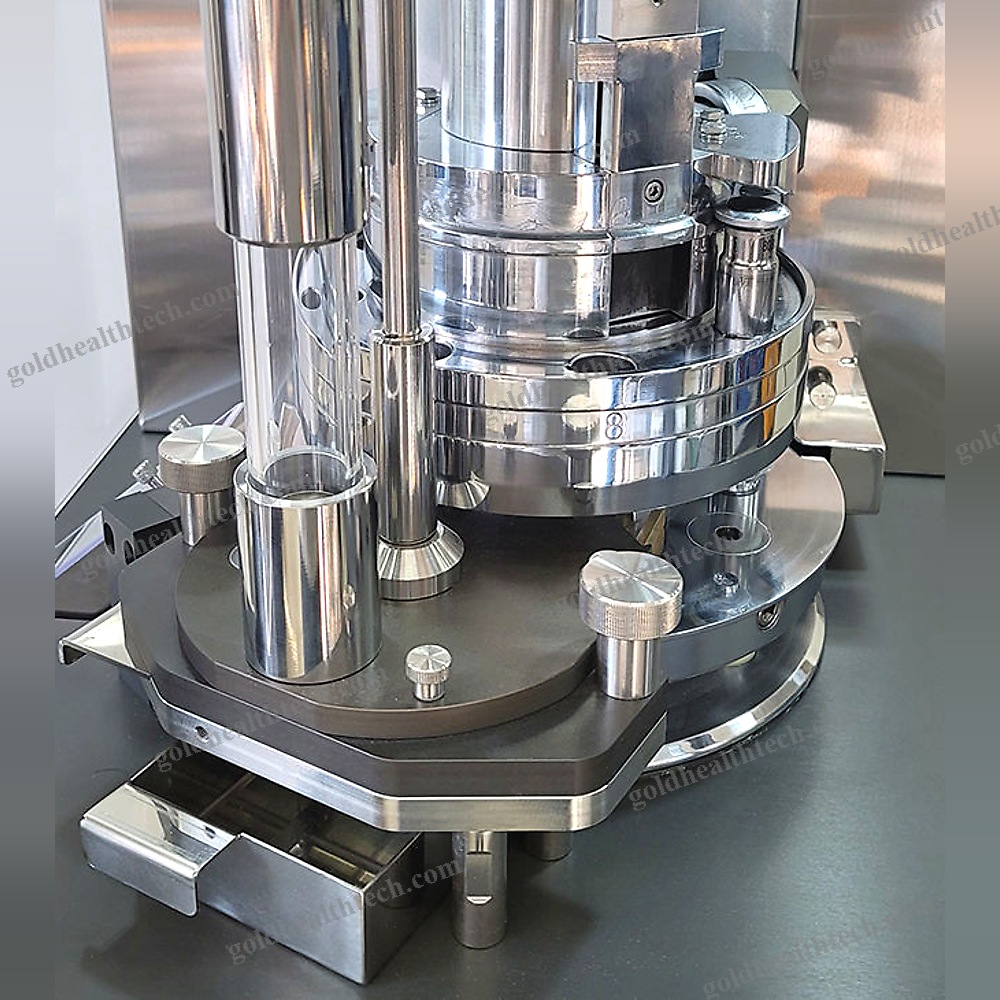

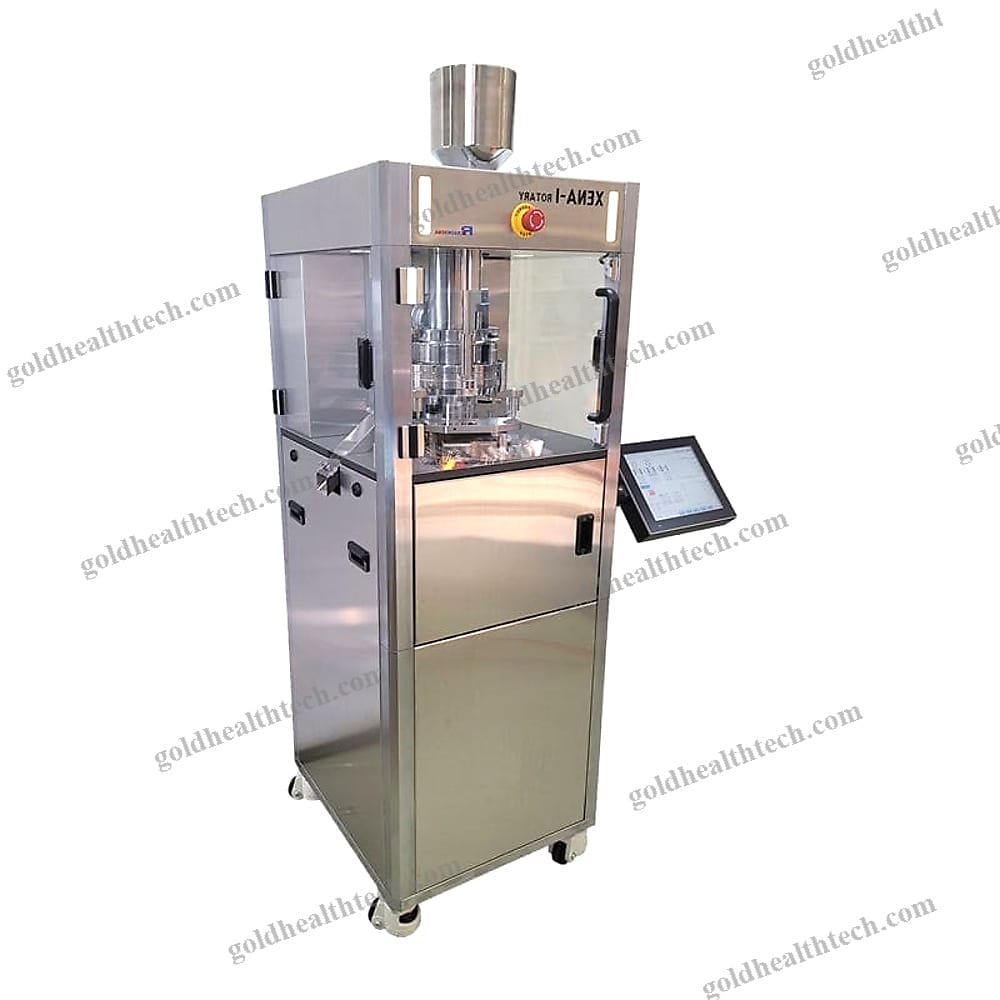

The XENA-I ROTARY is intended for laboratory plants and R&D departments. It is well-suited for clinical or small-quantity production operations, process improvement, and product research and development.
This compact press is GMP compliant and features a removable fairing, which allows for effortless assembly and disassembly of components.
Monitors the pre-compression force, ejection force, and upper and lower compression forces.StationEight
Type: Euro D or B or D&B
Maximum Main Compression: 60KN
Maximum Main Pre-Compression: 10KN
Maximum Ejection Pressure: 5KNThe maximum filling depth is 18mm, the upper punch penetration is 1 to 4mm, and the maximum tablet diameter is 25mm.Maximum Tablet Thickness: 8mmTurret Speed: approximately 40 RPM Feeder Speed: approximately 60 RPM

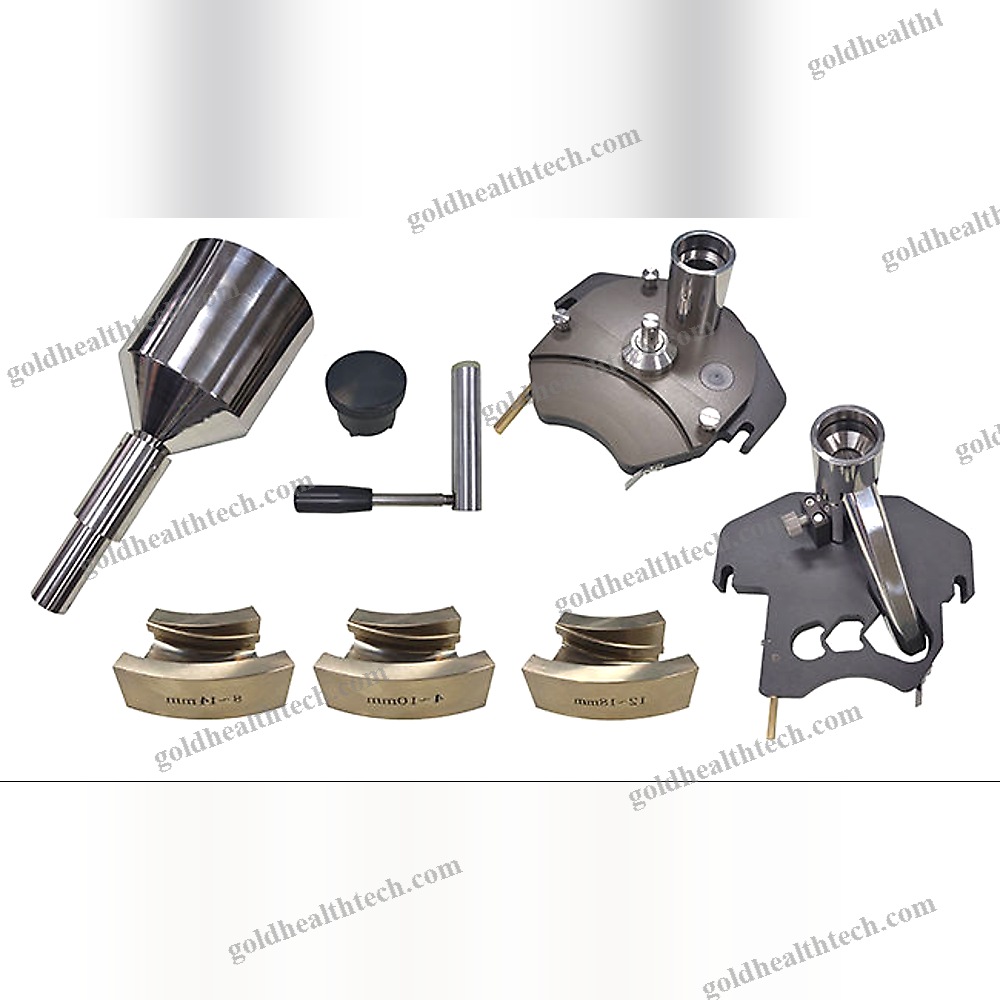

Turret Pitch Circle Diameter: (Ø200)Filling Cam: 4-10mm, 8-14mm, and 12-18mmDimensions:[Without Hopper, Panel PC] 1610(H) x 580(W) x 650(D)mm
[With Panel PC, Hopper] 1800(H) x 990(W) x 650(D)mm
Power: 3KVA, 220V (3Ph), 50/60Hz
Weight: Approximately 700 kg.input:
output:10.4" Panel PC
All controls are located on a single screen.Punch Tooling: Inching Control & Replace both upper and lower punches in a single sectionMulti-Recipe CapabilityMonitor for Real-Time Compression (Main, Pre, Ejection)Automatic control device for filling depthFilling Cam Automatic Detection by TypeAlarm and stop by interlock as the door is opened during operation.Data graph display and storage (DAQ Program-Data Acquisition)
This compact press is GMP compliant and features a removable fairing, which allows for effortless assembly and disassembly of components.
Monitors the pre-compression force, ejection force, and upper and lower compression forces.StationEight
Type: Euro D or B or D&B
Maximum Main Compression: 60KN
Maximum Main Pre-Compression: 10KN
Maximum Ejection Pressure: 5KNThe maximum filling depth is 18mm, the upper punch penetration is 1 to 4mm, and the maximum tablet diameter is 25mm.Maximum Tablet Thickness: 8mmTurret Speed: approximately 40 RPM Feeder Speed: approximately 60 RPM
Turret Pitch Circle Diameter: (Ø200)Filling Cam: 4-10mm, 8-14mm, and 12-18mmDimensions:[Without Hopper, Panel PC] 1610(H) x 580(W) x 650(D)mm
[With Panel PC, Hopper] 1800(H) x 990(W) x 650(D)mm
Power: 3KVA, 220V (3Ph), 50/60Hz
Weight: Approximately 700 kg.input:
output:10.4" Panel PC
All controls are located on a single screen.Punch Tooling: Inching Control & Replace both upper and lower punches in a single sectionMulti-Recipe CapabilityMonitor for Real-Time Compression (Main, Pre, Ejection)Automatic control device for filling depthFilling Cam Automatic Detection by TypeAlarm and stop by interlock as the door is opened during operation.Data graph display and storage (DAQ Program-Data Acquisition)
