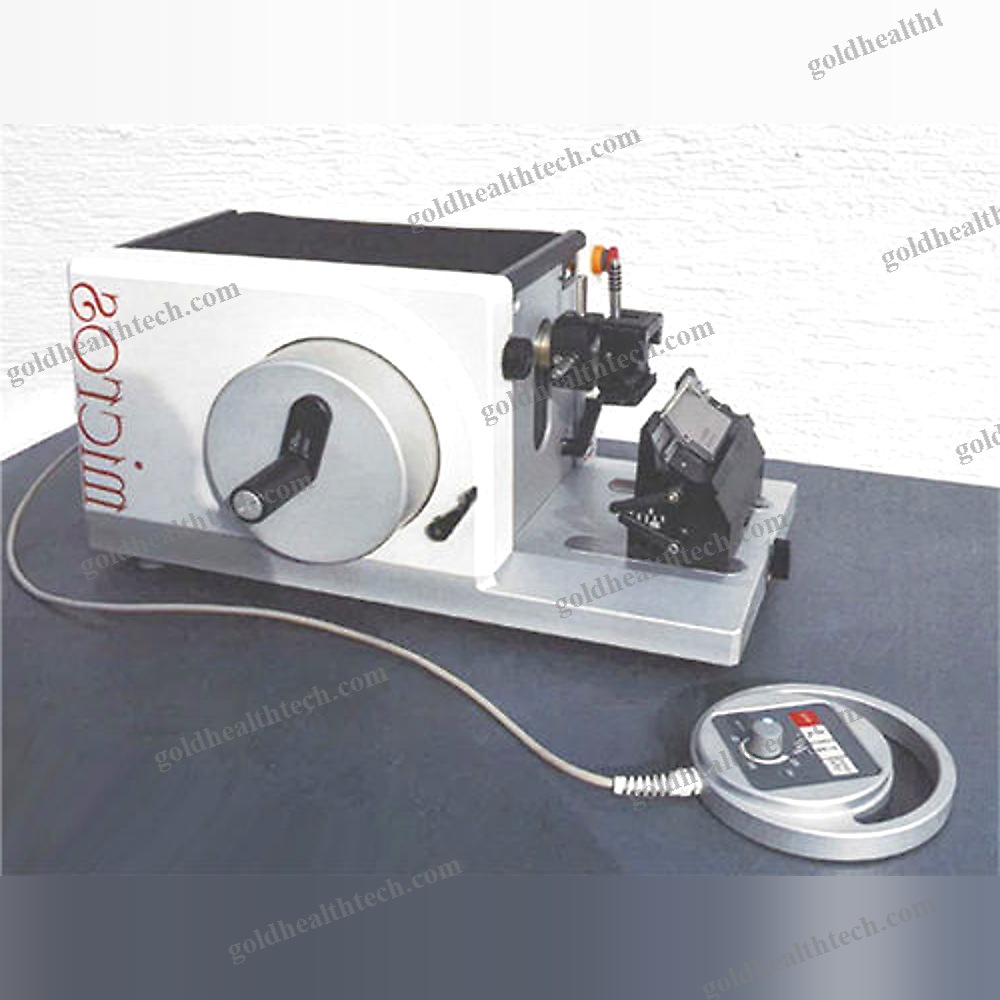

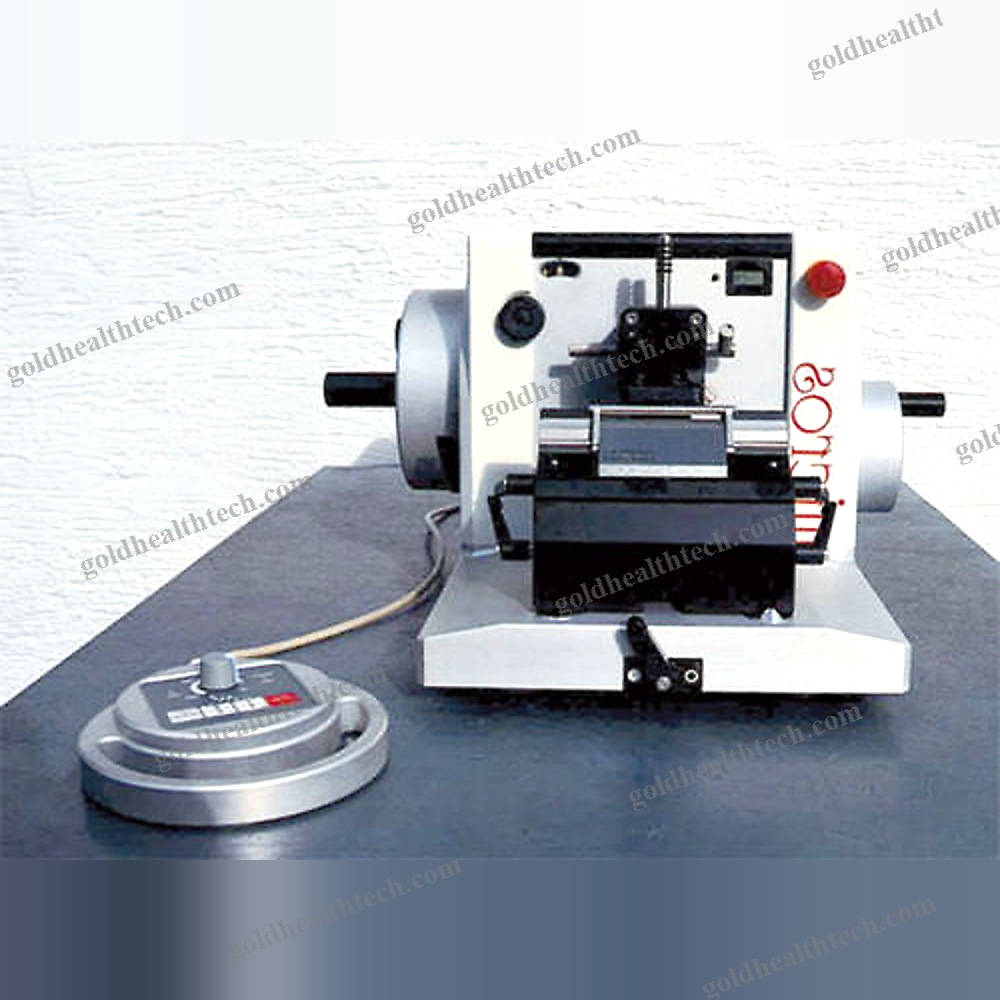

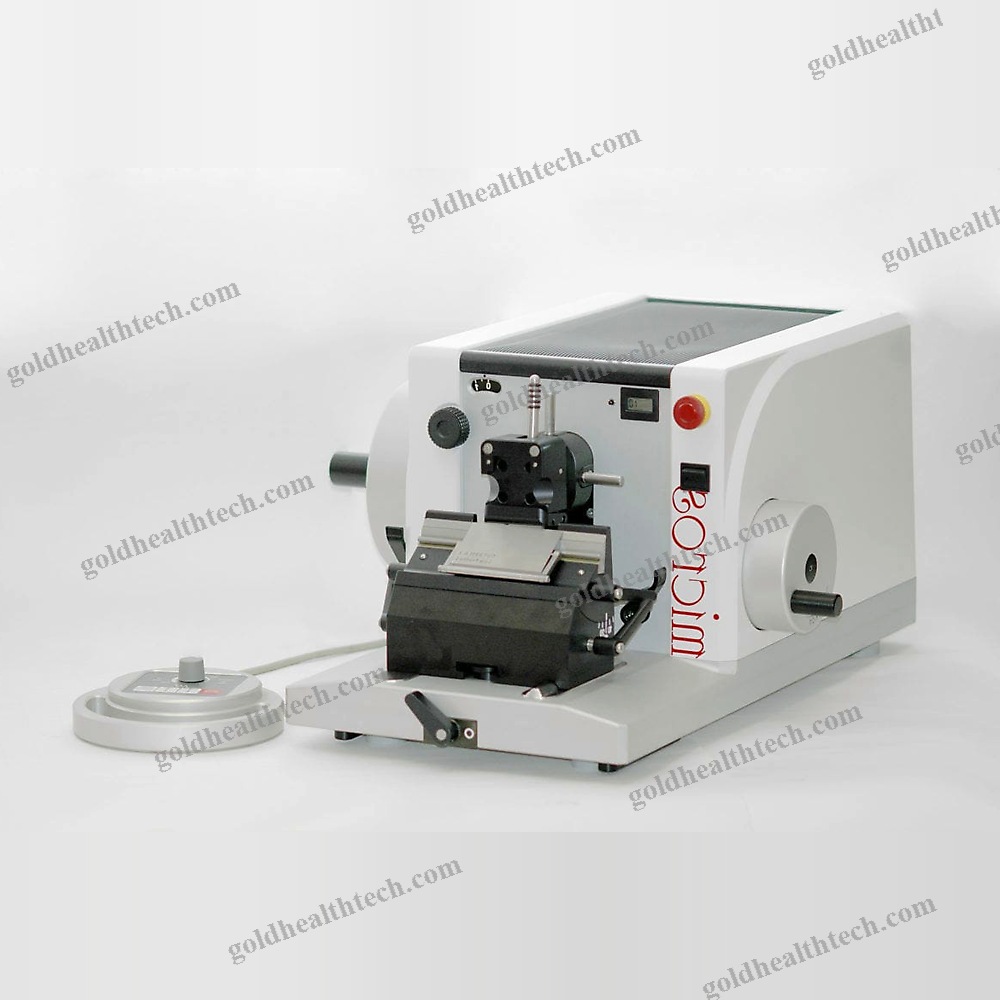

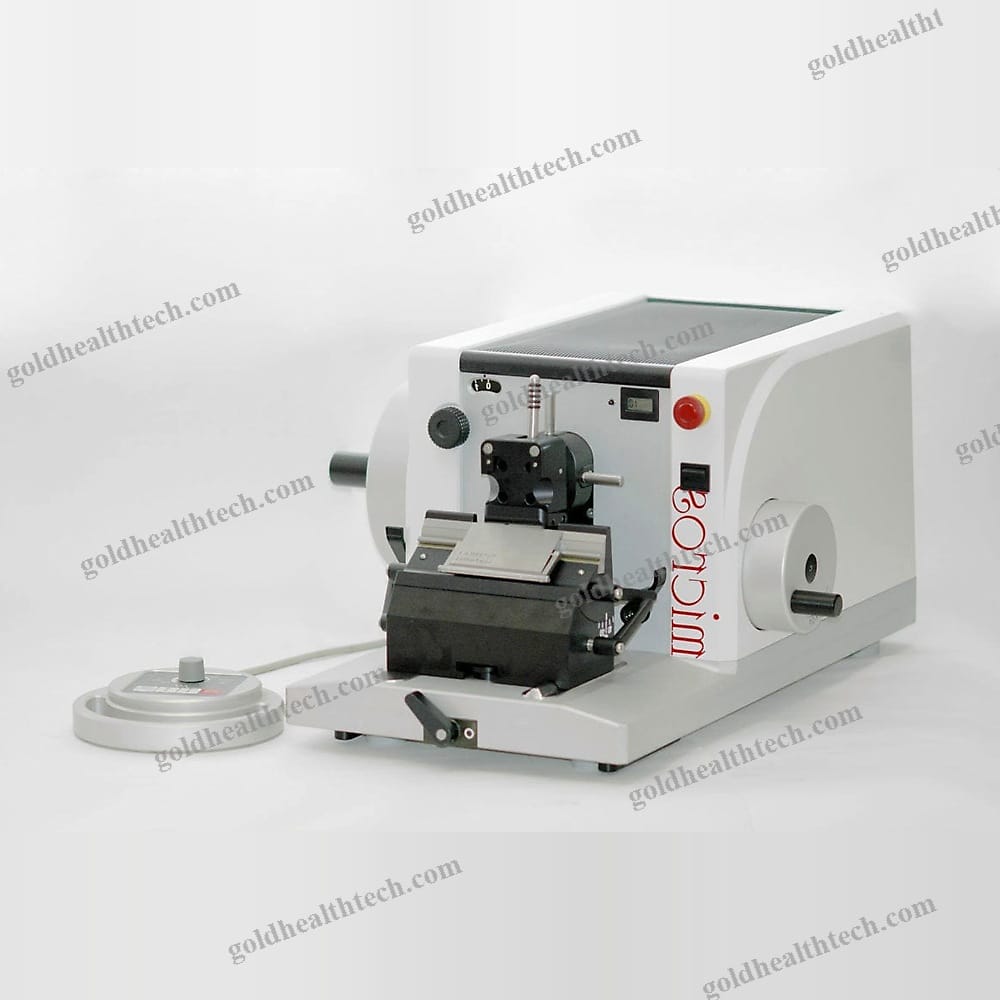

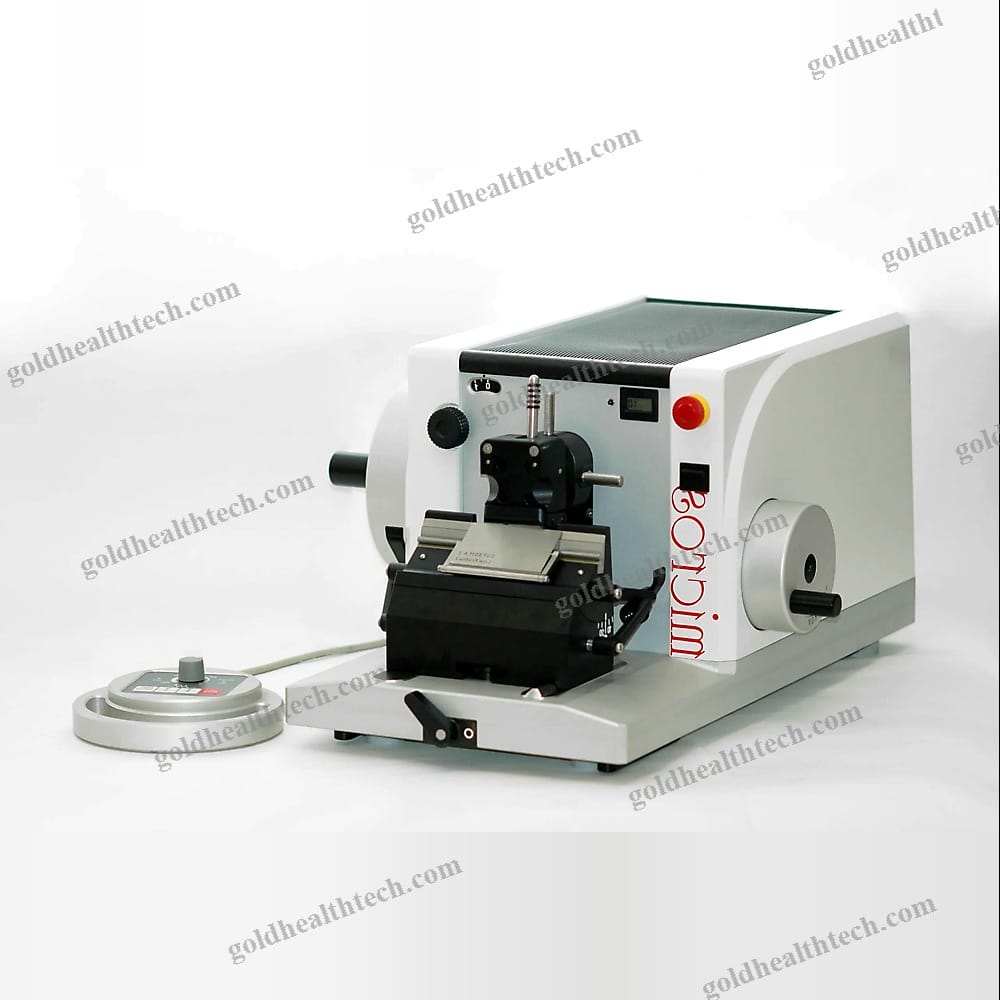

Rotary Microtome

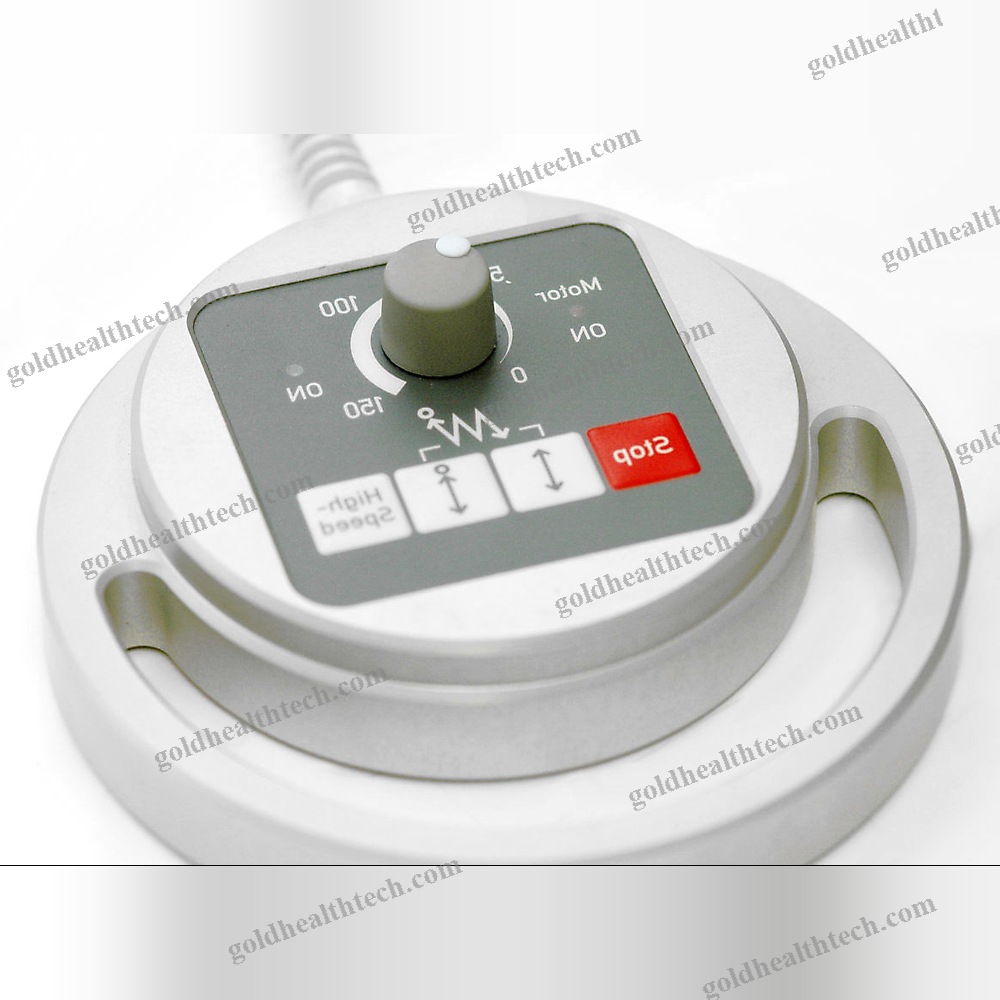

An electronic servo drive is included in the semi-automatic microtome. This simplifies the operation of long-lasting cutting sequences. The cutting process can be initiated by either the manual control panel or a foot switch (optional). The hand tableau can be cut in three different ways:input:
output:→ Tip mode→ Continuous stroke→ Single stroke (alternatively with foot switch)FEATURES

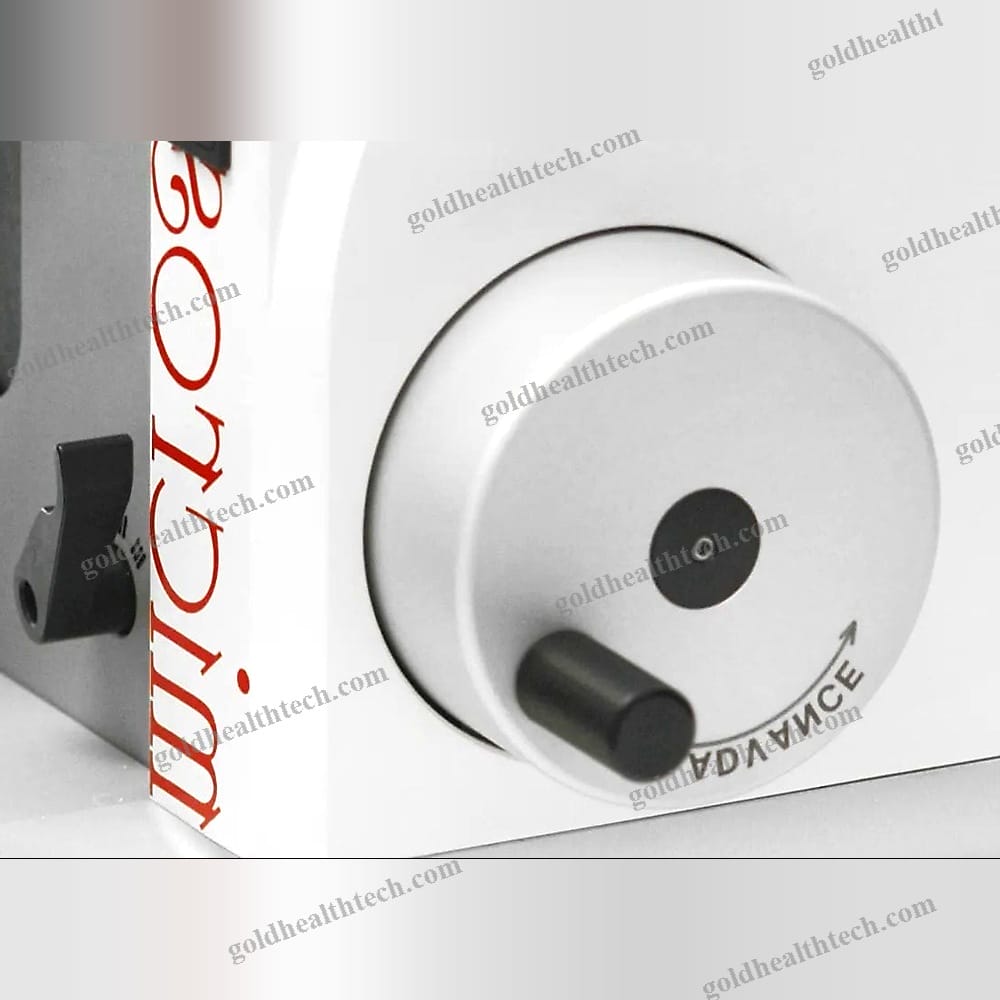

An additional high-speed button facilitates rapid cutting. The object is halted in its current position by pressing the Stop key. The cutting speed can be adjusted from 1 to 150 strokes per minute. Slipping clutch with coarse drive left (handwheel). Collision protection with a fine infeed. Optimal object guidance is achieved through the use of a cross roller guide that is both backlash-free and maintenance-free, with roller cages that are positively guided. Optimal displacement potential with precise clamping of the knife holder. Object retraction that is automatic.Technical Specificationsinput:
output:Range The thickness of the cut 0.5 to 60 μminput:
output:Determining the thickness of the cut0.5 µm to 2 µm, with 0.5 µm increments

2 µm to 10 µm, with 1 µm increments

2 µm steps, 10 µm–20 µm

20 µm to 60 µm, with 5 µm incrementsinput:
output:70 mm vertical object feedinput:
output:80 µm object retraction in the returninput:
output:Drive coarsely in both clockwise and counterclockwise directions.input:
output:Handwheel lock that is integrated into the handwheelDimensions (L×W×H): 460×460×280 mminput:
output:40 mm horizontal object feedinput:
output:Thirty-six kilograms
