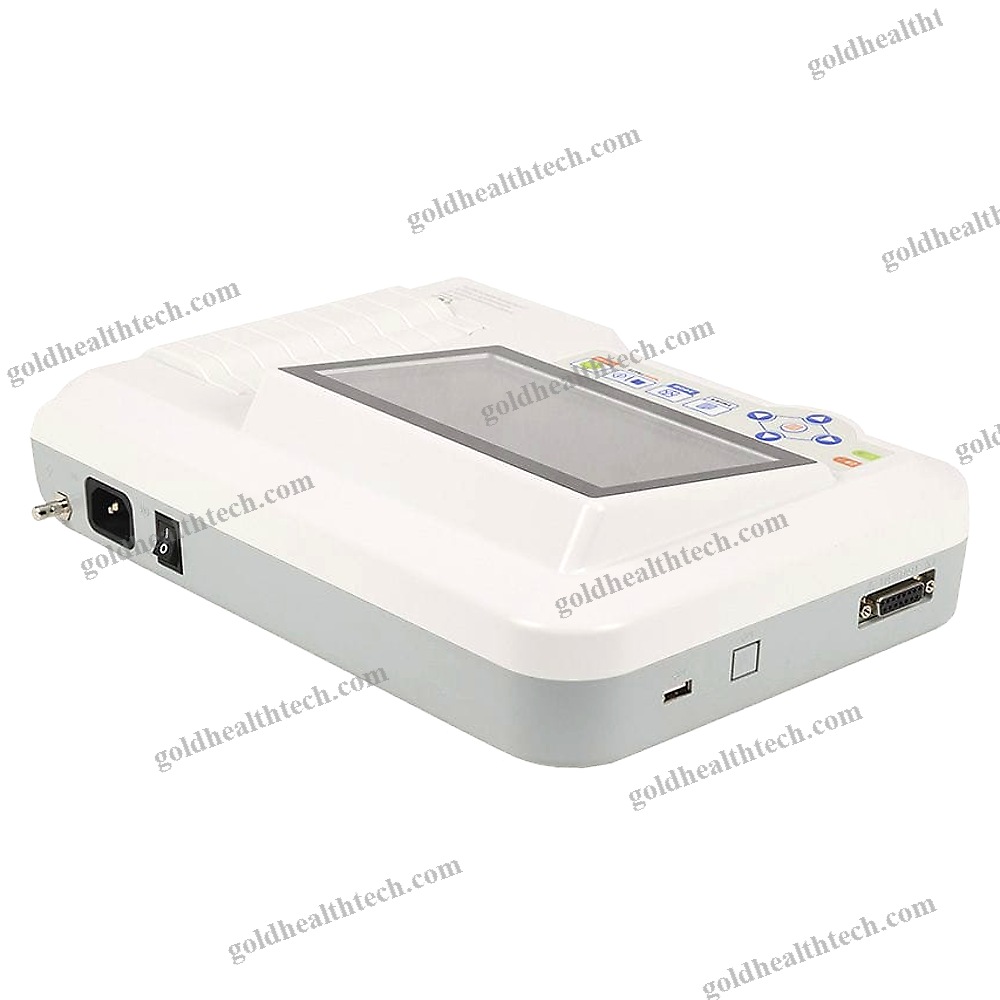

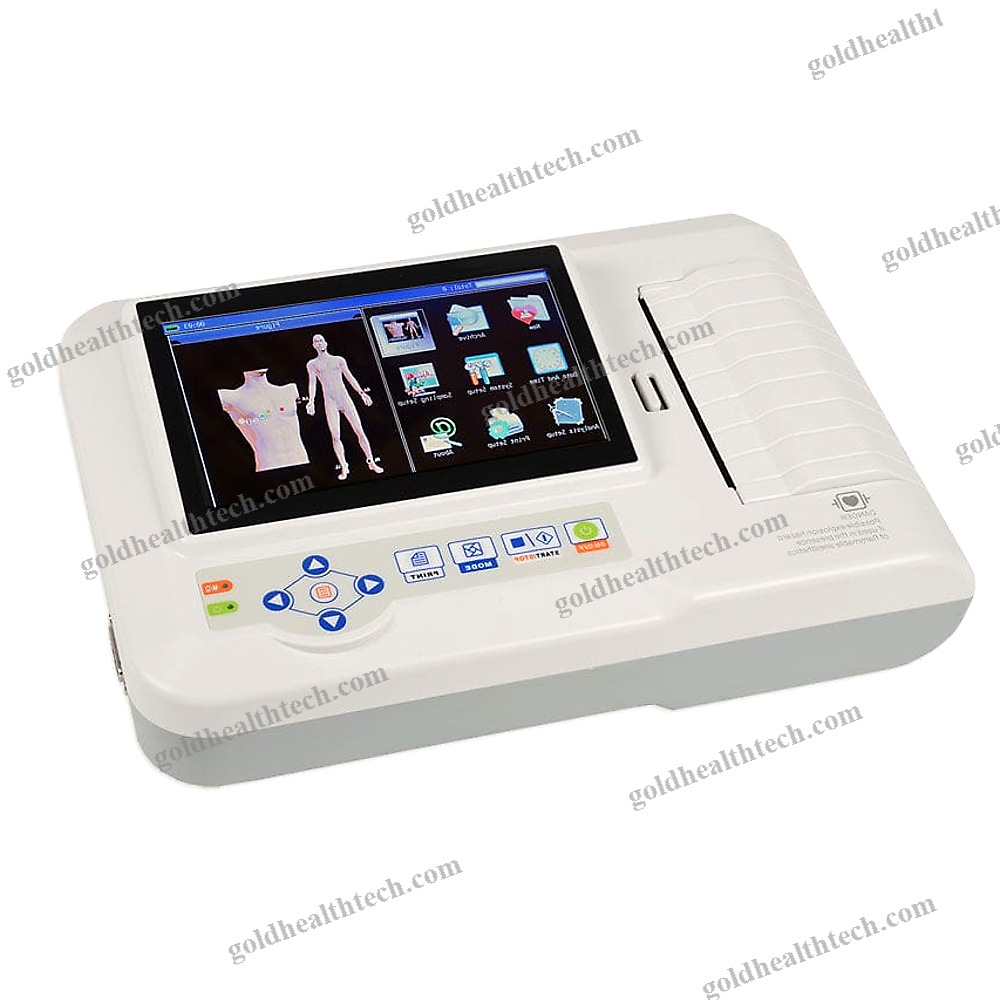

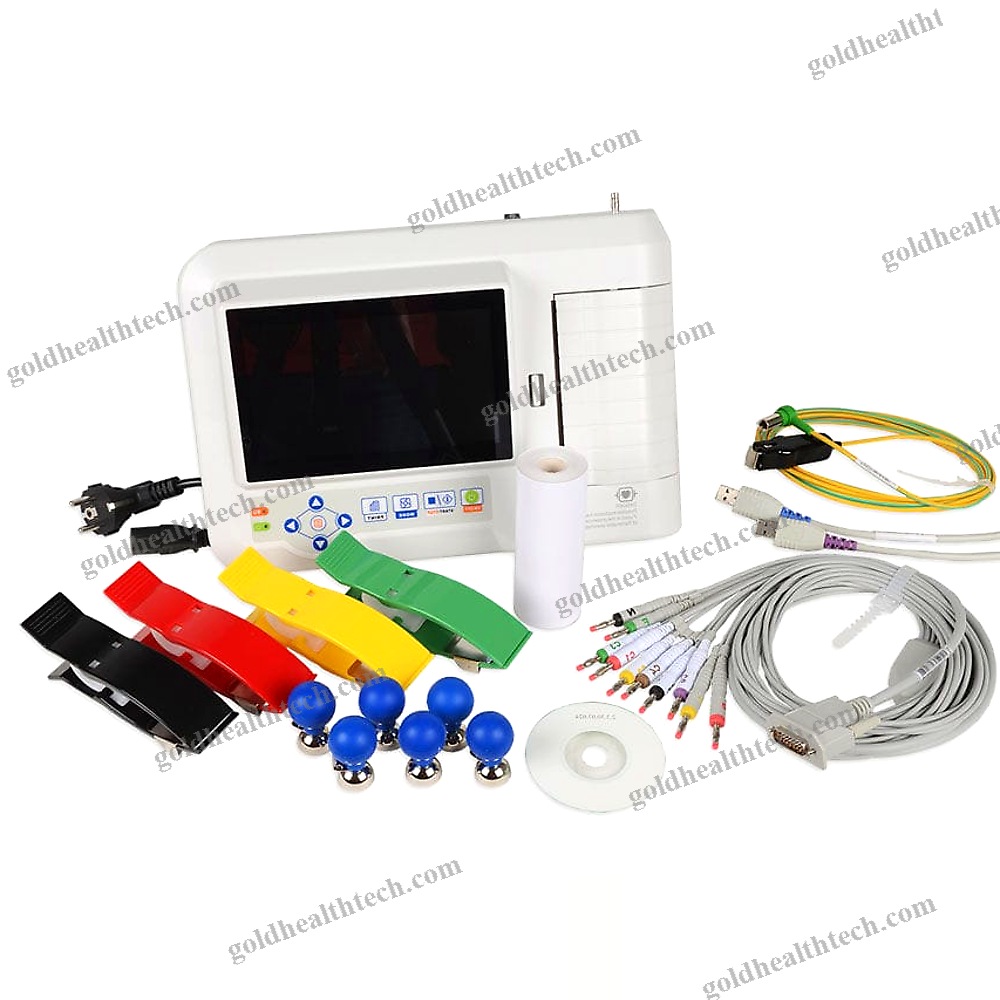

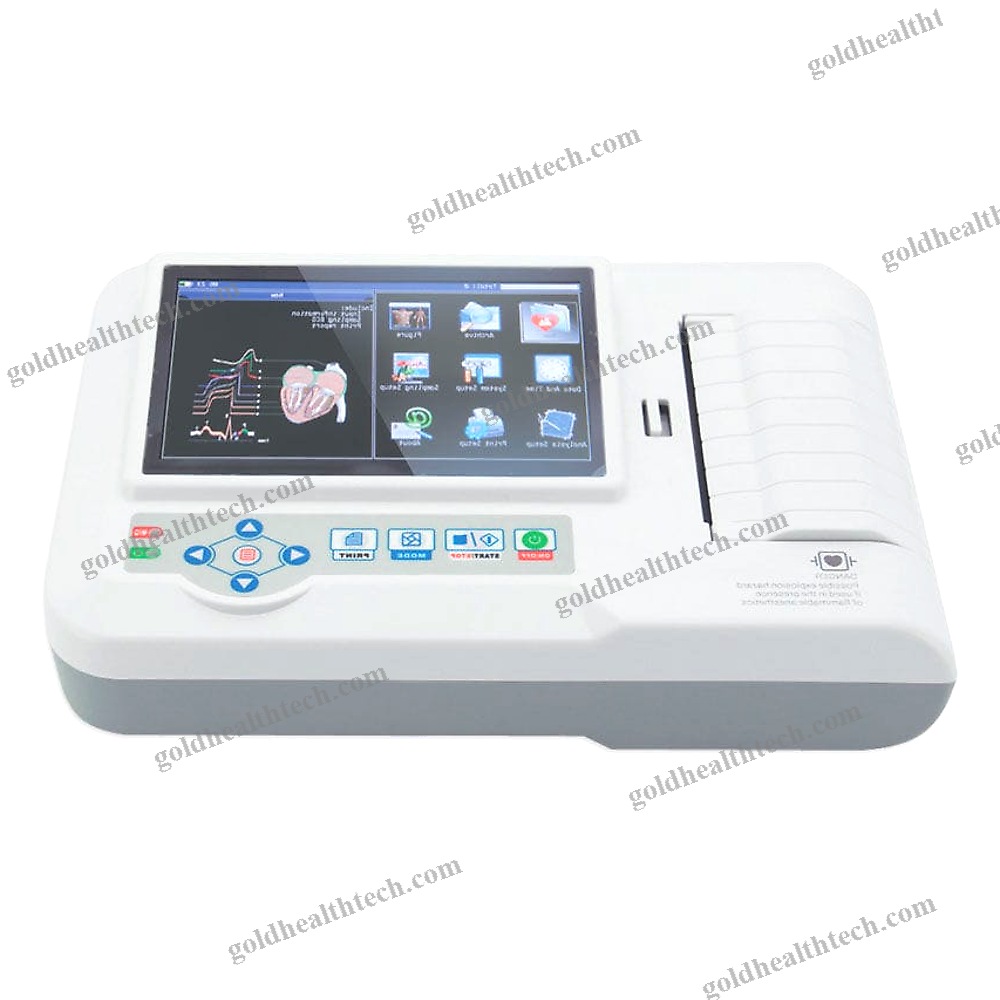

Resting Electrocardiograph

- Display of 12 leads simultaneously

- Digital filter and signal processing solution, digital isolation technology- Detail analysis report, patient management, name, age, and identification- Internal lithium-ion rechargeable battery- The thermal printing system offers over ten printing modes.- Has the capacity to print 150 ECGs continuously for 90 minutes.- The ECG-Sync software, USB connection to a PC, and built-in memory have the capacity to store over 1000 cases.

- Auto-measurement, auto-analysis, and auto-interpretation br/>


The USB connection enables real-time transmission to a PC, remote data analysis and diagnosis, management, and printing through the PC.Technical Specificationsinput:
output:Input of ECG instrument• Safety Type: Class I, type CF applied part, which includes a defibrillation-proof applied part• Lead Standard 12 leads• Input method: Defibrillation and floating protection• Patient leak current: 3.2 s• CMRR: >60dB, >100dB (Add filter)• Polarization voltage that persists: ±500 mV• Dispose of wave data

• Noise level: <15µVp-p• EMG interference filter: 25Hz/35Hz (-3dB)

• AC filter, 50Hz/60Hz (-20dB)Waveform output• Method of recording: Thermal printing system (32 spots/mm)• Recording paper: 110mm(W) x 20m(L)• Sensitivity: 2.5, 5, 10, 20, 40 mm/mV

• Speed of paper:- Automatic recording: 25 mm/s and 50 mm/s

- Rhythm record: 25 mm/s and 50 mm/s

- Manual-record: 5, 6, 25, 10, 12, 5, 25, 50, and 100 mm/sElectricity source• AC: 110-220V, 50/60 Hz

• DC: 3500 mAh lithium battery with a voltage of 7.4VFuse• Two (2) Ø5×20mm AC time lags; T250mA/250V (power supply: 220V) Form:• Dimensions: 315 x 215 x 77 mm• Net Weight: 1.7 kilograms
