Radiation Therapy Test Phantom

The intelligent modular phantom for patient quality assuranceinput:
output:The phantom solution for IMRT

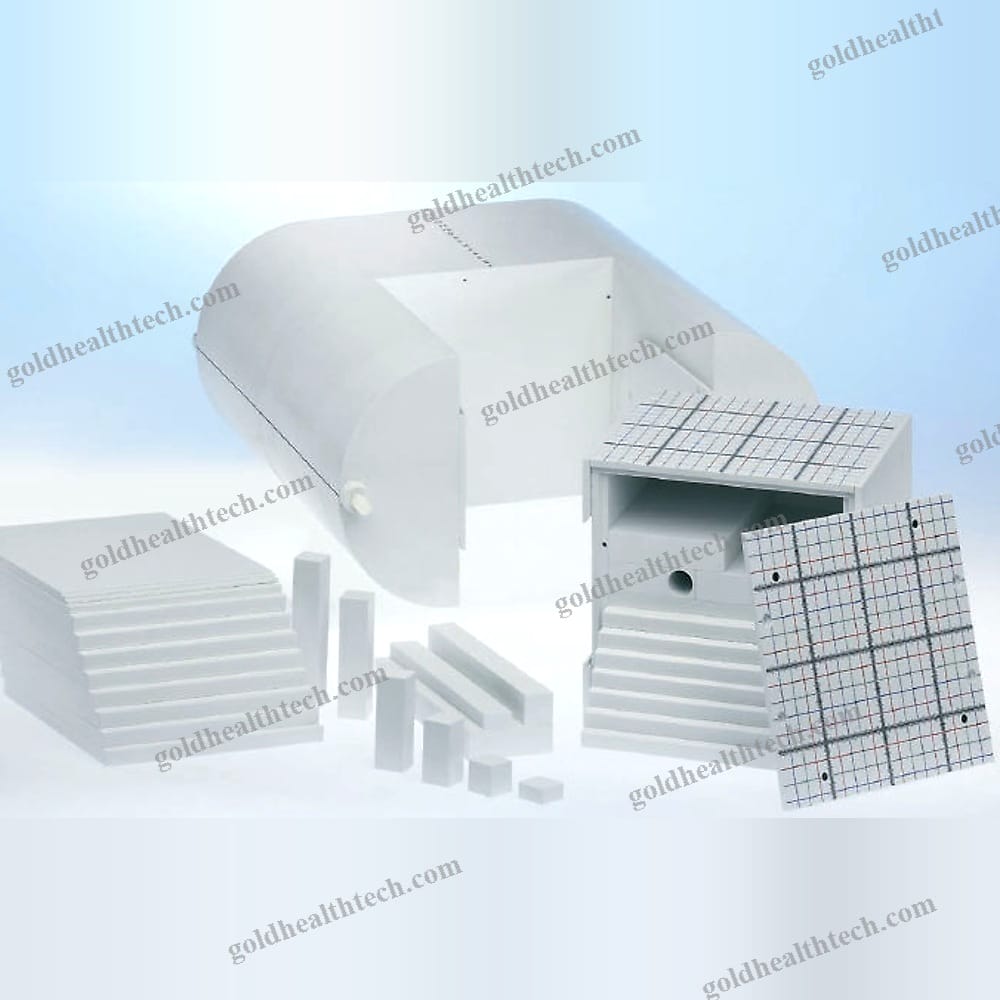

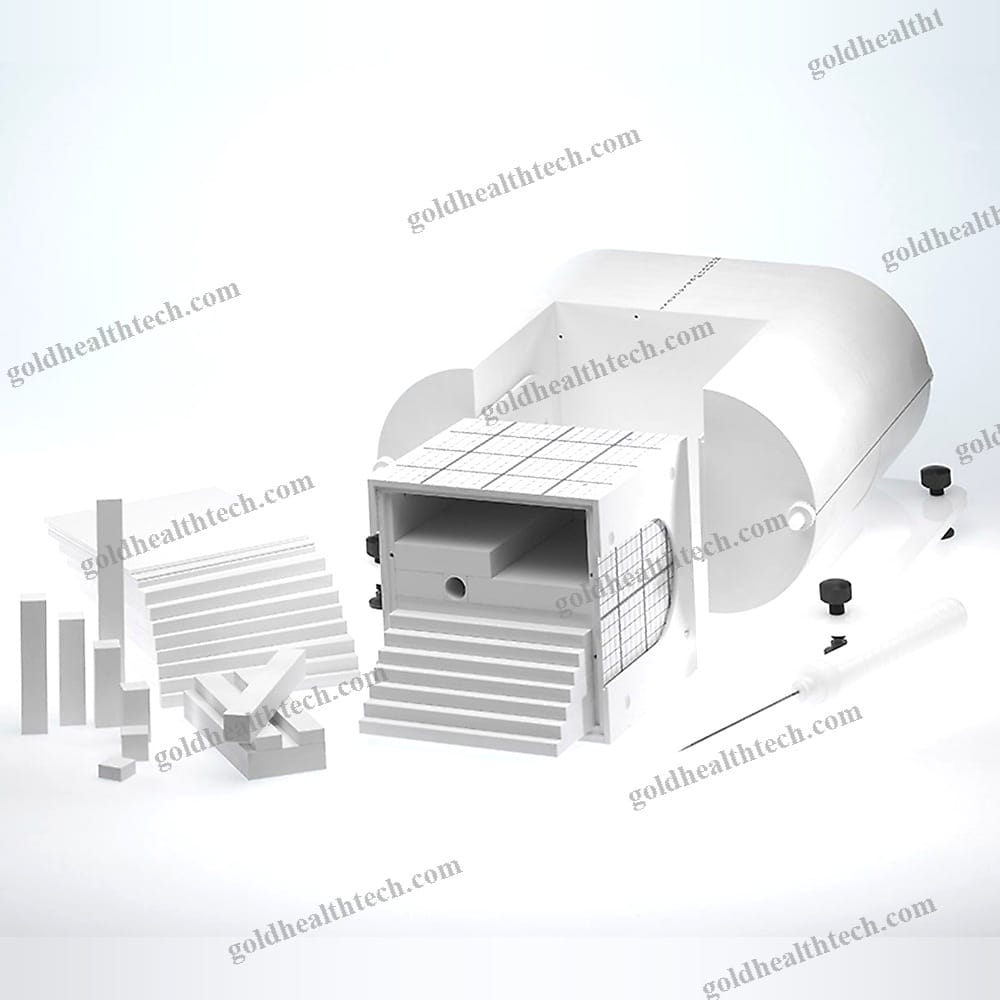

The I'mRT Phantom is a water equivalent phantom that is designed for the verification of the absolute dose and the measurement of multiple films. The versatile I'mRT Phantom is capable of serving as a Universal Body phantom, Head & Neck phantom, and for Stereotactic applications.input:
output:A distinctive modular design that ensures maximum adaptability

Suitable for TLD, Absolute Dosimetry, and Film

Effortless, rapid, and intuitive adjustment in CT scanners and under Linac

Composed of RW3 material.Verification of Universal Body

Enabling the simultaneous screening of up to 15 films

Compare the distribution of the film dose with the planned TPS dose in myQA Patients.input:

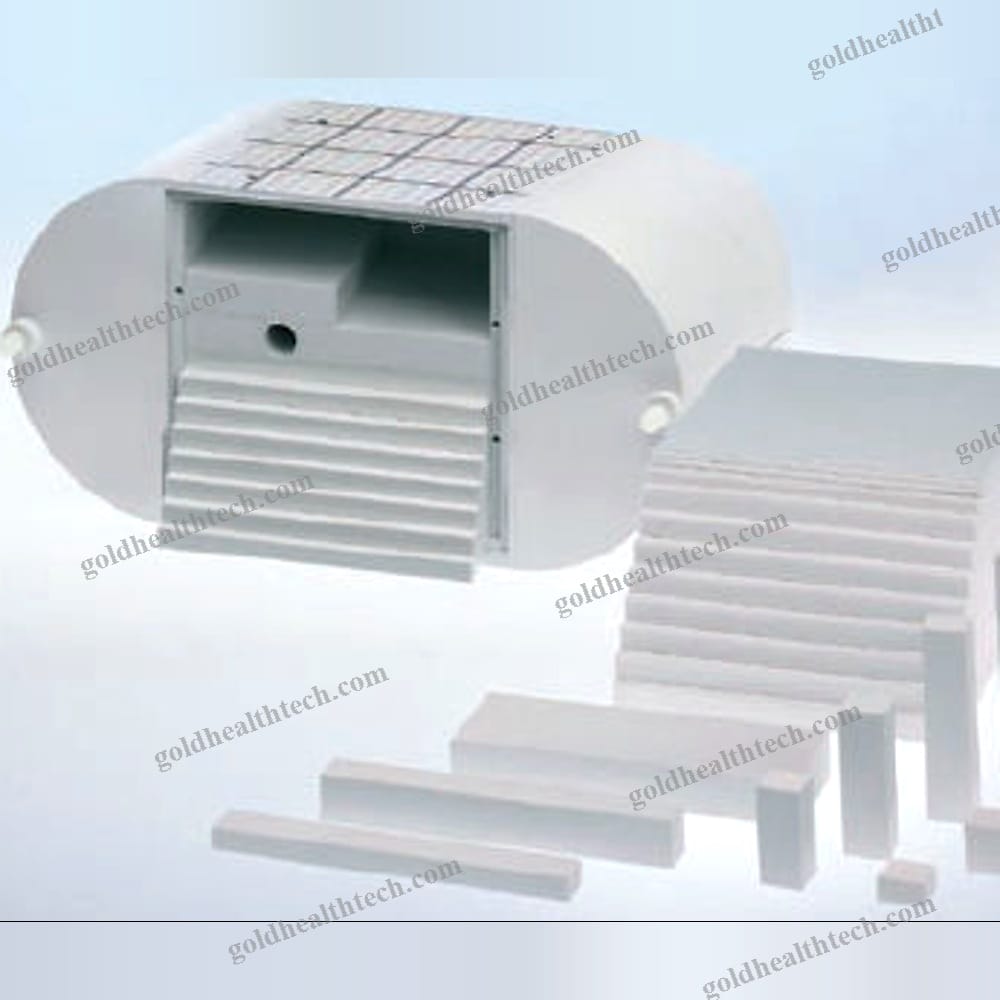

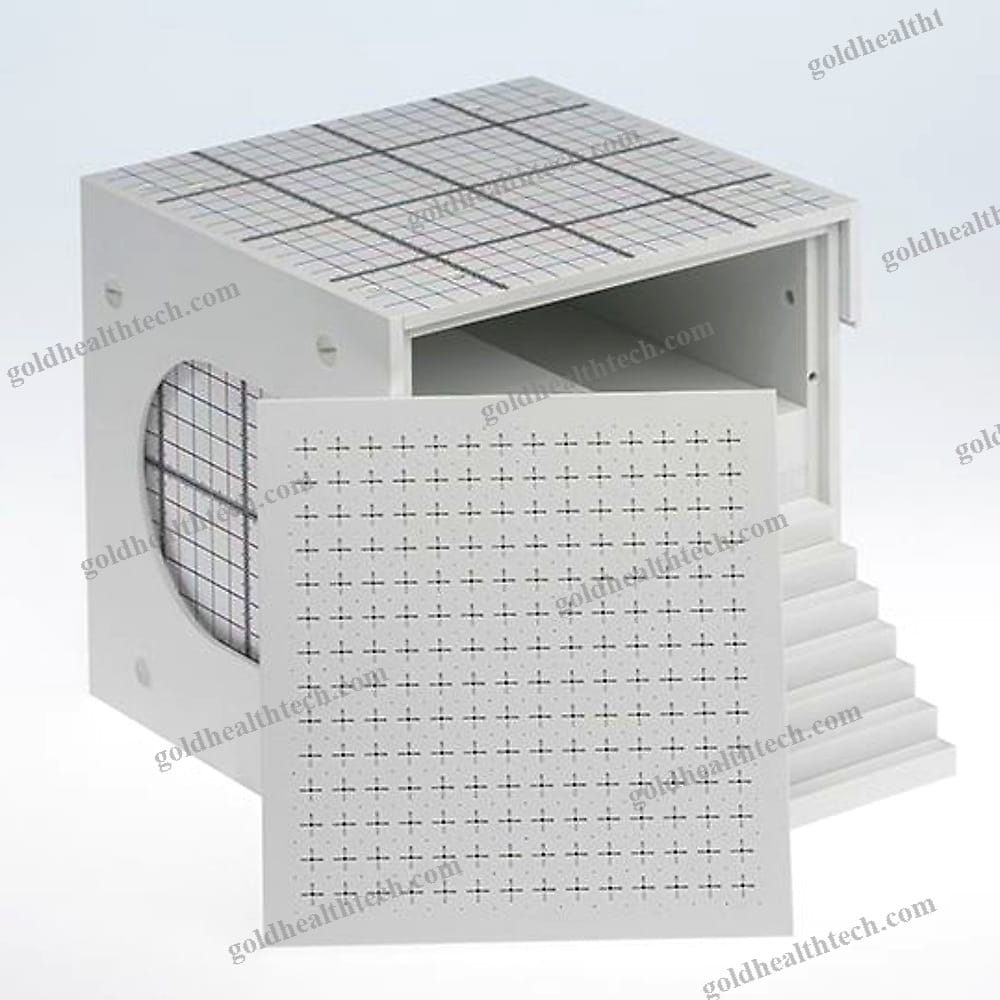

output:Contains a removable cubic phantom1 that is specifically designed for stereotactic and head and neck applications.Engraved markers facilitate the effortless positioning and adjustment of the phantom in the CT scanner and under the Linac.Simultaneously, up to 15 films with a maximum size of 16 cm X 16 cm can be positioned in transversal, coronal, or sagittal orientation.Verification of the absolute dose

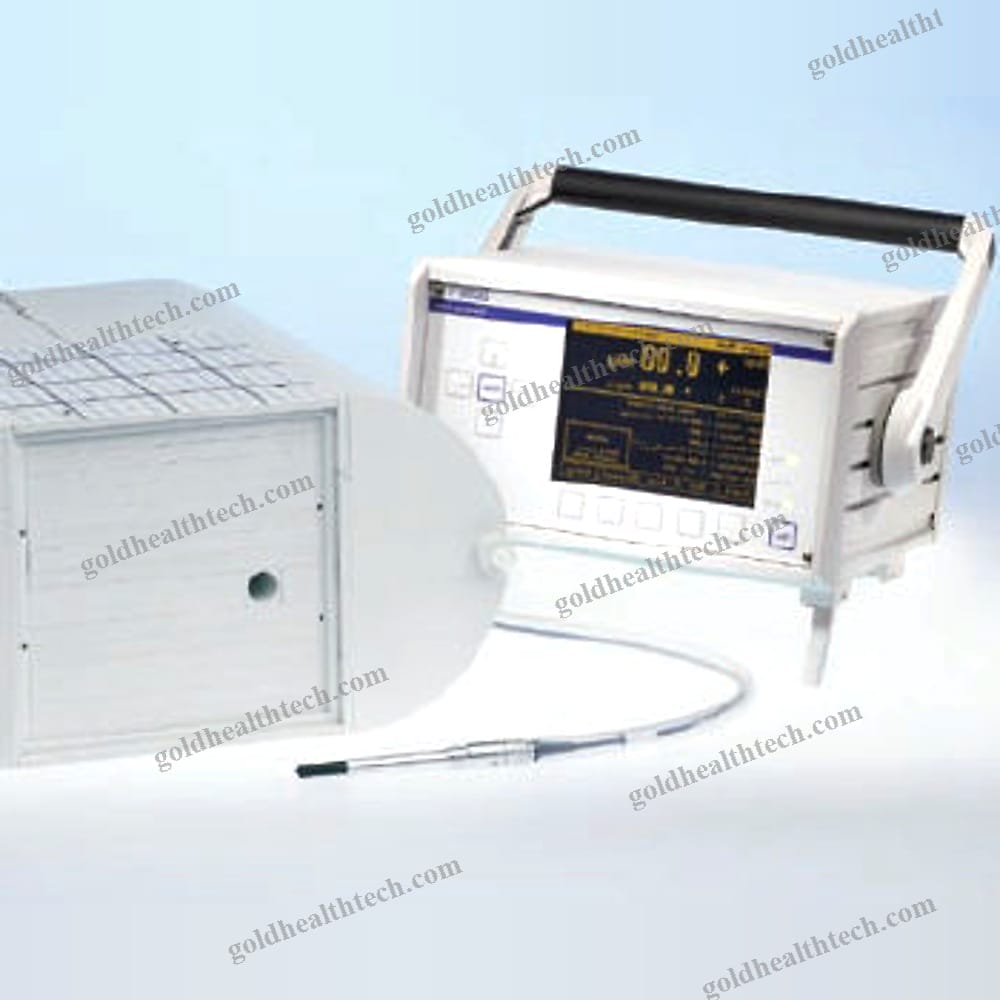

In conjunction with Dose 1

Various types of ionization chambers can be inserted at all points in the cubic phantom within a 1 cm grid.input:
output:Localizer plates for the cubic phantom’s use in a CT scannerUp to 196 TLD detector rods (TLD plates) are to be inserted into the cubic phantom.

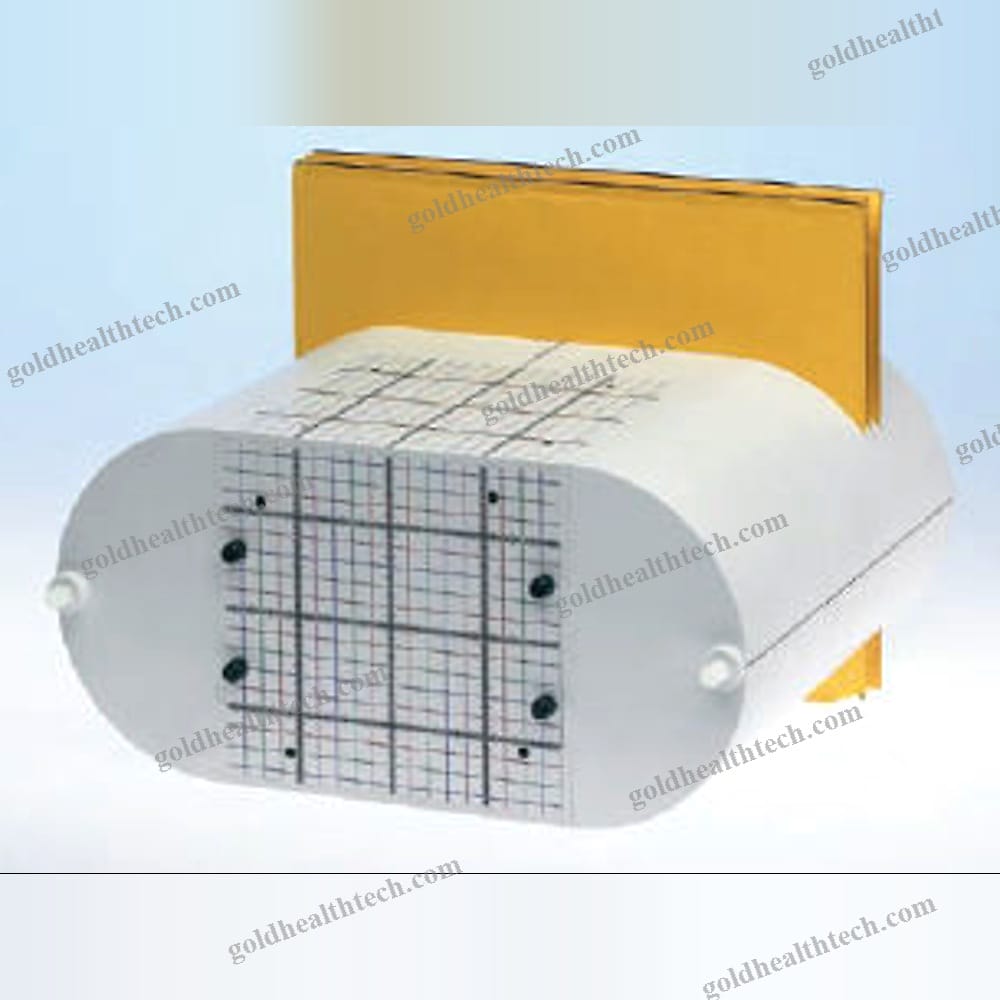

Accurate irradiation is guaranteed by the use of film adapters and adapter plates.
