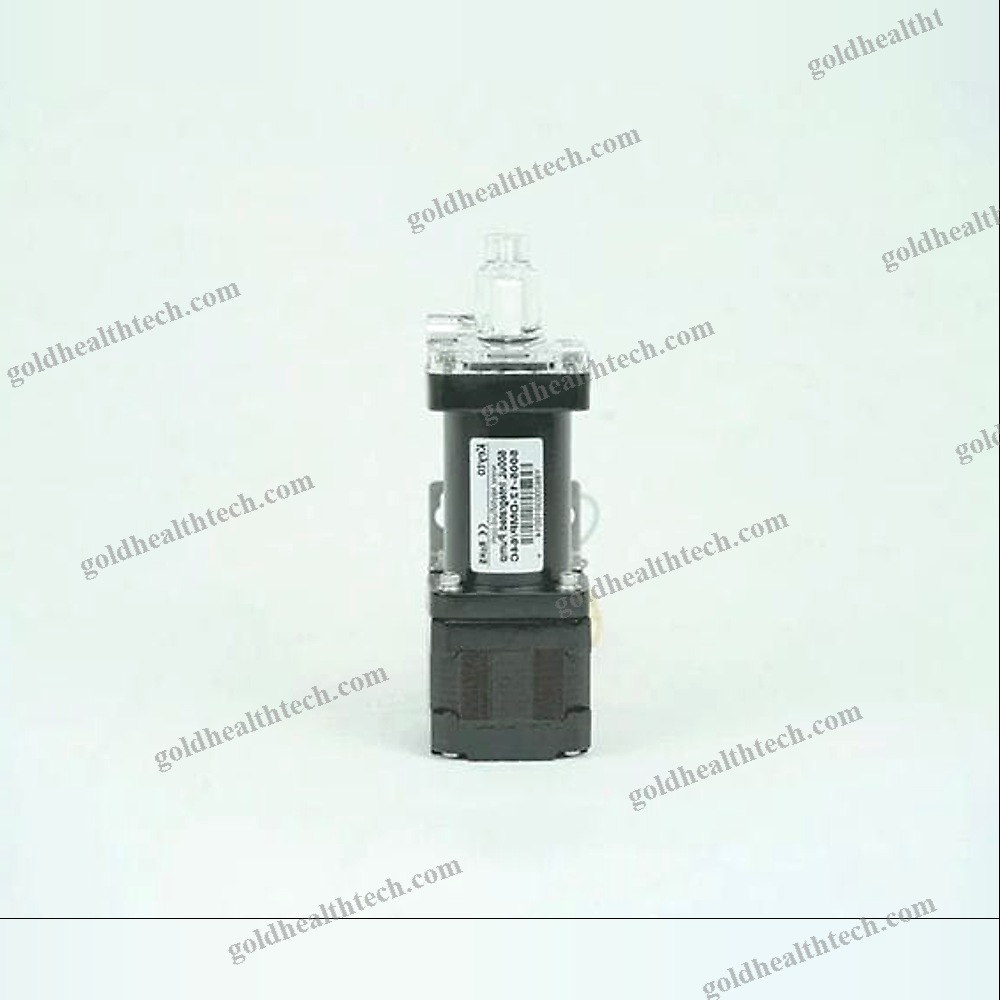

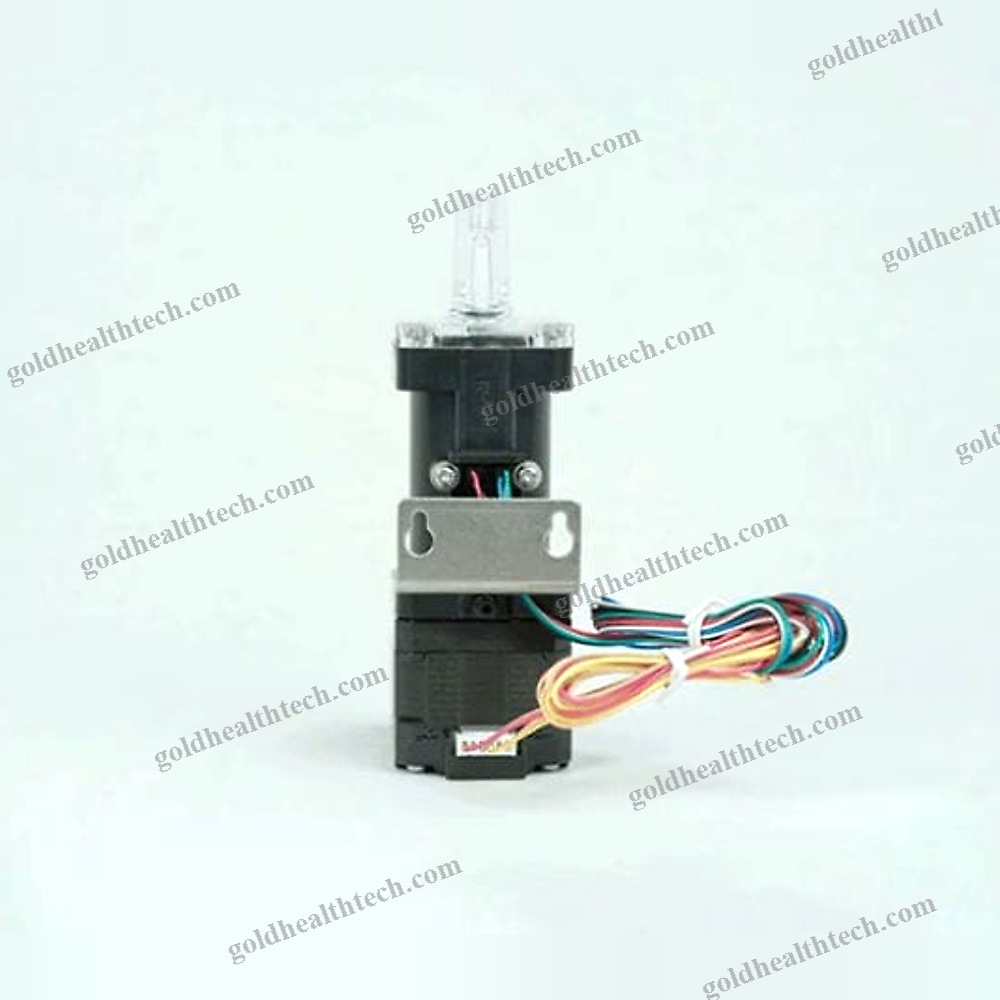

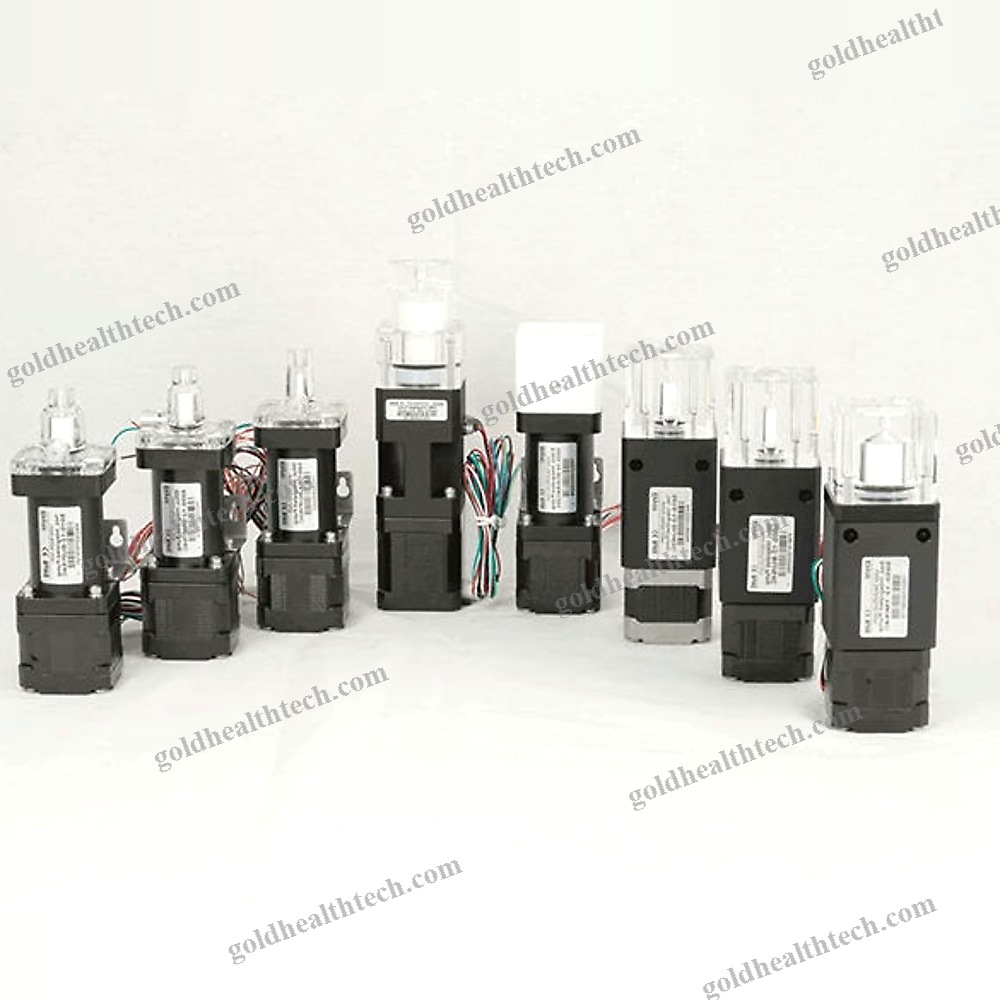

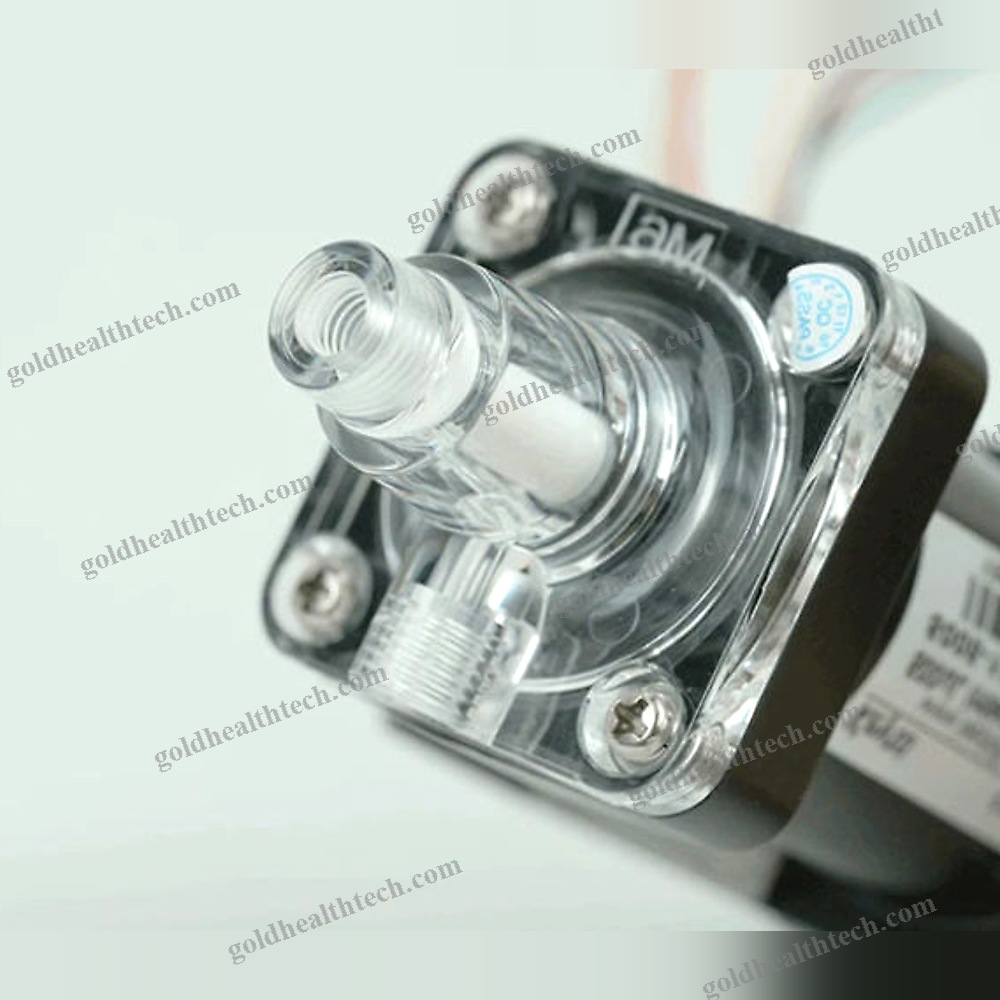

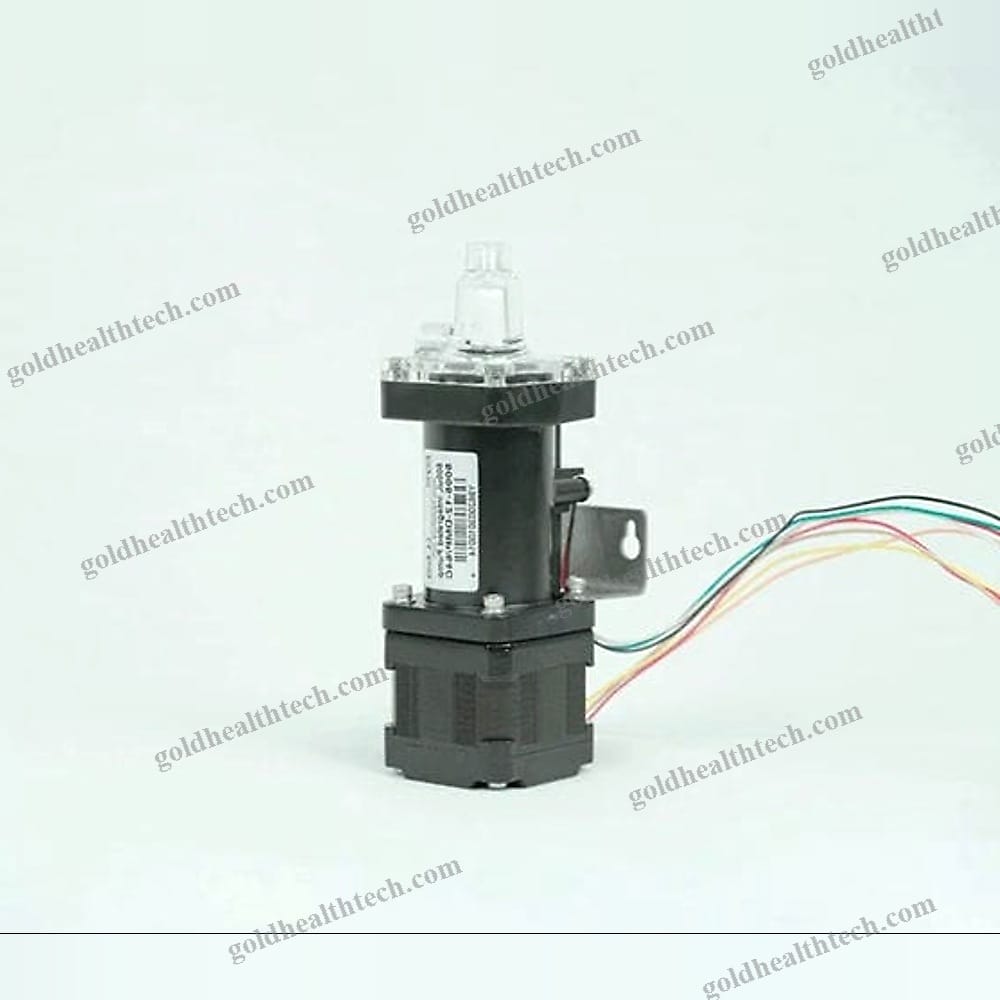

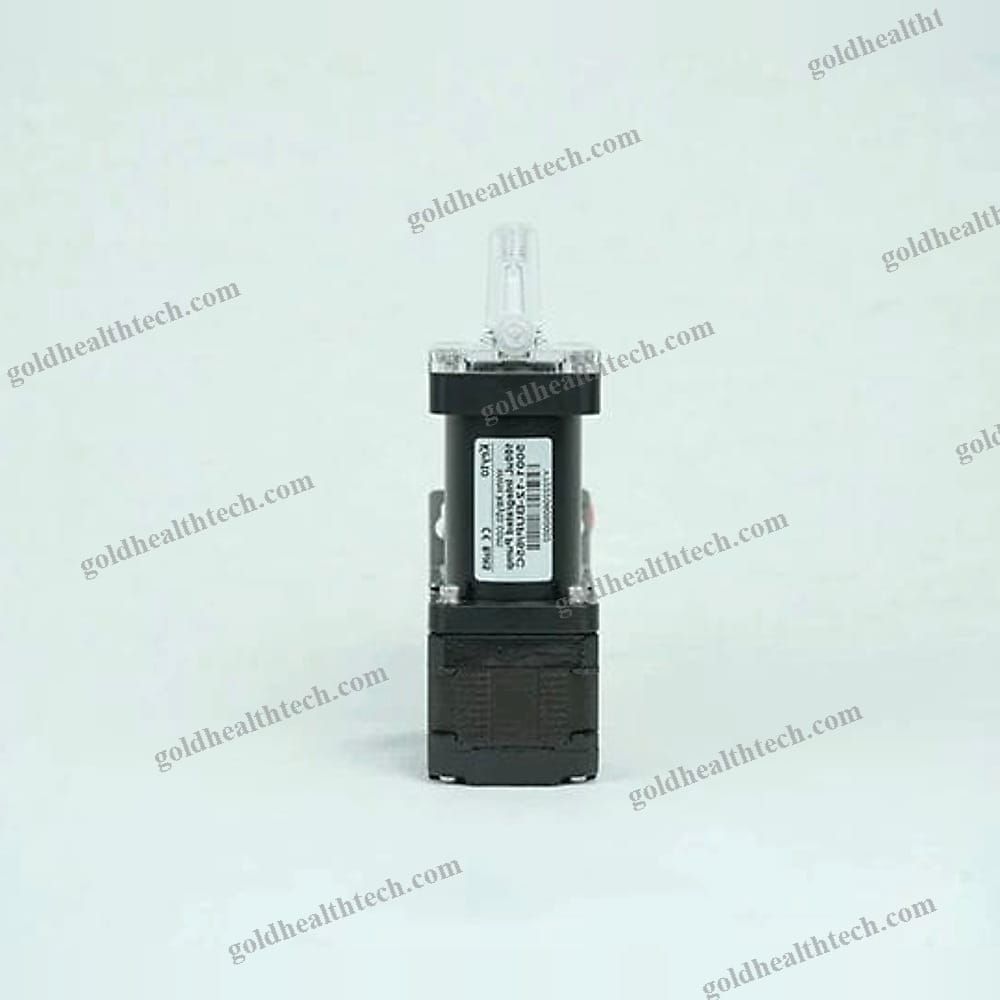

Piston Pump

This series of piston pumps is distinguished by their exceptional aspiration and dispense accuracy, as well as their ability to achieve a service life of over 5 million cycles. It is a precision piston pump that is maintenance-free, low-cost, and high-performance, and it has been extensively utilized in laboratory analytical instruments and medical devices.Specificationsinput:
output:Lead: 12.7 millimeters

Lead: S Optional (mm) S=0.635 or 1.27 2.54

Lead: 0.635 strokes per millimeter, or 0.003175 millimeters per step.

Lead: 1.27 strokes per millimeter (mm/step) 0.00635

Lead: 2.54 strokes per millimeter (mm/step) 0.0127

Life cycle1 consists of five million cycles.CV2 is 1.2%.Accuracy: 2%Operating pressure: 0.3 MPa1/4-28 UNF or M6 connection

4 PMMA, POM, PTFE, PCTG, and PPS are chamber materials that may be in contact with reagents (optional).Optical detection of the end positionOptical detection of the end position. The optocoupler sensor is capable of determining whether the pump is in the initial position of aspiration.input:
output:Dosing aspiration and dispensation accuracy are exceptionally high and consistent.Exceptionally high and consistent dosing aspiration and dispense accuracy throughout the pump's lifespan.
