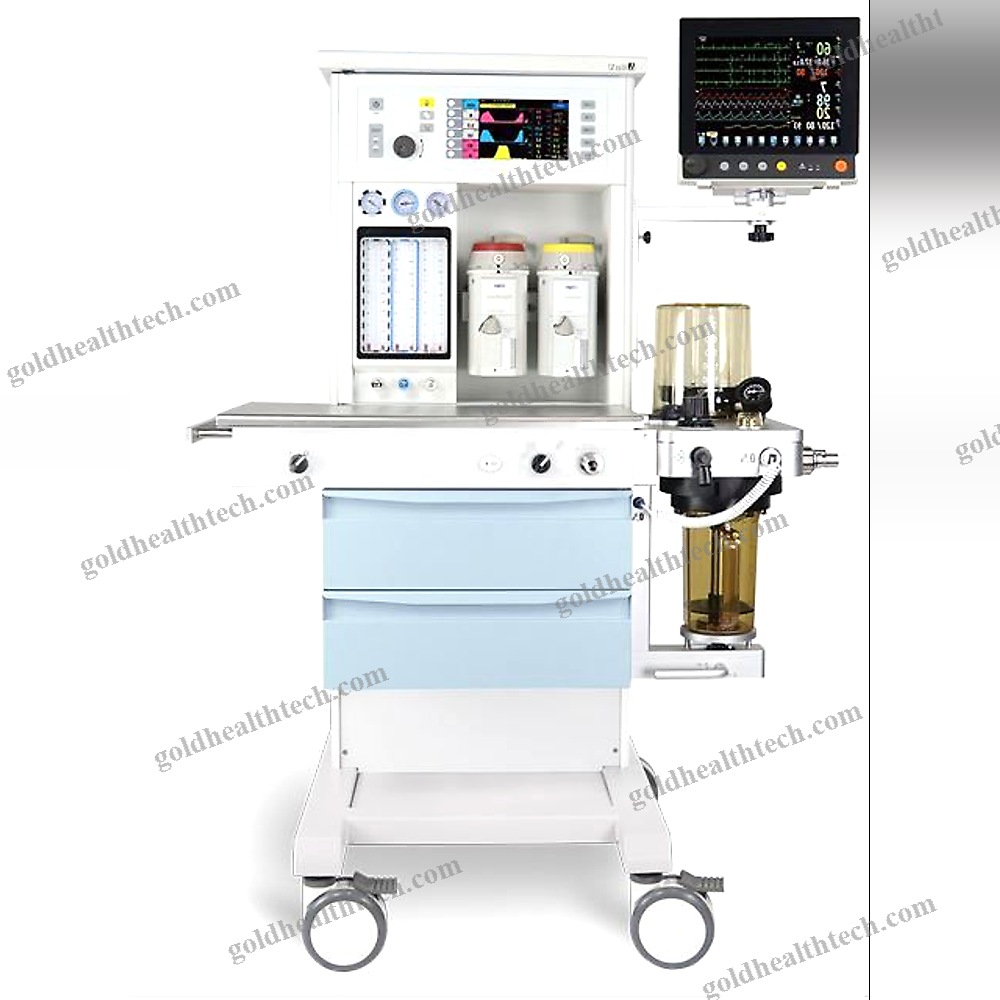

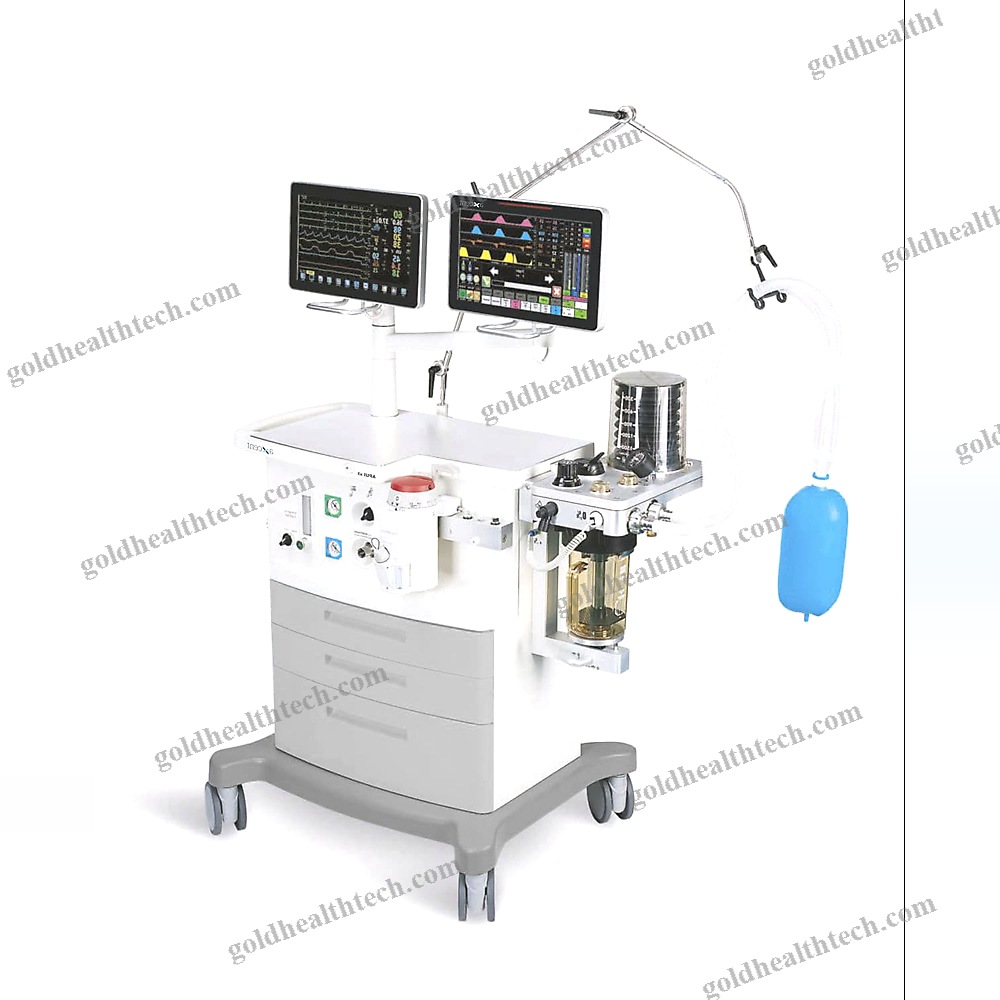

Pediatric Anesthesia Workstation

• Color TFT screen with a resolution of 8.4" (or 12.1" for an optional touch screen);• Interface that is user-friendly;• Tidal volume: 10-1500 ml, with an optional choice of 5-1500 ml;• Optional electronic flow meter and full-electronic control for up to 6 flow tubes for 3 gas;
• Metallic material of the breathing circuit/PPSU;• Utilize bypass technology for the soda lime canister;
• All ventilation modes are available to meet the needs of neonates, pediatrics, and adults.

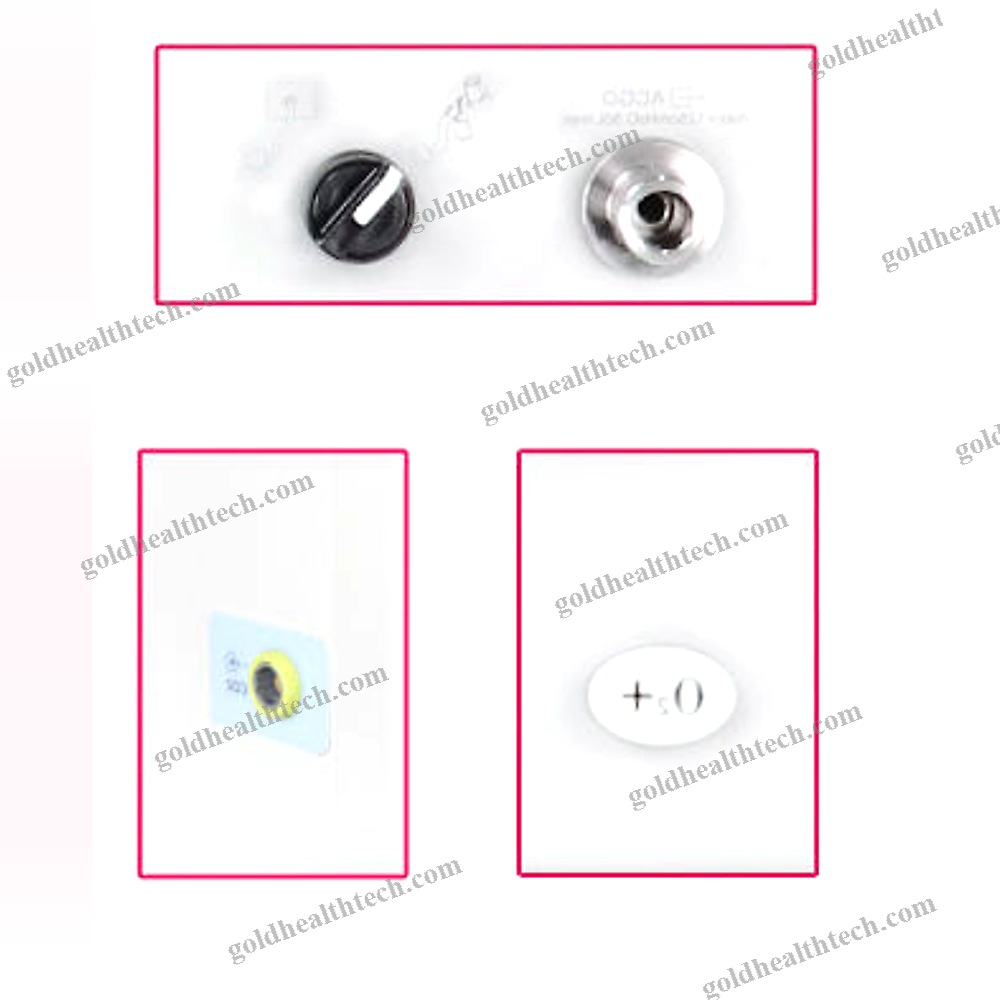

• A breathing circuit with a built-in heater that is integrated;• ACGO that is highly visible.

Breathing circuit that is appropriate for childreninput:
output:
Metallic and PPSU materials that are autoclavable.

Demonstrates consistent pressure tightness.

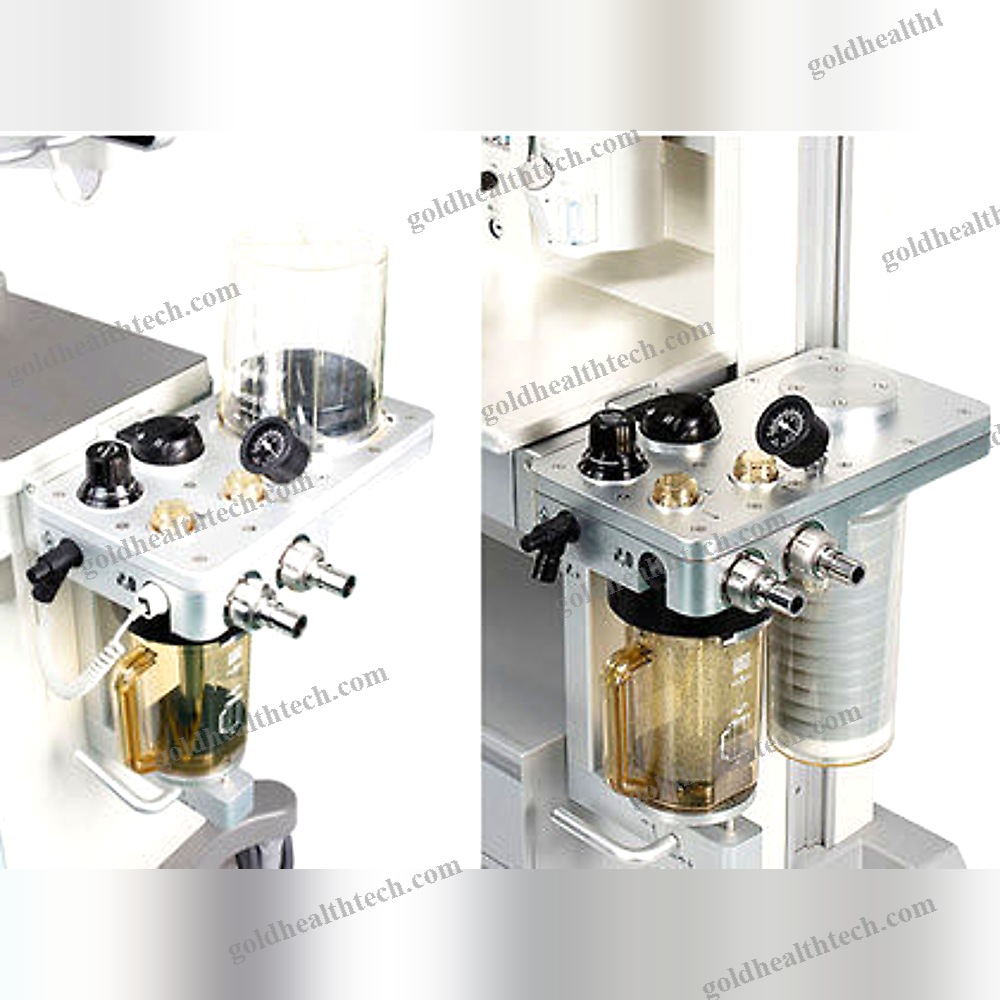

Visual observation is provided below.A breathing system that utilizes bellows that can be positioned either upward or downward.An exceptional CO2 absorberinput:
output:C02 absorber that is designed for one-handed operation.The safety of replacing soda lime is guaranteed by the bypass design.

Container during the operation.Online detector for canisters.PPSU material that can be autoclaved at temperatures as high as 134°C.Accurate ventilatorinput:
output:Fresh gas with leakage compensation and compliance.

V-CMV, V-SIMV, P-CMV, P-SIMV, PSV, and Manual/Spont ventilation modes.

Alarms indicating that the breathing system and soda lime canister were not installed correctly.input:
output:Extra-large workbenchinput:
output:Optional two-sided guide rails for the patient monitor, support arm, and injection bump.

Stainless steel is capable of withstanding any chemical sterilization agent.

Equipped with LED lights to illuminate the workbench.Masimo SET Sp02input:
output:Accurate and dependable oxygenation is achieved through pulse oximetry that measures motion and low perfusion.Massimo Gas Technologyinput:
output:ISA™ and IRMA™ Mainstream

Sidestream Analyzers Enables the selection of the modality that is most appropriate for the application.
