Oxygen Analyzer

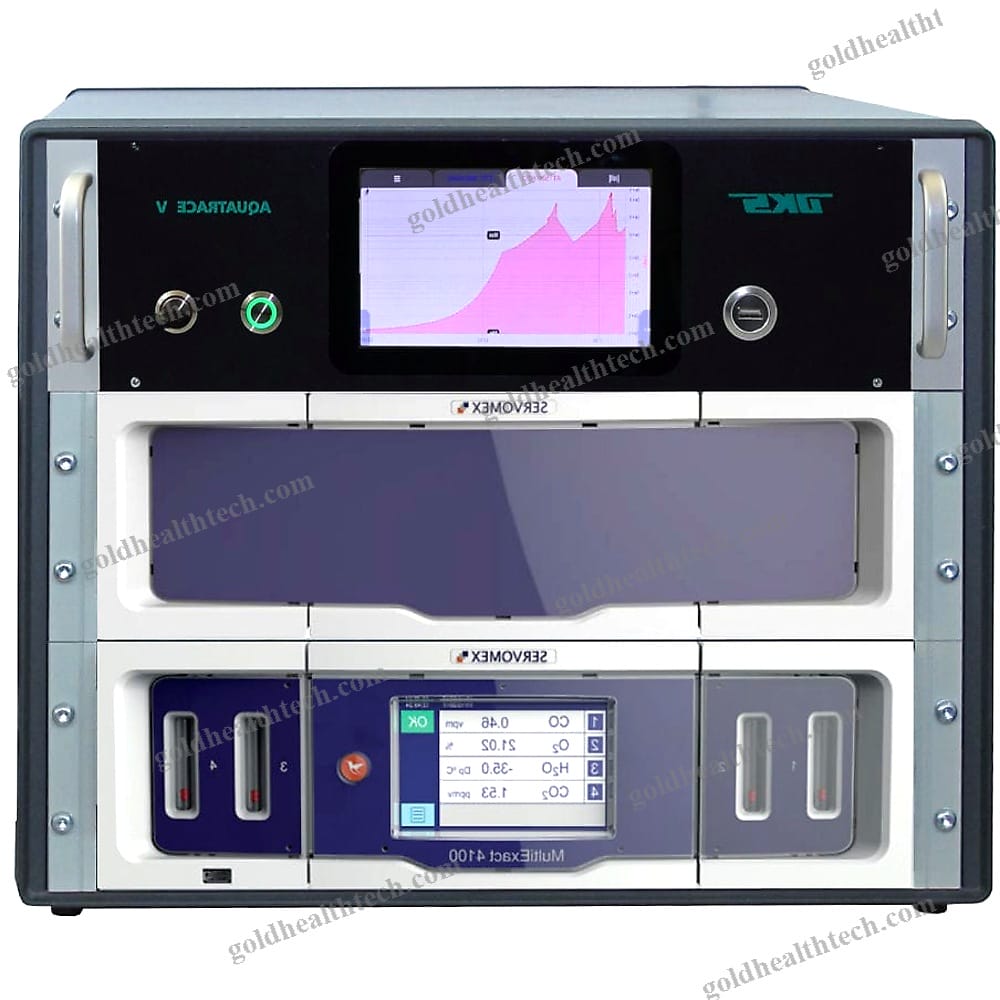

The following gas analysis system is intended for installation in a secure area and under indoor, air-conditioned conditions. It offers continuous and simultaneous concentration measurements of the following compounds, which are supplied from a single source:input:
output:Traces of carbon dioxide (CO2) in the range of 0-500 ppmvTraces of carbon monoxide (CO) ranging from 0 to 50 ppmvinput:
output:Oxygen (O2) Purity: 95-100%input:
output:AQUATRACE® 19" inch rack - Traces of Humidity (H2O) 0-2000ppmvinput:
output:Oxygen serves as the background gasinput:
output:This system is equipped with all the requisite equipment for the sampling, conditioning, and analysis of the gases listed above.input:
output:The concentration of each compound is ascertained using the following measuring methods:input:
output:CO2 ppm v GfX infrared gas analyzerinput:
output:Paramagnetic gas analyzer for O2 Vol% Pm (with atmospheric pressure compensation)H2O ppm V P2O5 trace moisture analyzer 0-2000 ppm Vinput:
output:The system is intended to assess the quality of oxygen in a laboratory that is supplied from a single source. The sample gas is transported to the rack with analysers after pressure reduction, where it is filtered and analyzed. Standardized, isolated 4-20mA analogue signals and digital Modbus® communication are both available for all measuring results from the installed analysers. A flow meter is used to visualize the flow through each individual analyzer. Compression fittings and seamless precision pipes, both constructed from stainless steel, are employed to ensure the highest level of system integrity and prevent measurement errors that may result from diffusion effects or leaks. Fast response and precision of the measurement are guaranteed by the continuous purging of the sample lines to the trace humidity analyzer.
