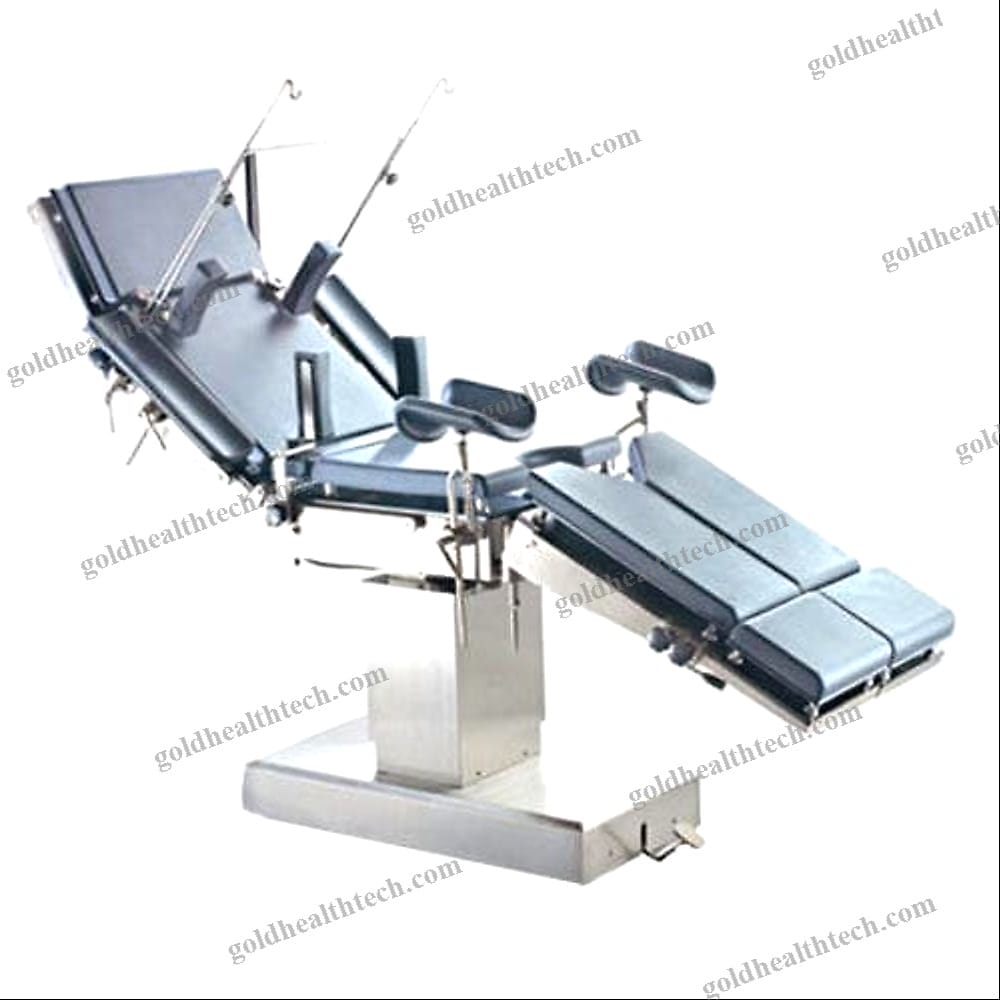

Orthopedy Operating Table

Primary characteristics- A five-section tabletop contours to virtually all patient postures.input:
output:- Suitable for patients of all sizes with a wide range of heights.input:
output:- Column control panel with locking function for movements and wire controller for various movements.input:
output:- The wire hand controller is used to perform lateral tilts, Trendelenburg, and reverse Trendelenburg tilts, as well as the adjustment of the table top height and backrest.



- The head rest segment and one-piece leg rest segment are adjusted manually using locking gas springs.input:
output:
- The leg rest segments are divided into two parts and are adjusted using a gear transmission.input:
output:- The structure is constructed from SUS304 mirror stainless steel.input:
output:- A foot lever is used to regulate the table base.input:
output:- The antistatic, seamless mattresses are resistant to disinfecting agents and can be easily removed from the table top segments.input:
output:Parameter of technical natureinput:
output:Model: YA-06E

HI-LOW - 750mm-1000mm Overall size - 2150*500*750-1000mmThe head board is designed to fold upward and downward at a rate of at least 30° and 90°.≥45°/≥15° back board folds upward and downward ≥90°/≥90° The leg board is designed to fold downward and outward.Trendelenburg and reverse-trendelenburg - ≥25°Angle of tilt on the left and right sides: ≥15°- 200 kgs of loading capacitywaist board lifting - ≥110mmAC220V 50HZ power source Input power: 300 volts

Packaging - 148*76*95cm=1.1M3 G.W.:280kgs
