Optical Lens Drill

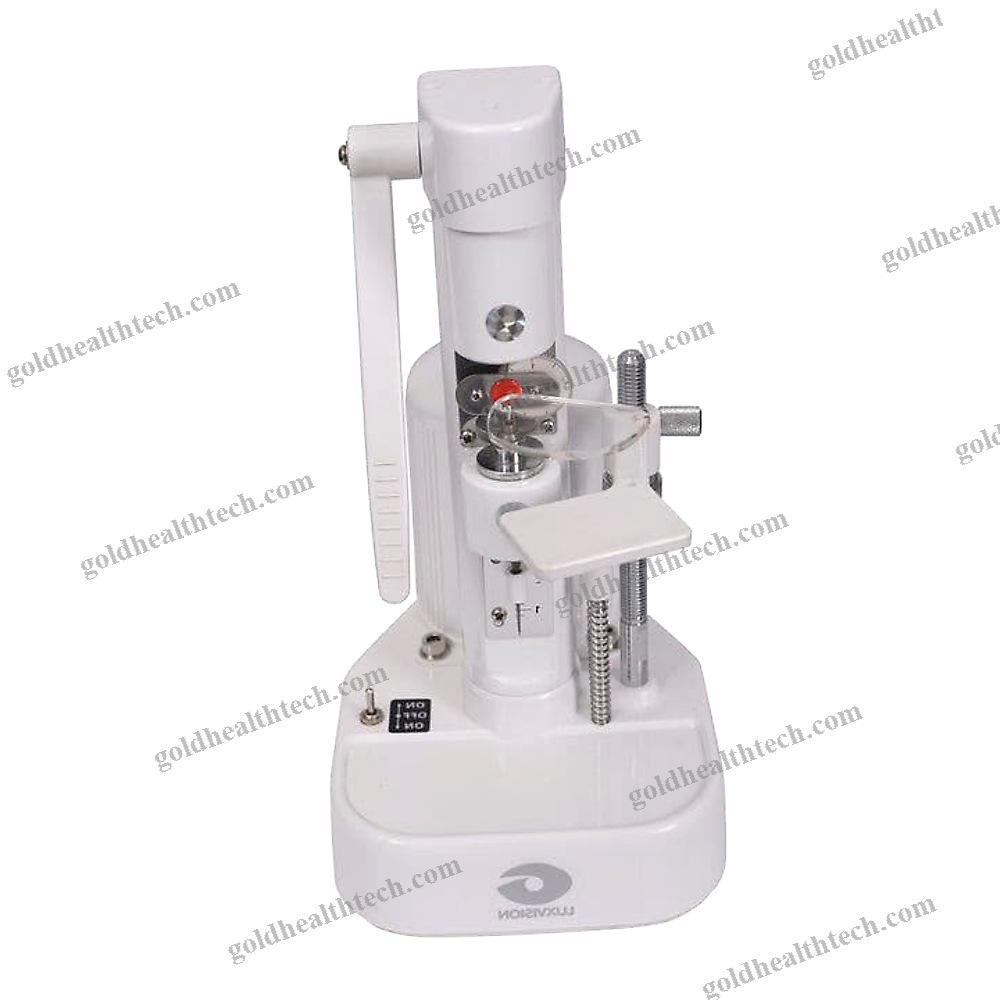

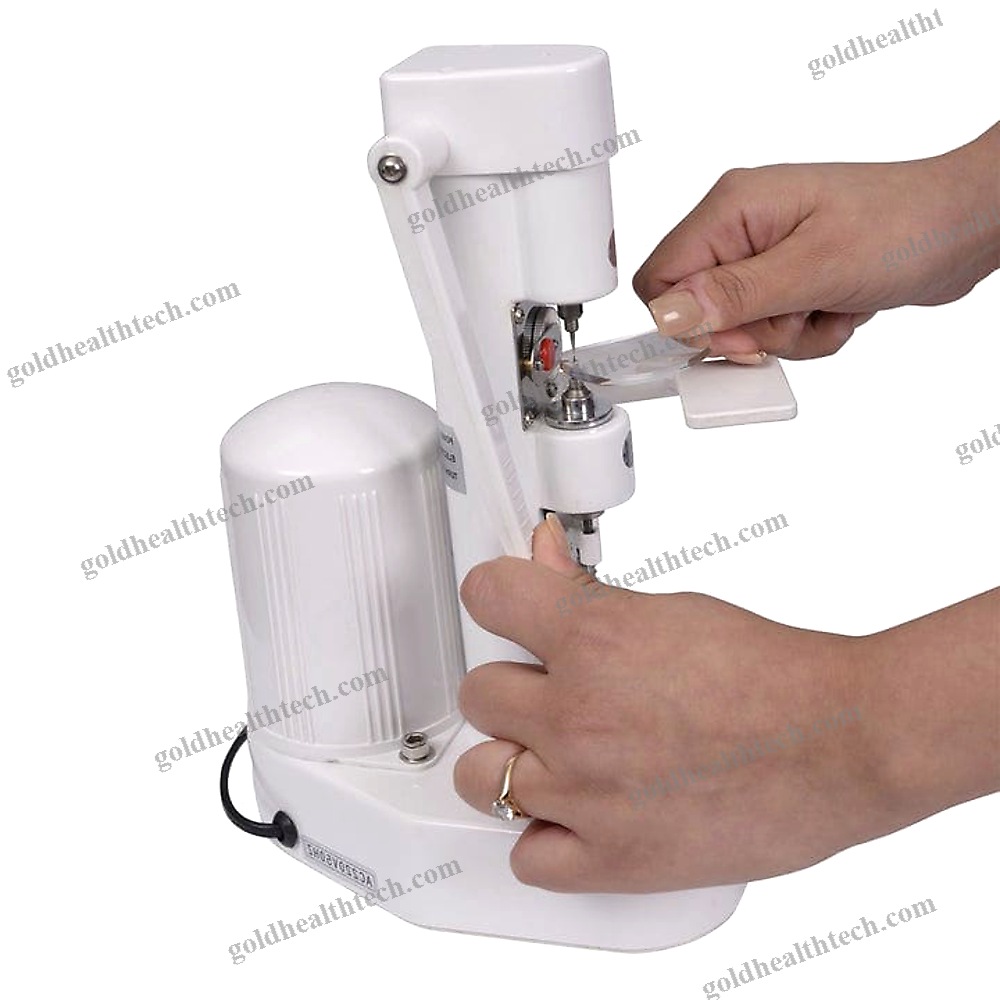

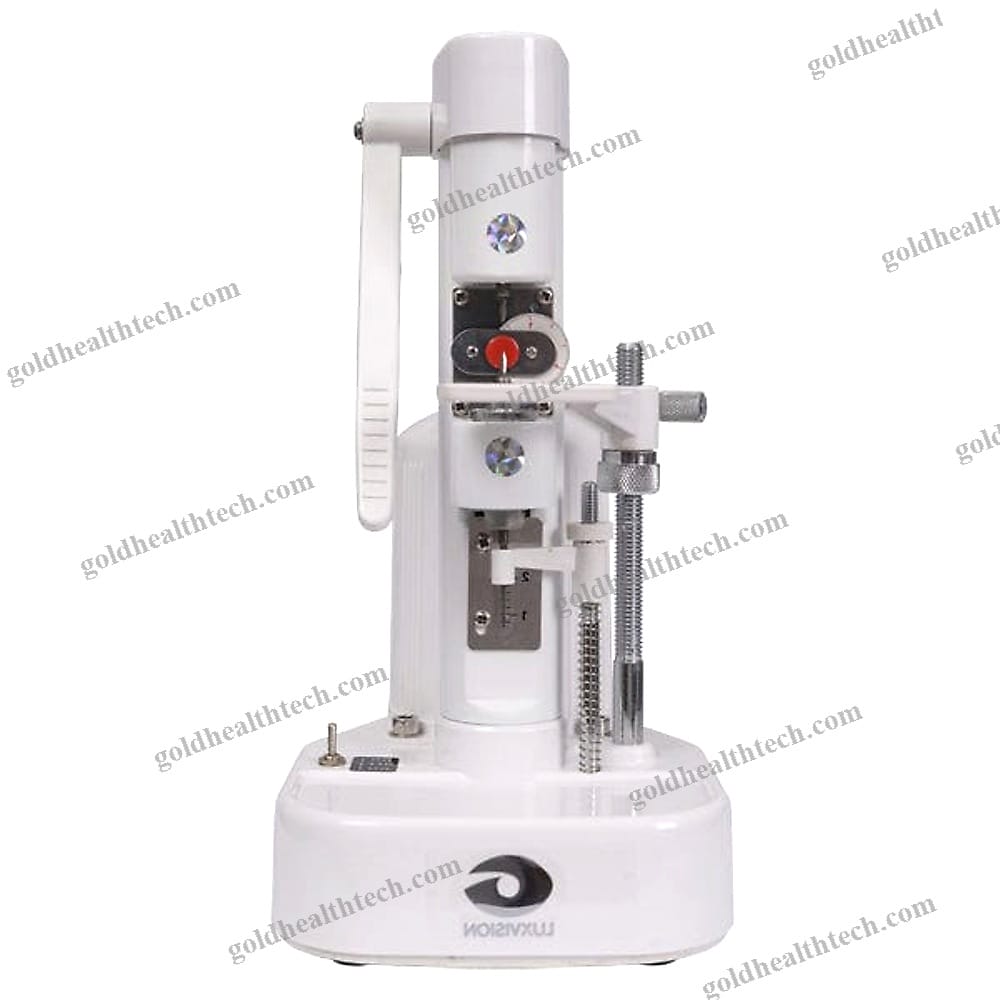

Lens drilling is an indispensable component of lens processing. Luxvision's DM-1000 Lens Drilling Machine is characterized by its exceptional precision and flexibility in the design of its hole sises.

This device is versatile and is particularly well-suited for the drilling of holes in polycarbonate, plastic, and glass lenses. In addition, users may utilize a twist drill bit to alternate between two-sided and one-sided drilling.input:
output:Characteristics of the DM-1000 Lens Drilling Machineinput:
output:
▪ All Lens Materials

▪ Dual-Sided Drilling in Real Time

▪ Accurate Hole Size and Distance

▪ Reamer Capabilities ▪ Twist Drill Bit Option▪ Versatility and Precision

▪ Easy-to-Use▪ Construction of High Qualityinput:
output:All Lens MaterialsUtilize the DM-1000 to liberate space. This device is versatile and is particularly well-suited for the drilling of holes in polycarbonate, plastic, and glass lenses.input:
output:Dual-Sided Drilling in Real Time

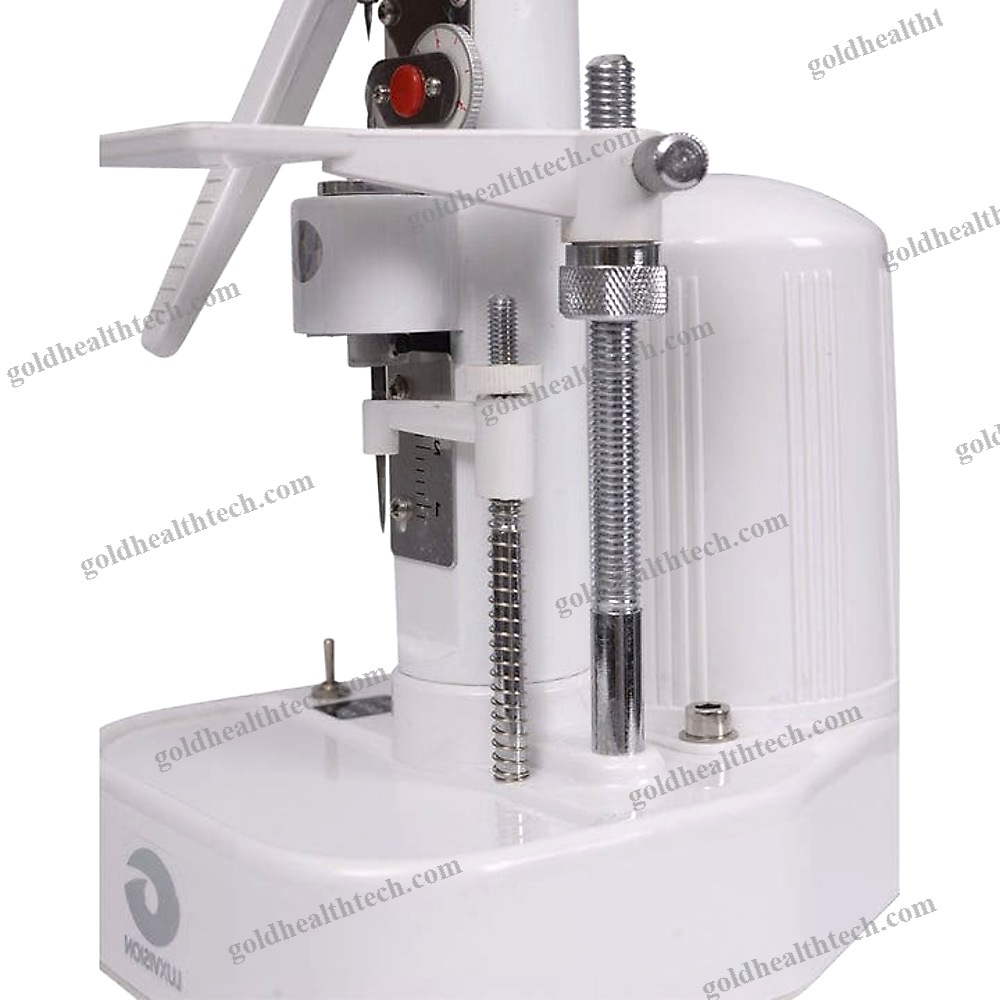

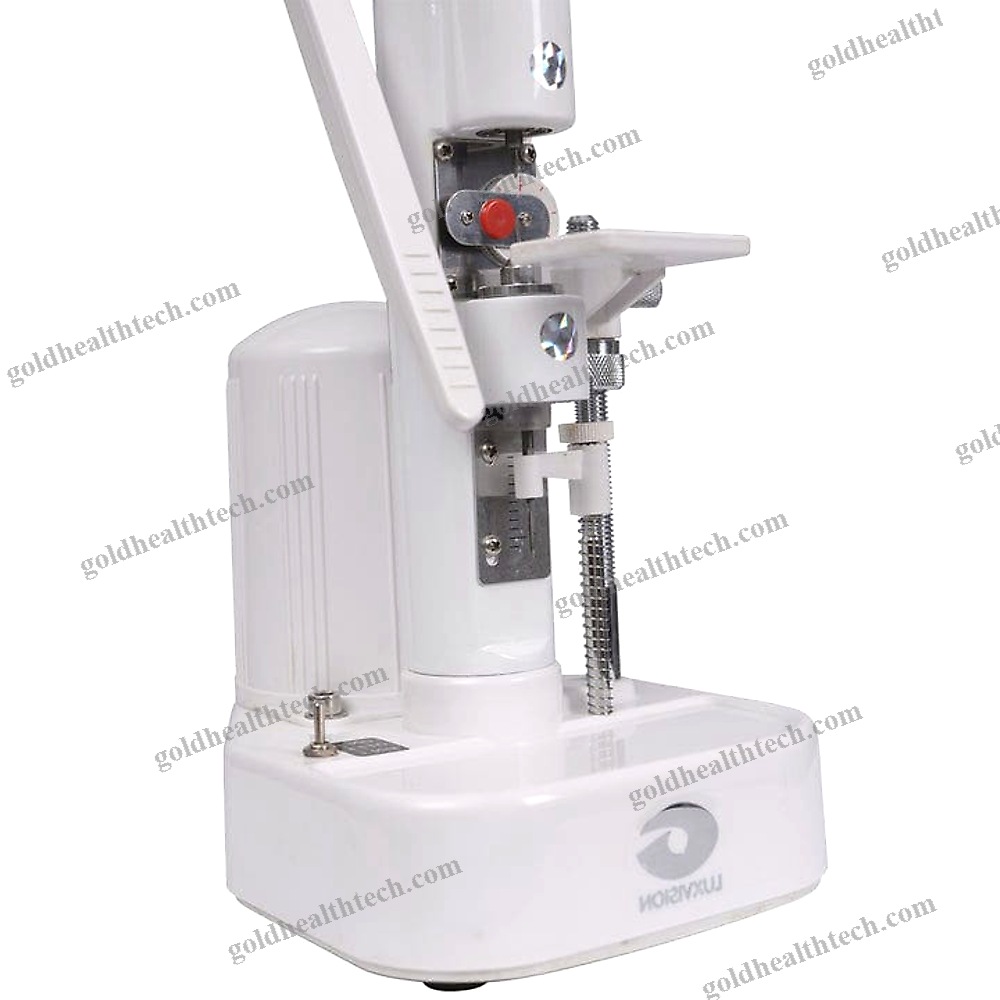

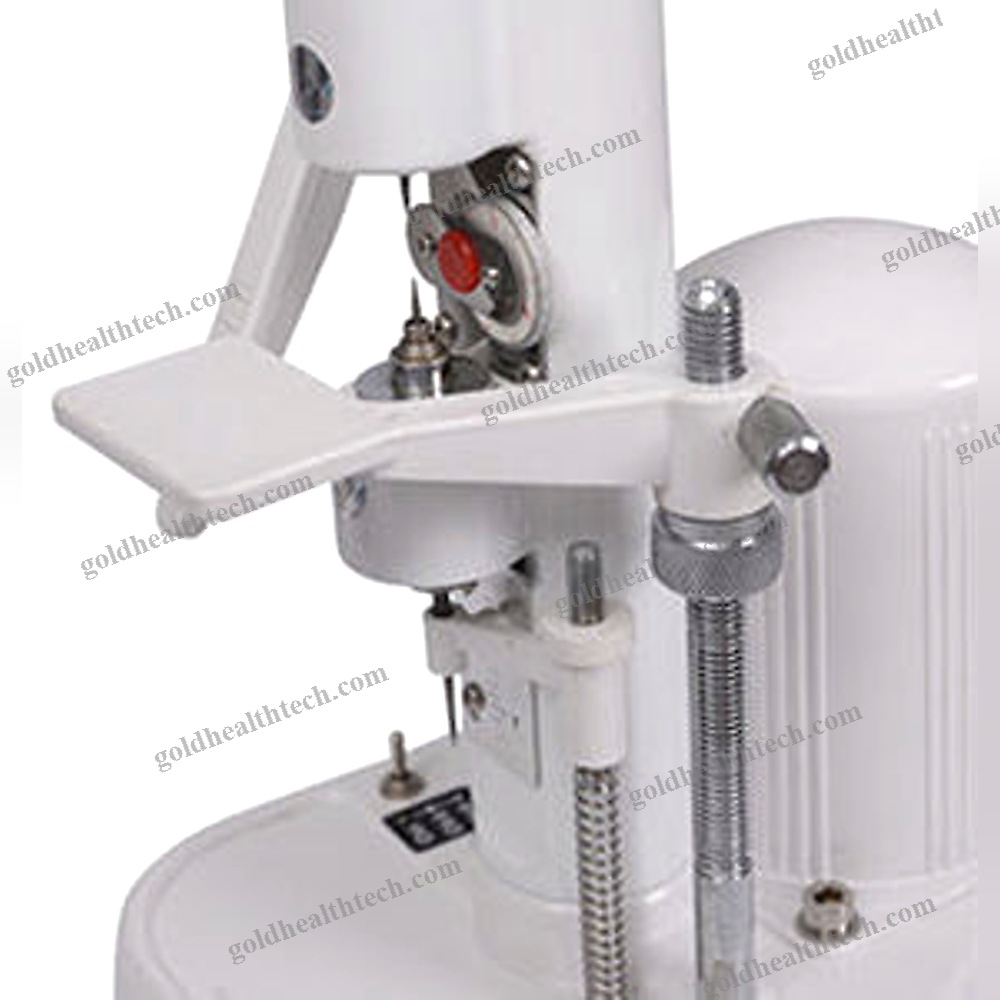

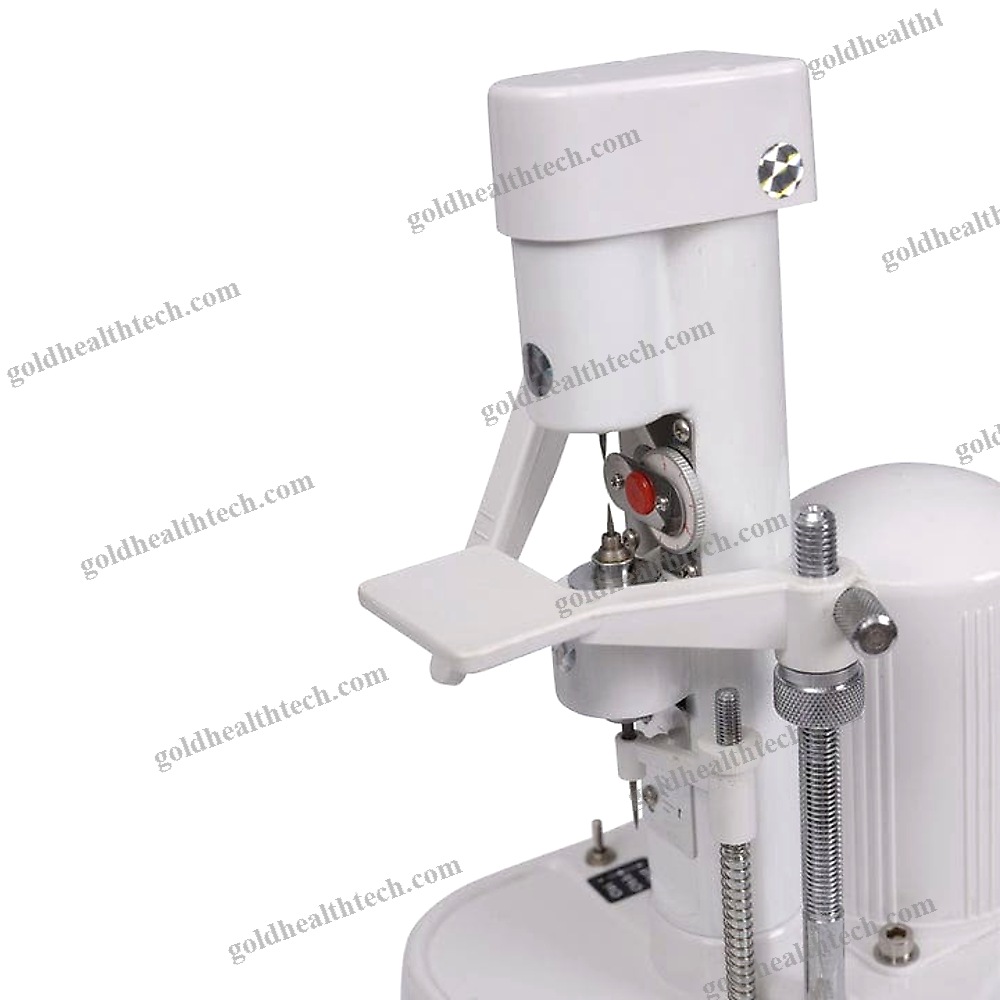

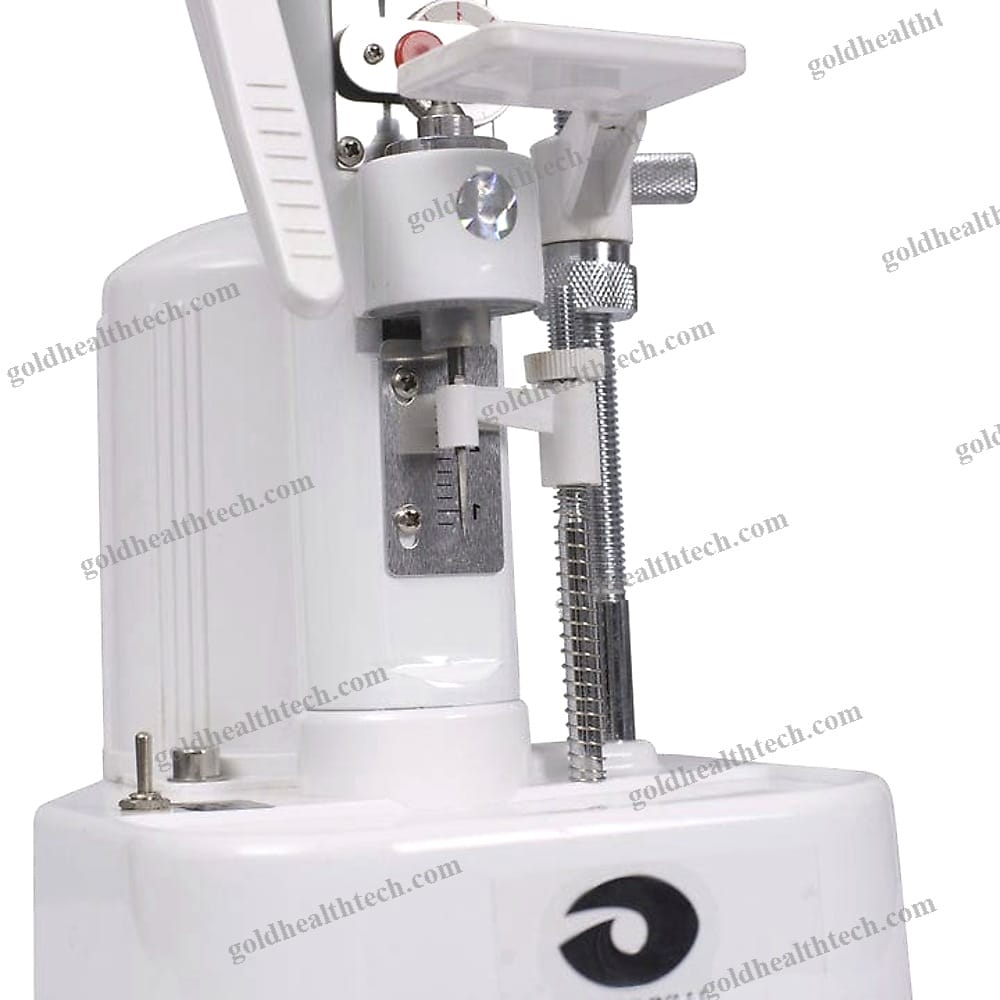

The Luxvision DM-1000 enables precise drilling while protecting against chipping and breaking by simultaneously boring holes from both sides of the lens with opposing tapered drill bits. The lens reamer can be employed to enlarge the hole to the desired size after it has been drilled. The lens support arm and suction cup ensure that the drilling angle is maintained accurately.input:
output:Precise Hole Size and Distance

Drill holes are precisely reamed to ensure absolute precision (adjustable from 0.8 mm to 2.8 mm). The distance from the edge of the lens to the point to be drilled can be adjusted in 0.5mm increments from 2.0mm to 8.0mm.input:
output:Reamer Capabilities

The DM-1000 is equipped with a built-in Reamer that enables users to increase the size of holes from 1.5mm to 2.5mm.input:
output:Option for Twist Drill Bit

By employing an optional accessory, users may transition to one-sided twist bit drilling.
