Medical equipment sourcing

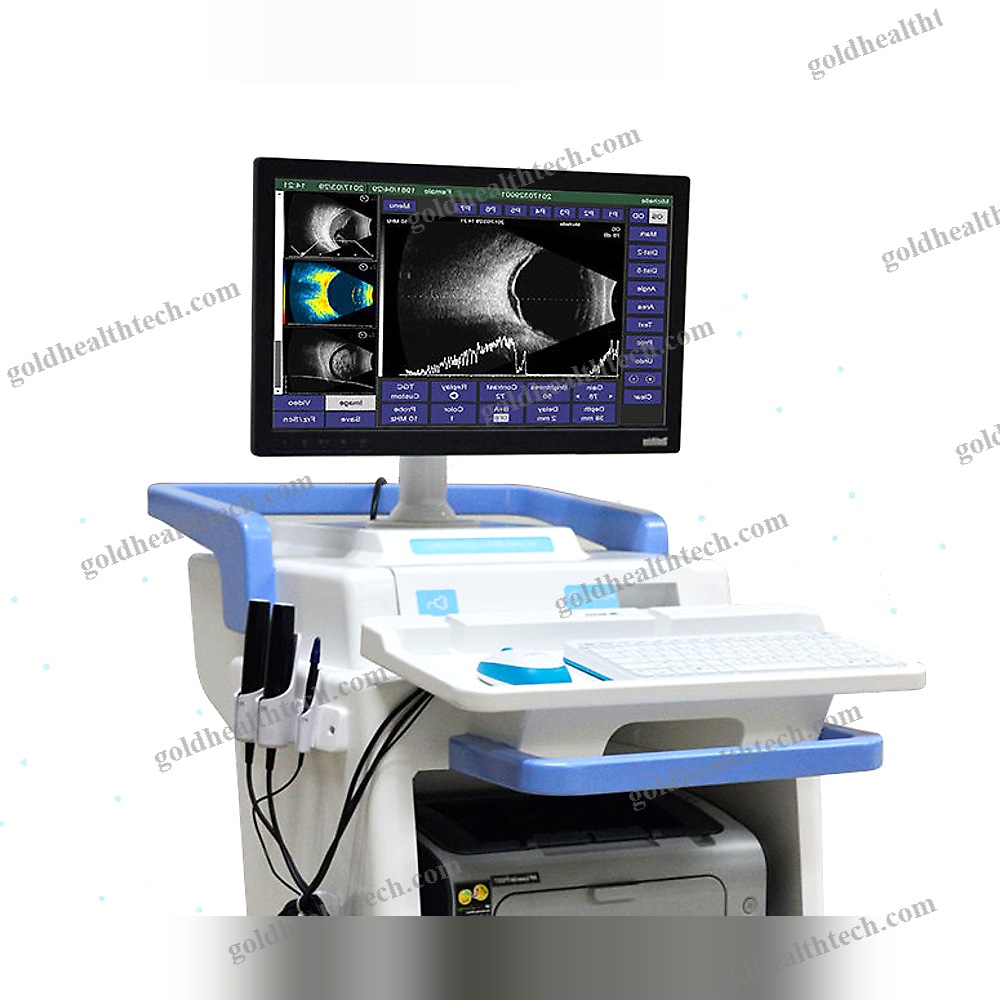

On-Platform Ultrasound System
Reference: 886099Ophthalmology
| Ergonomics | On-Platform |
| Application | For Ophthalmic Ultrasound Imaging |
| Imaging Modes | B/W |
Associated tags
Documentation request
Ask which specifications, manuals, or commercial documents are available for review.
Supplier coordination
Discuss quantity, destination, packaging, and timing before confirming suitability.
Product information
Product summary

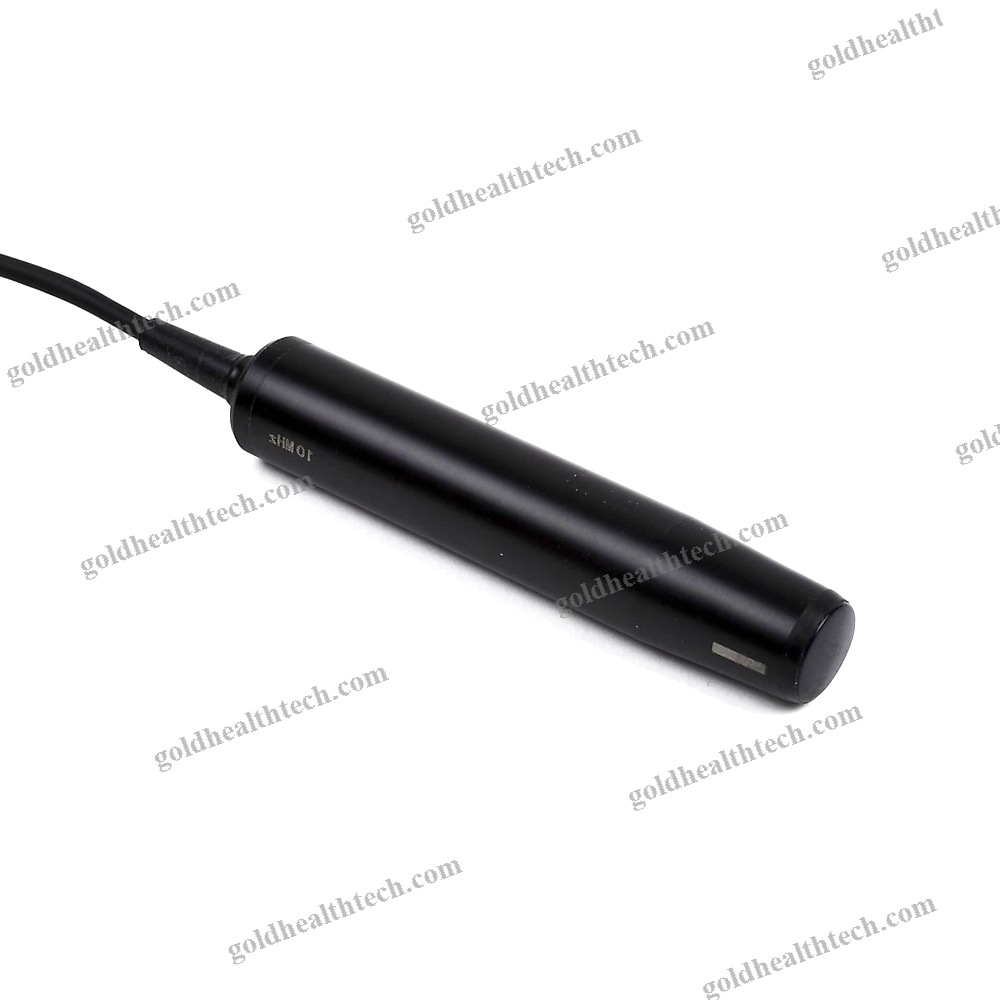

B-Scan
Scanning Angle: 53°Dynamic Loop: Loop or frame-by-frame playback of 10 seconds or 100 images
Image Storage: 100 images
Gray Scale: 256 LevelsGain: 1-105dB adjustable TGC: -20dB to 20dB with dynamic range, manual sectional adjustment (6-section adjustable)Post-processing: Gamma Correction; Frame-Averaging; Text Annotation; Image Magnification; Pseudo-Color CodesA-Scan

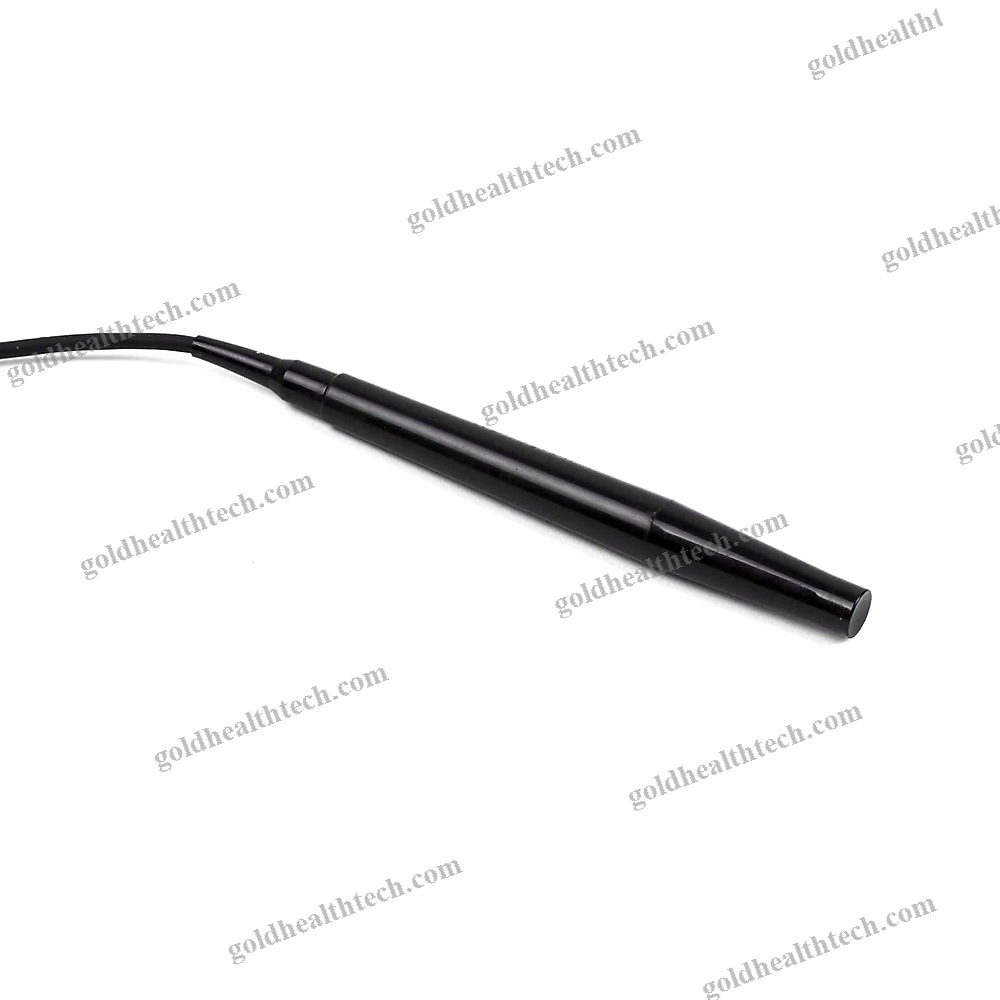

AL Biometric Measuring Range: Axial Length (AL): 15mm-40mm; AL Biometric Measuring Accuracy: No more than ±0.05mm;Total gain: 98dB, user-adjustable gain: 1-60dB;Measuring Mode: Immersion/Contact; Measuring Method: Five Categories (Normal, Aphakic, Special, Cataract, and Manual Measurement);IOL calculation: SRK-T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, and HAIGIS;After refractive surgery, the calculation of IOLs can be facilitated by the simultaneous display of two groups of formulas that are calculated in a contrastive manner.
The standard deviation is displayed and the average of 10 groups is calculated automatically.
It is possible to store up to eight groups of IOL constants.
Scanning Angle: 53°Dynamic Loop: Loop or frame-by-frame playback of 10 seconds or 100 images
Image Storage: 100 images
Gray Scale: 256 LevelsGain: 1-105dB adjustable TGC: -20dB to 20dB with dynamic range, manual sectional adjustment (6-section adjustable)Post-processing: Gamma Correction; Frame-Averaging; Text Annotation; Image Magnification; Pseudo-Color CodesA-Scan
AL Biometric Measuring Range: Axial Length (AL): 15mm-40mm; AL Biometric Measuring Accuracy: No more than ±0.05mm;Total gain: 98dB, user-adjustable gain: 1-60dB;Measuring Mode: Immersion/Contact; Measuring Method: Five Categories (Normal, Aphakic, Special, Cataract, and Manual Measurement);IOL calculation: SRK-T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, and HAIGIS;After refractive surgery, the calculation of IOLs can be facilitated by the simultaneous display of two groups of formulas that are calculated in a contrastive manner.
The standard deviation is displayed and the average of 10 groups is calculated automatically.
It is possible to store up to eight groups of IOL constants.
