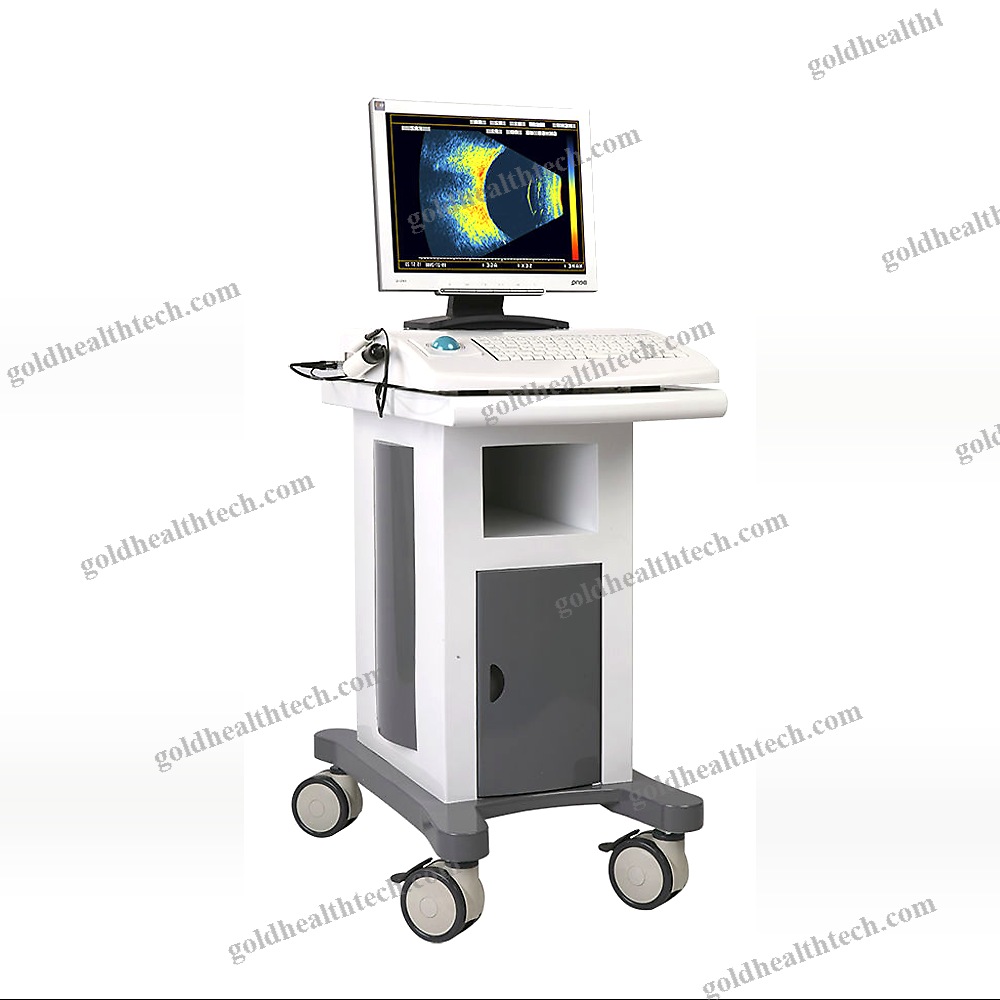

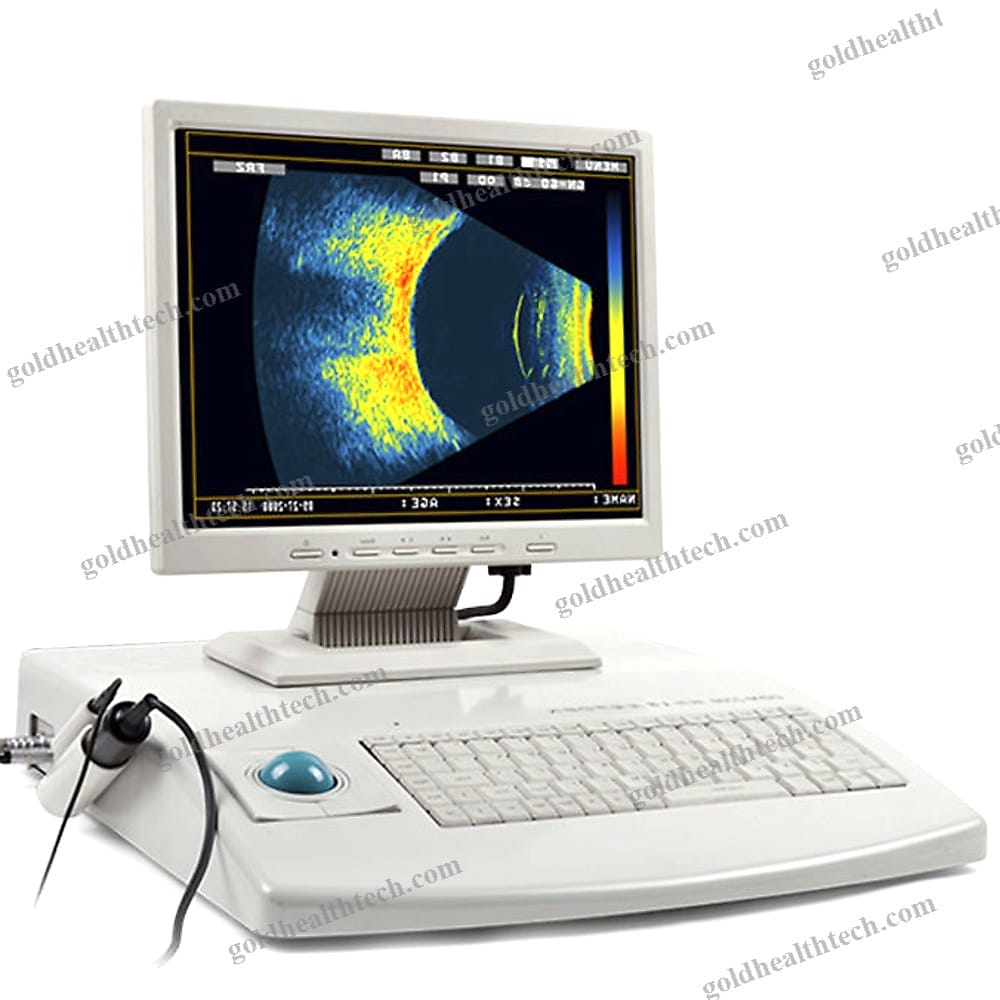

On-Platform, Tabletop Ultrasound System

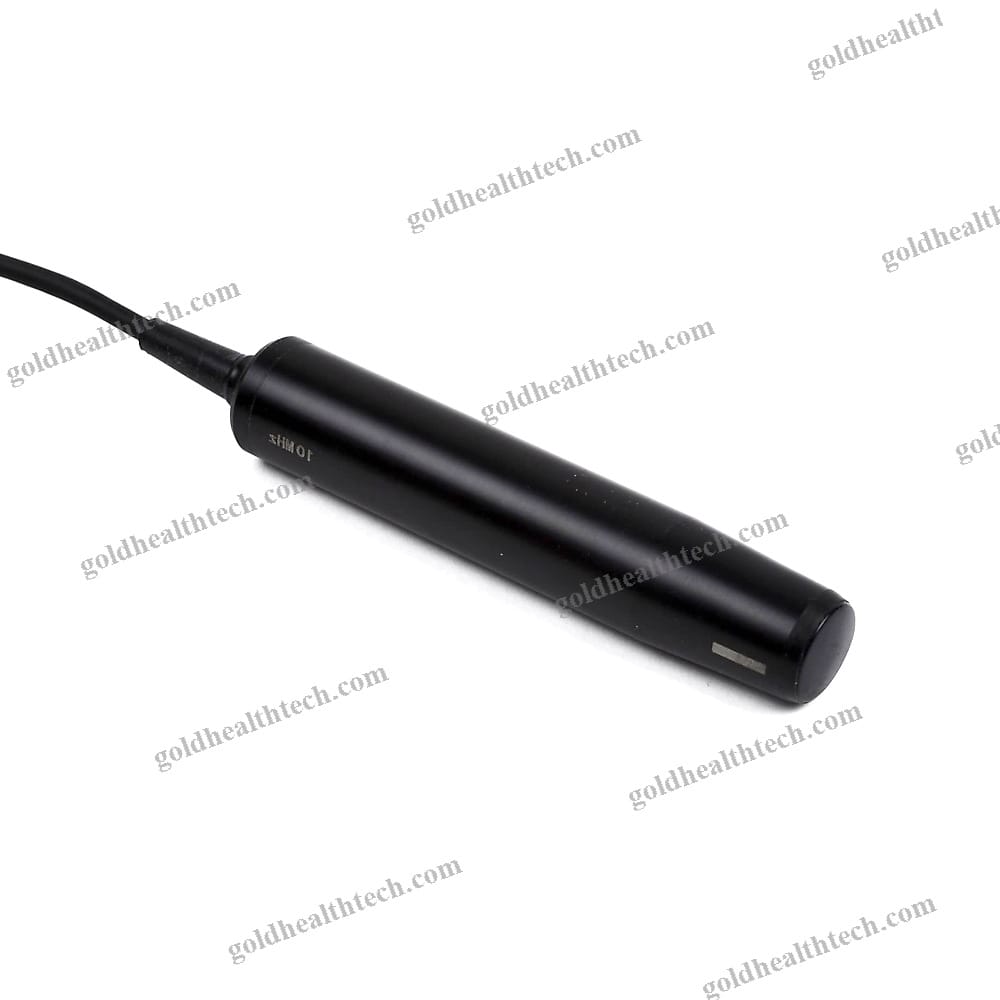

B-ScanMechanical sector scan is the scanning method.Gain control: 98dB.TGC: -30dB – 0 dB dynamic, manually adjusted (5 scopes).

Mode of display: B, B+B, B+A, A.

Scanning scope: depth 34mm-60mm, scanning angle 53º.

Dynamic review: 5.6 seconds for 56 images, either single or multiple.

Grayscale: 256.

Frame-even pre-image processing.

Four groups of curves (linear, logarithmic, exponential, and S) are processed post-image.

Color Display: Eight color modes.

Electronic caliper: an electronic cursor that is used to measure multiple distances.The accuracy must be at least 0.25mm.Area measurement: Accuracy of no less than ± 0.0625mm2.

Depth control with a delay of 0mm to 15mm.

Calendar and clock integrated.input:

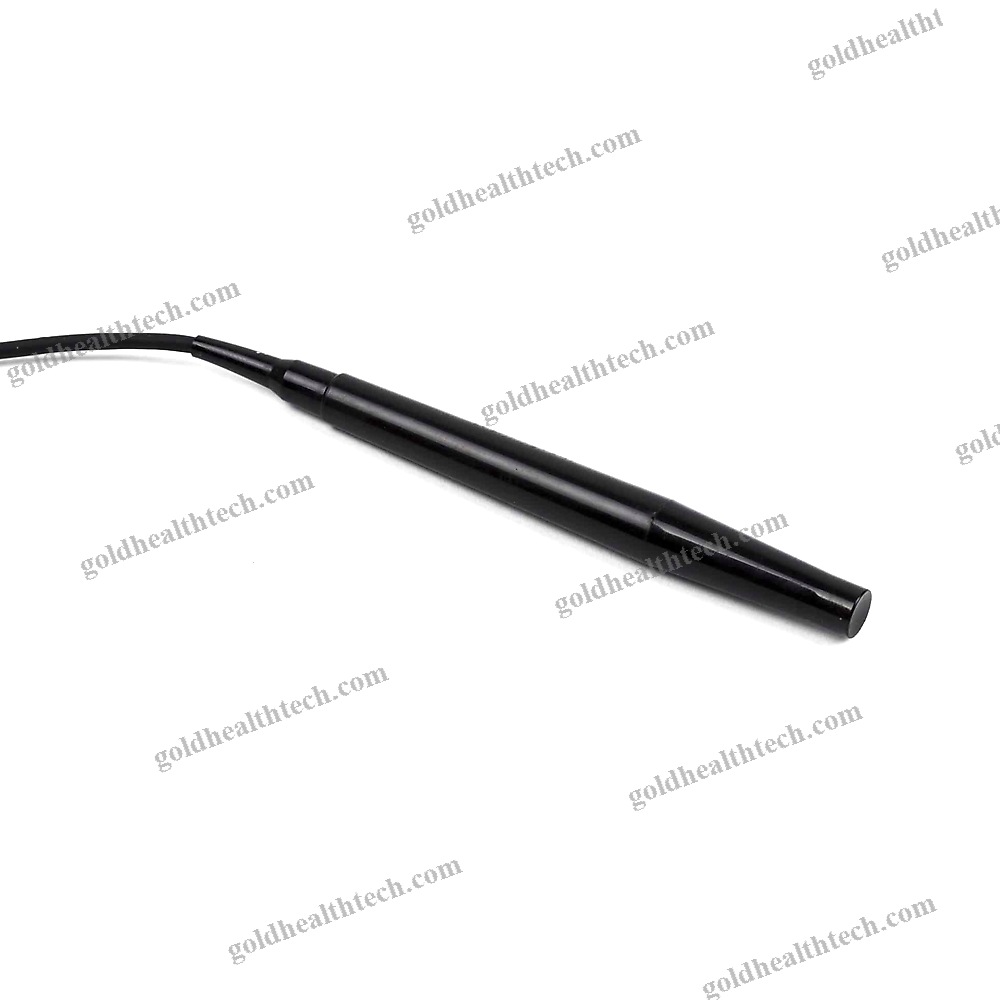

output:A-Scan

Resolution: 0.01 mmBiometry Accuracy: ≤±0.06mmThe measuring range (AL) is 15-39mm.

User-adjustable gain range: 0-55dB, total gain: 98dB.

Measurement parameters include the depth of the anterior chamber, the thickness of the lens, the length of the vitreous, and the length of the axial axis.

Measuring mode: 5 (normal, aphakic, special, dense cataract, and manual measuring).

Immersion and contact are the two methods of measurement.

The following are the methods for calculating IOLs: SRK-T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, and HAIGIS. The same screen can be used to compare and display any two calculations.

Average of eight groups with standard deviation (S.D.).

Permanently stored 50 groups of results.It is possible to save groups of IOL constants.
