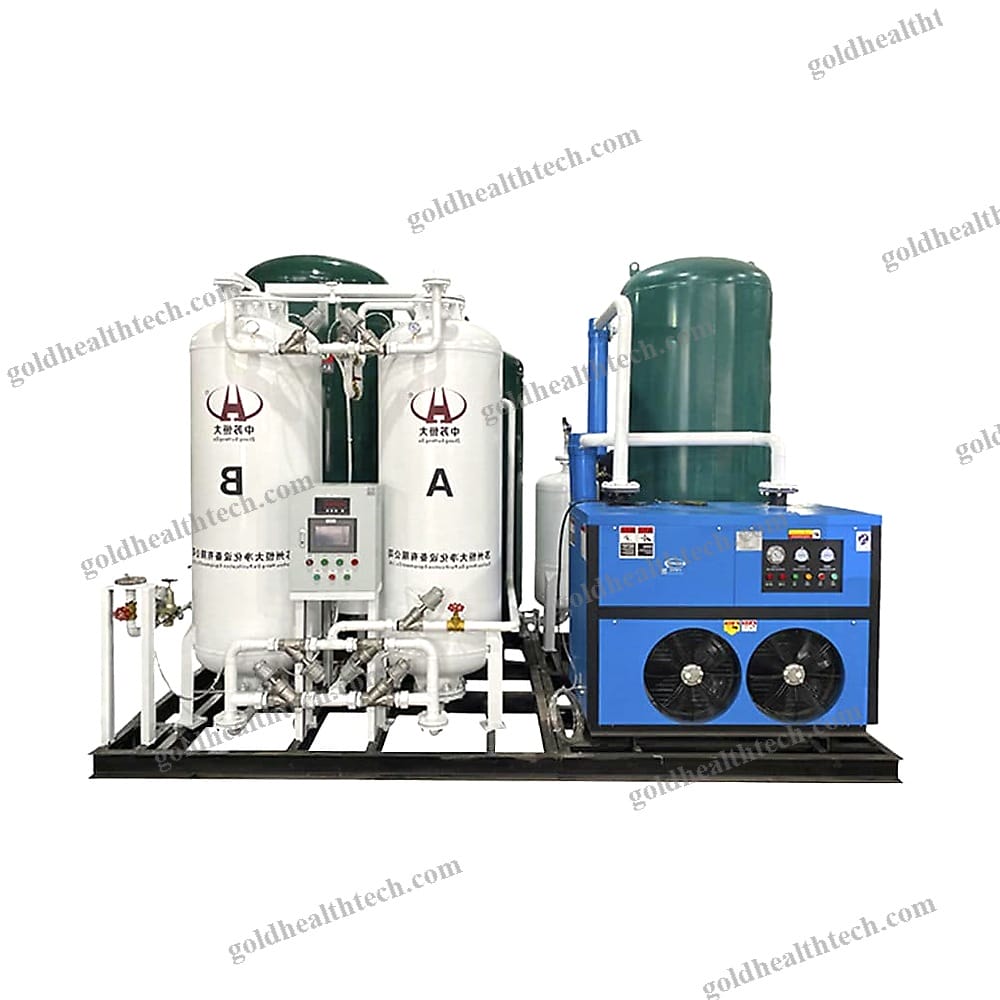

Nitrogen Generator

The ambient air is compressed and purified to eliminate oil, water, and dust. Subsequently, it is introduced into the pressure swing adsorption equipment, which consists of two adsorption towers that are filled with carbon molecular sieve. Oxygen molecules are adsorbed on the surface of the carbon molecular sieve as compressed air flows through the adsorption tower from the bottom to the top. Nitrogen exits the upper end of the adsorption tower and enters the crude nitrogen buffer tank. The carbon molecular sieve in the adsorption tower becomes saturated with adsorbed oxygen over time and requires regeneration. The adsorption step is halted and the pressure of the adsorption tower is reduced to achieve regeneration. In order to guarantee continued nitrogen output, the two adsorption towers alternate between adsorption and regeneration.



1, nitrogen can be produced by compressing natural air and supplying it with electricity. The equipment has a low operating cost and low energy consumption.input:
output:2. The adjustment of nitrogen purity is a convenient process, as it is solely influenced by nitrogen exhaust. The purity of an ordinary nitrogen generator can be arbitrarily adjusted between 95% and 99.99%, while a high-purity nitrogen generator can be adjusted between 99% and 99.999%.



3. Gas production is rapid and unattended due to the high degree of automation in the equipment. Nitrogen can be generated within 10-15 minutes of initiating the process by pressing the button to initiate and shutdown.input:
output:4. The equipment is highly adaptable, the structure is compact, the floor area is small, and the process flow is simple.
