Multifunction Electrophoresis System

A detachable, multi-functional power supply, a direct-visible gel box with high UV transmittance, a safety shut-off interlock cover, multichannel compatible gel loading combs, a gel pouring stand, and a built-in timer for set runs or continuous run modes are all included in the MUPID-exU, a new generation submarine electrophoresis system.input:
output:Characteristicsinput:
output:Plastic that is transparent to ultraviolet lightinput:
output:The Mupid-exU System is constructed from a highly UV-transparent plastic material (transmission: 50% at 254 nm, 80% at 312 nm), which enables the direct observation of bands during gel electrophoresis after the tank is positioned on a transilluminator.

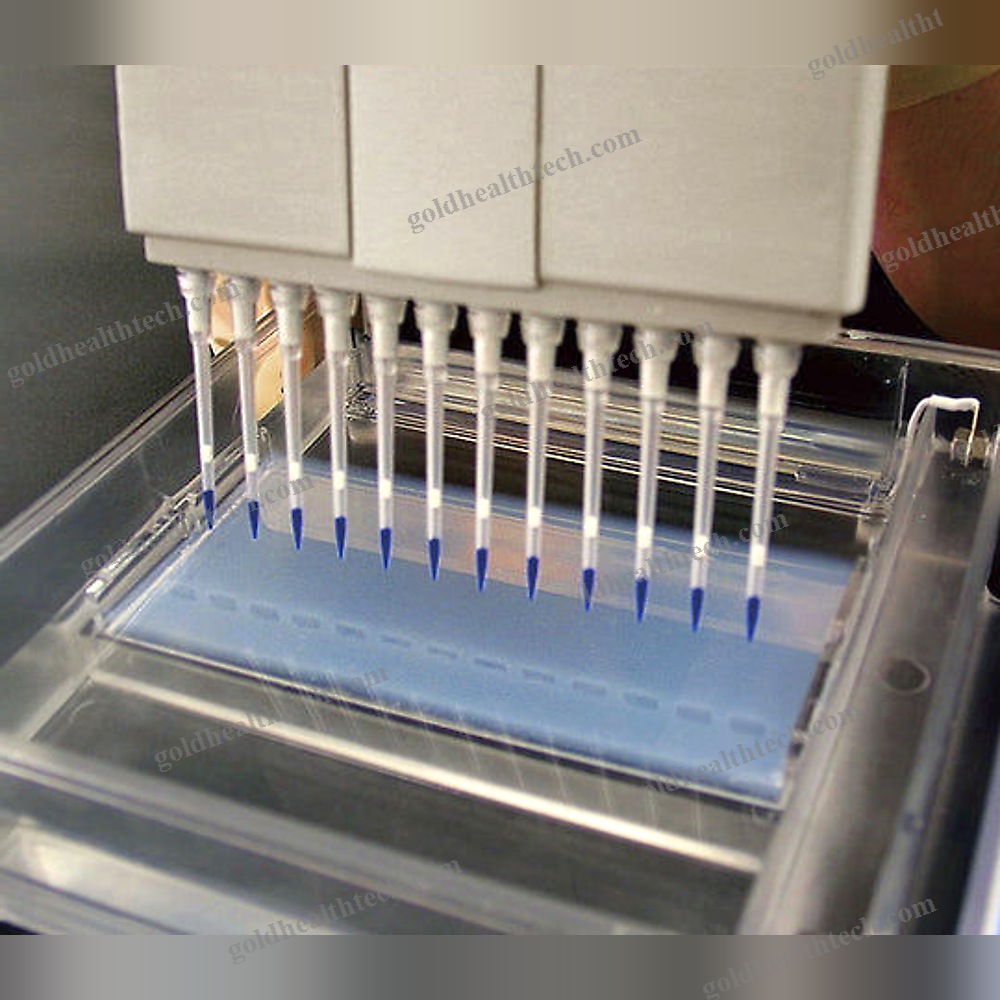

Ample sample capacity - compatible with multichannel pipettorsinput:

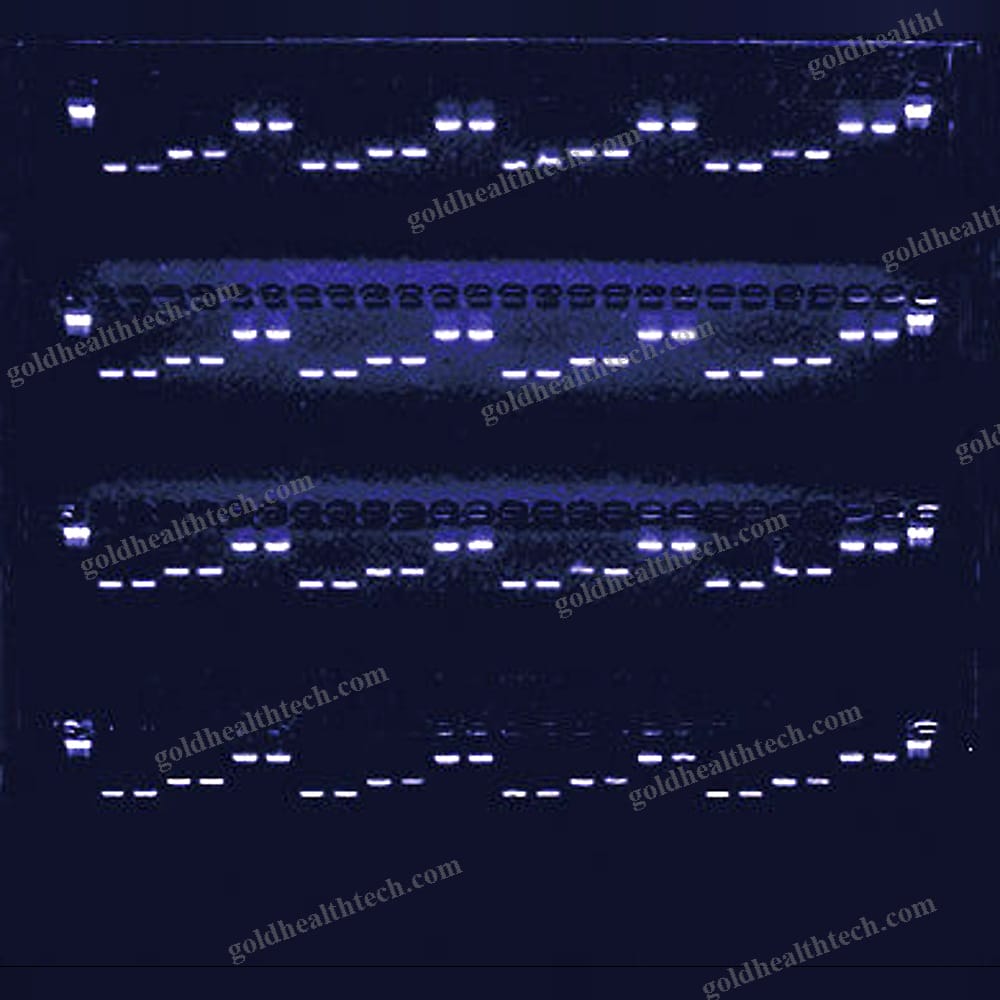

output:The Mupid-exU System enables the simultaneous electrophoresis of up to 104 samples in a single gel, which is equivalent to 96 samples + 8 markers (26 wells x 4 rows).

The Mupid-exU System is wider than the original Mupid gel electrophoresis equipment and can accommodate 13 or 26 lanes, allowing for sample loading with multichannel pipettors. The depth of the wells is 9 mm for 13 wells and 4.5 mm for 26 wells.

Timer functioninput:
output:The timer is equipped with an alarm function and can be configured to operate within a timeframe of 1–99 minutes.

A memory function is available to retain the previous output settings and timer settings.

Input and output voltage fluctuationsinput:
output:The output voltage can be chosen from a range of 7 levels: 18V, 25V, 35V, 50V, 70V, 100V, and 135V. The input voltage can be adjusted to a range of 100–240V, thereby enabling global use.
