Mixer For The Pharmaceutical Industry

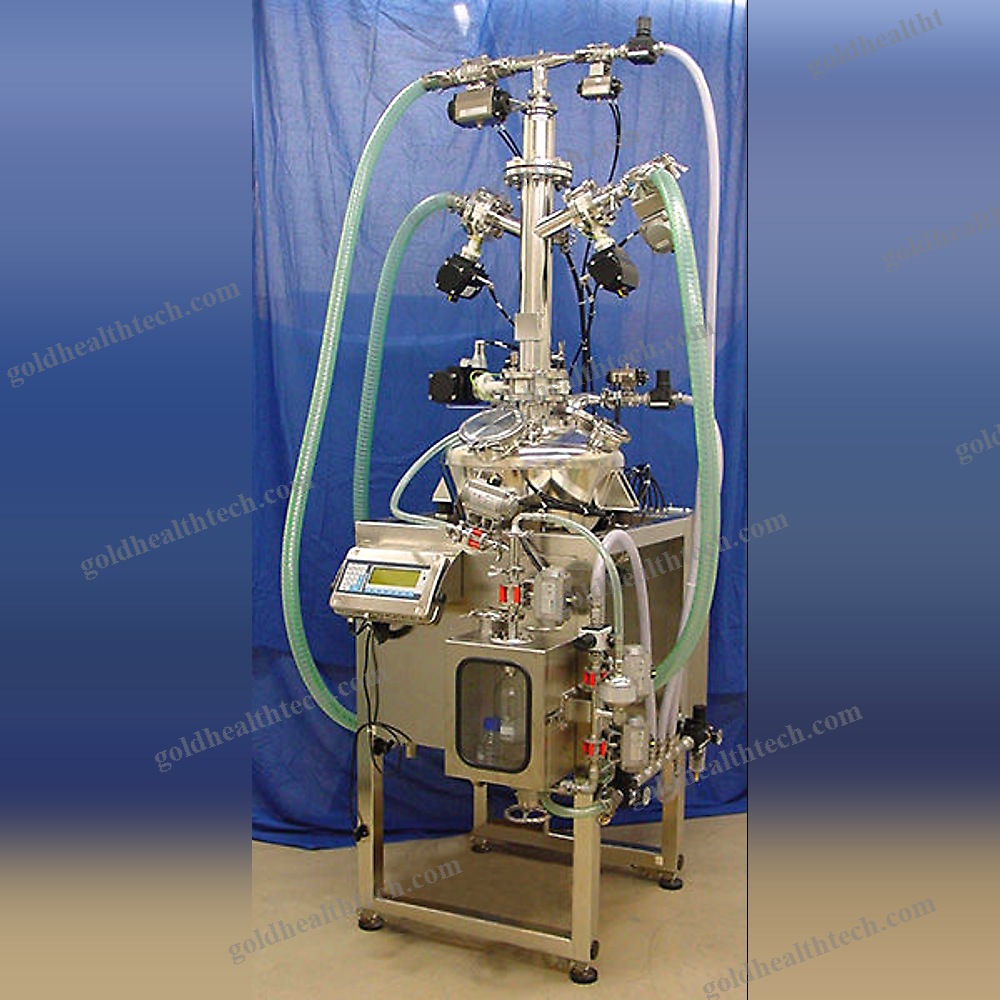

The patented PTS Batchmixer® enables the mixing of powders with varying characteristics in a contained environment, thereby reducing the overall process times in comparison to traditional systems. The system also allows the operator to adjust product volumes from 10% to 100%, with industrial applications ranging from 2 to 6000 liters.input:
output:The system is particularly well-suited for pharmaceutical applications that necessitate the safe handling of active substances without contaminating them or altering their physical properties.input:

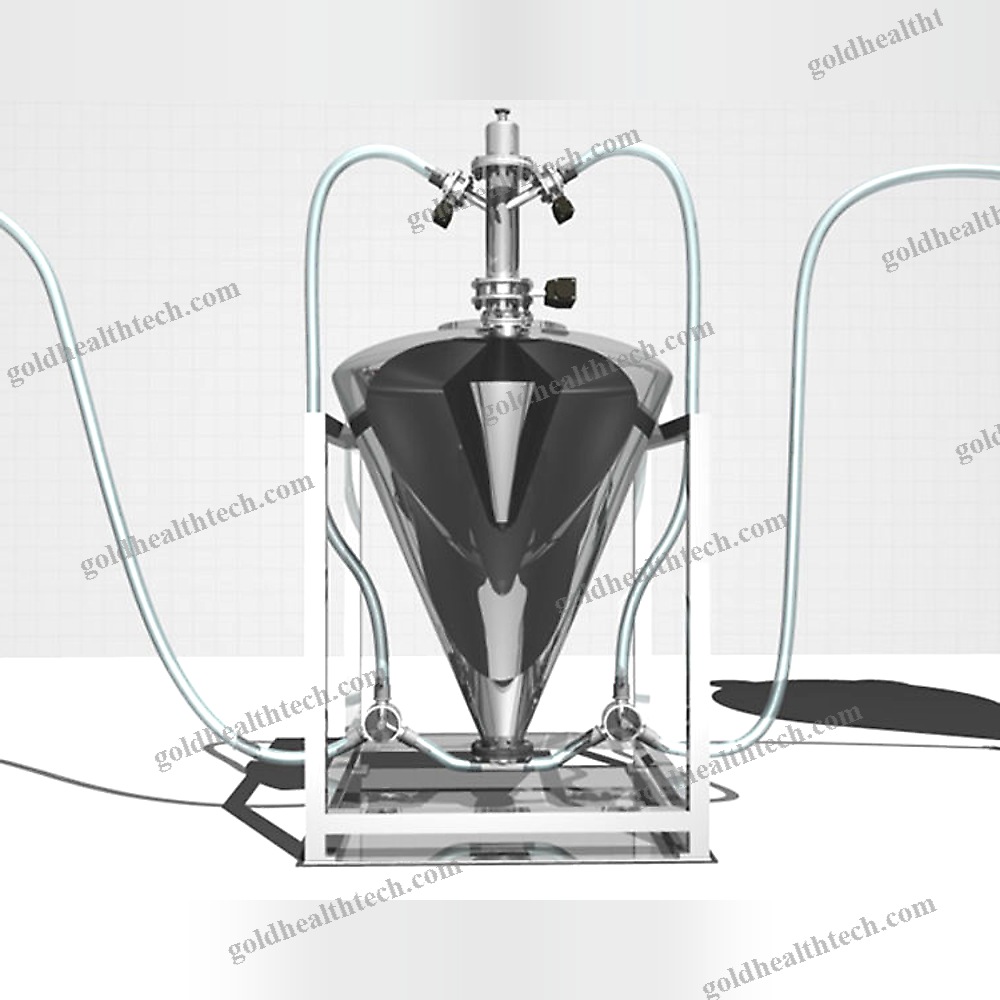

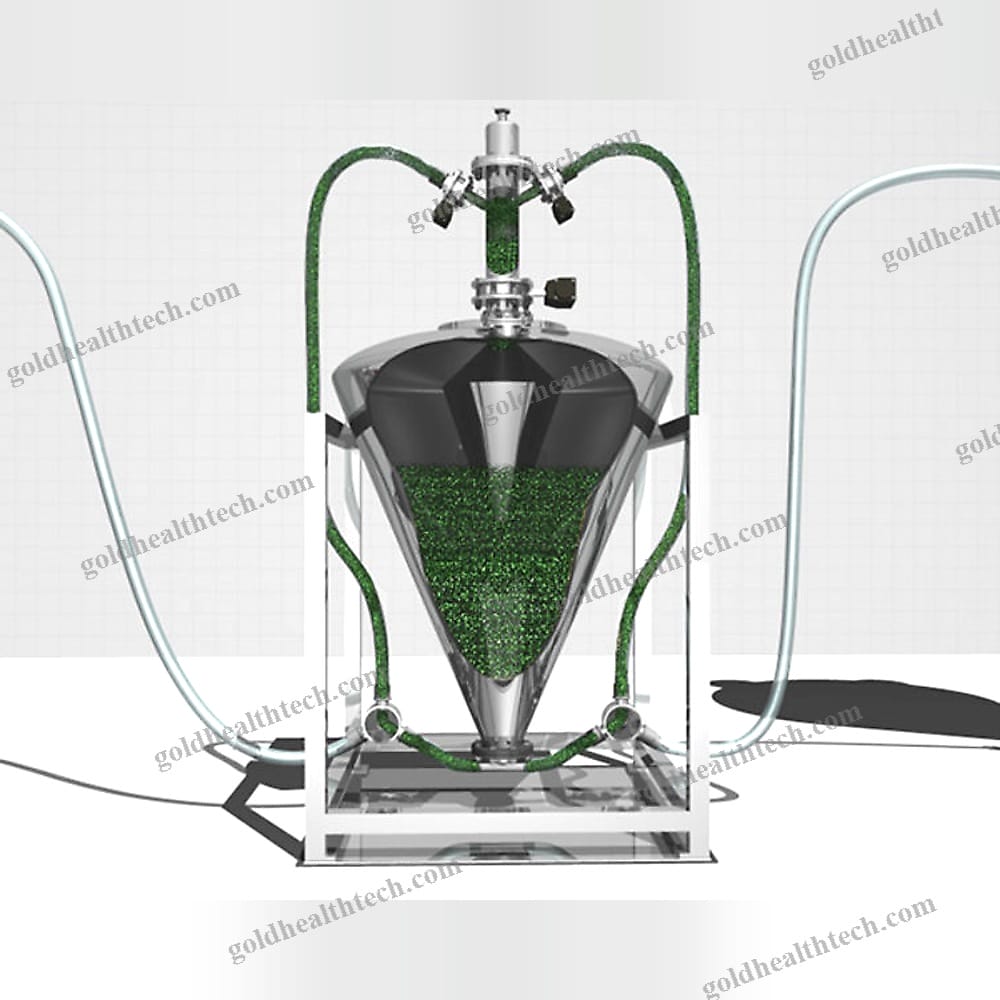

output:This system is easily integrated and consists of a main container with an integrated central deflector and a PTS with two tangential inlets on top. The PTS automatically introduces the powders and circulates them within the container for a predetermined duration. The mixture is distributed uniformly by the deflector.input:
output:The PTS body's two powder jets collide, resulting in a more efficient and rapid mixing process. However, the particles remain undamaged due to the restricted circulation speed. For hygroscopic, oxygen-sensitive, or explosive powders, the system functions under inert conditions. Powders may be automatically transferred from drums, bags, or process equipment, such as a granulator. The system can be completely emptied at the conclusion of the mixing process, and the blend can be automatically transferred to the subsequent stage of production.
