Microscope Camera

The MKC-704KHD is a Full HD camera that is medical-grade and has a high sensitivity (2,000lx/F17：Line Mix On). The MKC-704KHD is equipped with 3CMOS sensors that are capable of producing high-sensitivity images in both full HD and 4K (3840 x 2160) resolutions.input:
output:High Sensitivity with Full HD / 4K Outputinput:
output:The MKC-704KHD has a sensitivity of F17 at 2000 lx (LINE MIX On) when providing full HD (1920 x 1080) and 4K (3840 x 2160) signal output.

*Please be advised that the use of line mix results in a slight reduction in resolution. A Wide Range of Image Outputs

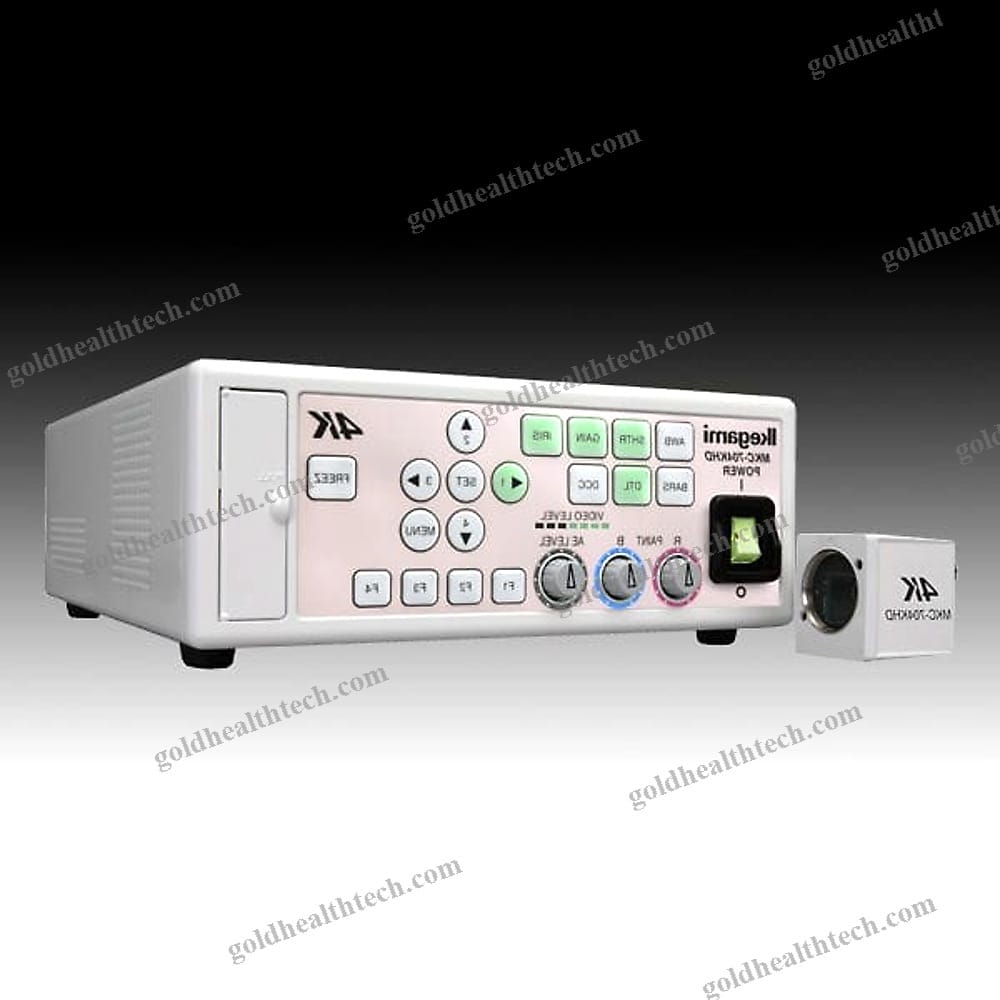

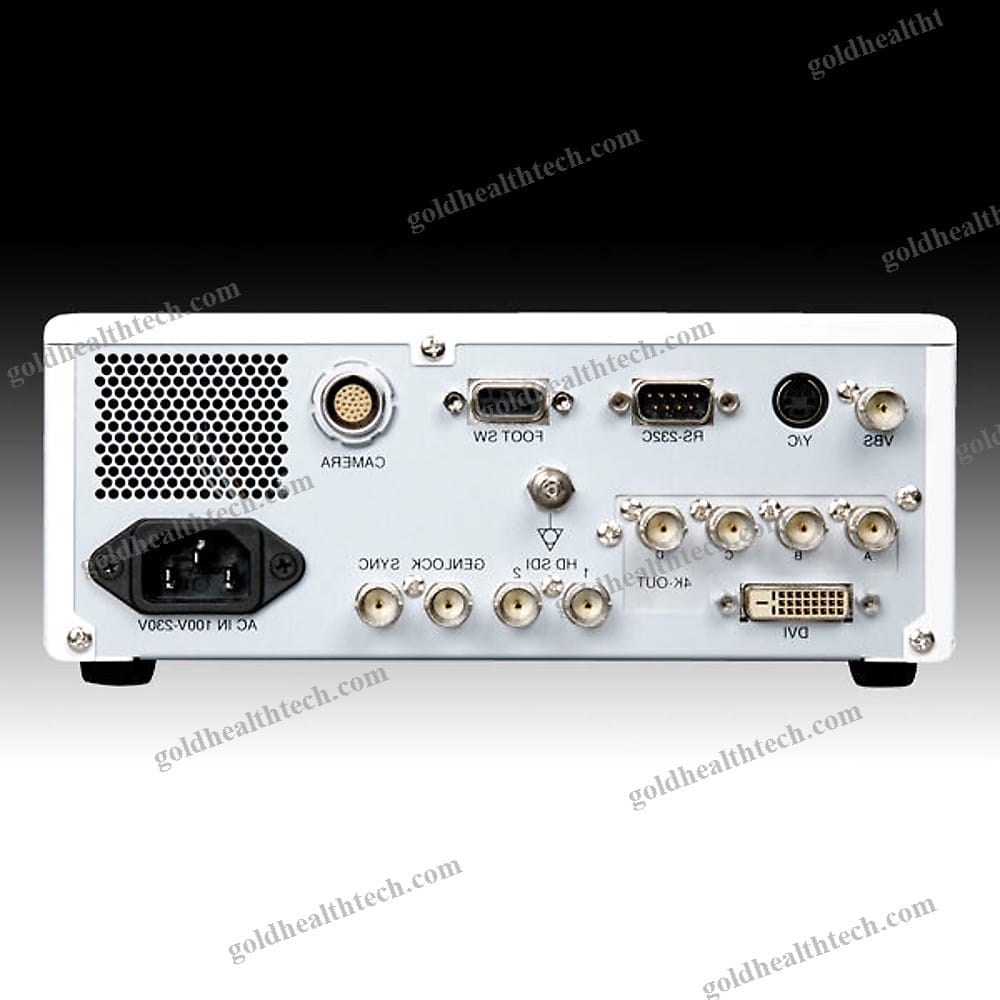

The CCU (camera control unit) generates digital HD signals (HD-SDI and DVI) and a 4K signal. Composite signals (VBS, Y/C (S-VIDEO)) can also be output through the internal down converter. input:

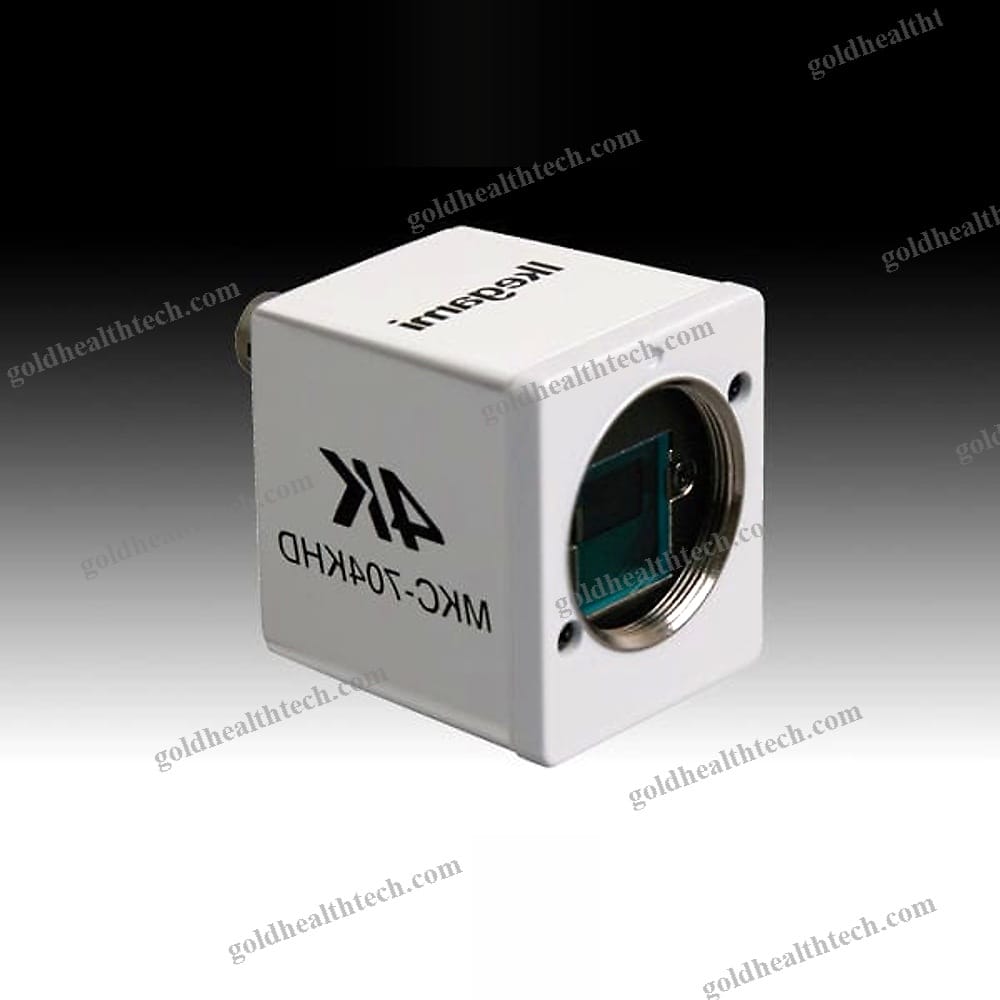

output:Compact and Lightweight Camera HeadThe camera head is particularly well-suited for applications that require minimal space, such as those found on a surgical microscope. It is both lightweight and compact. Remote Control

External control is enabled for a variety of functions, such as the flip and turn function and the scene file function, by connecting an optional foot switch to the remote control terminal. input:
output:Antibacterial Coatinginput:
output:In order to enhance infection control, the camera head and CCU (camera control unit) are coated. input:
output:Image Correction Functioninput:
output:Special image-correction results in a substantial increase in image detail, resolution, and modulation depth.input:

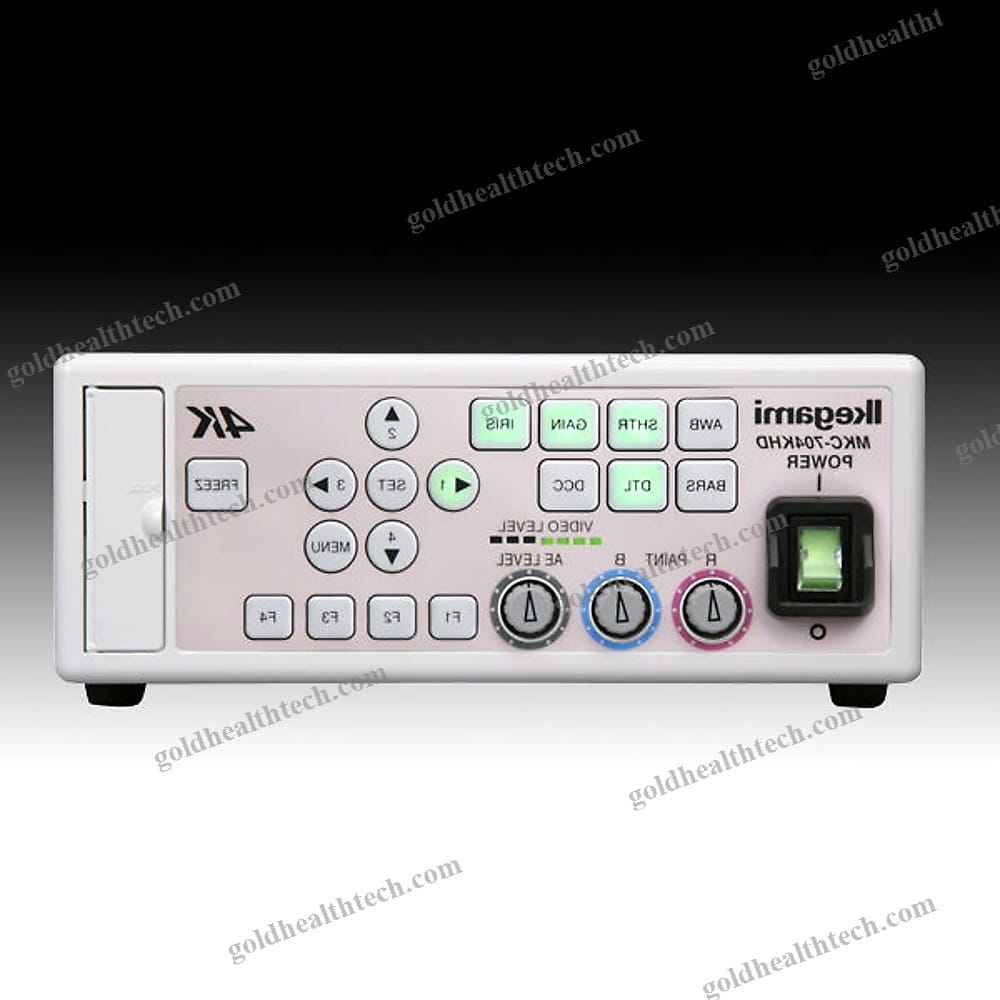

output:Function Switchinput:
output:Four switches are accessible on the CCU for the purpose of customizing the control of functions that are critical to the user.input:
output:A Wide Range of Image Outputsinput:
output:The CCU (camera control unit) generates digital HD signals (HD-SDI and DVI) and a 4K signal. Composite signals (VBS, Y/C (S-VIDEO)) can also be output through the internal down converter.
