Description

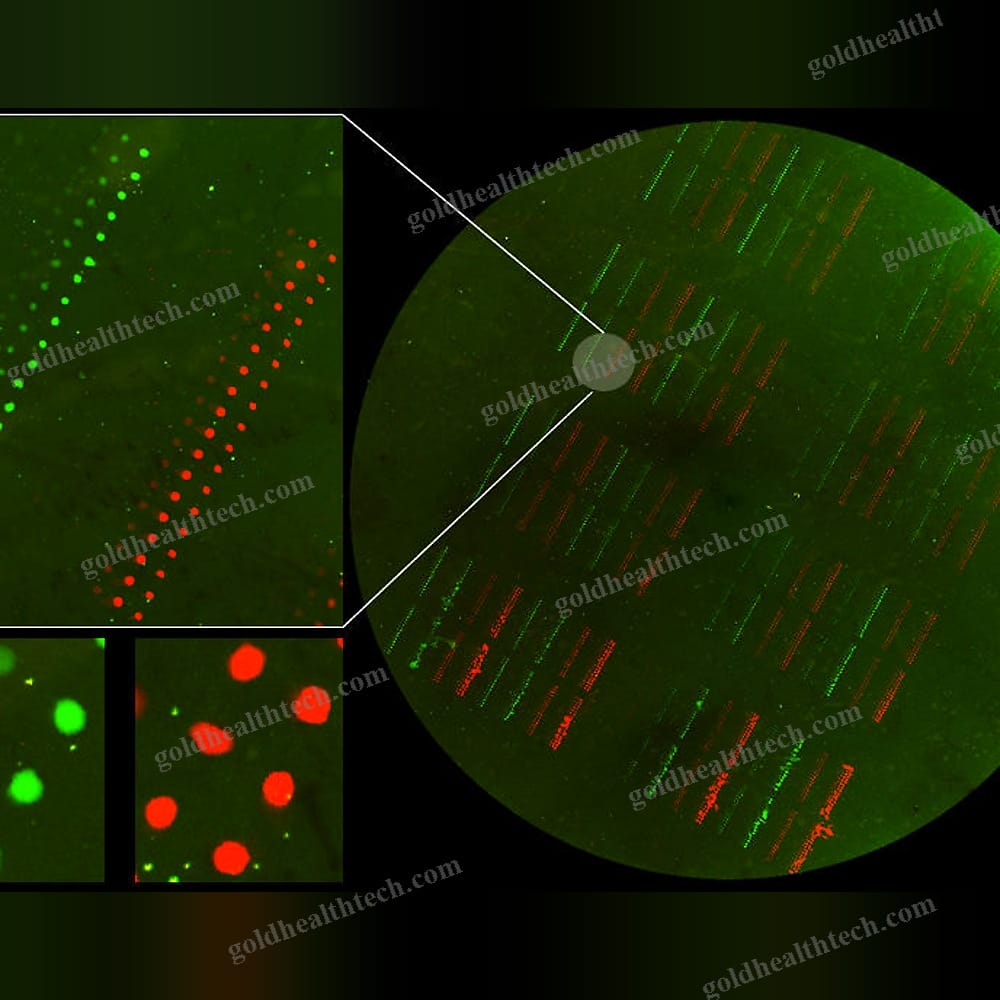

High-Throughput Platform for Whole Wafer ScanningWhole wafer image capture input:
output:Image resolution: 20,000 x 20,000 pixels (approximately 1.6GB), with a pixel pitch of 10um.input:
output:Image format: TIFFThe entire wafer imageinput:
output:Examining input:
output:Auto-alignment and auto-circlingResolution: 2, 5, 10, and 40 μminput:
output:The laser’s excitation wavelength is 532 nm and 635 nm.input:
output:Laser power:532 nm: 13+/-10% mWinput:
output:13+/-10% mW at 635 nminput:
output:Fluorophores that are compatible include Cy3 and Cy5.input:
output:Wafer size: 4” to 12” Si/Glass waferinput:
output:Scan area: the entire waferLoader capacity: One waferinput:
output:Dynamic focus with real-time confocal and two PMTs is the detection method.input:
output:Scan speed: 21 minutes at 10 μm (8″ wafer)input:
output:Sensitivity: <0.2 fluoro/μm²input:
output:Dynamic range: 10⁴input:
output:Digital resolution: 16 bitsinput:
output:TIFF file formatinput:
output:Operational software (BioScan control and BioImage analyzer)
