Medical Micropump

The TS series offers over ten fundamental models that range from 27 uL to 3 mL/stroke. The request for modification is encouraged in order to accommodate specific applications that necessitate (1) the removal of air bubbles, (2) the dispensing of a specific volume per pulse, (3) an increase in dispensing speed, and (4) the replacement of tubing that is more straightforward.

System builders benefit from the following:
1. The deviation among production lots of systems will be minimized by the high reproducibility (CV 0.2114 with 10 units in test).
2. The plunger seal back washing space is included in the standard specification.
Particularly well-suited for use with saline fluids.
3. The machining of inner parts with precision reduces the likelihood of tear and wear issues with the mating parts during the operation of the system.
4. The plunger seal, which is anticipated to have a service life of 2,000,000 cycles, can be used to decrease the frequency of system downtime.

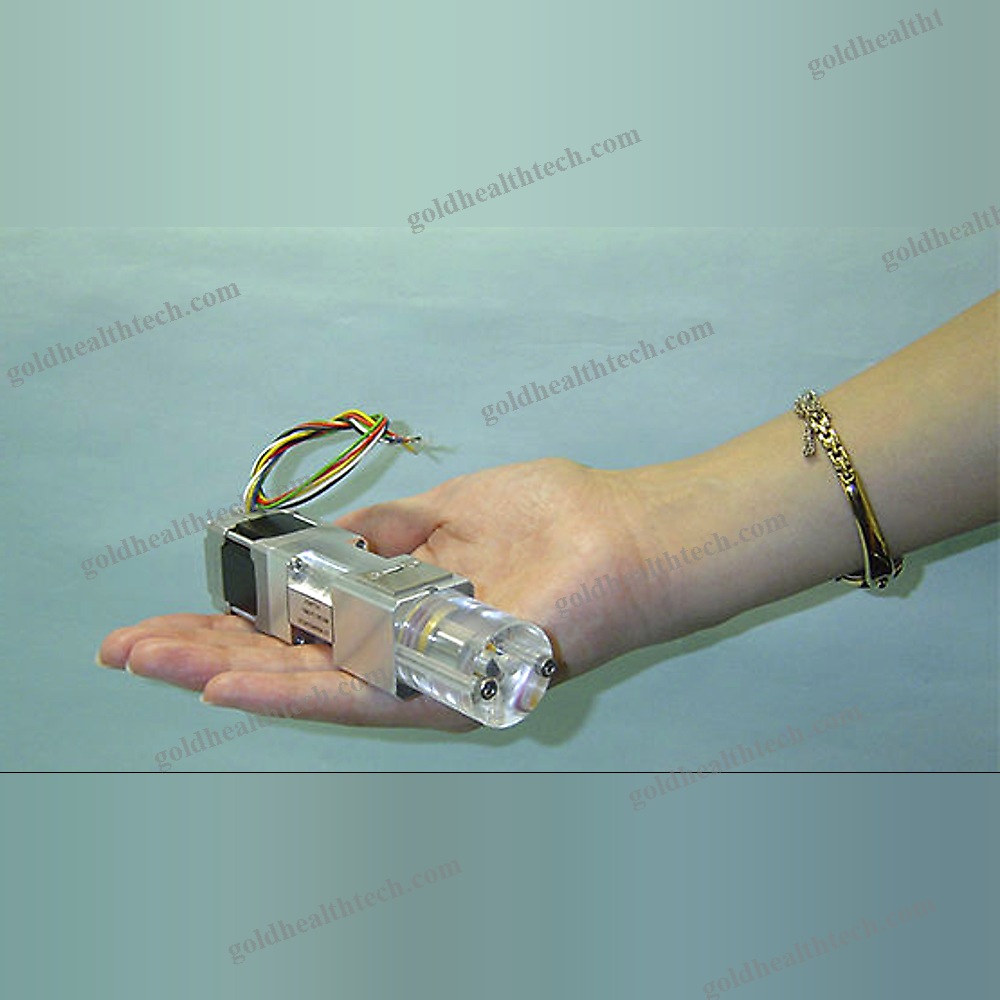

5. A footprint as small as 28 x 28 mm is available.

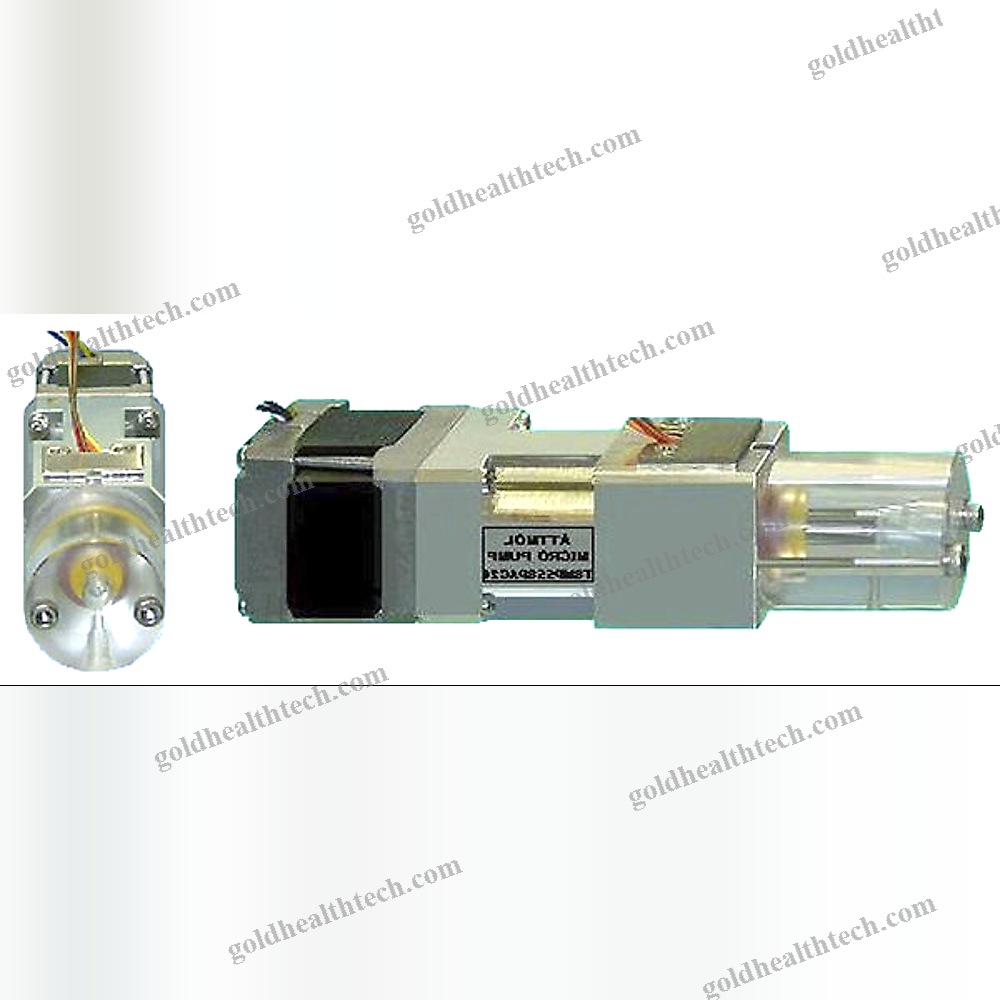

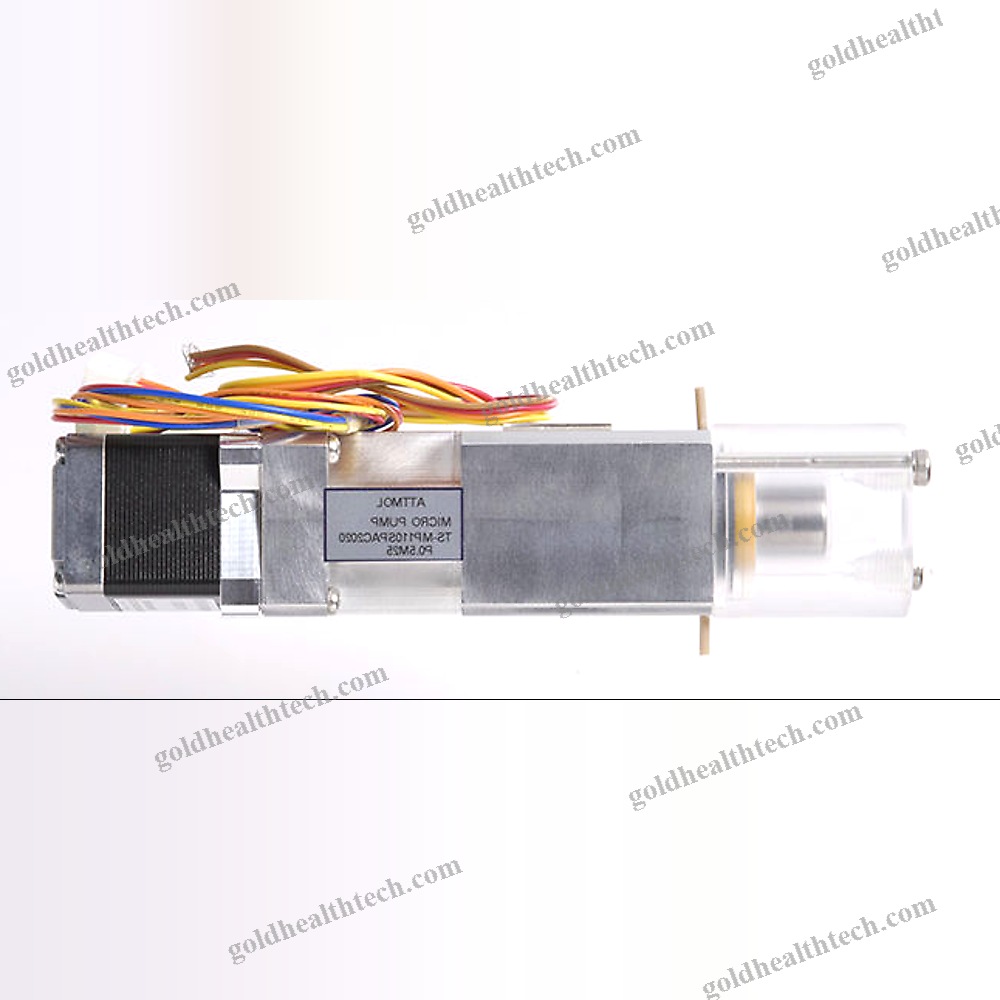

Stepping motor-driven plunger-type dispensing pump. Microsteps are accessible. Resolution: 0.0127 to 1.0052 uL/pulse (in full step). Reproducibility of CV is 0.2114 percent with ten pumps. (Data for testing). Blood analyzer and clinical analyzer

• 27 uL of liquid is delivered through a plunger that is driven by a stepping motor at a rate of 3 mL per stroke.• The CV was 0.2114 with 10 units in the test.• Minimum dimensions of 28 (W) x 28 (H) x 120.5 (D) mm • Ports for washing plunger-back seals br/>
For continuous and metering flowsThe CV 0.1235 with 44.12 uL stroke volume model exhibits remarkable reproducibility.The footprint of pump modules has been reduced to 28 x 28 mm.The fundamental ten models can be easily customized to suit a particular application.Application: Liquid handling systems, auto samplers, and analyzers.
