Medical Gas Pipeline System Outlet

Medical terminal units facilitate the rapid and effortless connection of hospital ward gas equipment to the hospital gas source. National standards in each country and occasionally local requests in each hospital determine the type of medical gas outlets. GCE assures that its products are secure and that they are fully tested in production, in accordance with national installation standards and ISO 7396. Our medical gas outlets are compliant with the international standards ISO EN 9170-1 and ISO EN 9170-2.
10 years of preventive maintenance-free operation, with the exception of TUs designed for the use of running surgical tools.

Brass is the material of choice for all functional components.A straightforward installation process

Rapid connection and disconnection

Specifically engineered for the medical sector, this item is compact and effortless to clean.

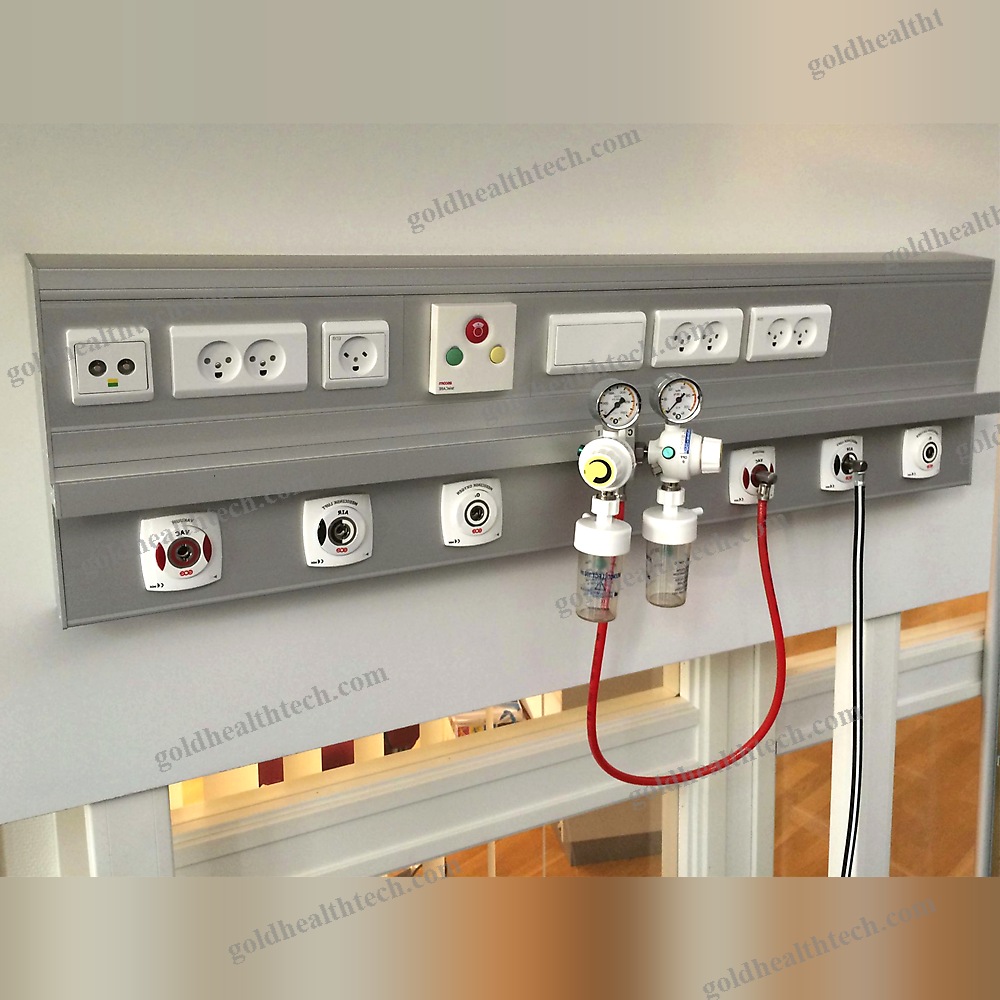

Adheres to the standard's color coding and description.The units can be upgraded with a special upgrade pack after a decade. This upgrade pack is available in recessed and exposed versions.Bed head installation versions (customized solutions available upon request)



TECHNICAL DATA

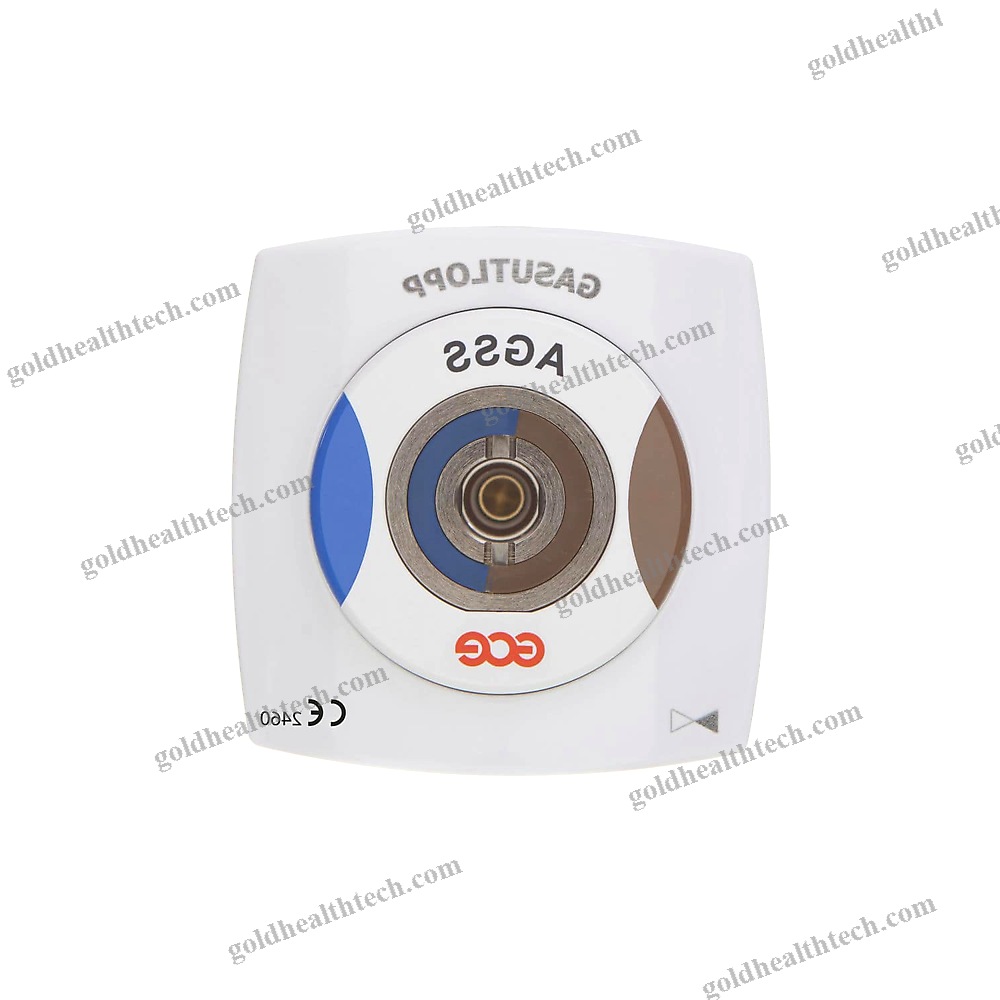

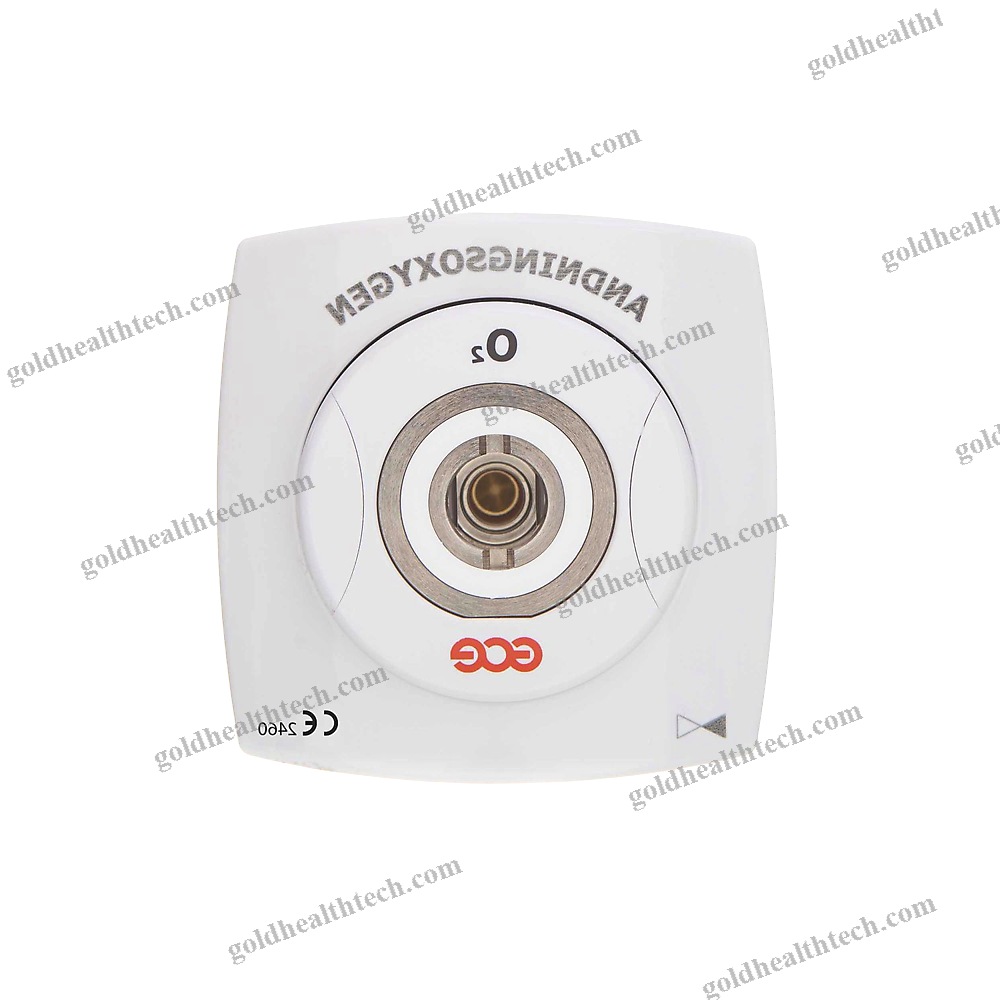

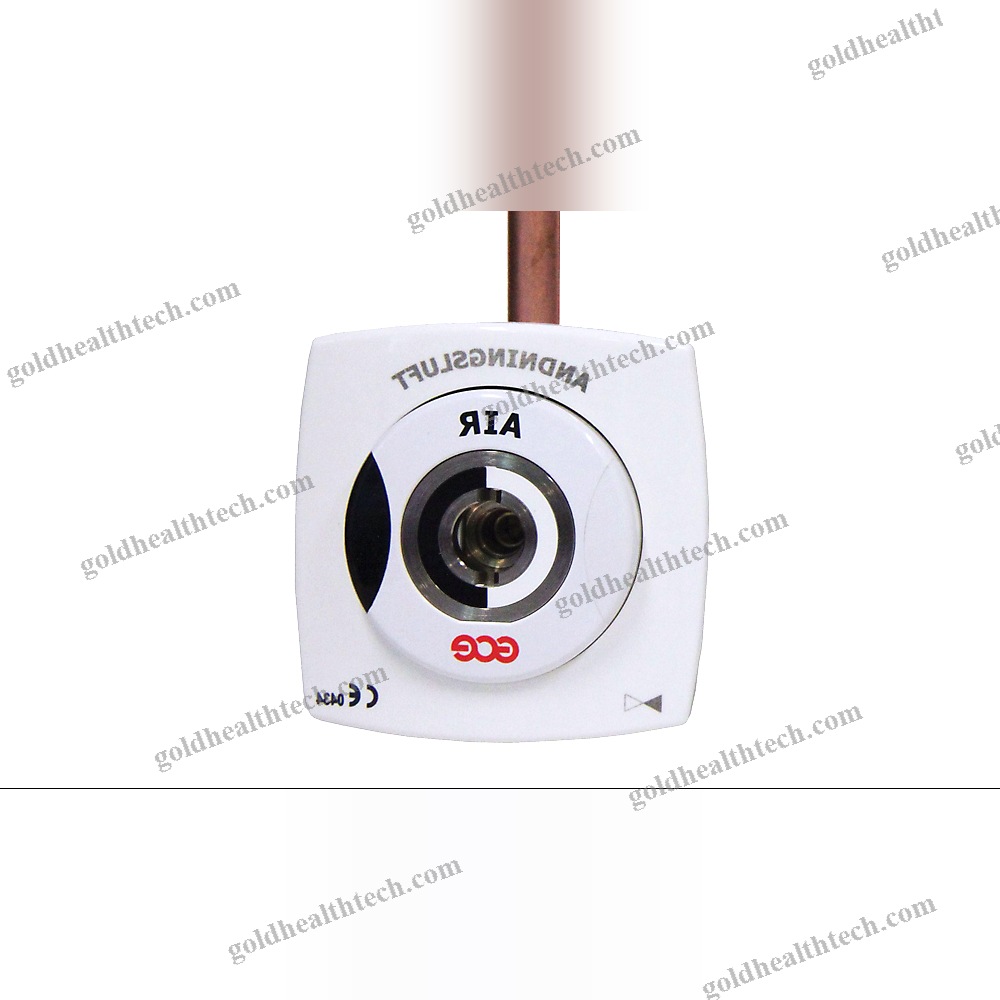

Gases: O2, N2O, Air, Air-800, CO2, N2, Ar, AGSS, VAC

Dimensions:Height: 73 millimetersWidth: 73 mmDepth: 63 millimetersWorking pressure: 4–5 bar (breathing gases) and 7–10 bar (instrumental gases)(-0.4–-0.9) bar (vacuum)The maximum pressure is 20 bar.

Regulatory status: (br/>
Complies with the Medical Directive 93/42/EEC.Adheres to EN ISO 7396-1

(Centralized Gas Supply Systems)Adheres to EN ISO 9170-1(Terminal units)Adheres to EN ISO 9170-2

(Terminal units for AGSS)In accordance with SS 8752430

(Specific connections for SS gas)present SIS HB 370 and HTM 02-01
