Medical Gas Manifold

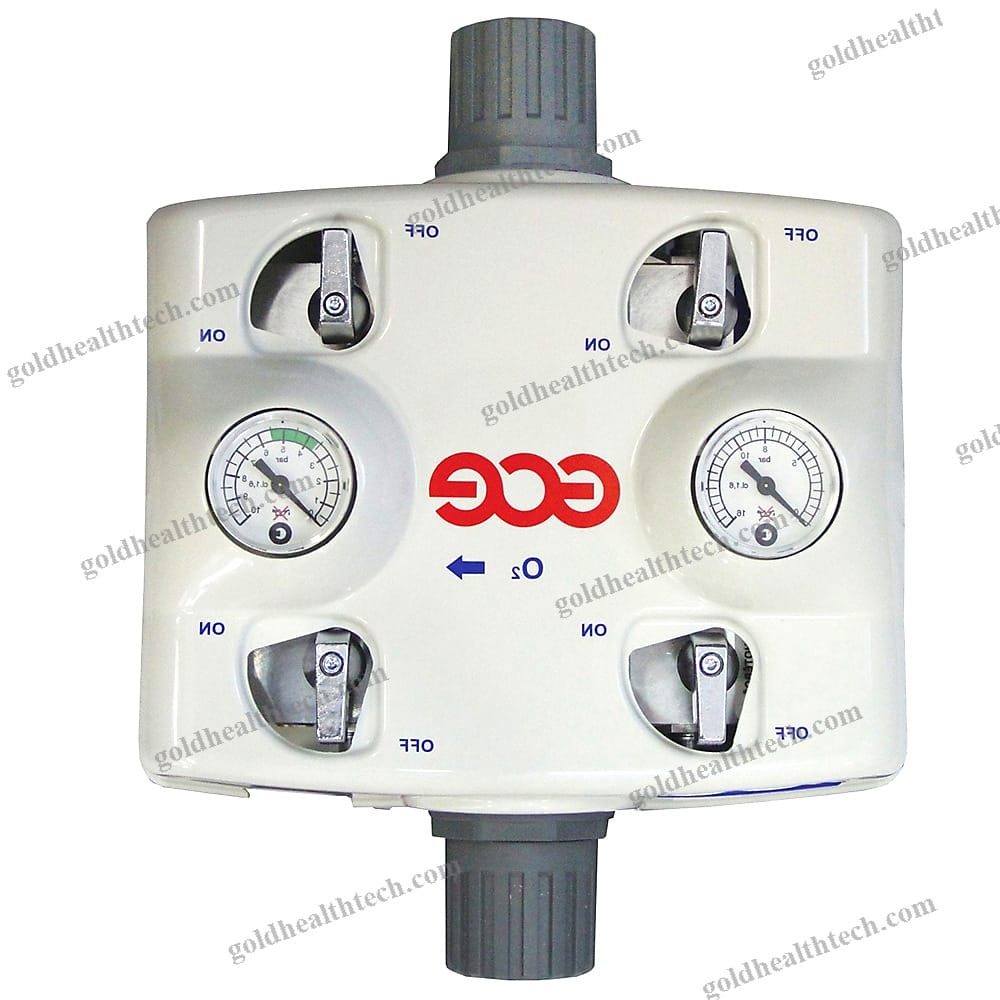

The STABILIZER is a second-stage pressure reduction unit that is responsible for balancing the potential pressure fluctuations in the hospital pipeline system to guarantee that the terminal units are operating at the appropriate pressure.

The STABILIZER is the sole second-stage reduction unit that is supplied with primary gas by high-pressure gas manifolds, such as the MM40-HP Unit. The alarm can be easily displayed on a gas alarm unit in the event of a pressure deviation signal in relation to the alarm settings. Sending information to the central operation control is also feasible.

The stabilizer can be supplied with a pressure transmitter that operates at 4–20 mA, a pressure transmitter that operates at 0–50 mV, or with pressure switches. The MM40 – STABILIZER gas reduction unit must always be installed in accordance with the relevant national standards and EN ISO 7396-1.input:
output:For a fully assembled MM40 stabilizer manifold, include the following:



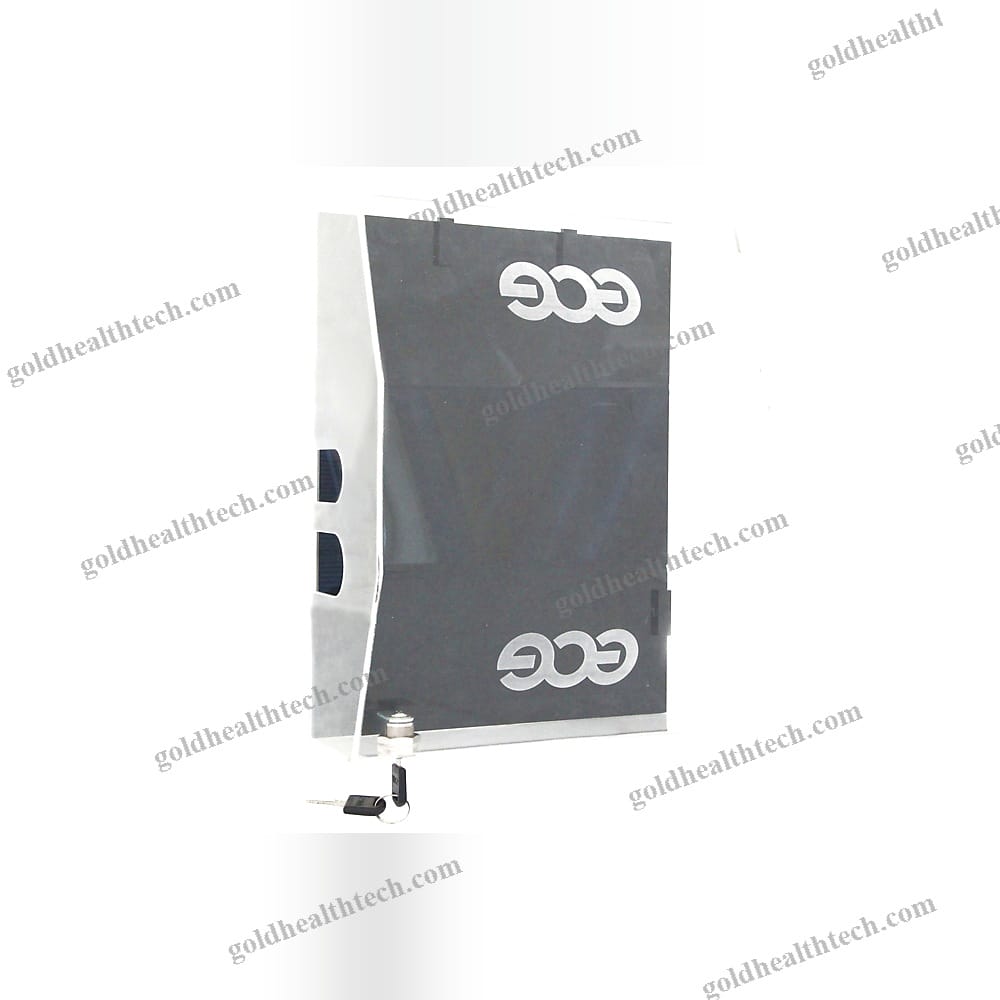

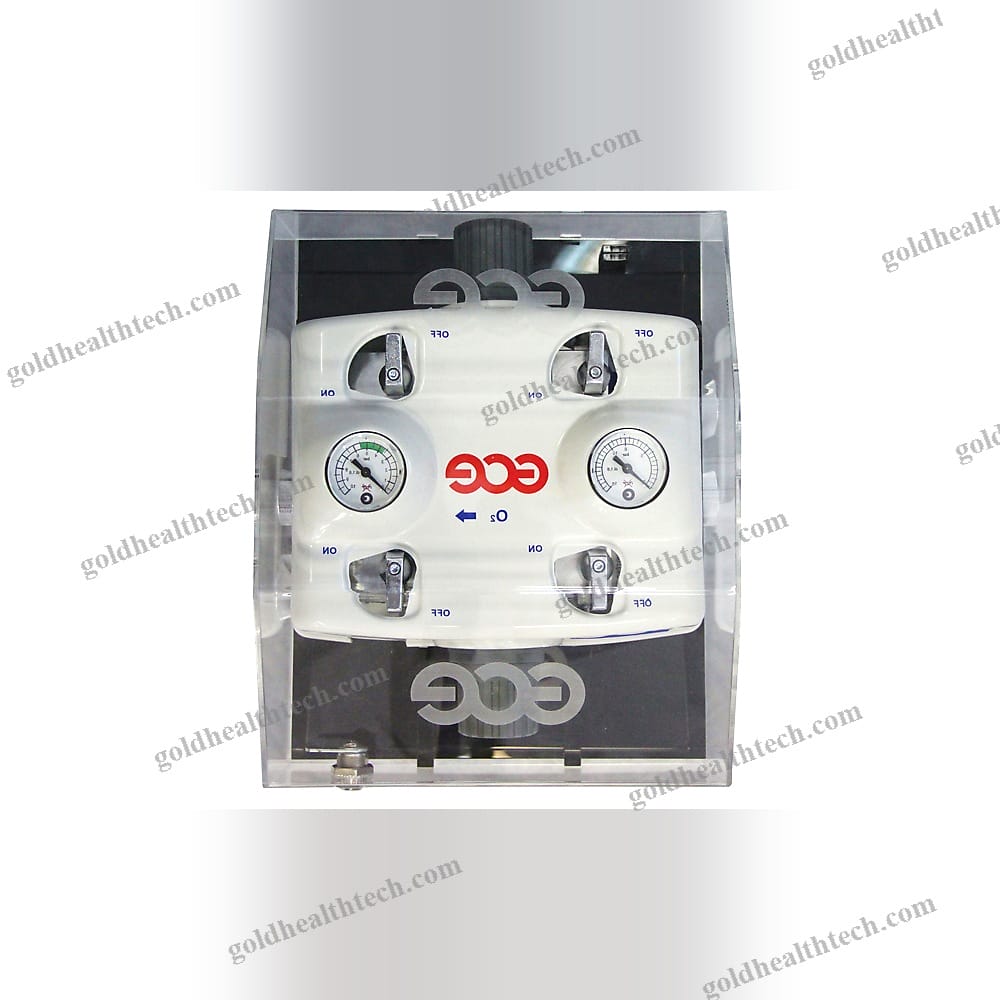

A plastic cover for locking.

TECHNICAL DATA



Alarm unit (included if ordered in conjunction with HP unit)Gases: O2, Air, Air-800, N2, N2O, CO2, (all medical gases)Nominal flow: 40 m3/hThe maximum pressure at the inlet is 16 bar.

Outlet nominal pressure: 4.5 bar (setting range: 0.5 to 10 bar)

Inlet connection 1: G1/2"M + soldering piece pipe ∅ 12 mmInlet connection 2: Optional (G1/2"M + soldering piece pipe ∅ 12 mm)

Outlet connection: G1/2"M + soldering piece pipe ∅ 12 mmPressure relief valve: Optional (6,8 bar; outlet pipe ∅ 15 mm)

Pressure sensors: Optional (Pressure switches; Transmitters from 0 to 50 mV; 4 to 20 mA)Emergency QC inlet: Optional QC in accordance with national standards

Regulatory status:Adheres to the Medical Devices Directive 93/42/EEC.Adheres to EN ISO 7396-1 (Central Gas Supply Systems)
