Medical Gas Manifold

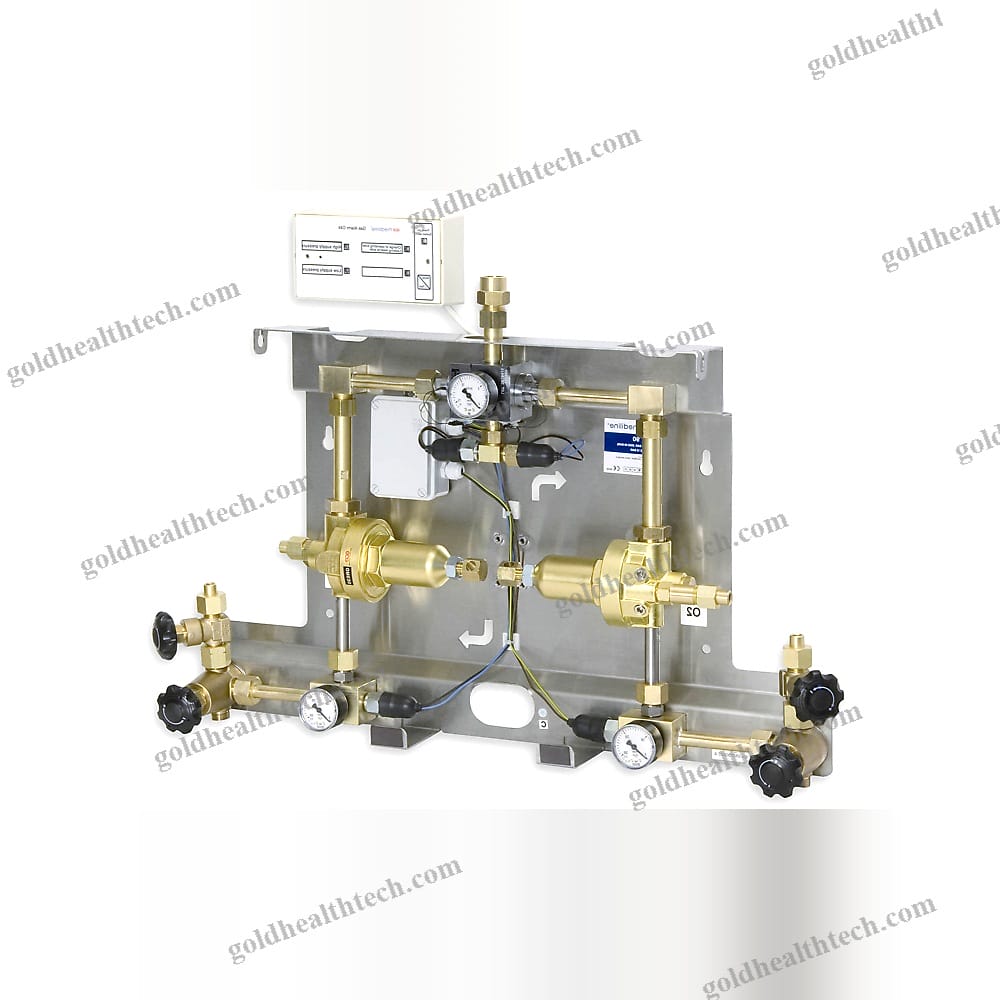

The MM90 HP unit medical manifold is designed for use as a medical gas source in the hospital pipeline system. Always utilize an alarm that adheres to the standard, such as a gas alarm, in conjunction with the MM90. It is advised to employ a stabilizer during the second stage. The manifold pressure regulator will receive gas from the operating bank until the cylinders are depleted. At that time, the supply will transition to the reserve bank, and the empty bank can be replenished. The object provides an uninterrupted gas supply. A standard accessory is the gas alarm. Visual and auditory indicators are provided by the gas alarm.

The alarm sounds and surveillance is conducted when the following occurs:input:
output:1. Alter the operation side to address the leakage on the reserve side.2. Excessive operational pressure3. Operational pressure that is low4. Empty Possession (High/Low distribution pressure when connected to a Stabilizer)The gas alarm is capable of communicating with other equipment via relays.input:
output:The following components are included in MM90:

Manifold for MM90 HP unitAlarm for gas pressurePurge valves

HP filtersinput:
output:FOR A COMPLETE MM90 HP UNIT MANIFOLD, ADD:Cylinder retaining brackets (included in gas cylinder collecting pipe set) Collecting pipe set (high pressure valves and non-return valves/high pressure components)Safety wires are attached to high-pressure hoses.

Plug for pipeline collection in close proximity

Sign designating the name of the gasStabilizerTECHNICAL DATAGases: O2, Air, N2, N2O, CO2, (all medical gases)Nominal flow: 90 m3/hNominal inlet pressure: 200 bar (20 000 kPa)Outlet nominal pressure: 9 bar (setting range: 9-15 bar)

Inlet connection: W21,8×1/14"MOutlet connection: G3/4"F + soldering piece pipe ∅ 22 mmIntermediate pressure relief valve: 16 bar
