Medical equipment sourcing

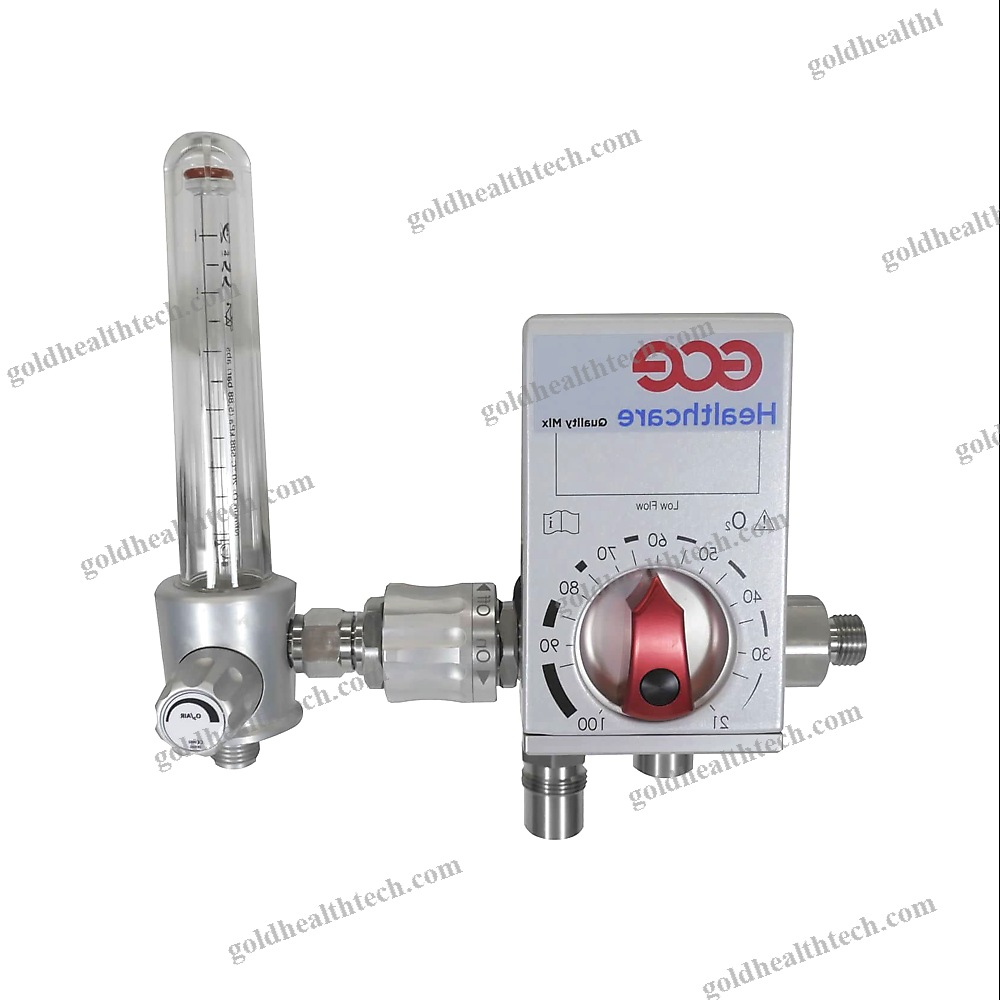

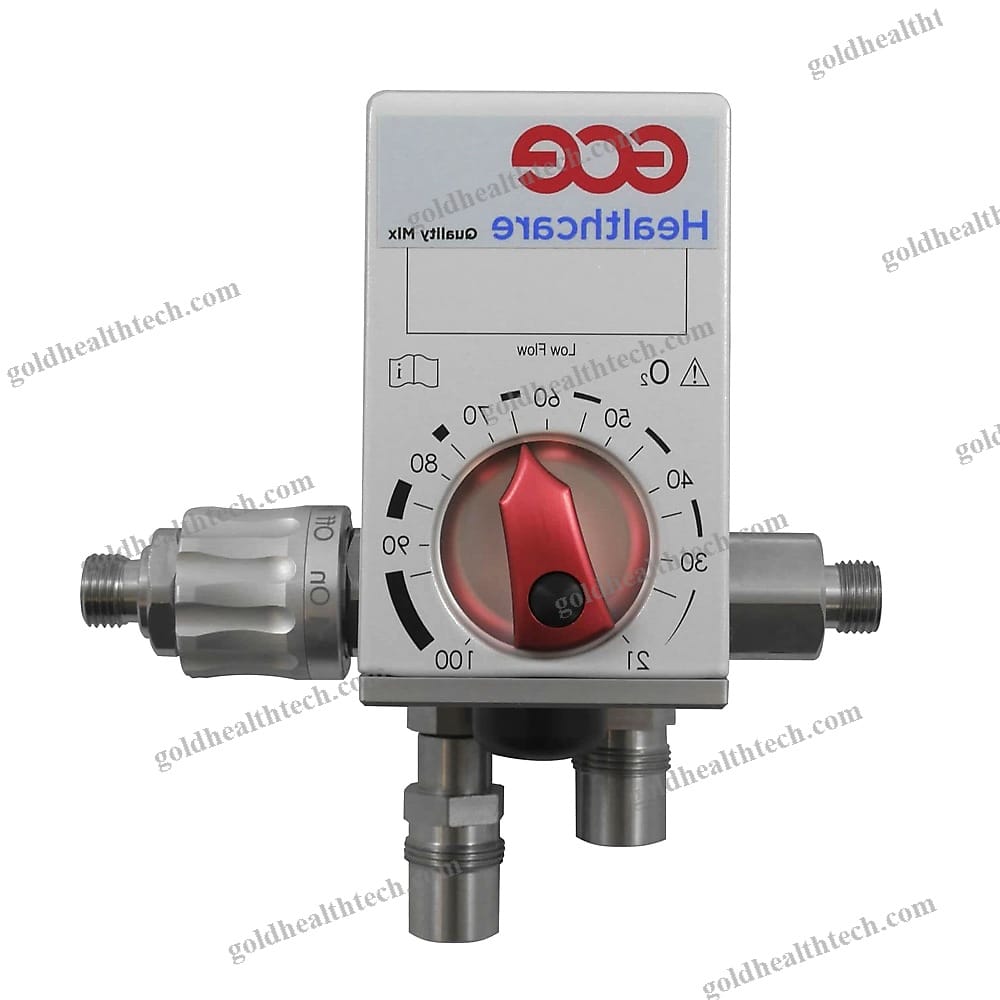

Medical Gas Blender
Reference: 867564Hospital Infrastructure
| Technology | Tube Flow Meter |
| Gas Type | Oxygen, Air |
| Applications | Medical |
Associated tags
Documentation request
Ask which specifications, manuals, or commercial documents are available for review.
Supplier coordination
Discuss quantity, destination, packaging, and timing before confirming suitability.
Product information
Product summary
The precise O2 concentration can be easily adjusted, and an optional bleed switch allows for extremely low gas consumption, even at flow rates of less than 3 l/pm.input:
output:The oxygen concentration can be precisely and effortlessly calibrated within the 21 percent to 100 percent range.
A Pressure Alarm will be activated in the event of a gas supply system interruption or pressure drop.
The device is safeguarded from damage by a durable metal housing, particularly in challenging clinical environments.
Alarm limits can be established to guarantee that the appropriate oxygen concentration is maintained.

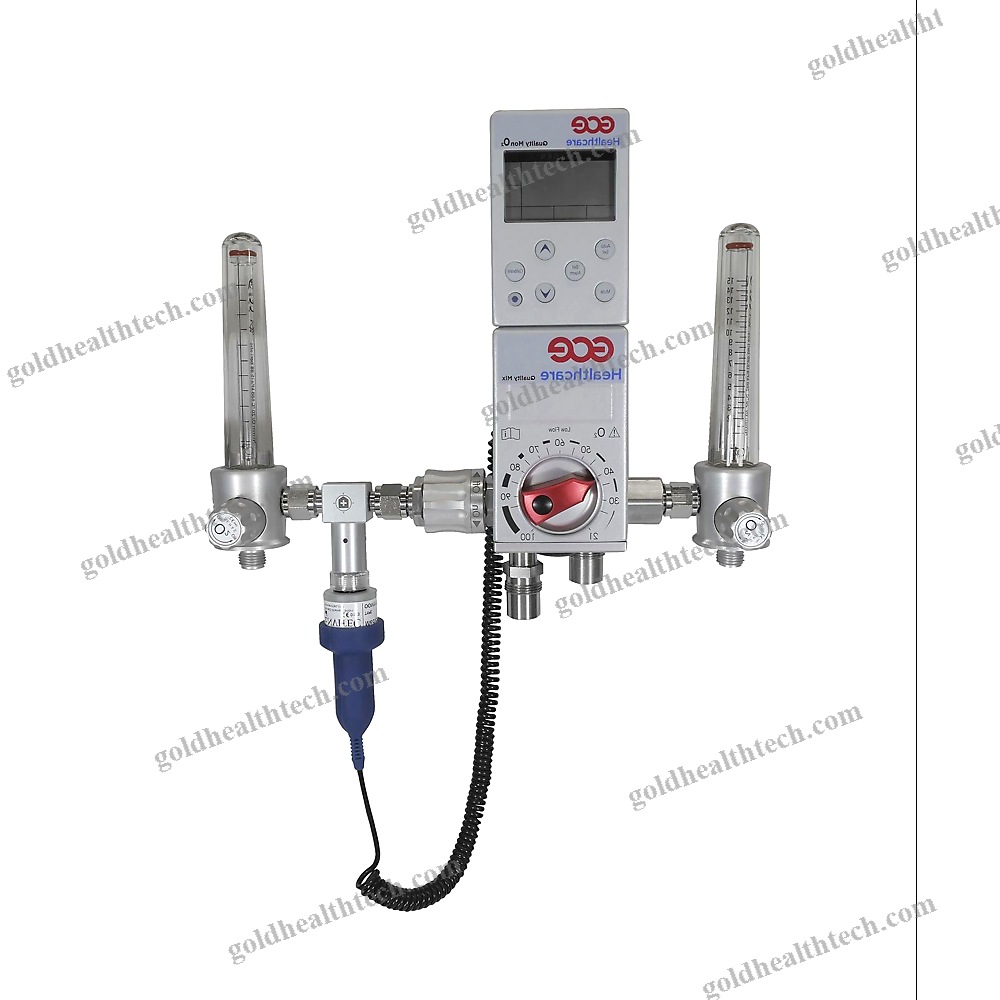

The optional oxygen monitor can indicate the oxygen concentration that has been delivered.TECHNICAL DATA
Alarm volume: greater than 80 decibels at a distance of 30 centimeters
Defining the oxygen concentration range: 21-100%
The gas inlet pressure should be 4.5±0.5 bar, and the air and oxygen differential should be 0.7 bar.
Mixed gas accuracy (FIO2): ± 3% oxygen
Connection types include DISS inlets and outlets for O2 and/or NIST inlets for air and O2.
Dimensions (LxWxH): 130×165×122 mmWeight: 1600 grams
Operating temperature: +5°C to +40°CStorage temperature: -20°C to +60°CHumidity: Maximum non-condensing humidity of 95%
output:The oxygen concentration can be precisely and effortlessly calibrated within the 21 percent to 100 percent range.
A Pressure Alarm will be activated in the event of a gas supply system interruption or pressure drop.
The device is safeguarded from damage by a durable metal housing, particularly in challenging clinical environments.
Alarm limits can be established to guarantee that the appropriate oxygen concentration is maintained.
The optional oxygen monitor can indicate the oxygen concentration that has been delivered.TECHNICAL DATA
Alarm volume: greater than 80 decibels at a distance of 30 centimeters
Defining the oxygen concentration range: 21-100%
The gas inlet pressure should be 4.5±0.5 bar, and the air and oxygen differential should be 0.7 bar.
Mixed gas accuracy (FIO2): ± 3% oxygen
Connection types include DISS inlets and outlets for O2 and/or NIST inlets for air and O2.
Dimensions (LxWxH): 130×165×122 mmWeight: 1600 grams
Operating temperature: +5°C to +40°CStorage temperature: -20°C to +60°CHumidity: Maximum non-condensing humidity of 95%
