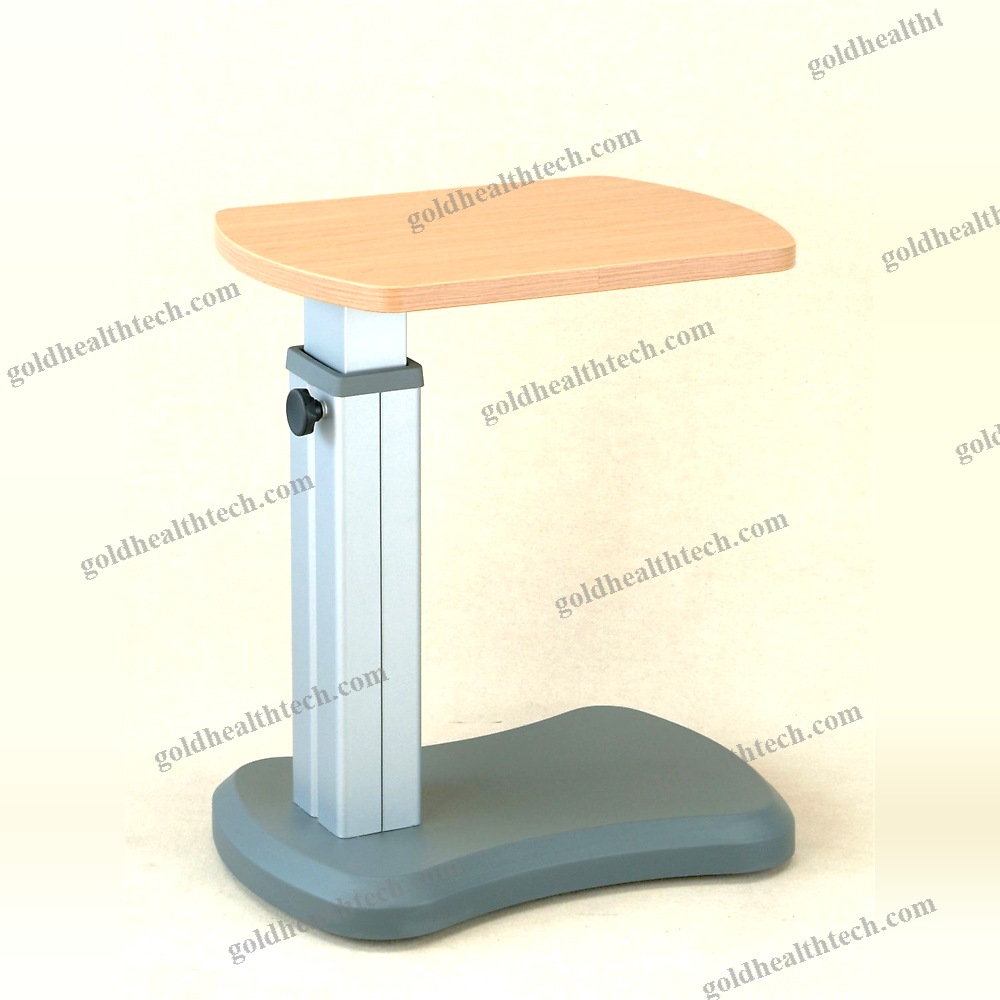

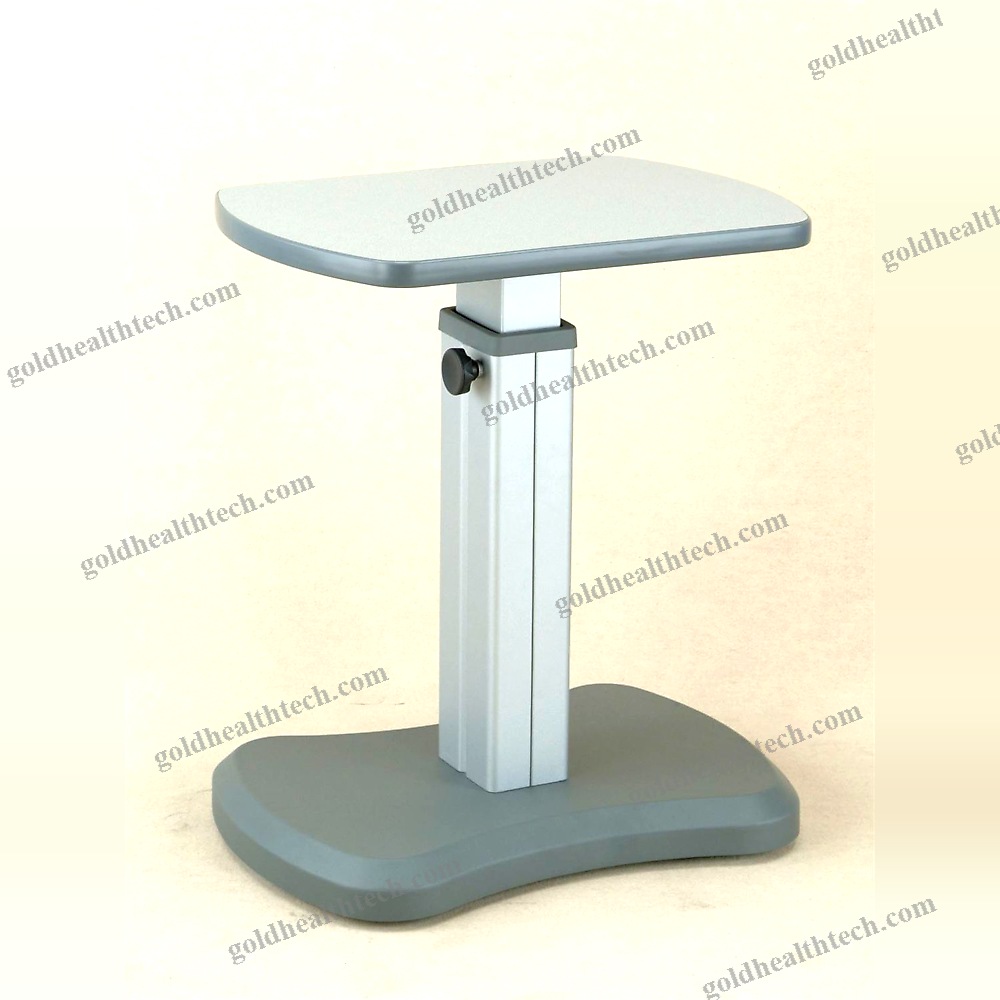

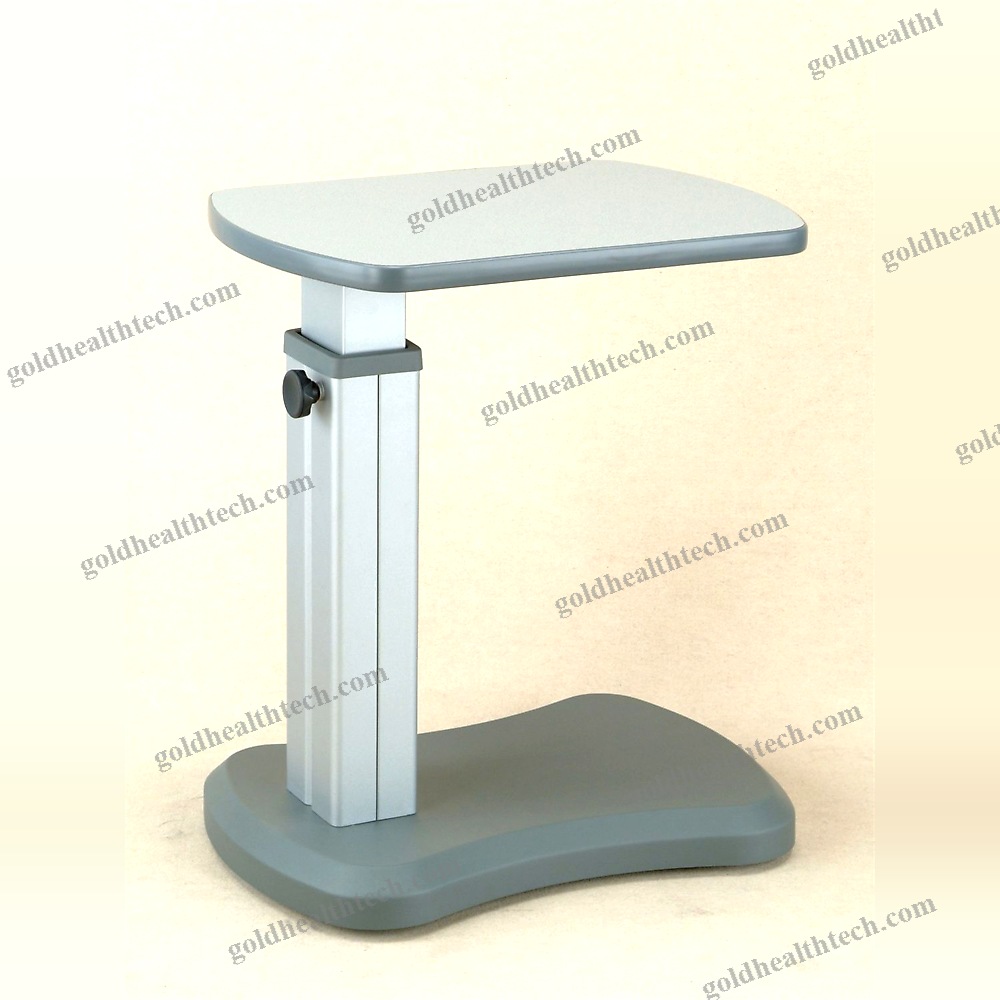

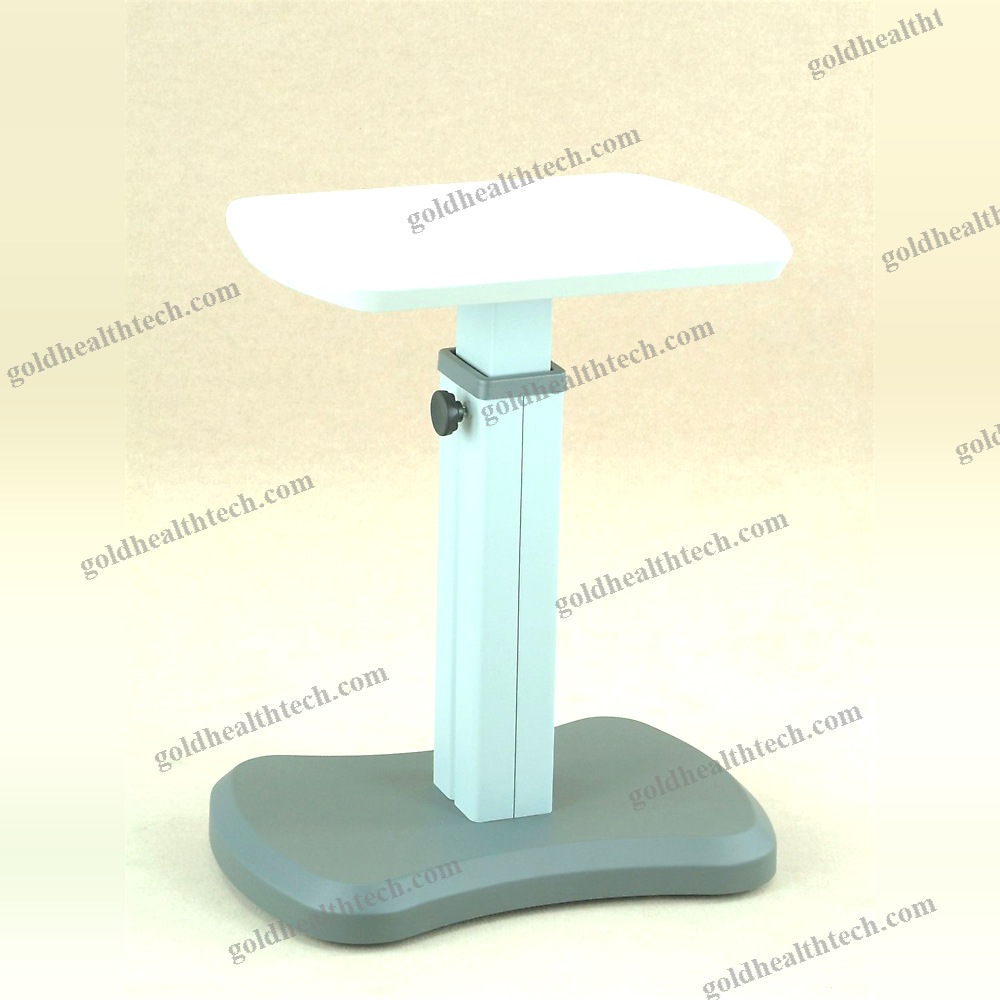

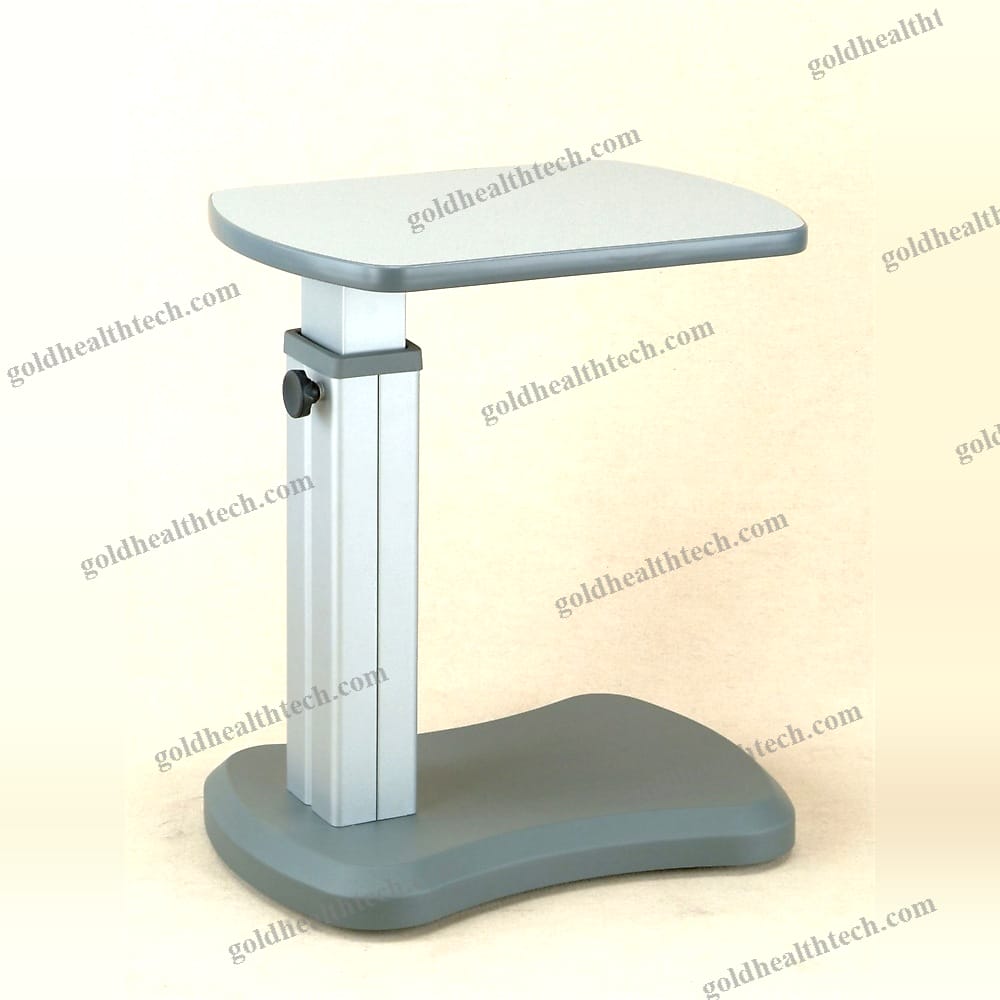

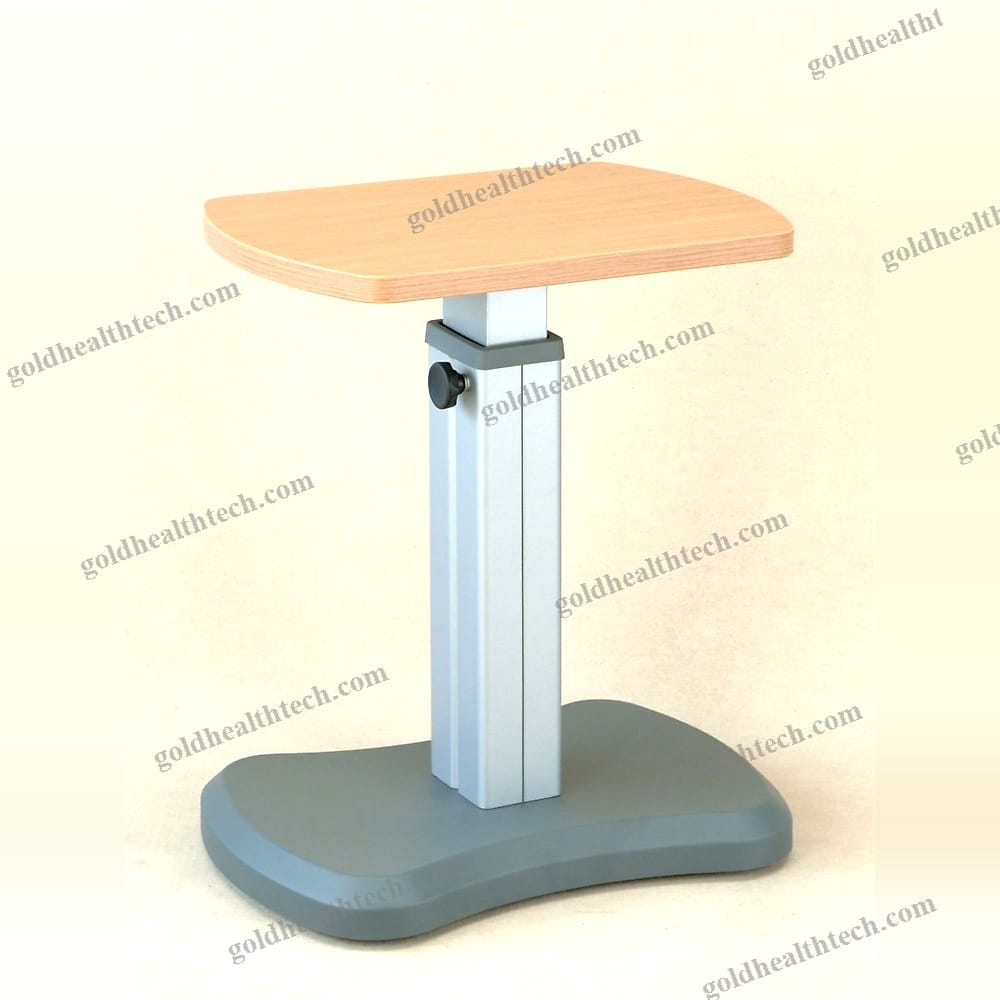

Manual Ophthalmic Instrument Table

A pneumatic "gas spring" system is utilized to assist in the manual height adjustment of an ophthalmic table. The lifting force is specifically selected to counterbalance the weight of both the table top and the instruments, thereby simplifying the process of height adjustment. The locking mechanism for height adjustment is manual.

The Mistral with Steel Base is equipped with a durable base made of ribbed and reinforced steel. It is available with two fixed bracket wheels and two feet or, at an additional cost, with four pivoting wheels. The column can be mounted in either a central or lateral position with the help of a gray thermoformed cover.

A diverse selection of fixed table tops is available for the Mistral with Steel Base, which can accommodate one or two instruments.input:
output:Characteristics: Table with a pneumatic "gas spring" system that assists in manual height adjustment. The lifting force is appropriately selected to counterbalance the weight of both the table top and the instruments.input:
output: Suitable for balancing a total weight of table top and instrument of: up to 15 kg, from 15 to 20 kg, from 20 to 25 kg, from 25 to 30 kg, from 30 to 35 kg, from 35 to 45 kg, or from 45 to 55 kg, the following lifting forces are available: 200N, 250N, 300N, 350N, 400N, 500N, or 600N each.input:

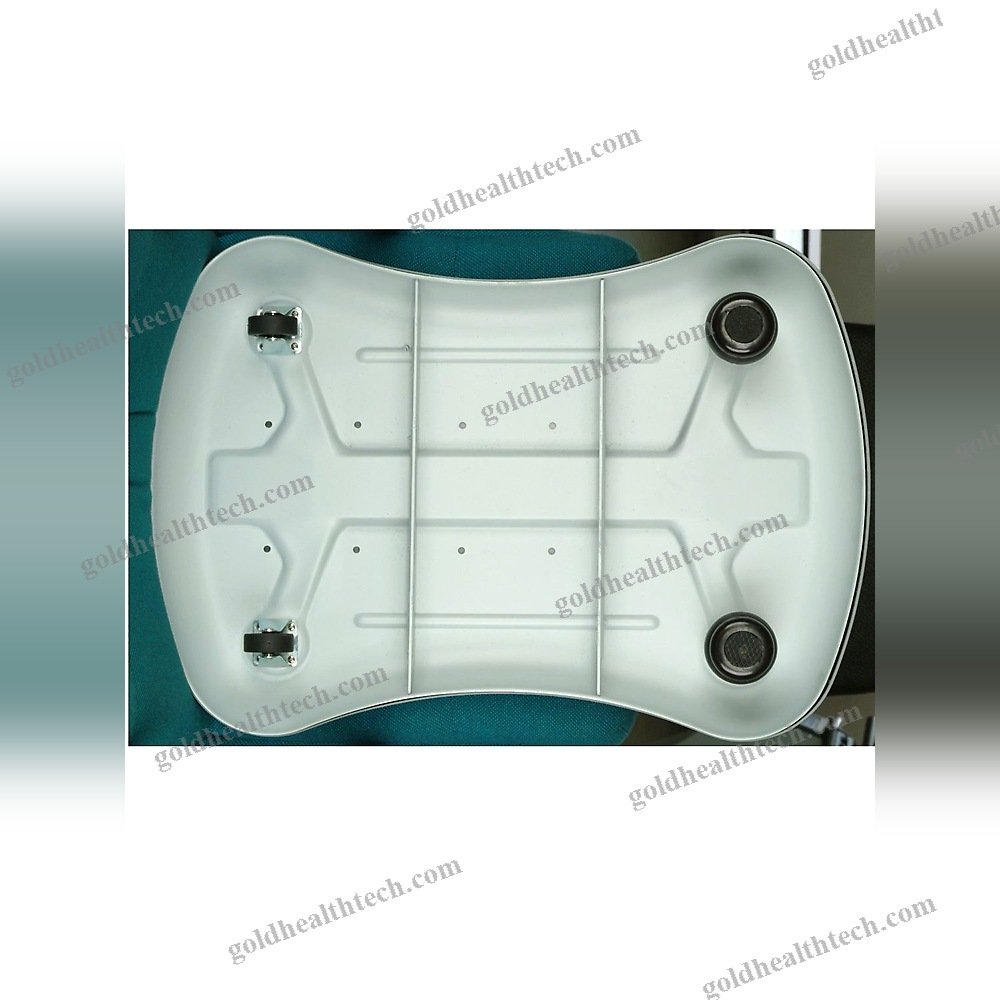

output: A gray thermoformed cover is included with the base, which is constructed from ribbed and reinforced steel. The base is equipped with two fixed bracket wheels and two feet, or, with the option, with four pivoting wheels.input:
output: Column in either a central or lateral position.input:
output: The tabletop's height from the floor is between 74 and 94 cm.
