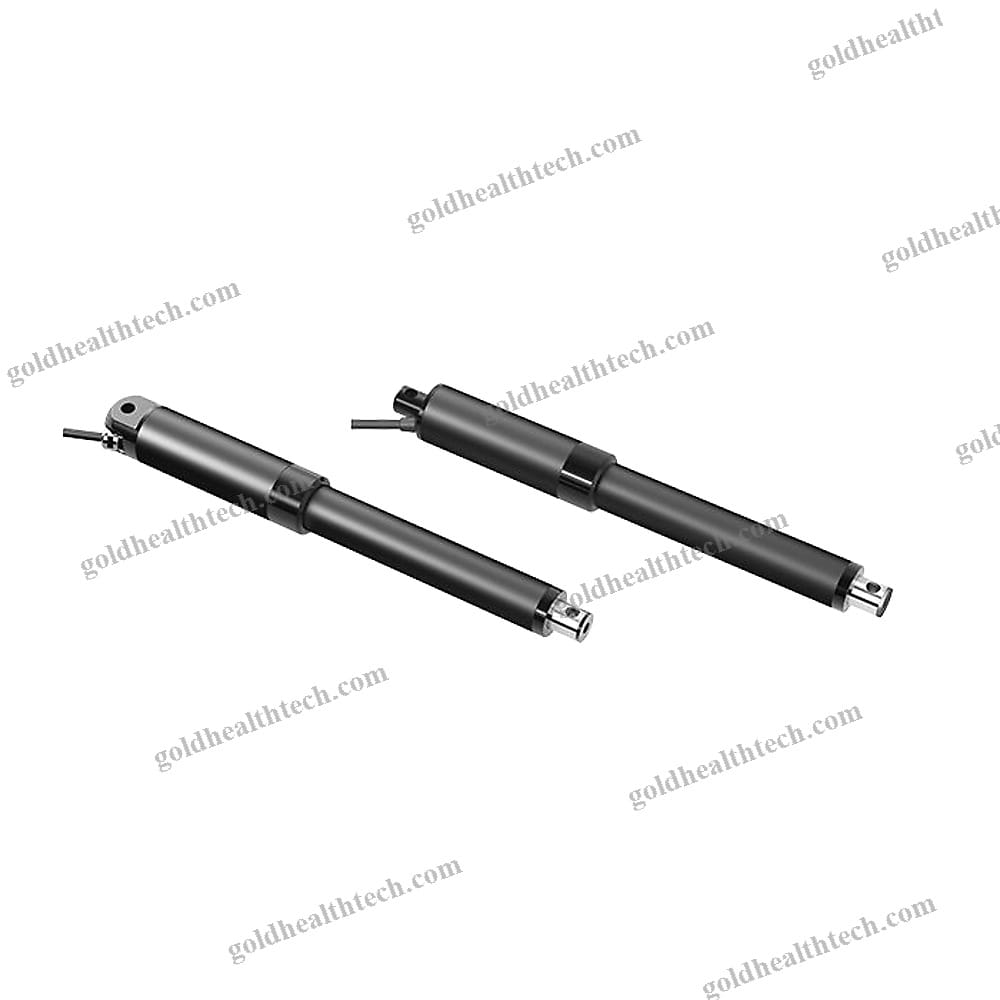

Linear Actuator
Reference: 1003702
Components For The Medical Industry
| Movement | Linear |
| Type | Electric |
| Applications | For Hospital Beds |
Associated tags
Documentation request
Ask which specifications, manuals, or commercial documents are available for review.
Supplier coordination
Discuss quantity, destination, packaging, and timing before confirming suitability.
Product information
Product summary
1. Maximum load push: 600N and 1200N input:
output:2. Max. load pull: 600N, 1200N input:
output:3. Color: blackinput:
output:4. IP grade: IPX4/IPX6input:
output:5. Motor voltage: 24 volts6. Stroke length: 0-300mm (600N), 0-300mm (1200N)input:
output:7. Installation: L=S+155 (S≤300, excluding the hall) L=S+170 (S≤300, with hall)8. Noise level: ≤58dB (environmental noise ≤40dB)input:
output:9. Hall sensor: optionalinput:
output:10. Mechanical limit switchinput:
output:11. No built-in switch.12. Weight: approximately 0.7 kg standard: less than 150mm13. Static bending load: no bending load14. Flammability: UL94V-0 grade
output:2. Max. load pull: 600N, 1200N input:
output:3. Color: blackinput:
output:4. IP grade: IPX4/IPX6input:
output:5. Motor voltage: 24 volts6. Stroke length: 0-300mm (600N), 0-300mm (1200N)input:
output:7. Installation: L=S+155 (S≤300, excluding the hall) L=S+170 (S≤300, with hall)8. Noise level: ≤58dB (environmental noise ≤40dB)input:
output:9. Hall sensor: optionalinput:
output:10. Mechanical limit switchinput:
output:11. No built-in switch.12. Weight: approximately 0.7 kg standard: less than 150mm13. Static bending load: no bending load14. Flammability: UL94V-0 grade
