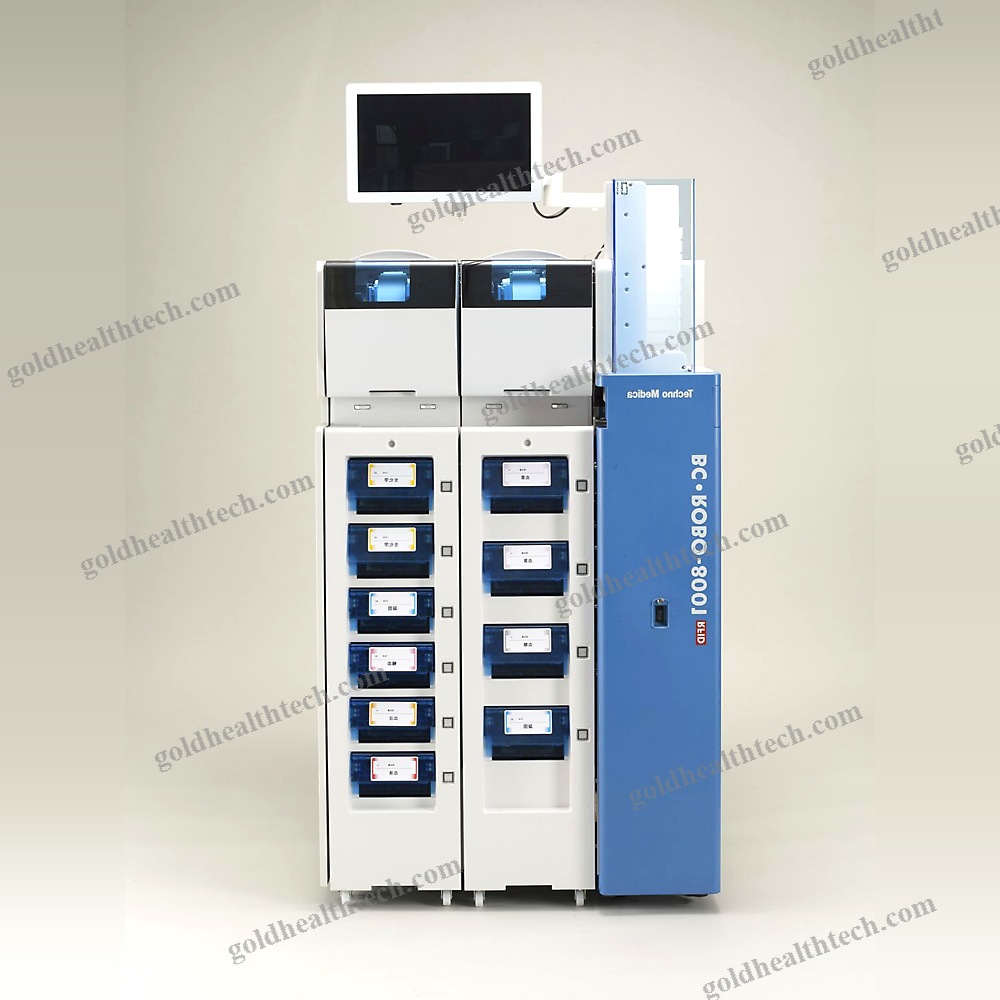

Laboratory Tube Labeling System

BC ROBO automates the selection and labeling of collection tubes and generates an all-in-one patient kit (labeled tubes, extra label, and work list) in accordance with the test request. It assists in the reduction of patient waiting time and the elimination of errors during the pre-analytical phase.Feature:

●The Tube verification function, Label auto-loading function, and Touch panel display ensure safety, ease, and precision.The modular concept, which accommodates a wide range of requirements, features a maximum of five modules and a tube type of 4-30. Customizable system that is dependent on the customer's operating environment and usage.input:
output:In the event that an error occurs during tube preparation, the system automatically generates a completed patient kit and ejects the errored tube. The function reduces the amount of labels and tubes that are disposed of.Item - Specification/Feature



Spec…

Tubes with a diameter of 12-18mm and a length of 75-113mm are currently available.

No-closure tubes, rubber, plastic, and film

Throughput - 12 seconds per patient when processing four tubes (300 patients per hour)

Drawer count: 4 tubes, with a maximum of 30 types.

Drawer capacity: A maximum of 100 tubes for a large drawer

35-50 tubes for a small drawer (subject to the size of the tubes)tray output capacity - 4 trays for horizontal output (subject to options)Twenty trays for the tray stacker.The number of empty trays on standby is 20 and is contingent upon the available options.Printer count: 2 to 6Direct thermal or thermal transfer printing methodsPrinting - Alpha numeric, barcode, Rotate (90, 180, 270 degrees)
Line and box drawing, black and white inversionPC - Touch panelCode 39, JAN, Code 128A/B/C, 2of 5, NW7 (Codabar), and others are among the available barcodes.Options - ●Moduler● RFID printer ● Automatic Blood Collecting Table (ABCT) ● Bag insert unit
