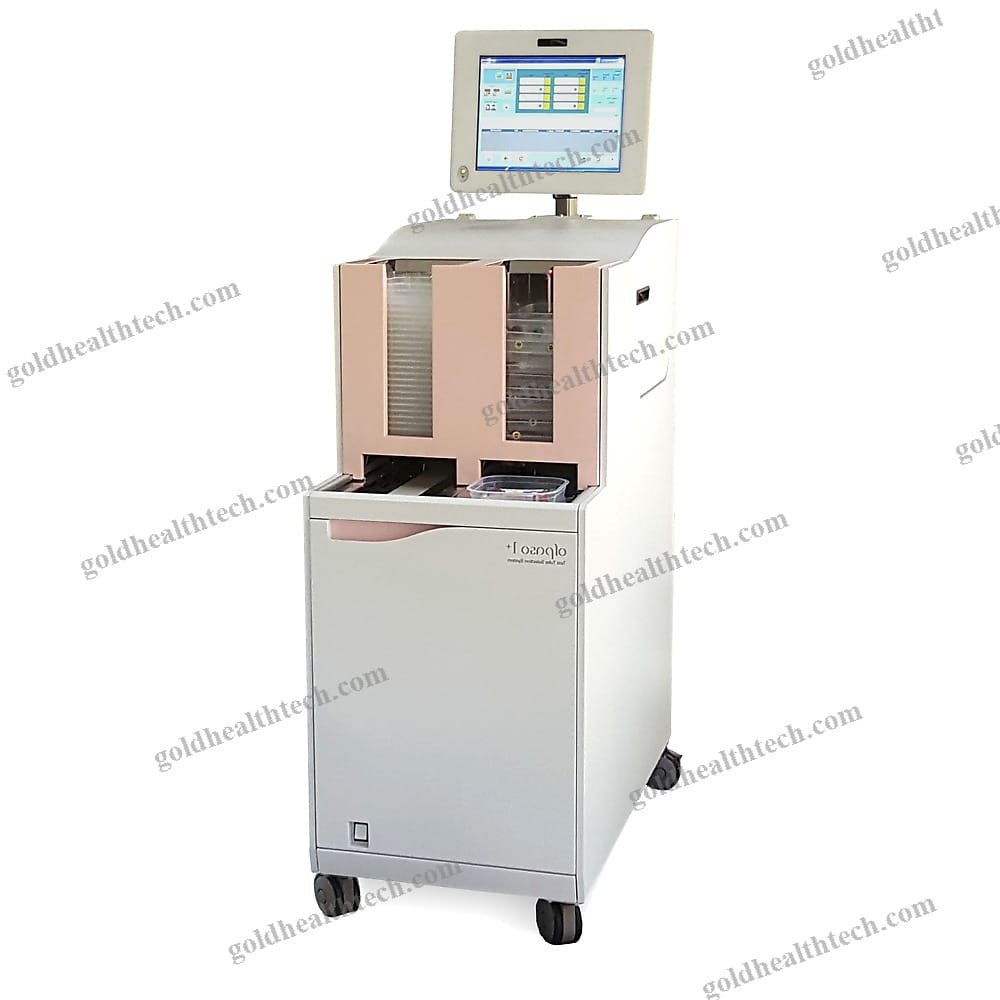

Laboratory Tube Labeler

olpaso1 has the capacity to store over 800 tubes and can accommodate up to 8 distinct tube types at a time.
The tray takeoff-return position, which is situated at the front, enhances user convenience. A laboratory tube labeling system that is both compact and all-in-one, featuring a tray stack unit as standard.Pre-Label detection Identifies the pre-label’s edge and applies the print label on top of it.
Barcode verification The barcode on the label that was attached by the barcode scanner will be examined.

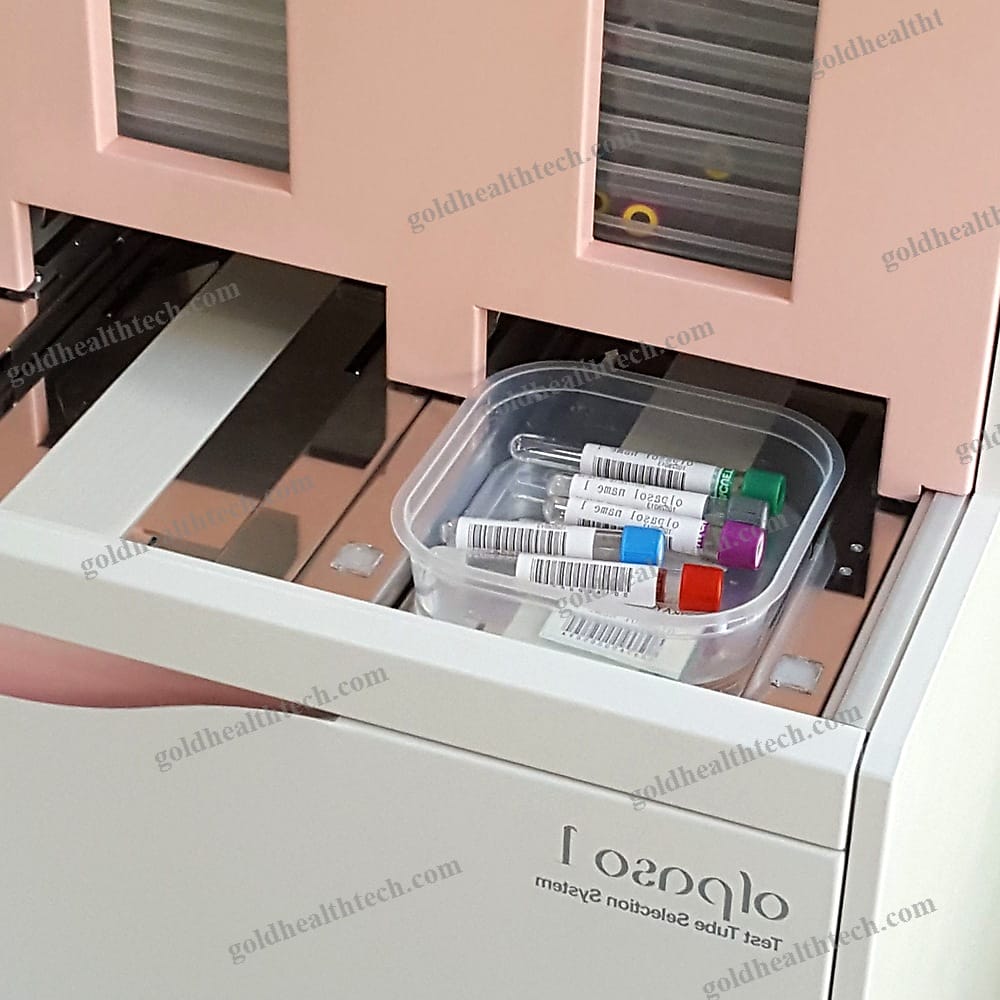

Preparation of priority tubes The tray stack can also receive normal issuance, and priority patient trays can be ejected to the front.Details

Test tubes that are appropriate for the application – Length 75-110mm, Diameter 12-18mm – Rubber, film, plastic, and non-closure type tubes are all permissible. – 16 seconds per patient for the processing of four tubes

Capacity of Test Tubes – A maximum of eight distinct types
– Maximum of 100 tubes per type

Tray Capacity – Maximum number of empty trays in the stack: 30 (olpaso1) – Prepared Tray Stack: Maximum of 20 trays (olpaso1) – Maximum of three prepared trays on standby (no stack)
Method of Printing Direct Thermal

Print Dot Density
– 12dot/mm

Printable Items
– Characters: Hangul, Chinese, Kanji (Mincho, Gothic), Kana, and Alphanumeric – Barcode: Nw7 (Codabar), Code39, Code128, 2of5, Jan, QR, and others
