Knee Continuous Passive Motion Device

The Kinetec Spectra Essential™ is a combination of exceptional functionality and a sleek design, all controlled by a straightforward hand control.input:
output:The Kinetec Spectra Essential™ is a combination of exceptional functionality and a sleek design, all controlled by a straightforward hand control.input:

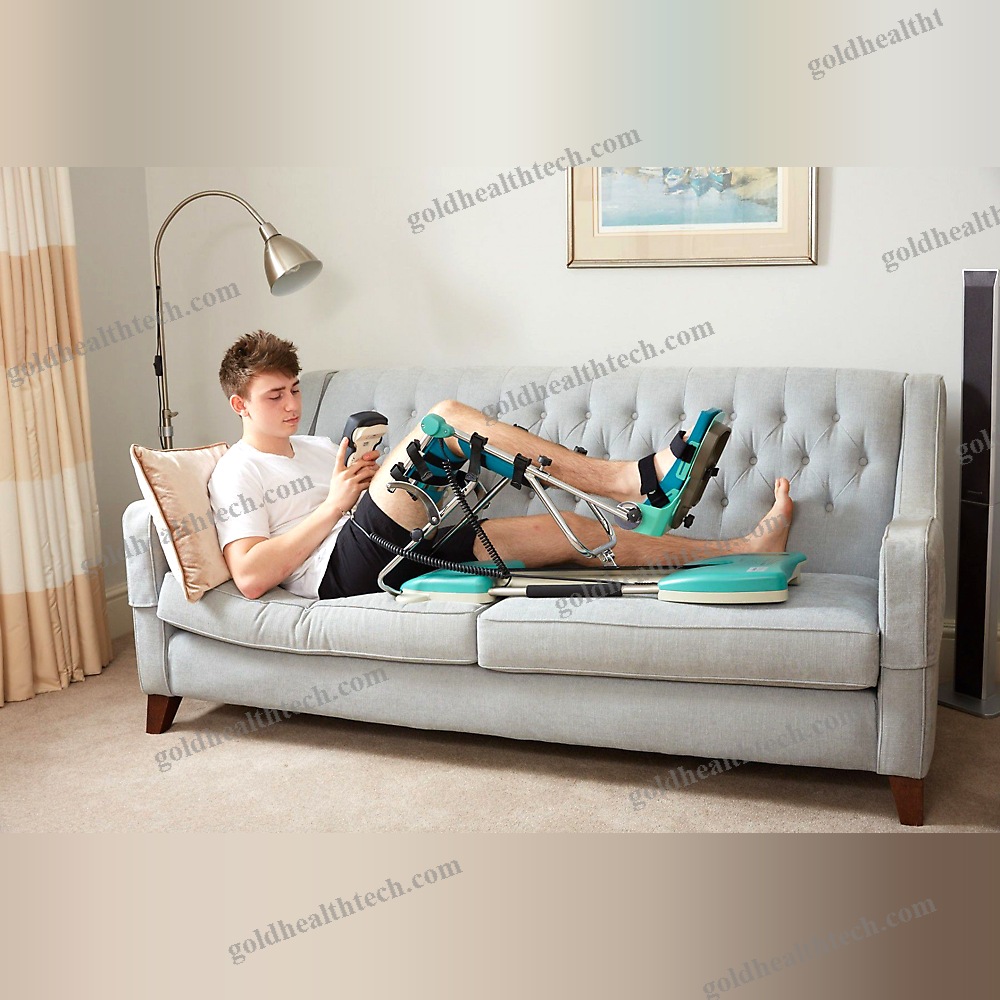

output:The remote control design enables the user to immediately and intuitively control the device in hospitals or at home, thereby enabling the patient to concentrate on the therapy.input:
output:Featured primary functions

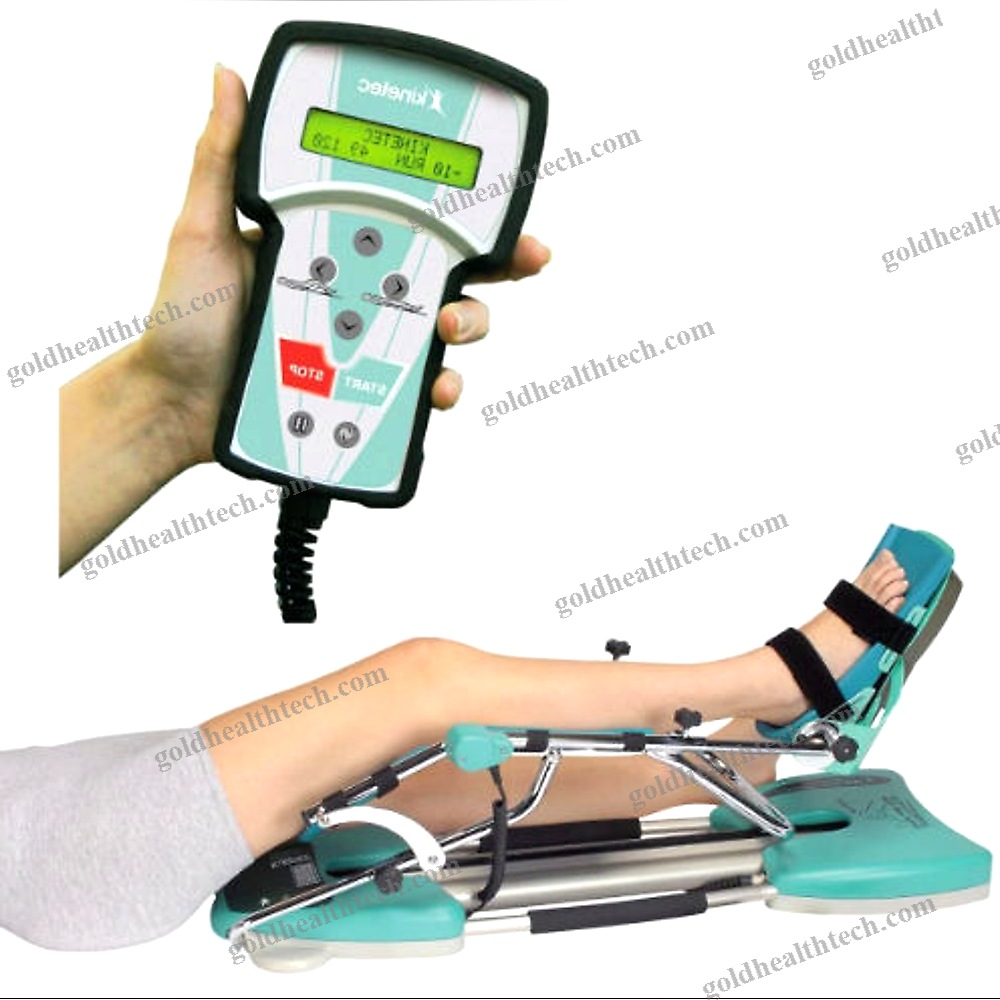

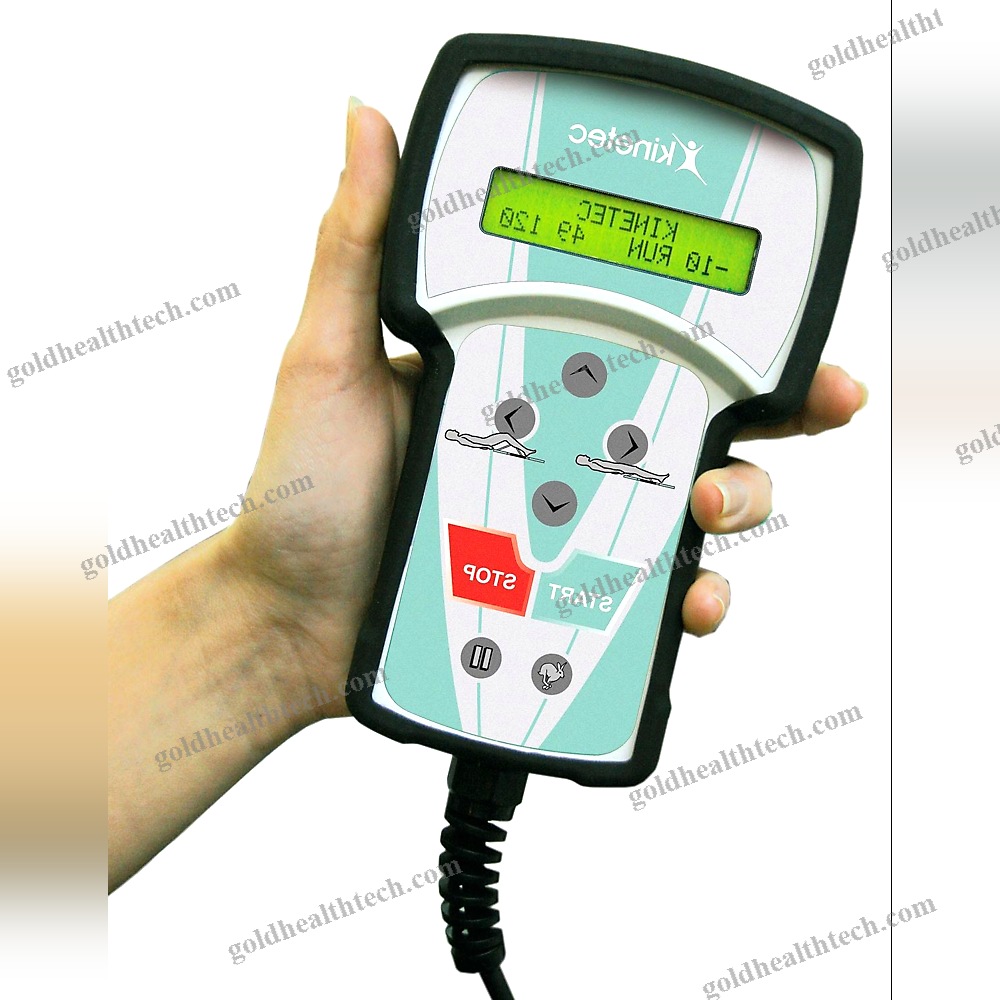

The remote control allows for the adjustment of the range of motion, speed, and pauses.input:
output:
Prioritize safety.

The keyboard locking system of the remote control is designed to prevent misuse and improve patient safety.input:
output:
Motion range

Flexibility ranges from -10° to 120°.

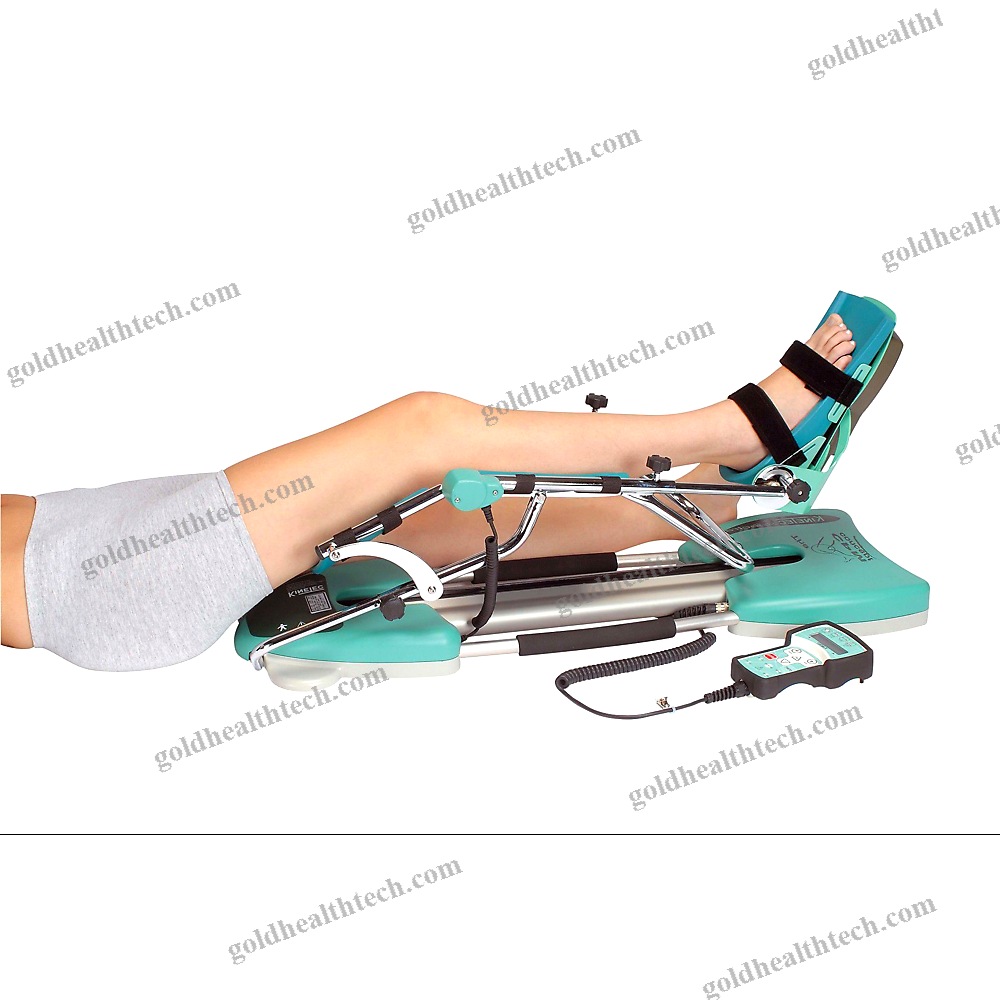

The Kinetec Spectra Essential™ range of motion enables the treatment of the majority of knee and hip pathologies. Joint stress is reduced and patient compliance is enhanced by anatomically correct alignment.input:
output:Specifications of technical nature

The patient's comfort is enhanced and the number of pressure points is reduced by the anatomically correct system. The prevention of accidental program changes and potential injury is achieved through patient lock-out.

Reverse and Start/Stop are perpetually accessible.

Accurate modification of the movement's fundamental parameters: ROM, speed, and pauses at the limit of extension or flexion to optimize outcomes.A medical grade transformer that is internally contained eliminates the need to handle additional components.Type BF class II electrical device.

The screw-drive mechanism and DC motor are designed to provide years of dependable performance.

RAM: Knee: -10° to 120°, hip: 75° to 10°.

Foot placement: Abduction/adduction: 30°, Dorsal flexion: 30°, Plantar flexion: 40°.

Speed: 45° to 155° per minute.input:
output:Size of the patient:Full patient: 145 to 195 cm

The full leg size ranges from 71 to 99 cm.

Femur: 38 to 53 cm Tibia: 38 to 53 cm
