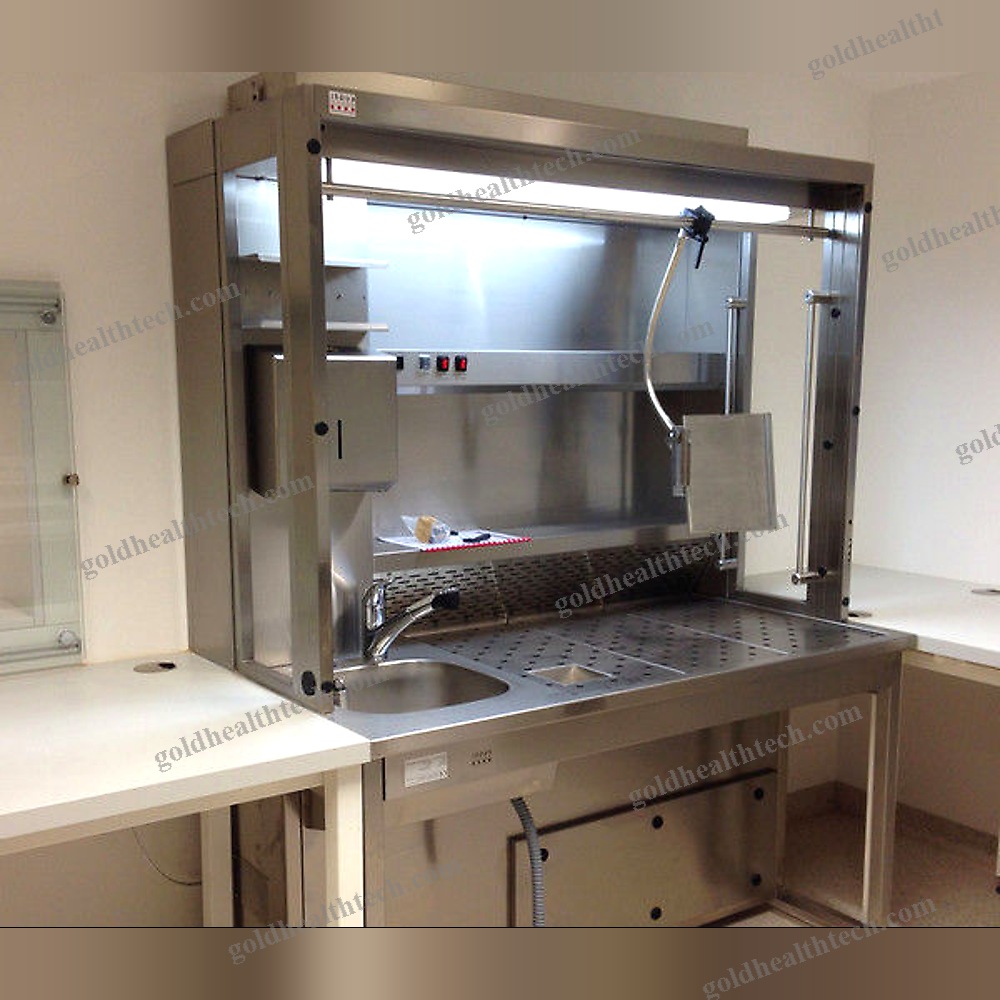

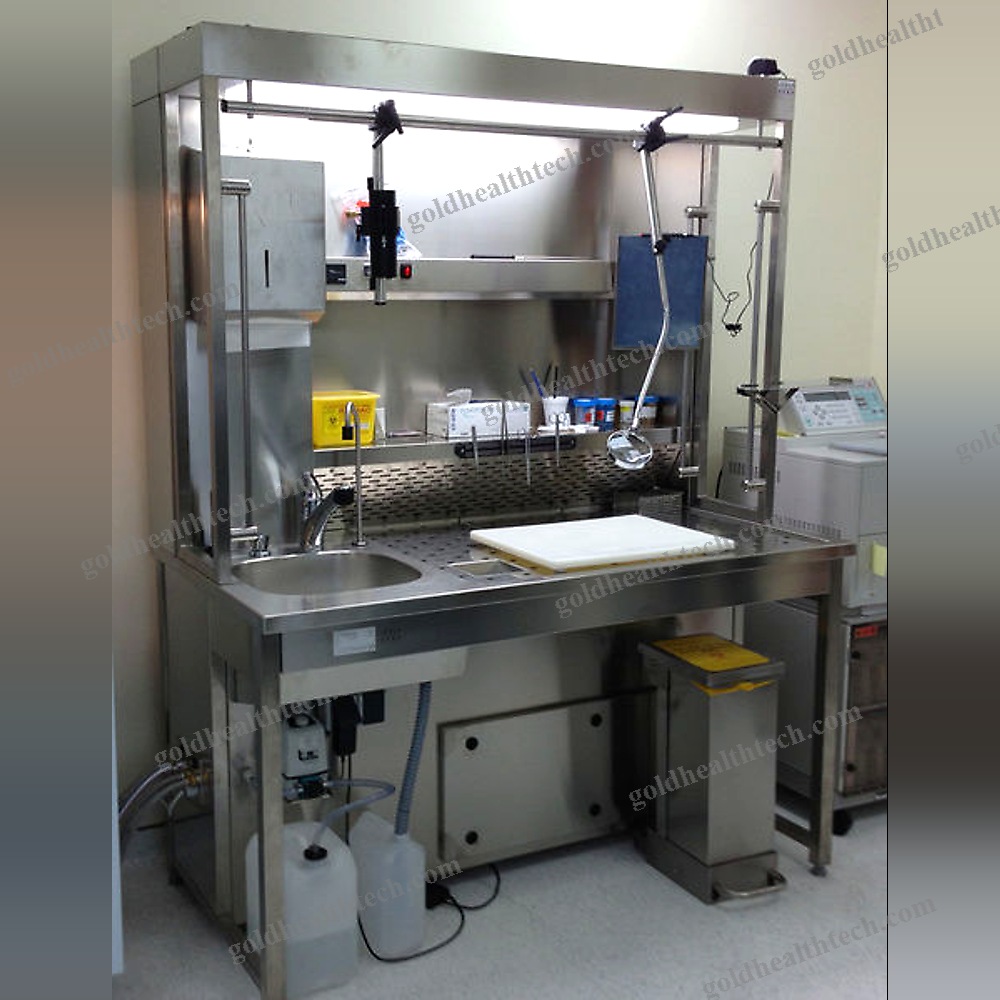

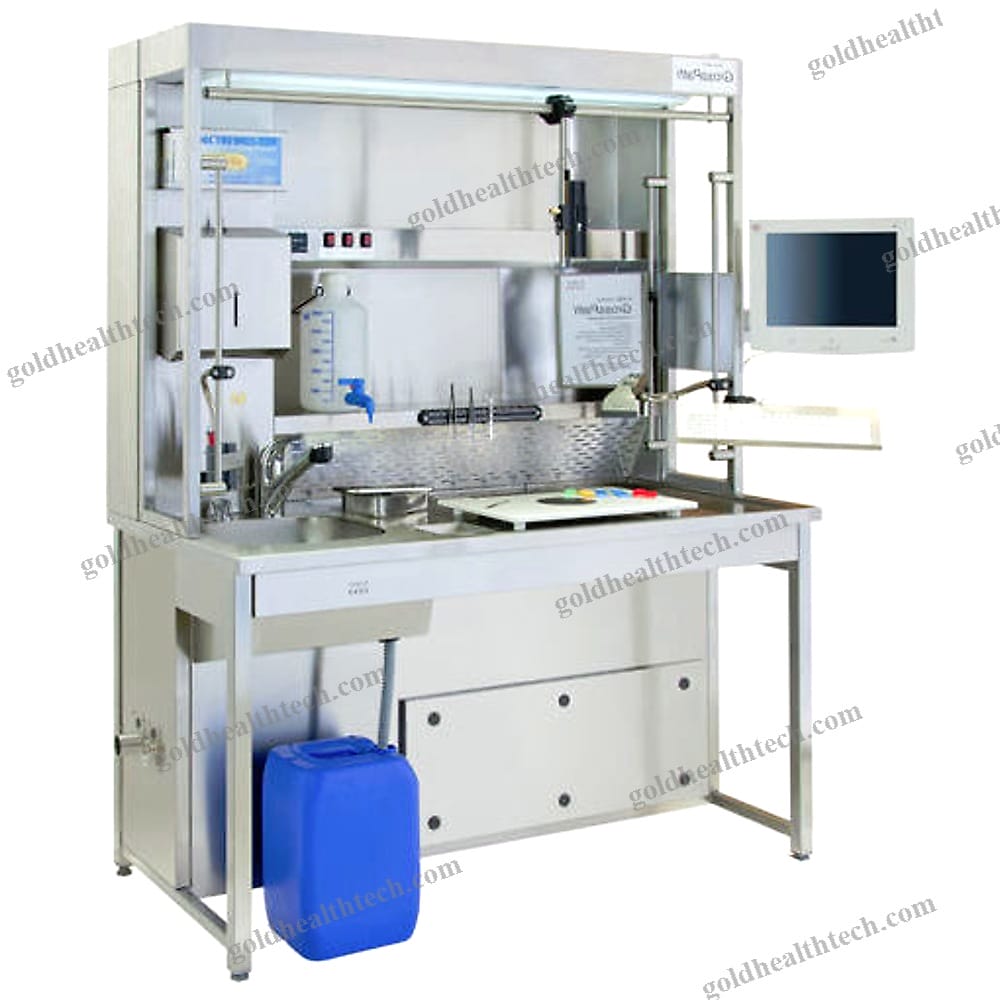

Histopathology Laboratory Workstation

This unique working table ensures that the laboratory environment is free of pollutants during the preparation and slicing of histological tissues. The air is being vacuumed downward throughout the entire working area to ensure the most effective removal of unsanitary vapors. Throughout the entire vacuum-effected area, the maximum allowable concentration (MAC) values for formalin are below the target. A permanganate carbon filter and an integrated van are included in the working table. Additionally, it is not required to be connected to an exhaust air unit provided by the customer, as it operates in recirculating-air mode.

The entire structure is composed of stainless steel (material no. 1.4301 - ANSI 304).input:
output:
Fixed illumination with a "daylight" quality of approximately 5,000° K

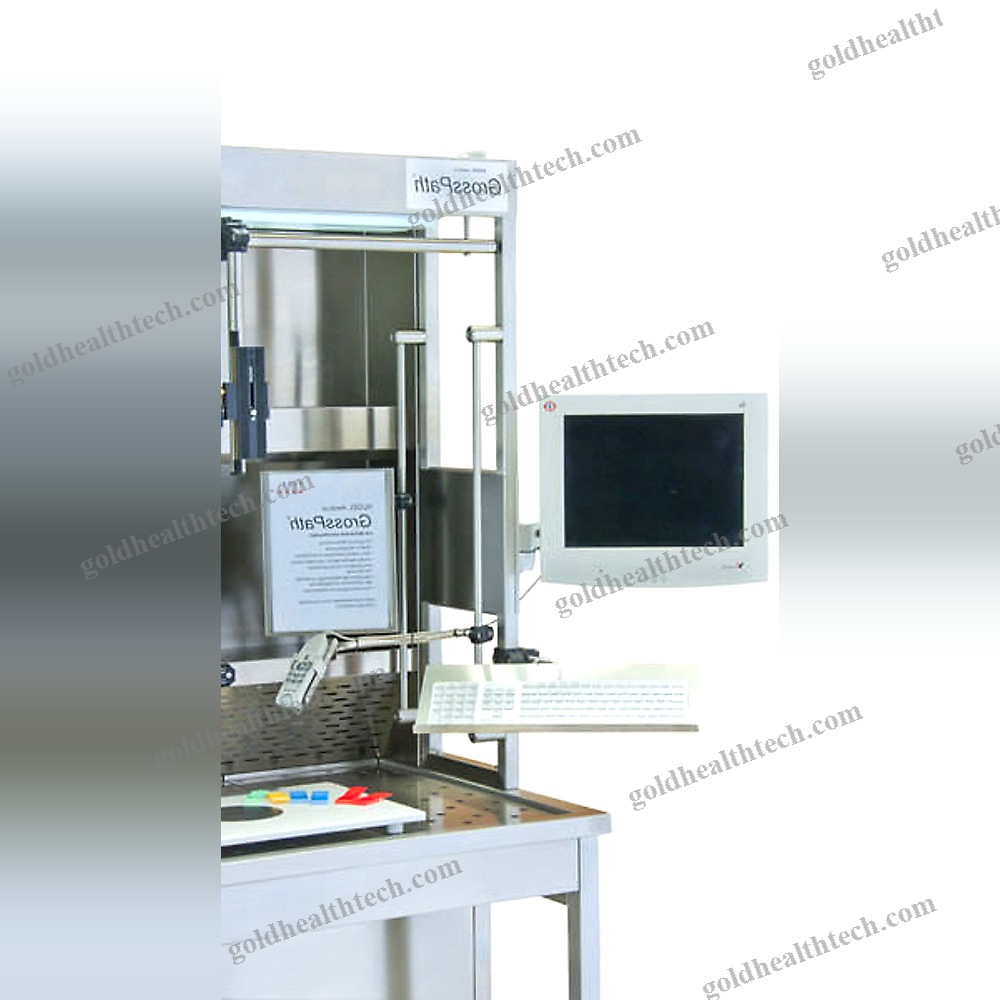

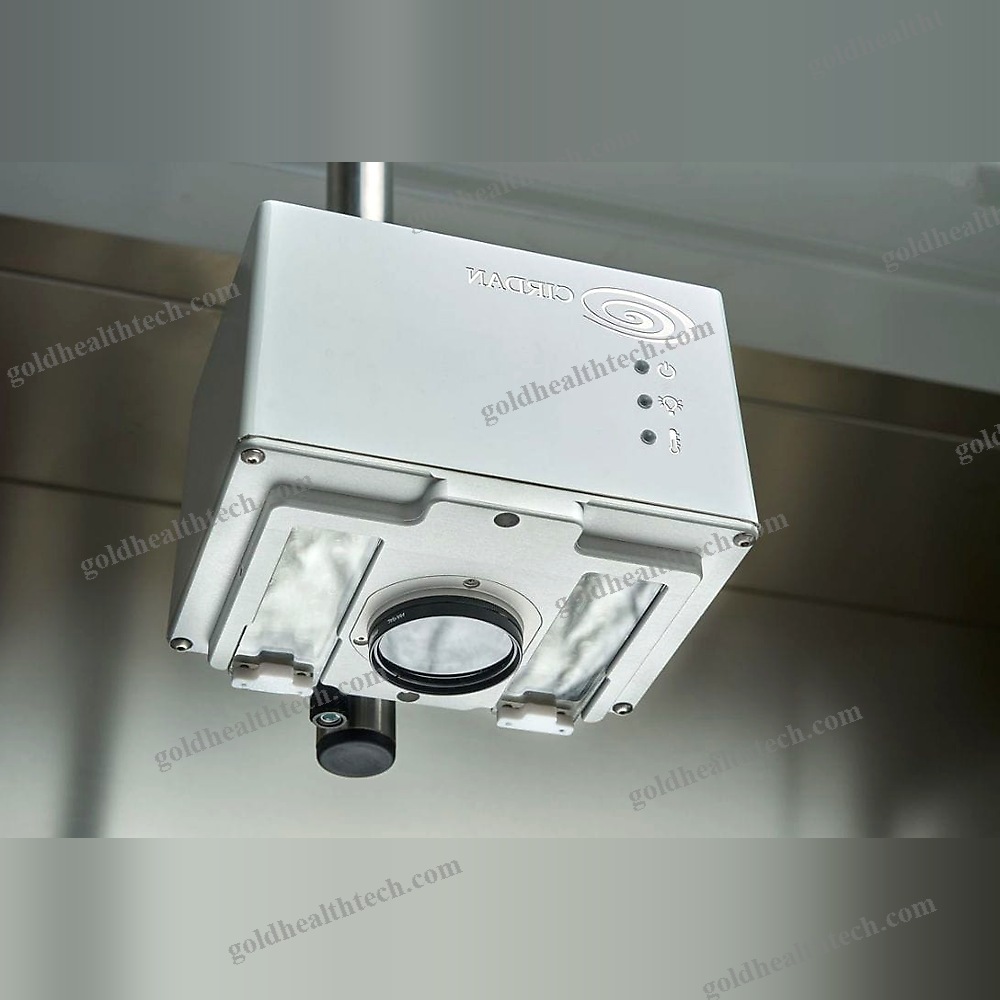

Railing system for the attachment of holding devices, including camera holders and magnifier lamp holders.

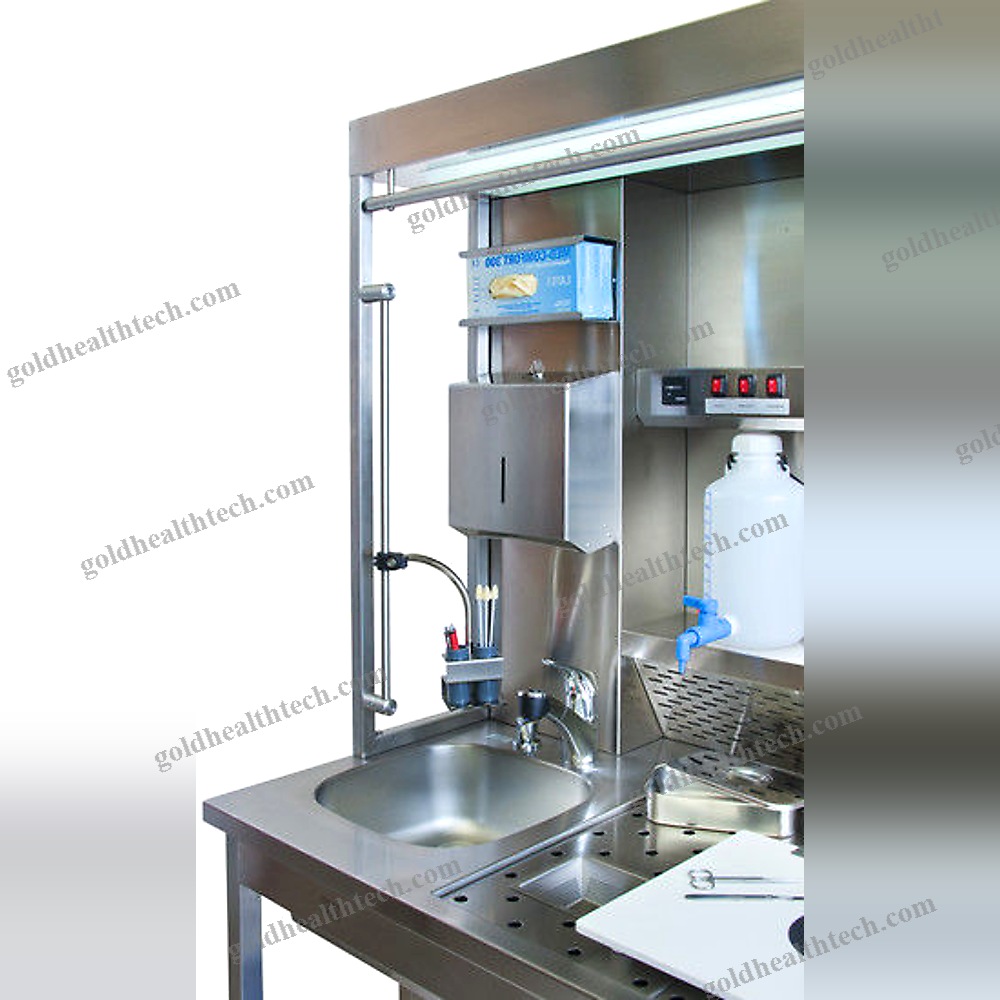

Adjustable feet with a sturdy self-supporting substructureA basin measuring 370 x 150 mm is seamlessly welded to the work surface.Combining a hand shower with a faucet

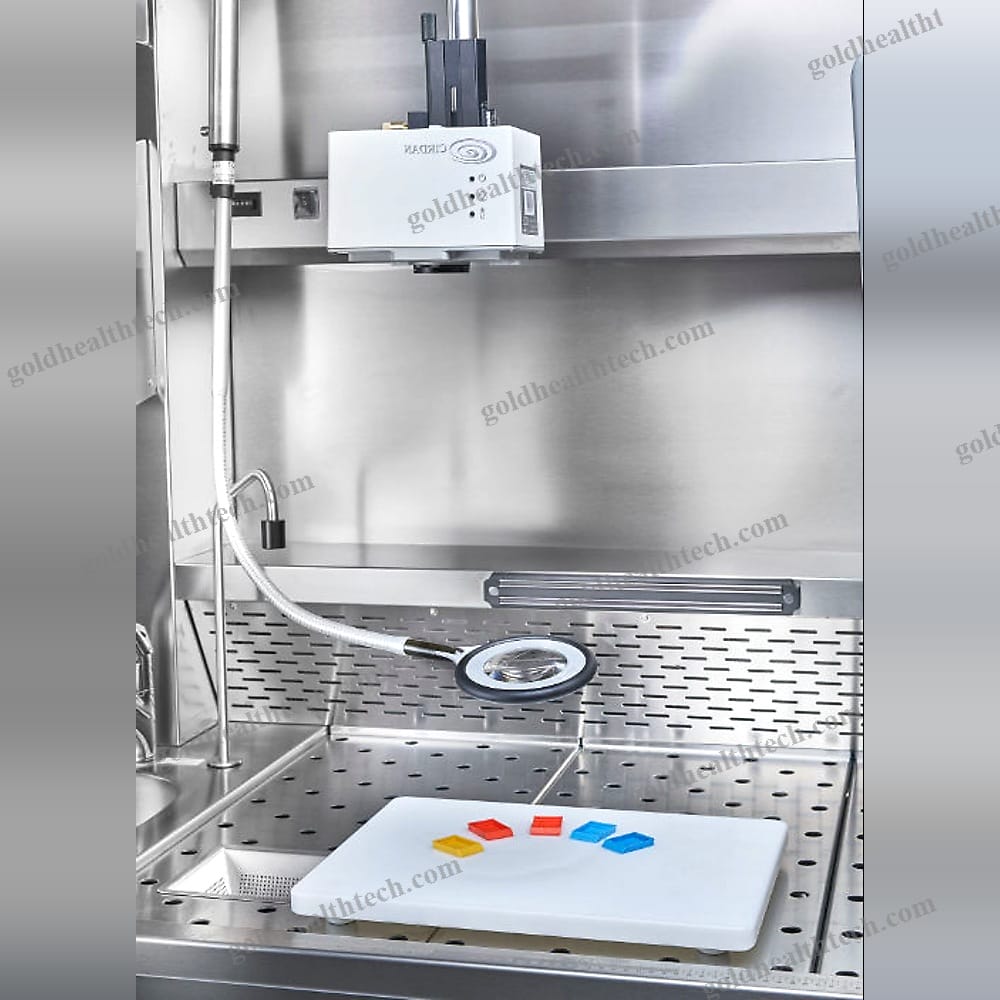

Very durable, perforated insertable working plates (approximately 10 mm lower), drilling D17, T60

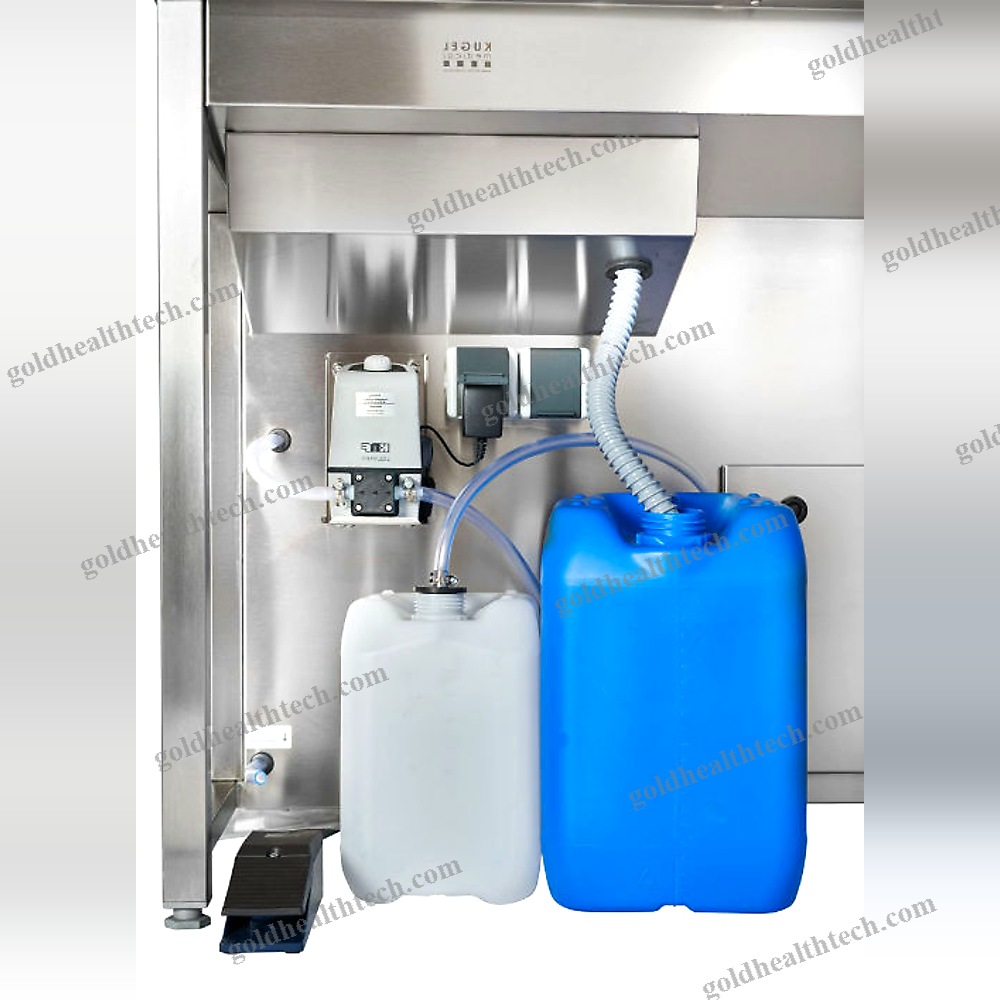

Minimum air velocity on the perforated surface is 0.4 meters per second.Exhaust van with integrated functionalityAn integrated sprinkler system with an adjustable valve for bath sanitation is situated beneath the perforated working plates.The sink is a formalin sink with a sieve insert. It is equipped with a connection for hot and cold water, as well as waste water.Optionally, the height can be adjusted from 850 to 1100 mm through the use of an integrated electric motor.TECHNICAL DATAThe dimensions of the label are 1500 x 800 x 850 / 1950 mm in width, depth, and height.Dimensions of illumination: 1500 x 300 x 1100 mm br/>
Minimum exhaust air capacity: 750 m³/hMaterial: brushed stainless steel (1.4301 - ANSI 304)
