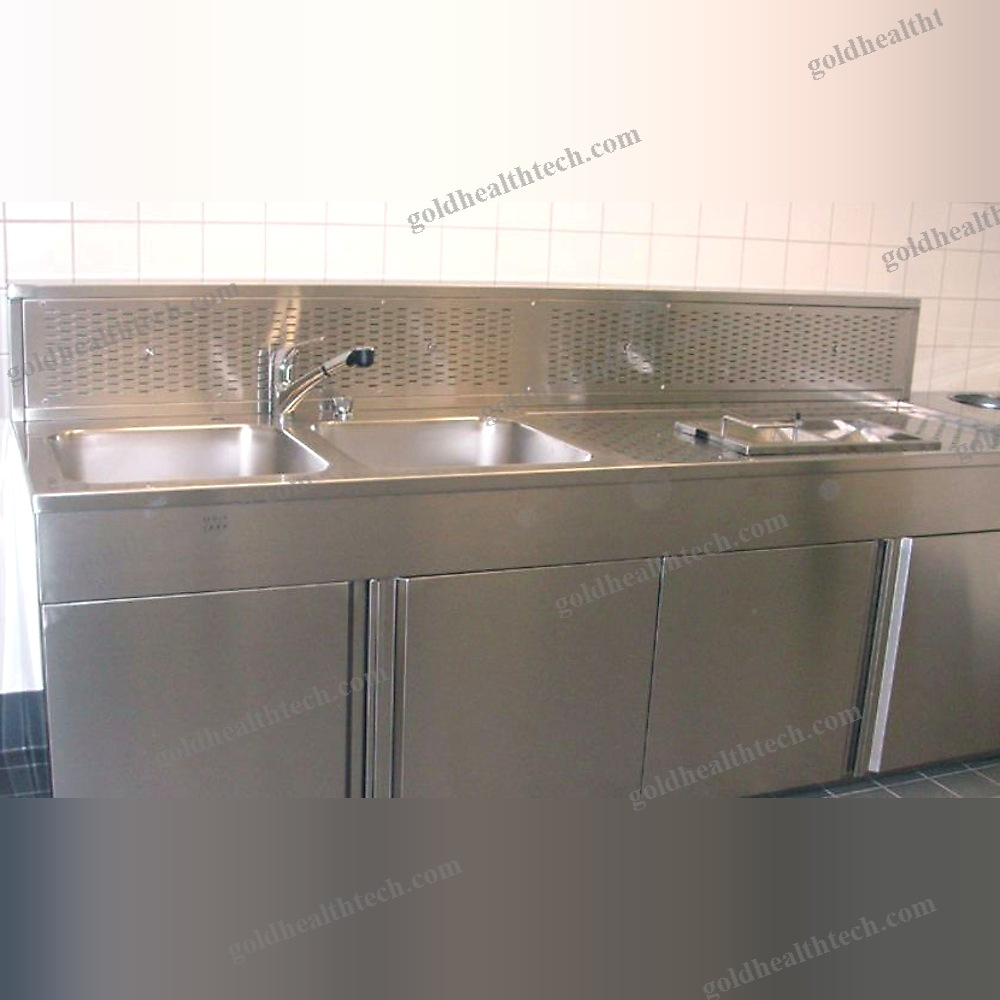

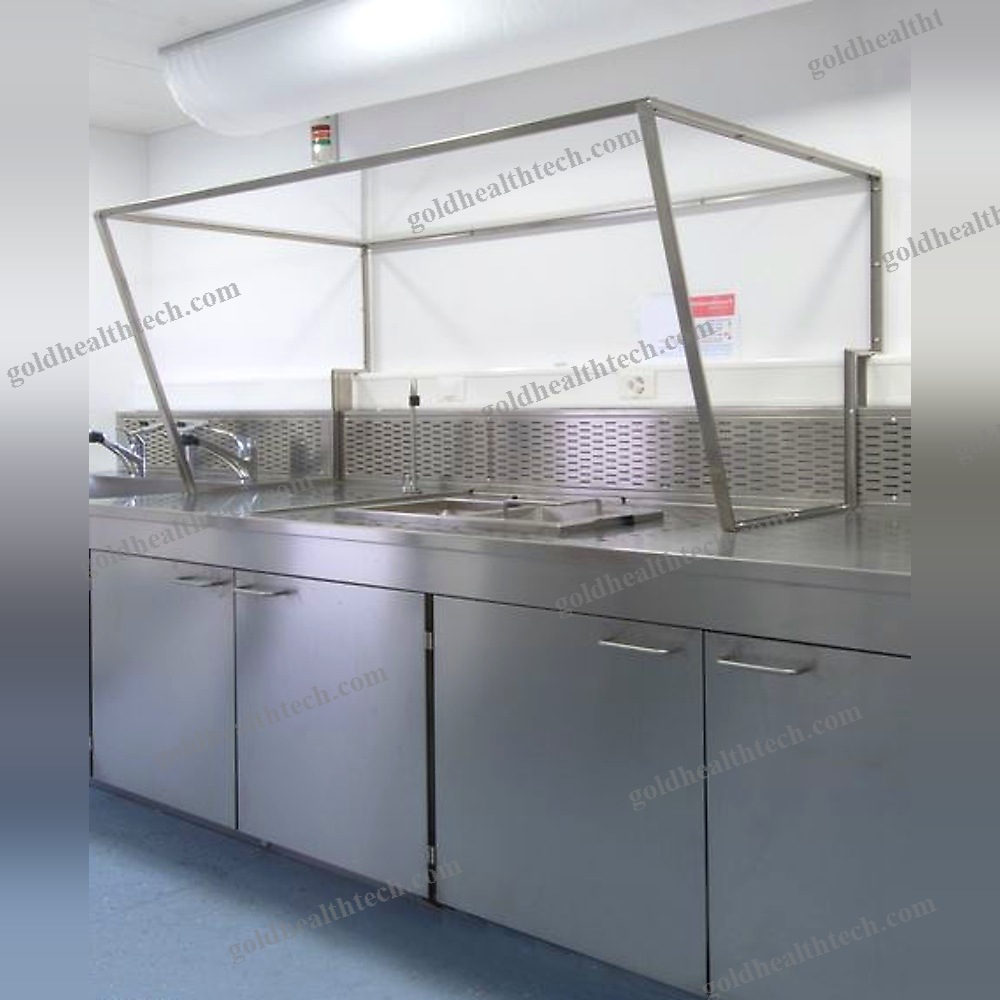

Formalin Scavenging System

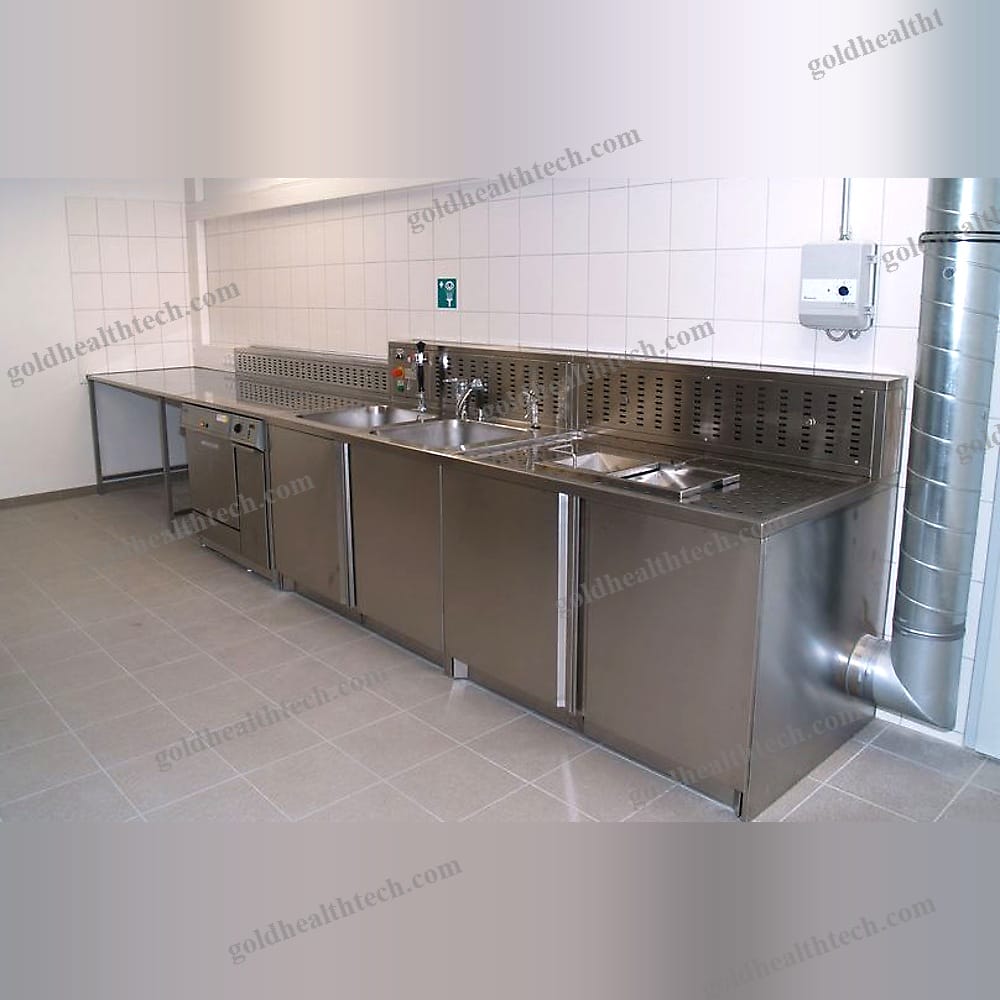

A ventilation system that is integrated into a special working table. The air is absorbed downward throughout the entire work surface, allowing for the optimal absorption of harmful vapors. The customer’s exhaust-air system must be connected to the working table.input:
output:The entire structure is composed of ground stainless steel (material no. 1.4301 – ANSI 304).A base frame with three hinged front doors and an edged-on strip handle, as well as three-dimensional adjustable door panels.

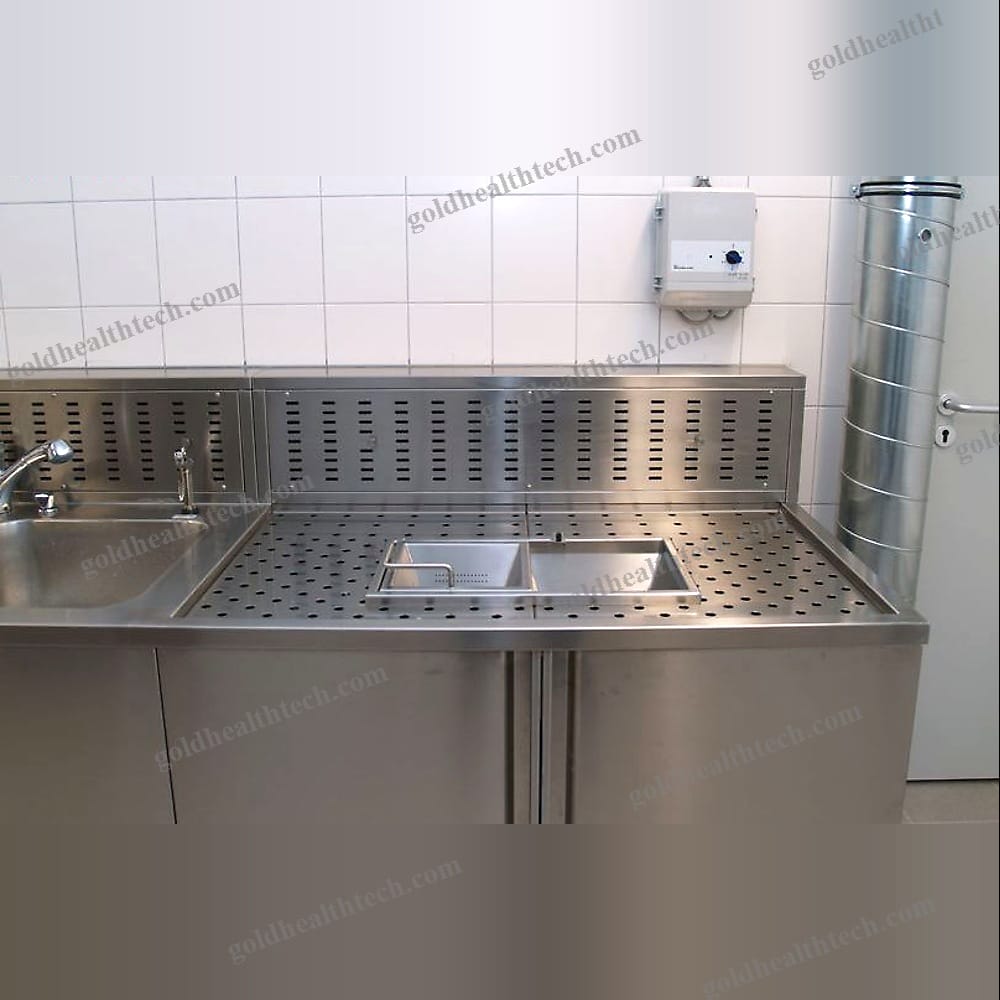

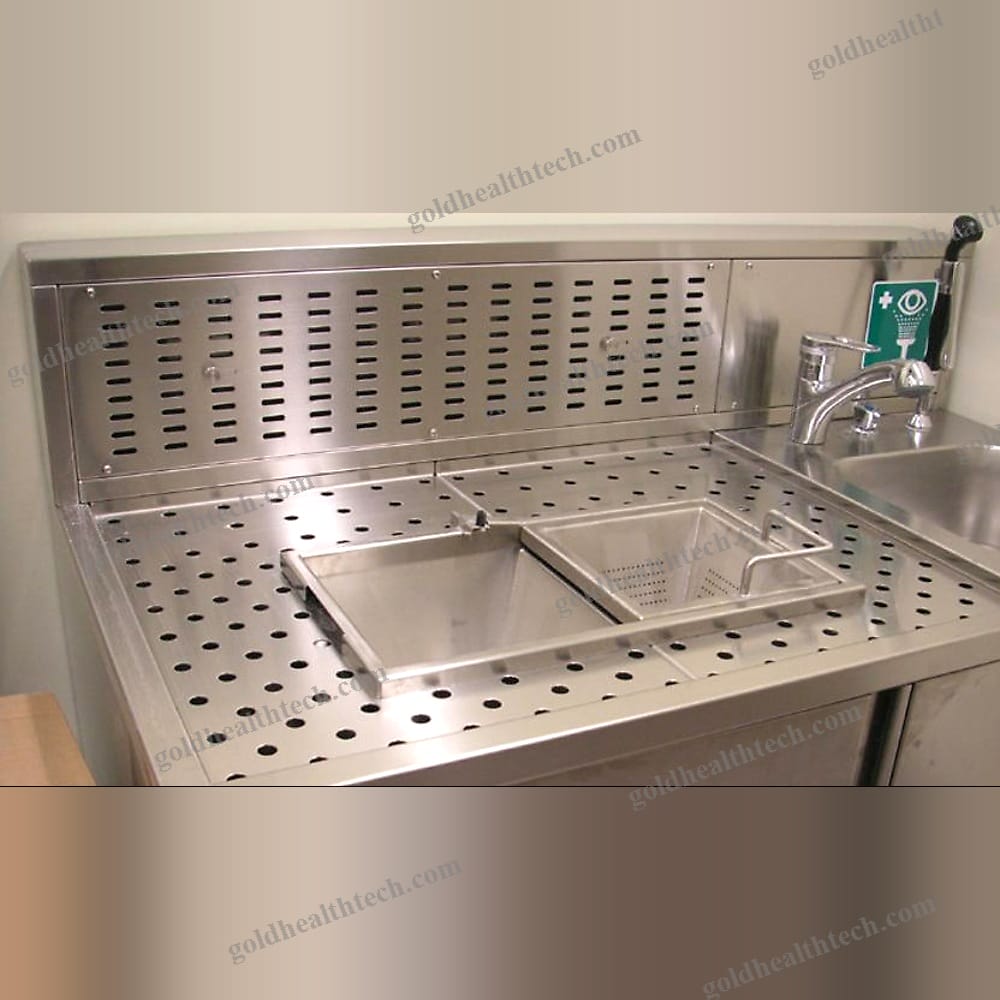

A removable inlayed grading screen (flap mechanism) is located within the perforated plates area to separate liquid substances from solids.

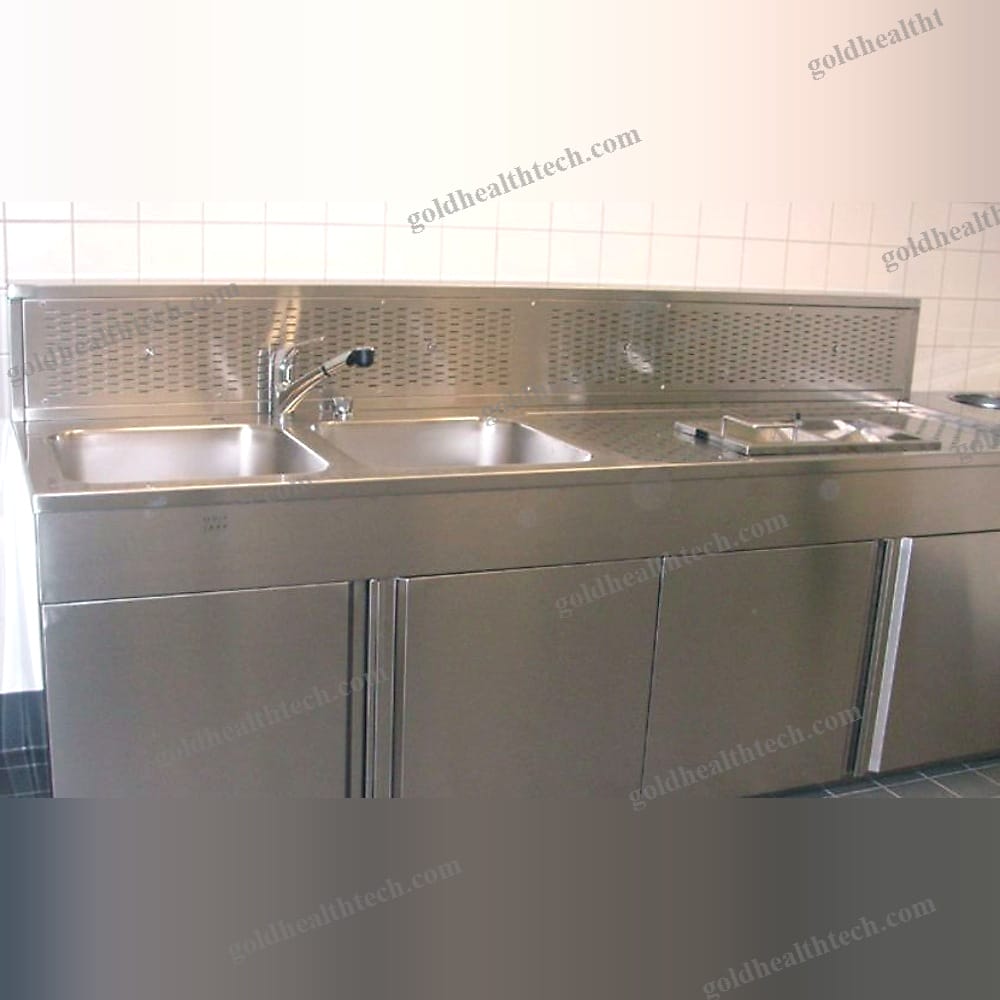

A 400 x 400 x 200 mm seamless welded basin with a standpipe valve is located on the left (with the exception of the ESS-1200, which is not included in the standard scope of delivery).Basin with an integrated ventilation system that can be installed on either the right or left sideMixing a hand sprinkler with a tapD17 perforation, T60, extremely stable perforated working plates (approximately 10 mm lower than the circumferential edging).

The minimum exhaust air capacity with the perforated working surface is 0.4 m/sec.Connecting pieces that are integrated with flow rate regulationA sprinkler system with a regulating valve is integrated beneath perforated working plates.Connecting components for exhaust air with the option of a right or left side

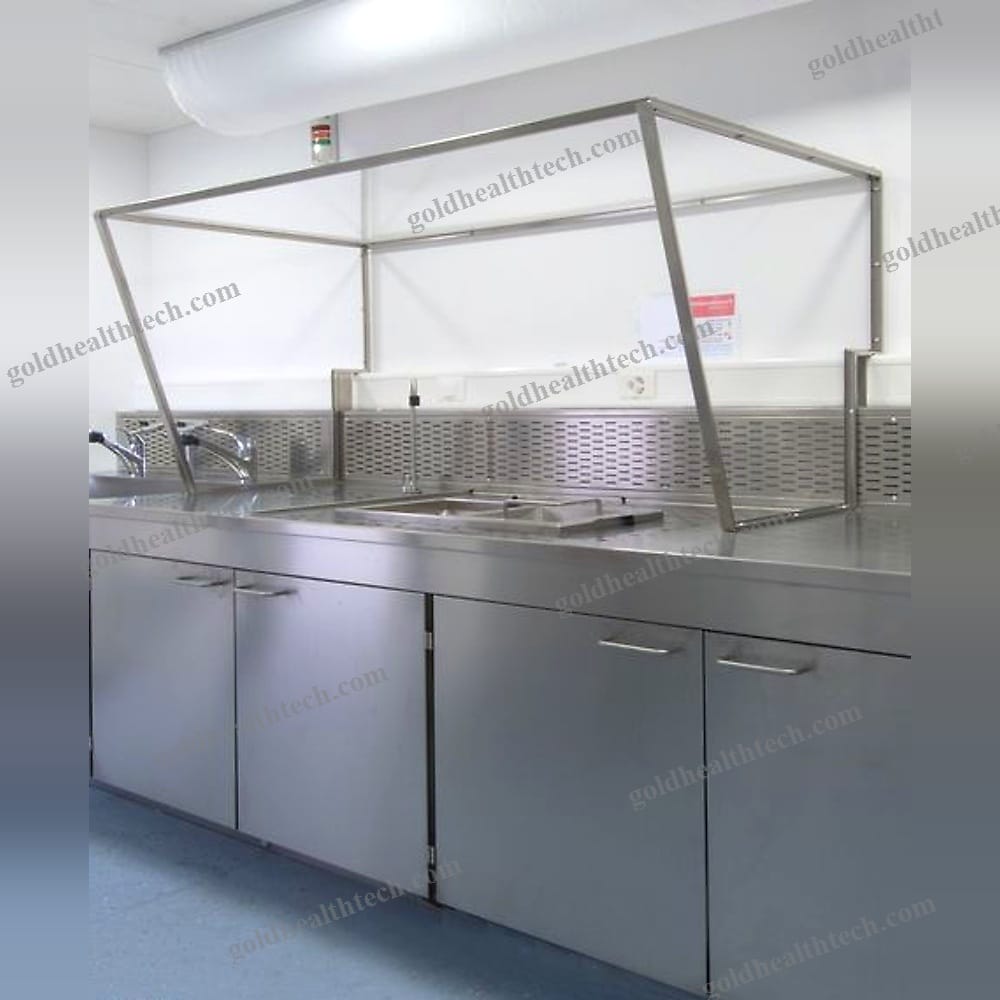

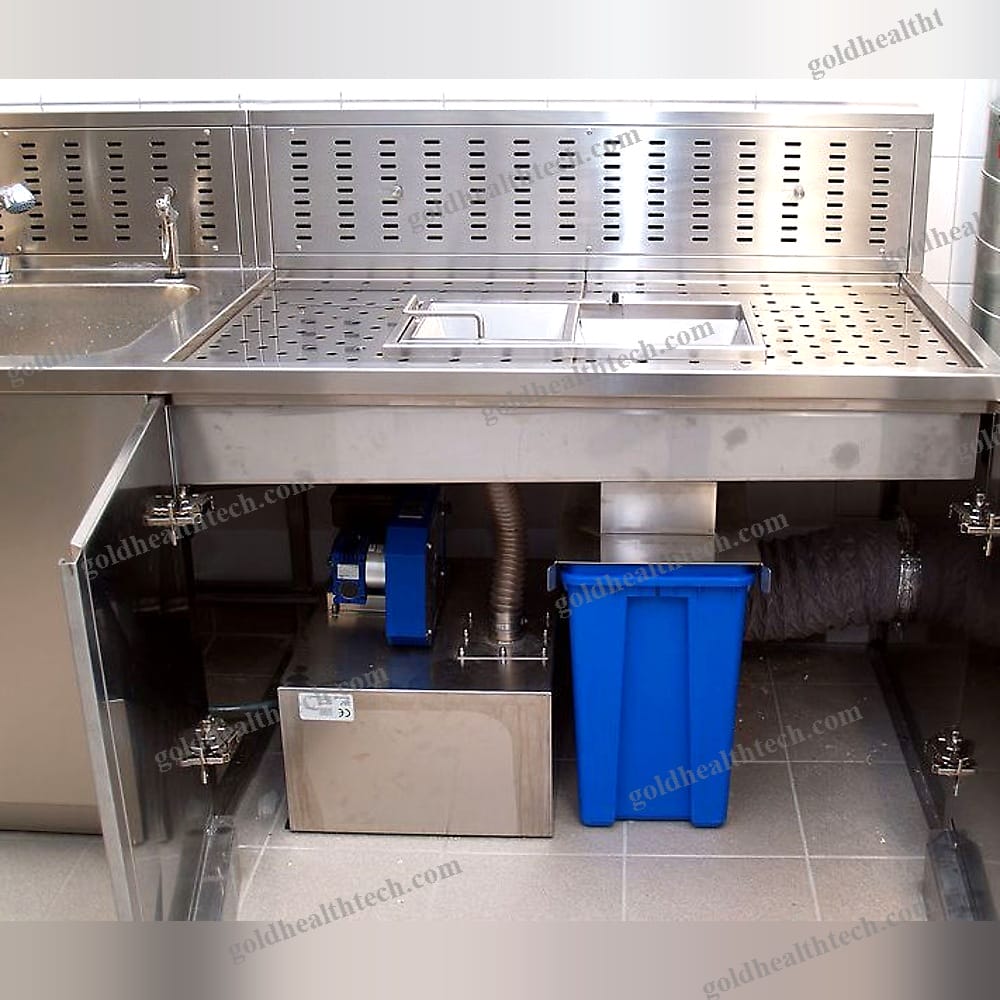

Inclusion of three-tiered plexiglass construction in the upper portion20 liters are included. Waste formalin container with a level sensor

The delivery does not include a tissue waste container.

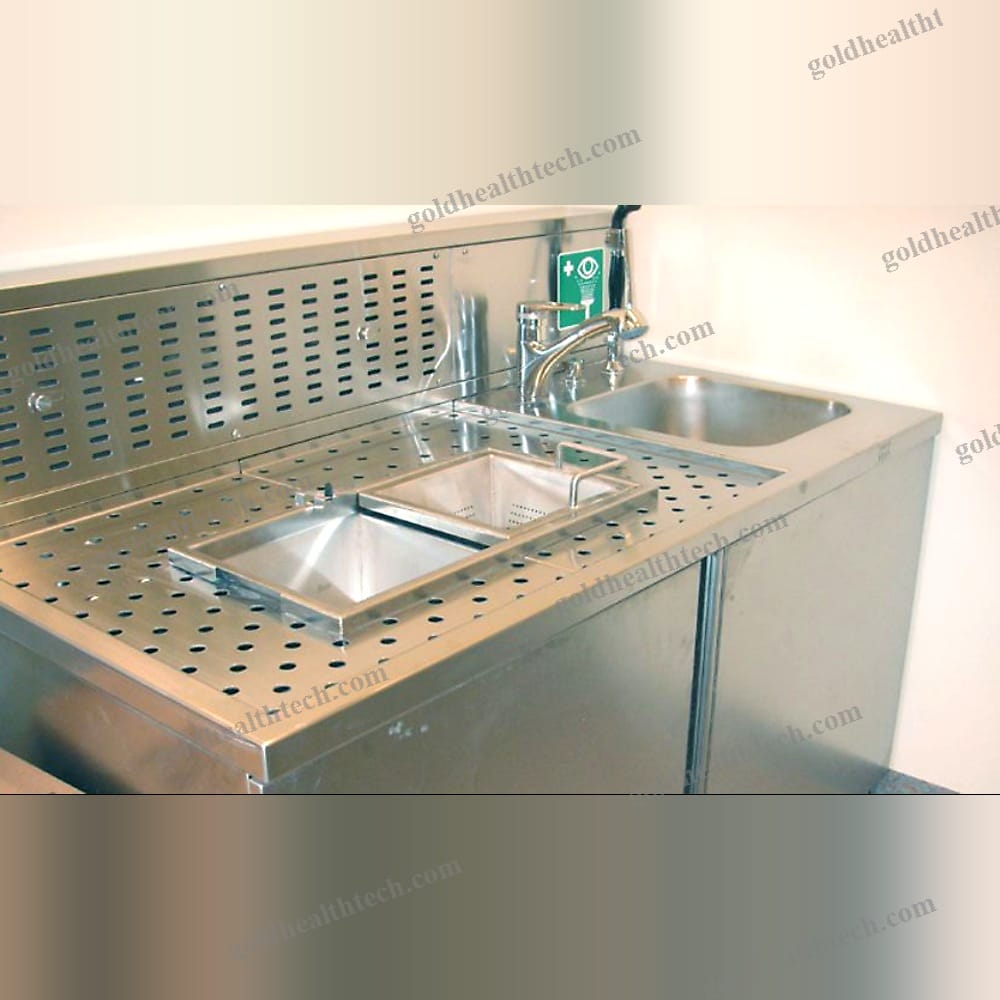

mounted to the table is an eye shower with a shower head.Various dimensions are available upon request.TECHNICAL DATADimensions: 1750 x 850 x 850 mm br/>
Capacity of exhaust air: A minimum of 1500 cubic meters per hour
