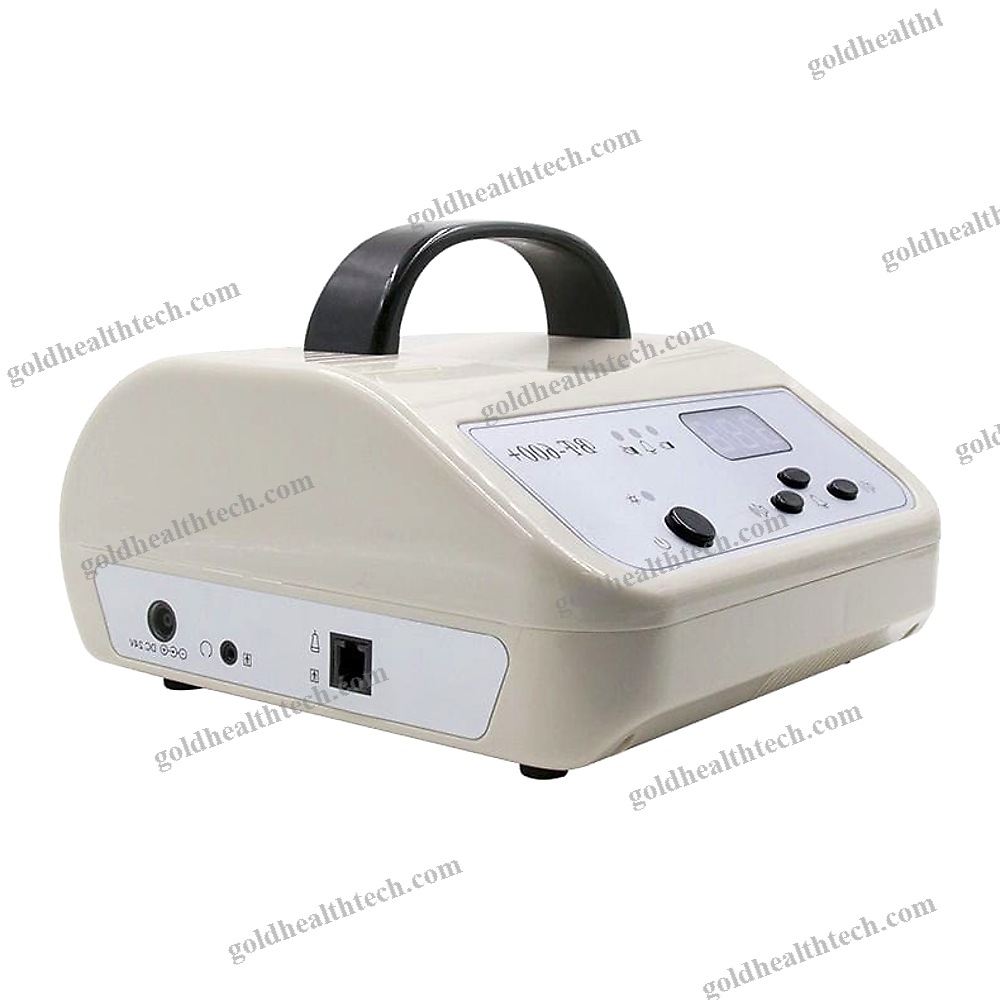

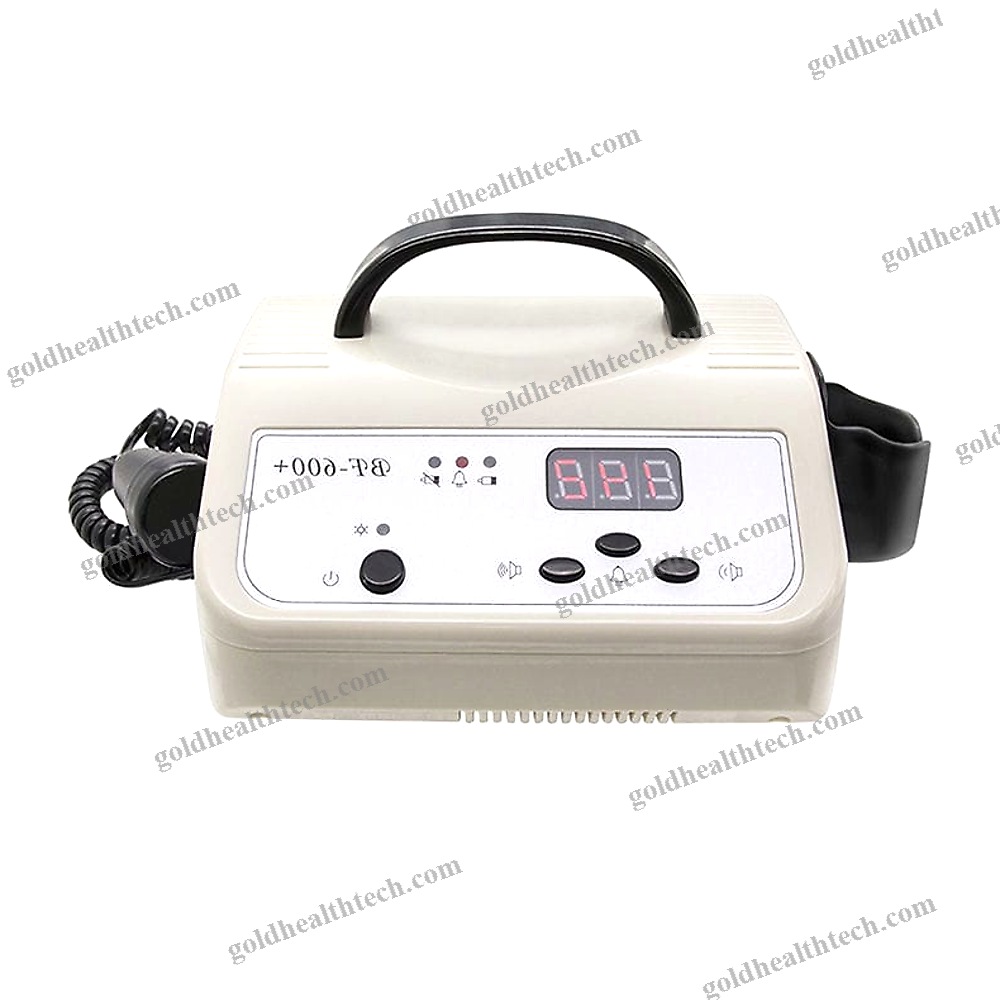

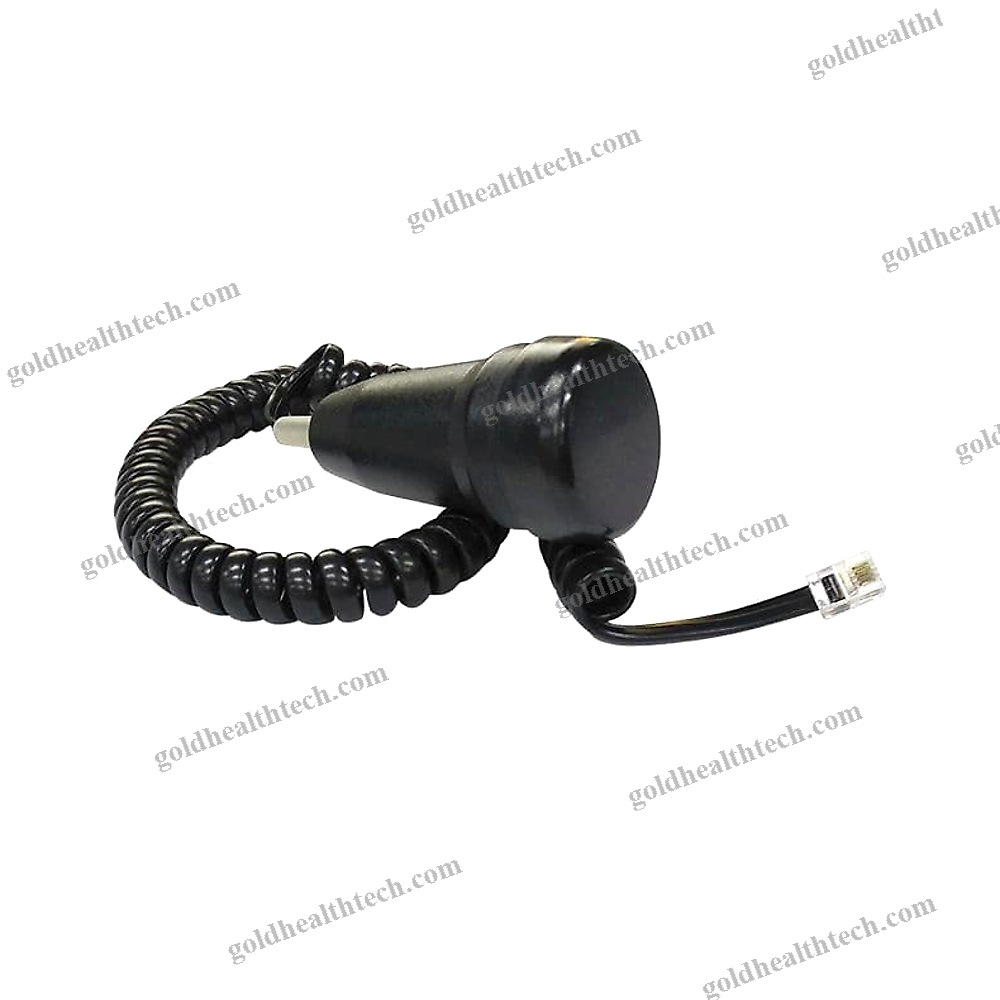

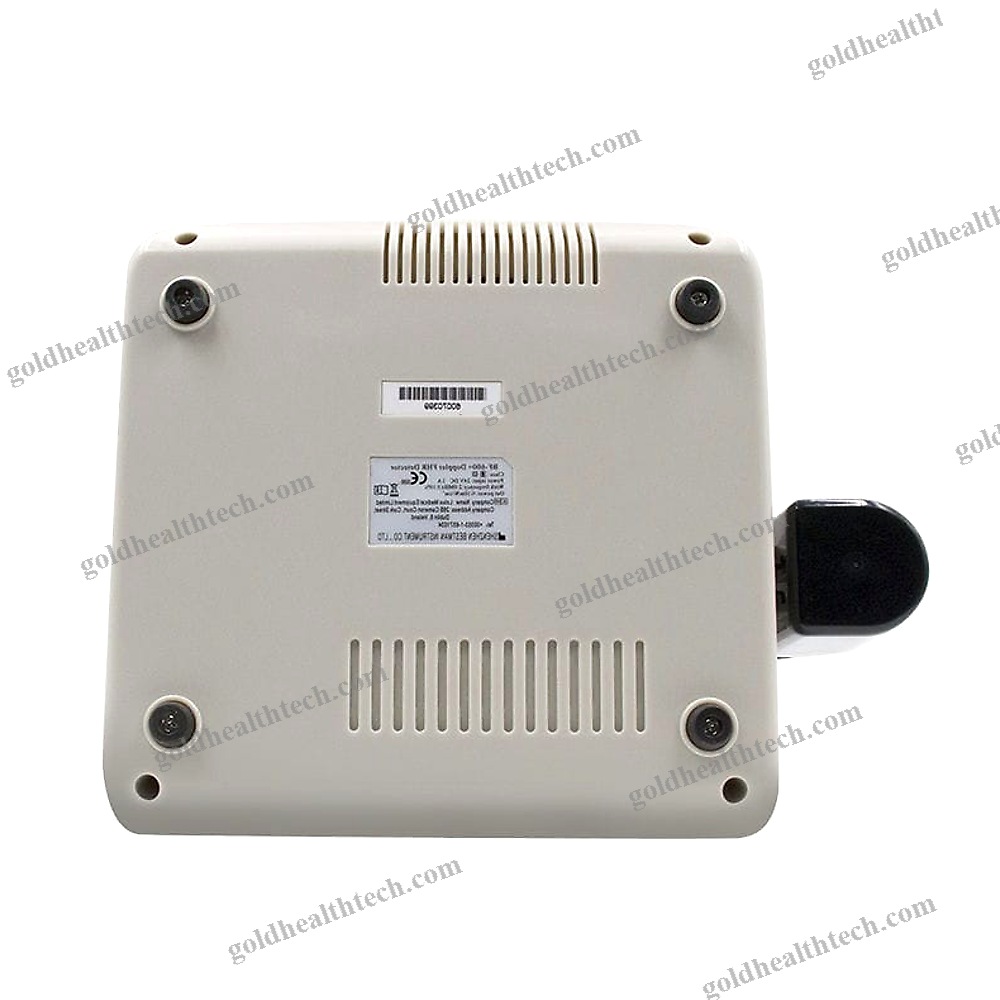

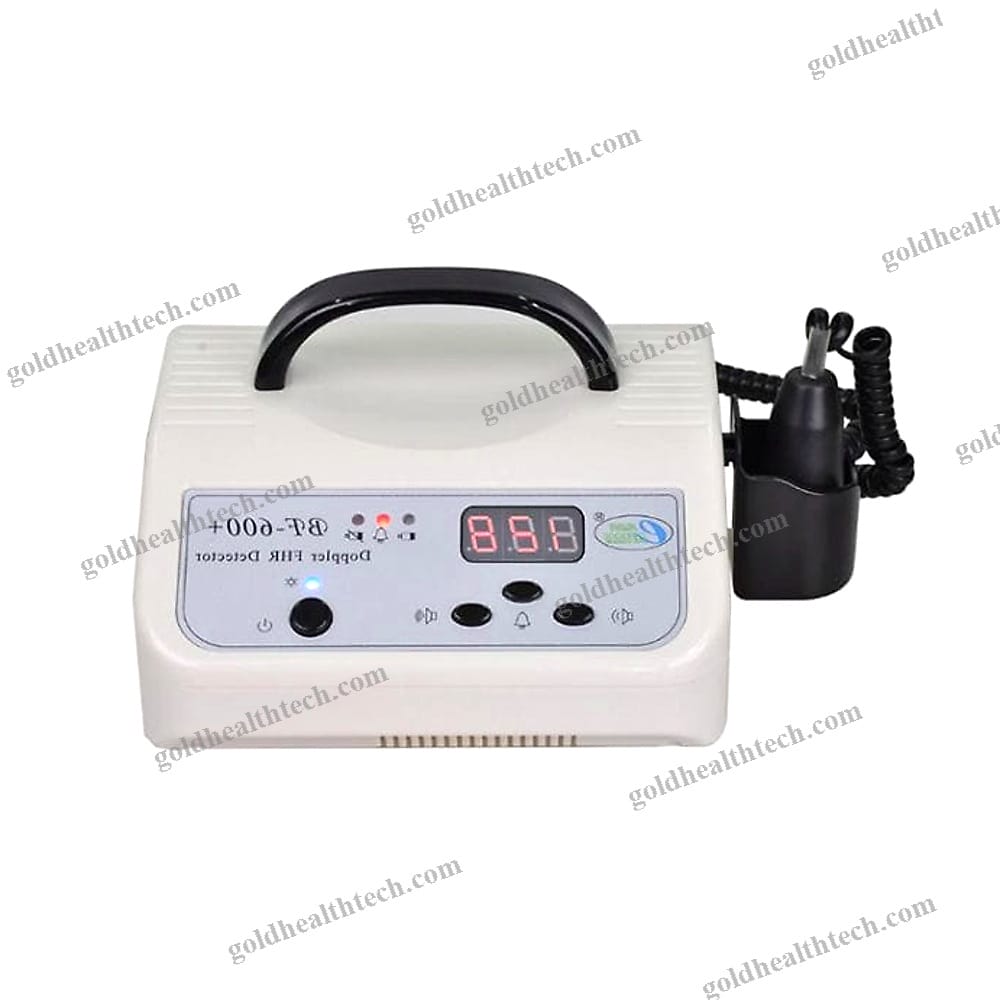

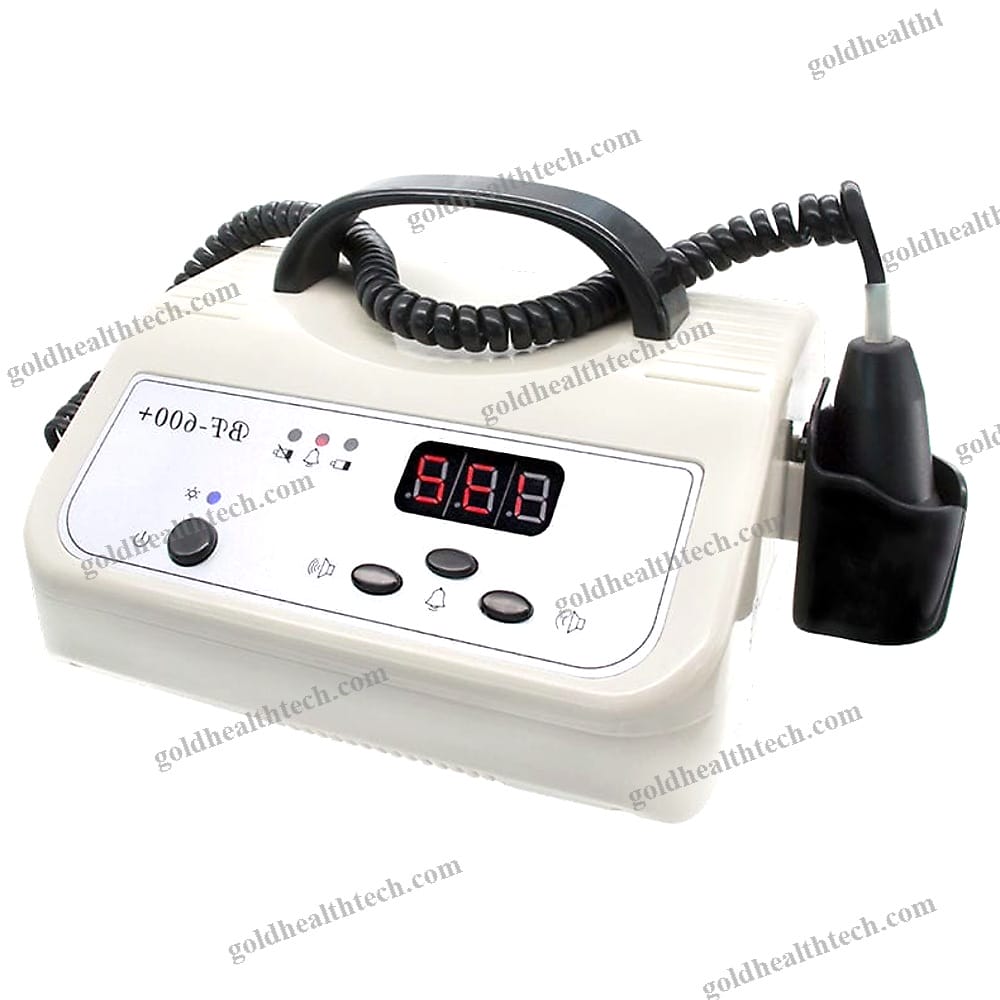

Fetal Doppler

1. The Portable Fetal Doppler is primarily used to detect the fetal heartbeat rate from the twelfth week.

2. The LED can display FHR, and the built-in rechargeable battery can operate continuously for over six hours.

3. The alarm function is activated when the FHR is outside the normal range or when the battery power is insufficient.

4. Automatic power-off (three minutes)5. An earphone jack is located adjacent to the built-in speaker.Specificationinput:
output:1. Executive Standard: EN61266: 1995

2. Ultrasonic frequency: 2.0MHz±10%

3. Ultrasonic intensity: ≤10 mW/cm2

4. Comprehensive Sensitivity: ≥90dB

5. Functional heart rate (FHR) range: 60-210 beats per minute (±2 beats per minute)6. FHR alarm range: ≤100bpm or ≥170bpm

7. Isptp: ≤0.1 MPa

8. Battery: Ni-MH rechargeable batteries with a capacity of 14.4V and 1600mAh.9. The voltage of the adapter input is AC. 110V±10% 60Hz / 220V±10% 50Hz10. The input voltage of a rechargeable battery in the absence of a load is DC 24V±1V.11. The maximum audio output intensity is ≤ 2W.12. Doppler frequency: 100-3000Hz13. Continuous work, static: ≥6 hours14. Operational temperature: 10–40°C15. Humidity: ≤80%16. Atmospheric pressure: 86-106 kPa
