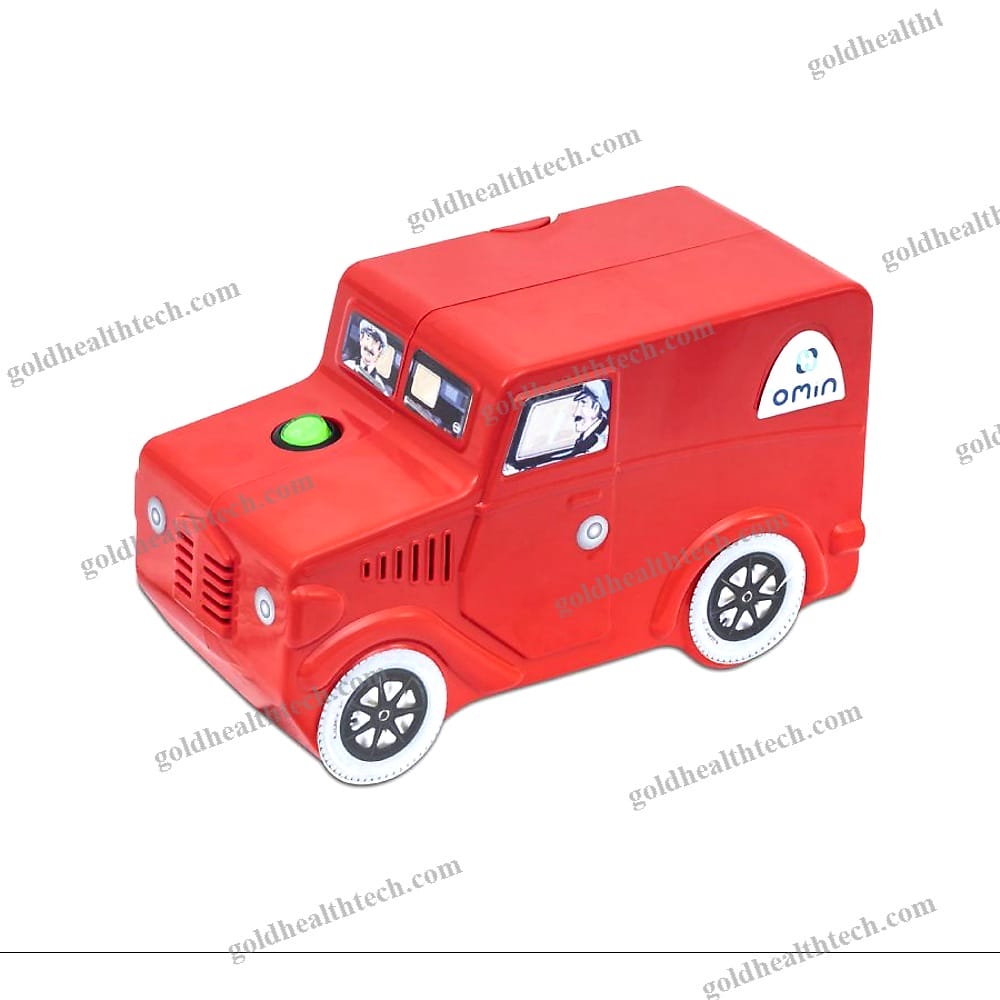

Electro-Pneumatic Nebulizer
Reference: 667584General Practice
| Type | Electro-Pneumatic |
| Applications | Pediatric |
| Configuration | Hand-Held |

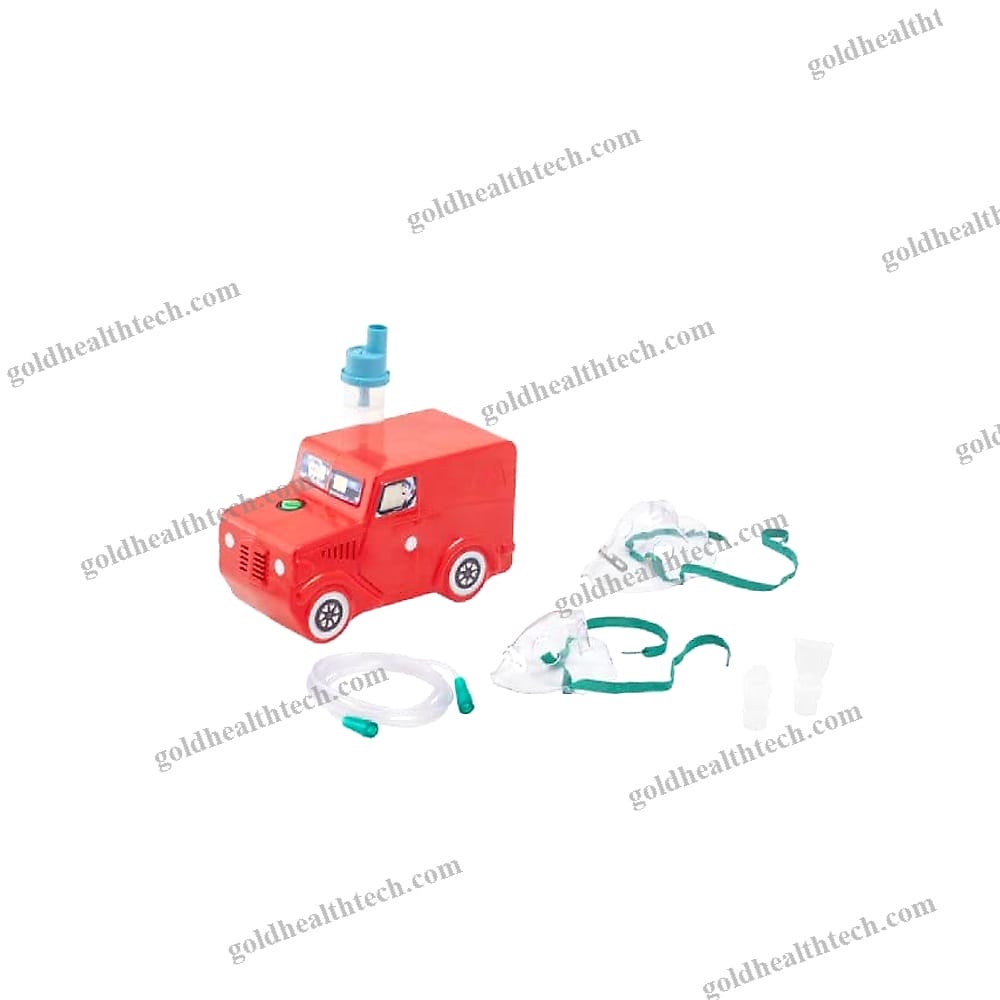

| Accessories | With Mask, With Compressor |
Documentation request
Ask which specifications, manuals, or commercial documents are available for review.
Supplier coordination
Discuss quantity, destination, packaging, and timing before confirming suitability.
Product information
Product summary
The medicine container is adjustable for nebulization rate, and it has a capacity of 6 ml. The vapor output is powerful. All accessories are washable.
Latex-free Made in TurkeyThe nominal operating voltage is 220V AC at 50 Hz.
Power Consumption: 150 VA
Operating Pressure Range: 0.6 to 1.1 bar (9 to 16 psi), (62 to 110 Kpa)
Maximum Pressure Range: 2.4 to 3.4 bar (35 to 50 psi), (241 to 345 Kpa)
Work Environment Temperature range: 5°C to 40°CHumidity: <90% R.H.Atmospheric Pressure: (86-106) kPaStorage and Transportation Conditions - Temperature: 25°C to 70°CHumidity: <10% to 95%. RH
Atmospheric Pressure: (70-106) kPaClass II Protection Against Electrical ShockType B Applied PartsIngress Protection: IP20
Latex-free Made in TurkeyThe nominal operating voltage is 220V AC at 50 Hz.
Power Consumption: 150 VA
Operating Pressure Range: 0.6 to 1.1 bar (9 to 16 psi), (62 to 110 Kpa)
Maximum Pressure Range: 2.4 to 3.4 bar (35 to 50 psi), (241 to 345 Kpa)
Work Environment Temperature range: 5°C to 40°CHumidity: <90% R.H.Atmospheric Pressure: (86-106) kPaStorage and Transportation Conditions - Temperature: 25°C to 70°CHumidity: <10% to 95%. RH
Atmospheric Pressure: (70-106) kPaClass II Protection Against Electrical ShockType B Applied PartsIngress Protection: IP20
