Dental Laboratory Dust Suction Unit

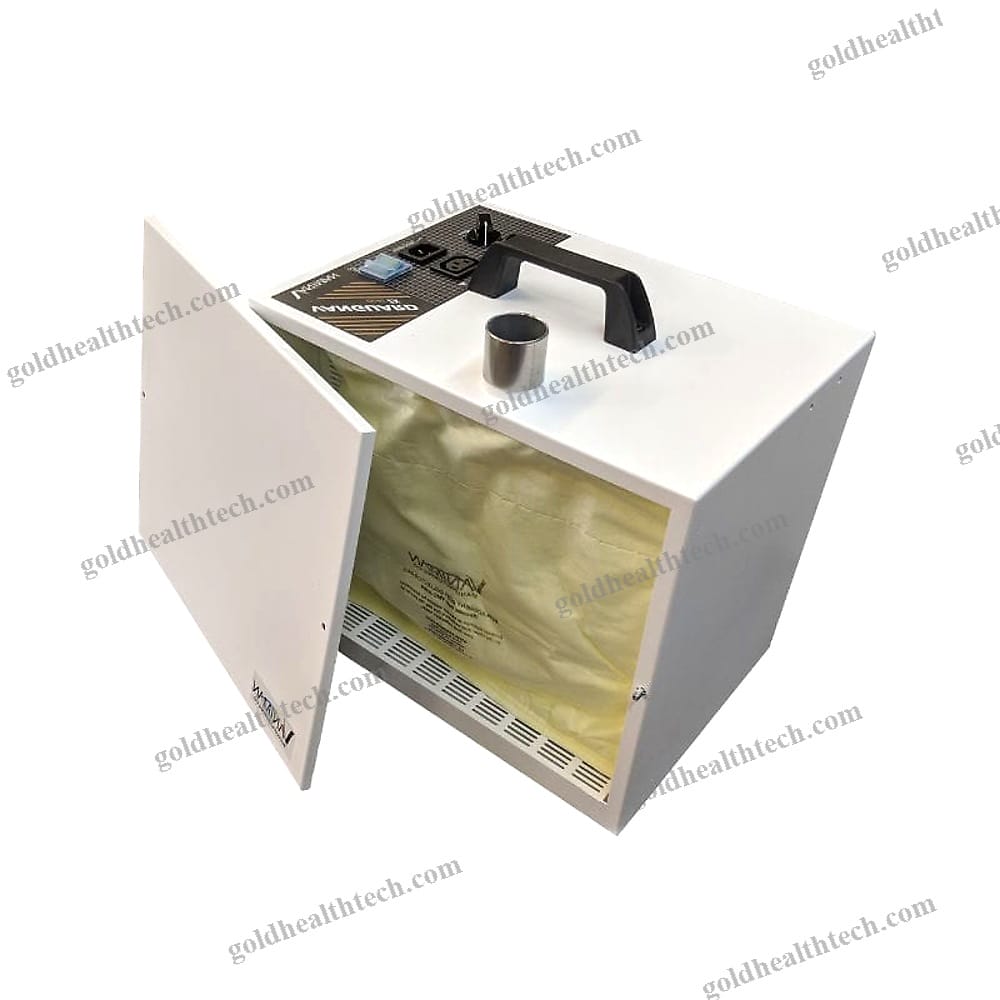

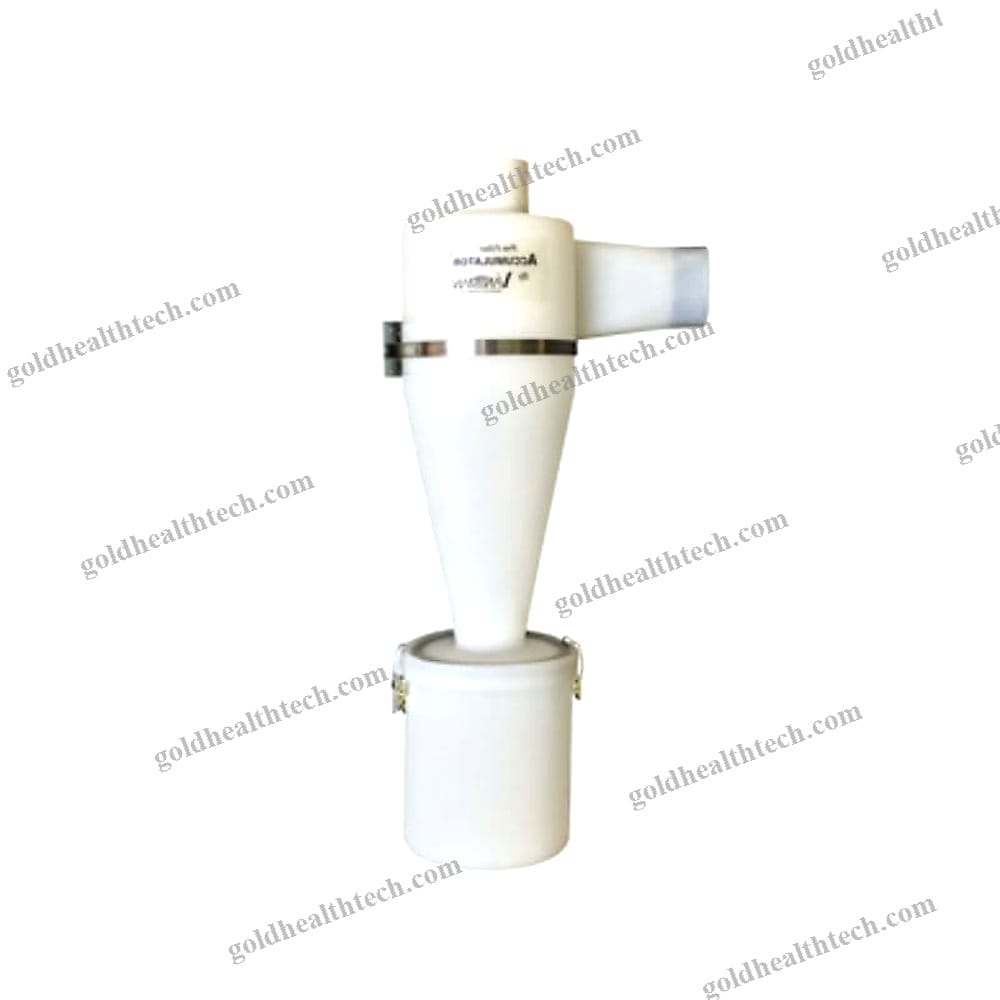

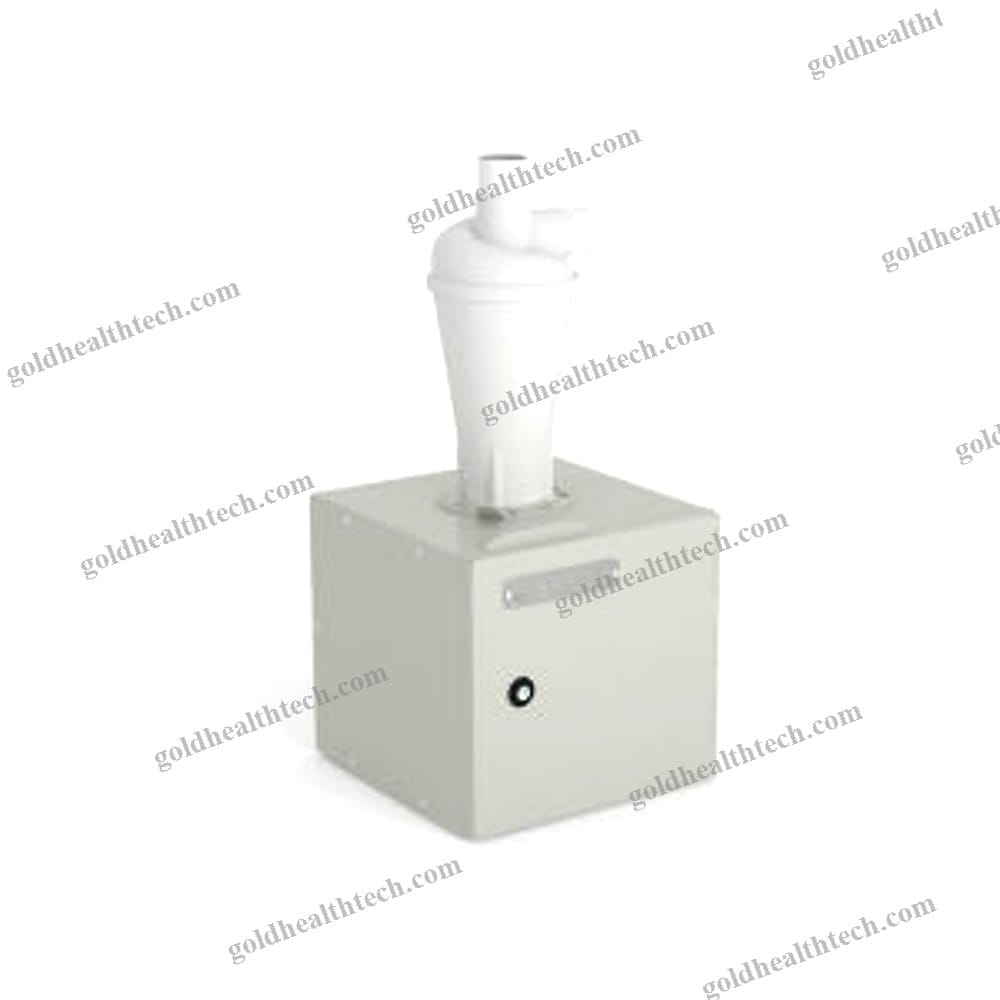

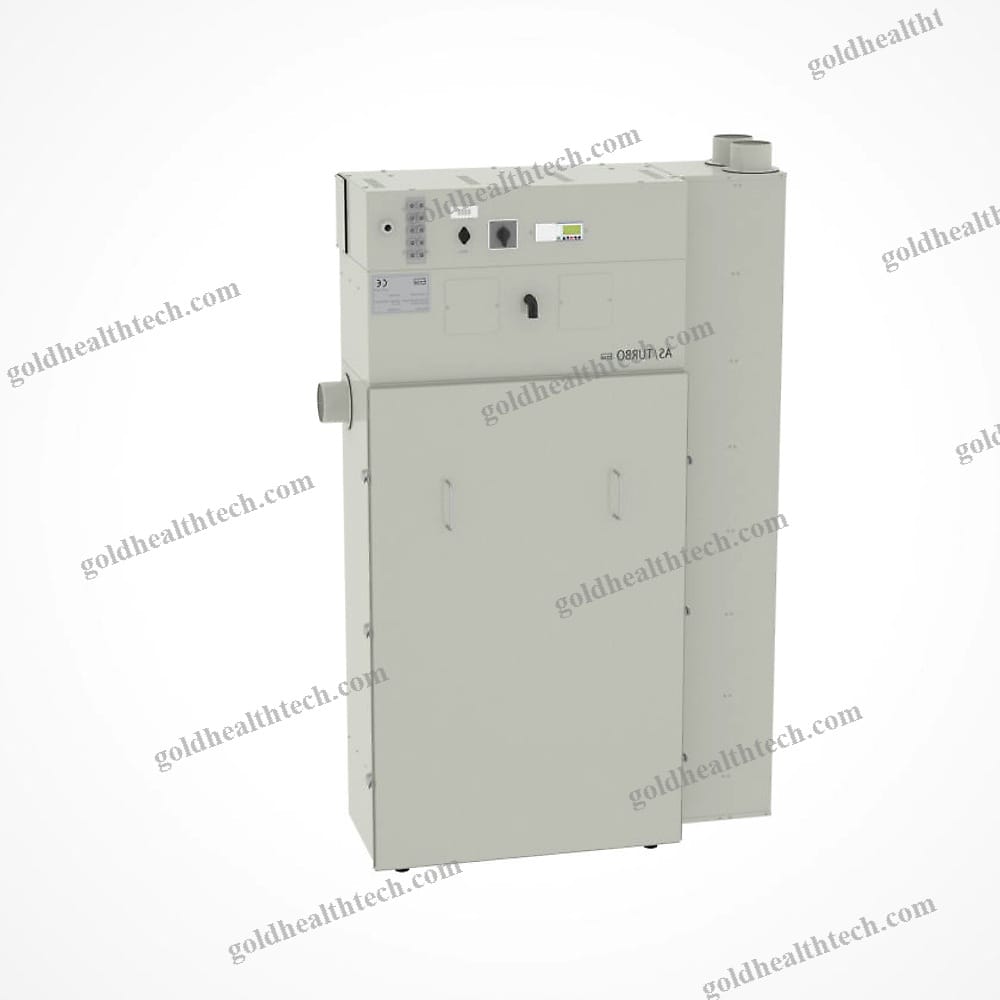

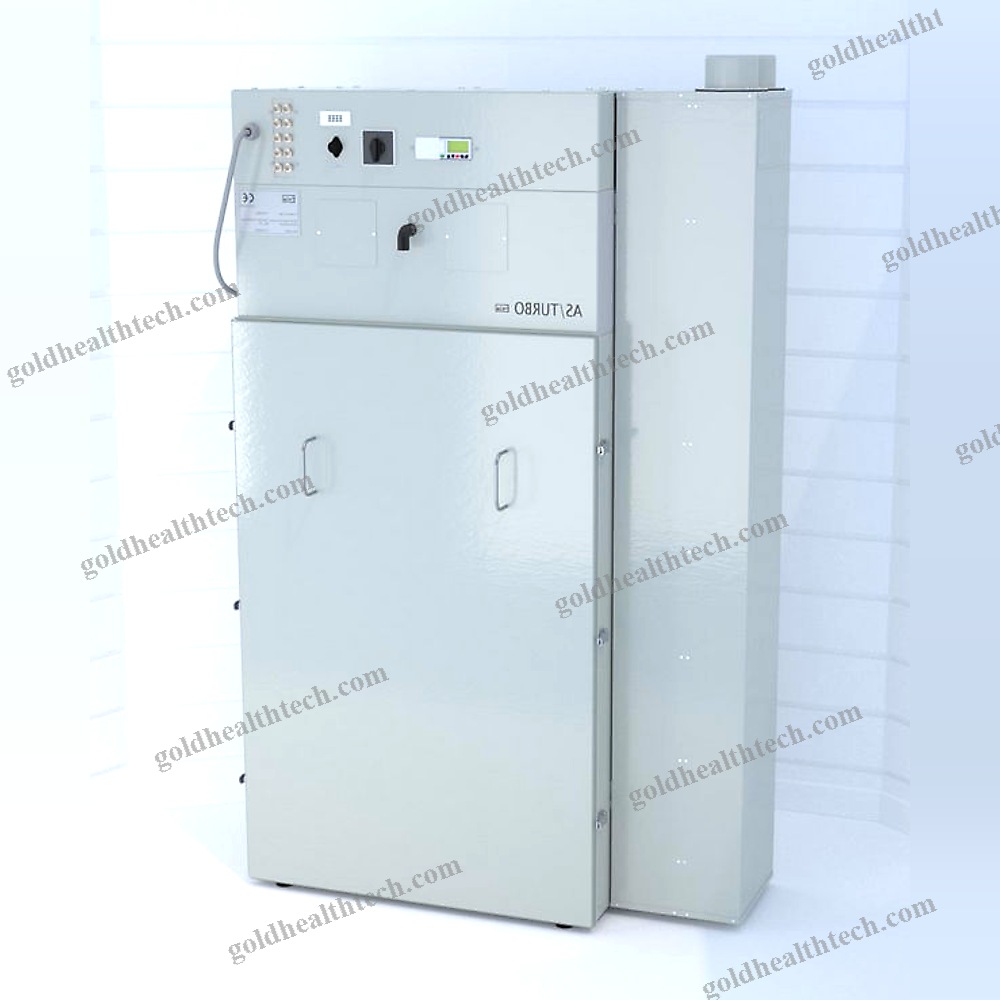

It is a centralized unit that is equipped with brush-less motors, which are devoid of carbon brushes. A dust and powder separator is located at the inlet, and the filtering system consists of two self-cleaning and high-efficiency cartridge filters. A computer is responsible for automatically controlling the power supply to the motors (which is contingent upon the number of active users) and the filter cleaning cycles of the machine. The filter maintenance is indicated on the computer display after approximately 1500 working hours. An audible signal will be issued to notify the user when the lower container, which contains 60kg of plaster powder, needs to be emptied. The compressor must have a minimum capacity of 150 liters per minute in order to be connected to the unit.



Technical specifications:· Supply: single-phase, 230V, 50-60 Hz;· Power: 3600 watts;· Compressed air pressure: 6 bar;· Piping: 11 cm in diameter, with a maximum length of 24 meters (the diameter gradually decreases to 4 cm at the workstations).· The maximum number of concurrent users is 10.· Noise: 74dBA with silencer;· Air outlet: located on the top or side;· Dimensions: 115x47x183H cm (add 30cm to each side for the connection; if the outlet is located on the top, add only 30cm to the right).
