Counting Machine For The Pharmaceutical Industry

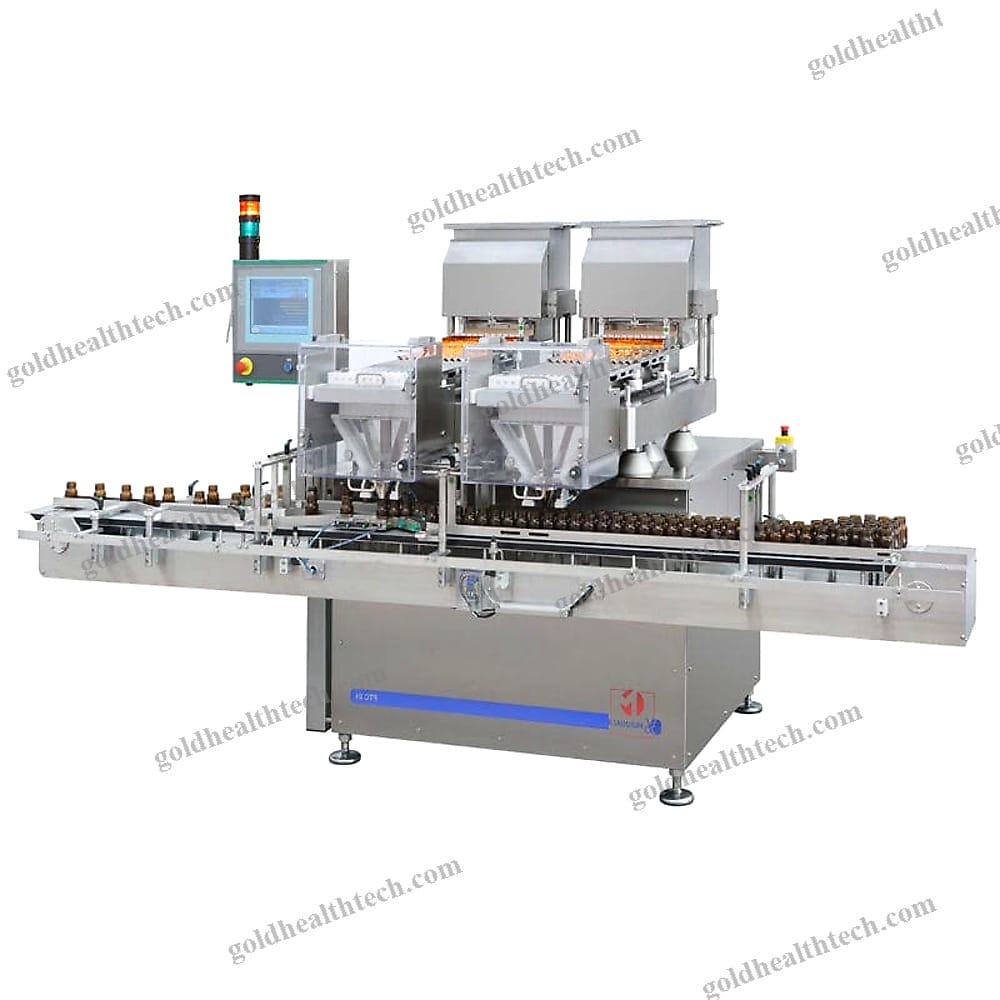

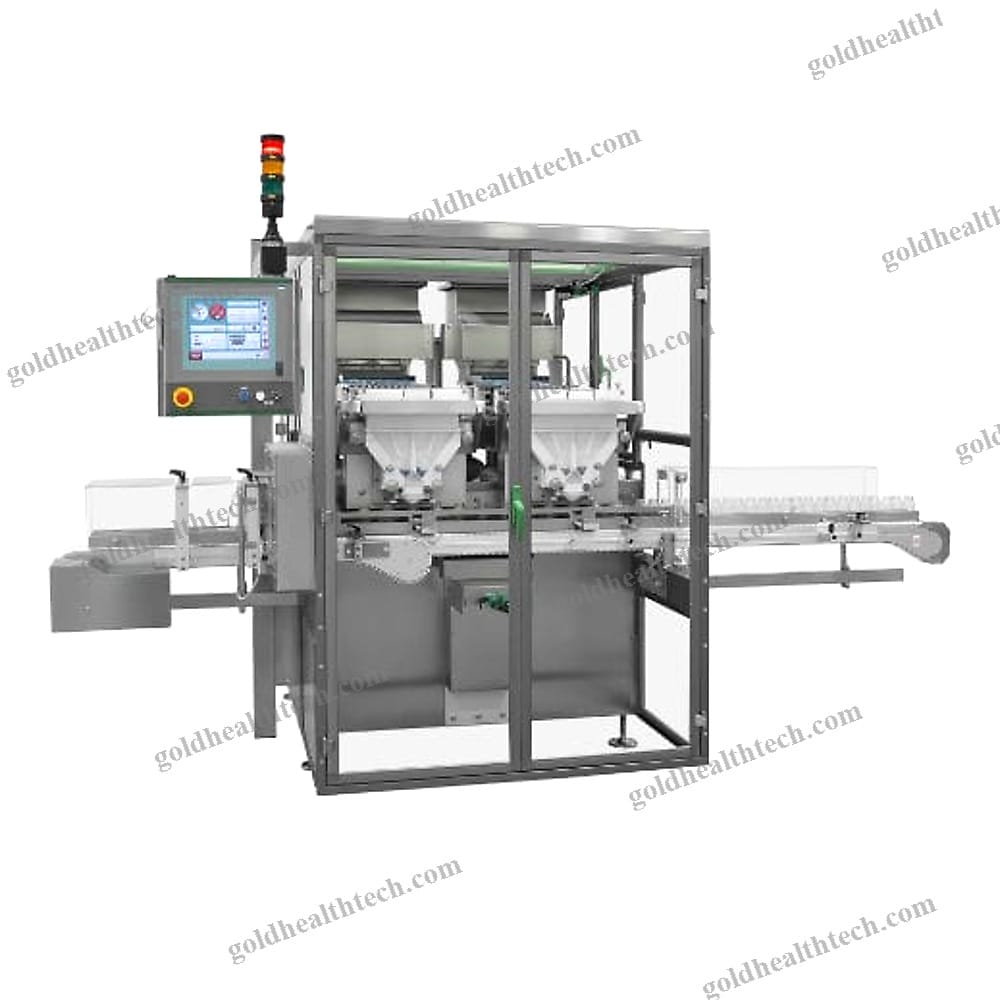

An automatic machine that operates in intermittent motion is designed to count and fill bottles with tablets, coated tablets (dragées), hard and soft gelatine capsules, and lozenges. input:
output:This encompasses the preparation for the installation of the 2D product control system. input:
output:Primary characteristics:In compliance with cGMP standards, ergonomics, manufacturing, and design.

In order to prevent "cross-contamination," it is imperative to maintain a distinct boundary between the capping area and the bottle filling area.

A conveyor belt for bottles in the balcony style that automatically adjusts the height of the bottles.

For all machine operations, there is intermittent motion.

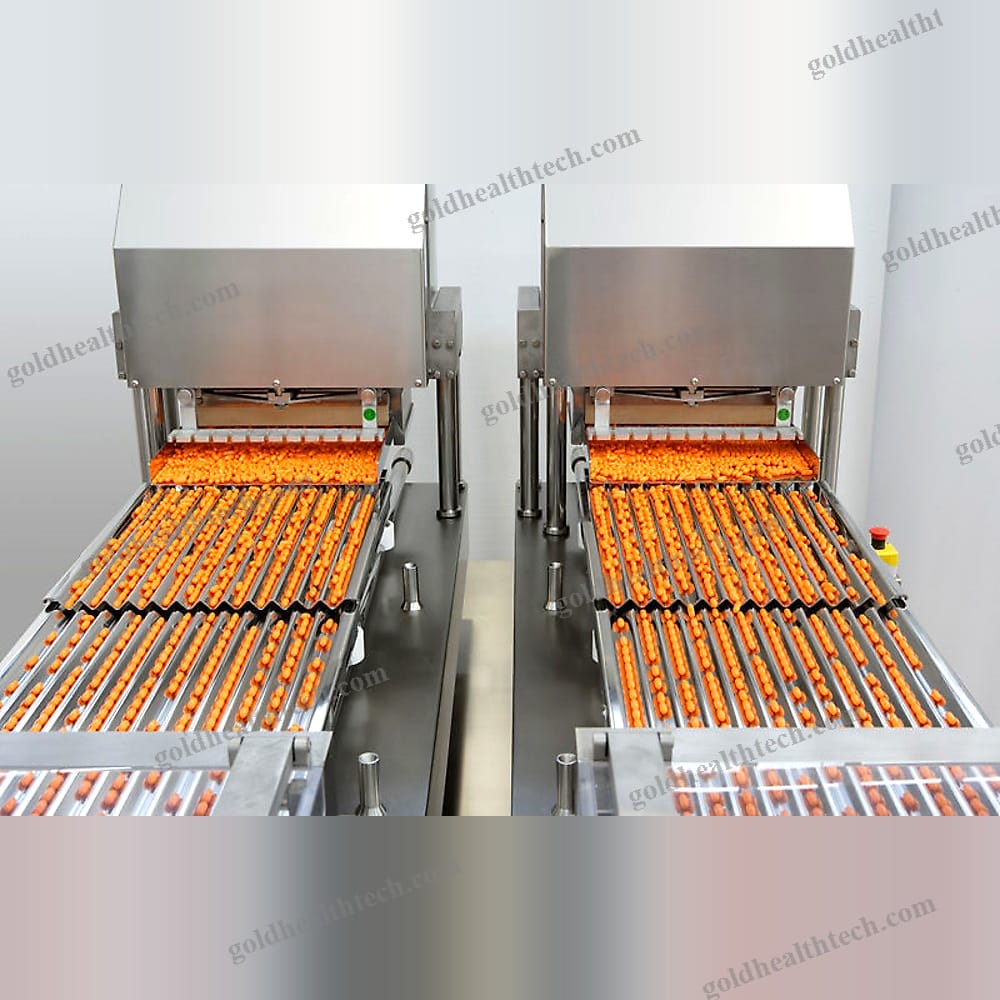

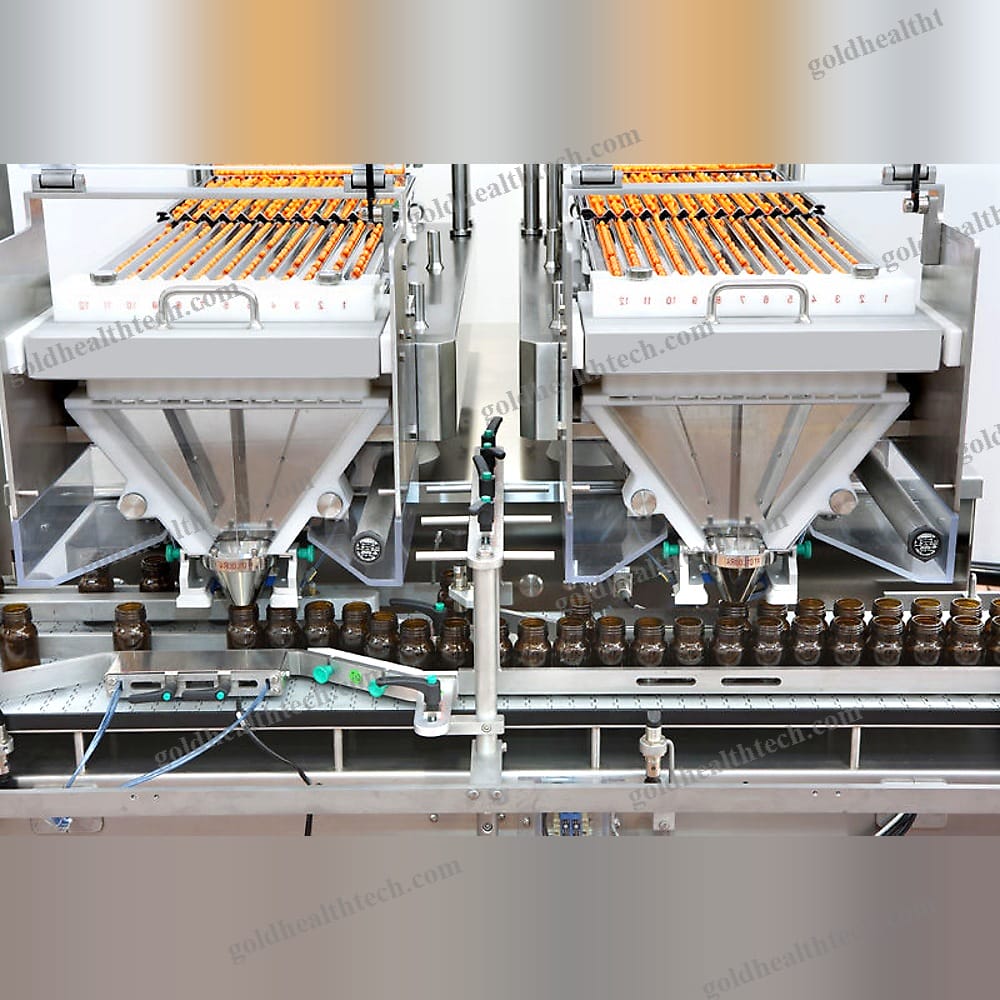

The electronic counting group is comprised of three vibrating trays with 12 channels (FTC-24 counting two groups).A self-learning system that allows users to insert and memorize new product recipes on a personal computer, with the recipes being recalled from the display.

The electronics incorporate synchronization control. Modifications implemented from the display.

Conveyor belt that is easily accessible for the inspection of plastic or glass bottles.

Through digital indicators and millimeter scales, automatic or guided adjustments facilitate a rapid and effortless size change without the need for tools.
