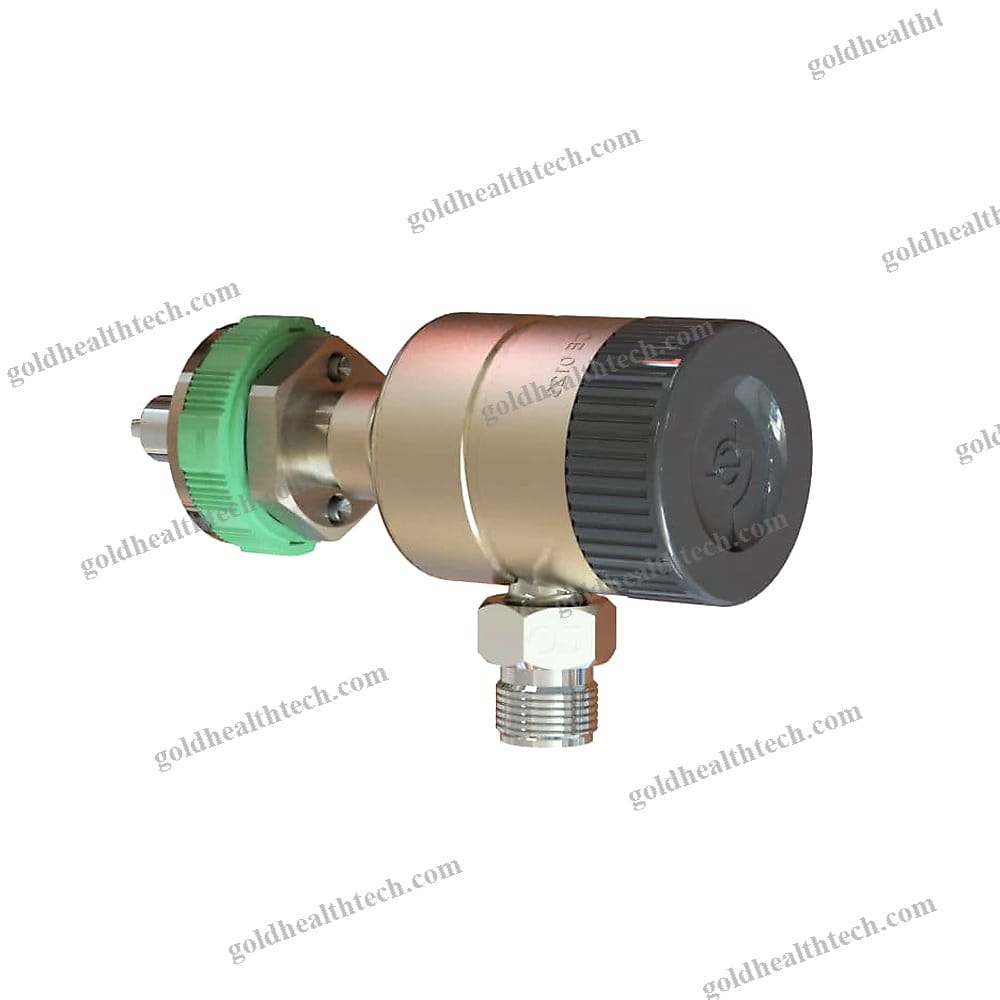

Column Flow Meter

It is designed for use in high-flow applications or in stressful environments, such as ambulances.

Offering an alternative in situations where conventional flowmeters (which include tubes) are inadequate.are unable to provide the necessary flow rate and are challenging to position vertically,thus complicating the measurement of the flow rate.input:
output:BENEFITS & FEATURES:

■ with pre-calibrated flows, click style

■ A design that is both durable and robust.■ User-friendly and dependable

■ Male outlet for oxygen DISS

■ Different international probes are accessible.>




TECHNICAL INFORMATION:■ Inlet pressure: 3.5-5 bars

■ Inlet flow: 40 LPM

■ Capacity for free air suction: Adjustable from 35 to 80 LPM

■ Vacuum level: 20-50 cmH2O adjustable

■ The diameter of the inlet pipe is 3/8 inches.■ The diameter of the exhaust pipe is 7/8 inches in the outer diameter.■ Construction material: ■ Box: Baked Painted Steel

■ Front Panel: Anodized Aluminum

■ Brass injector>




STANDARDS FOR MEDICAL GAS SYSTEMS:

■ NFPA99

■ ISO 7396

■ G-01■ HTM 02-01
